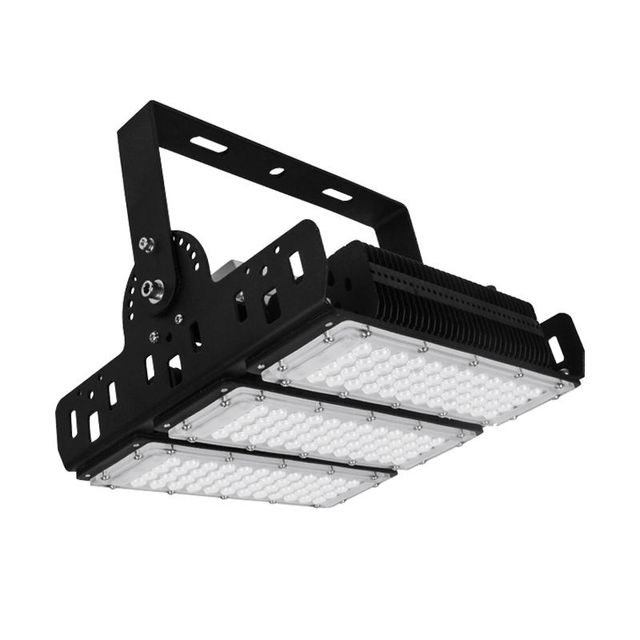

100W 120w tunnel light aluminum body outside 150w 200 watt tunnel light led lights ip65 per tunnel
- $68.90 / >=5 pieces
- 5 pieces
- Zhongshan Feilong Lighting Technology Co., Ltd.
- Guangdong, China
- Mr Presley Li
PRODUCT DETAIL
| Lamp luminous efficiency (lm/w): | 131.6 | light source: | lead |
| Intellectual property level: | IP65 | Packaging Details: | 1. Ordinary Guangzhou packing (export packing). 2. If they are fragile, we will provide wooden boxes to protect them. 3. If it is by sea, we can provide customers with shipping pallets. 4. The goods can be packed according to customer requirements. |
| application: | Tunnel/Subway/Highway | color: | white |

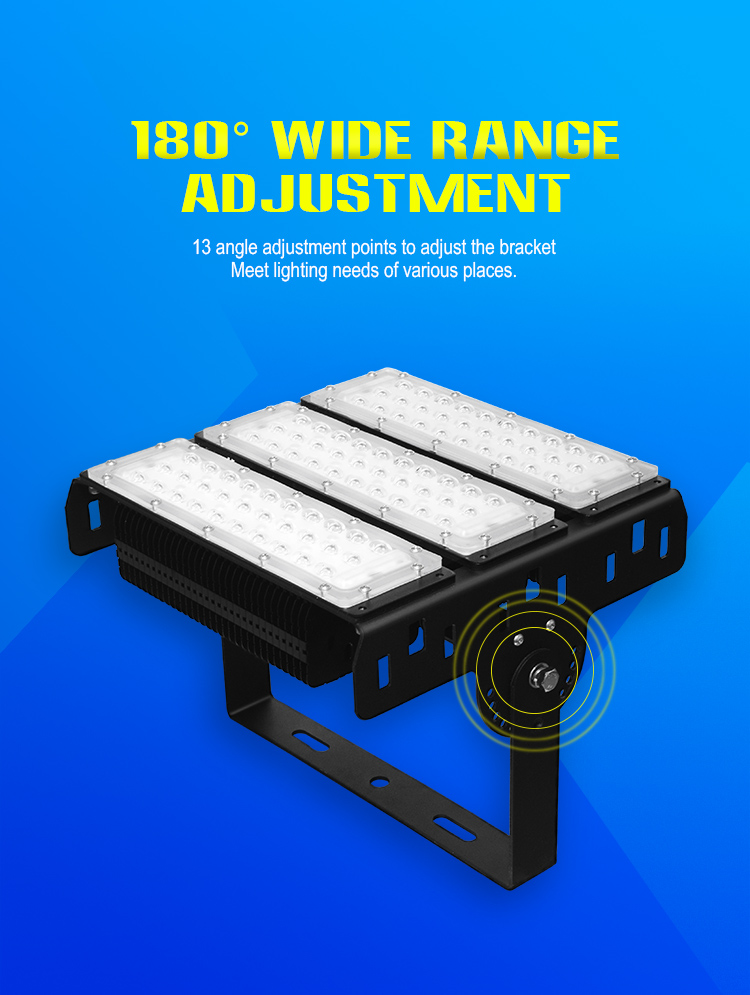

| Luminous efficiency: | 131.6 lumens/watt | Advantage: | Adjustable brackets/fins for cooling |
| Dimmers supported: | Yes | brand: | dragon |
| Warranty Period (Years): | 5 | LED light source: | SMD LED |
| Material: | Aluminum profile and PC plastic | Color rendering index (Ra): | 80 |
| Input voltage (V): | AC100-277V | Sales unit: | single product |
| Lamp luminous flux (lm): | 19665 | Lighting Solutions Services: | Lighting and Circuit Design |
| model: | FL-SDD-XH1-3MZ | Working life (hours): | 50000 |
| Lifetime (hours): | 50000 | place of origin; place of origin: | Guangdong, China |
| Color Temperature (CCT): | 3000-6500 | Certification: | ce |
| Gross weight per piece: | 5.400 kg | Color rendering index (Ra>): | 80 |
| Single package size: | 34X30X16 cm | Working temperature (℃): | -30 - 60 |
| Beam angle: | 60° 90° 60°x150° | Working hours (hours): | 50000 |

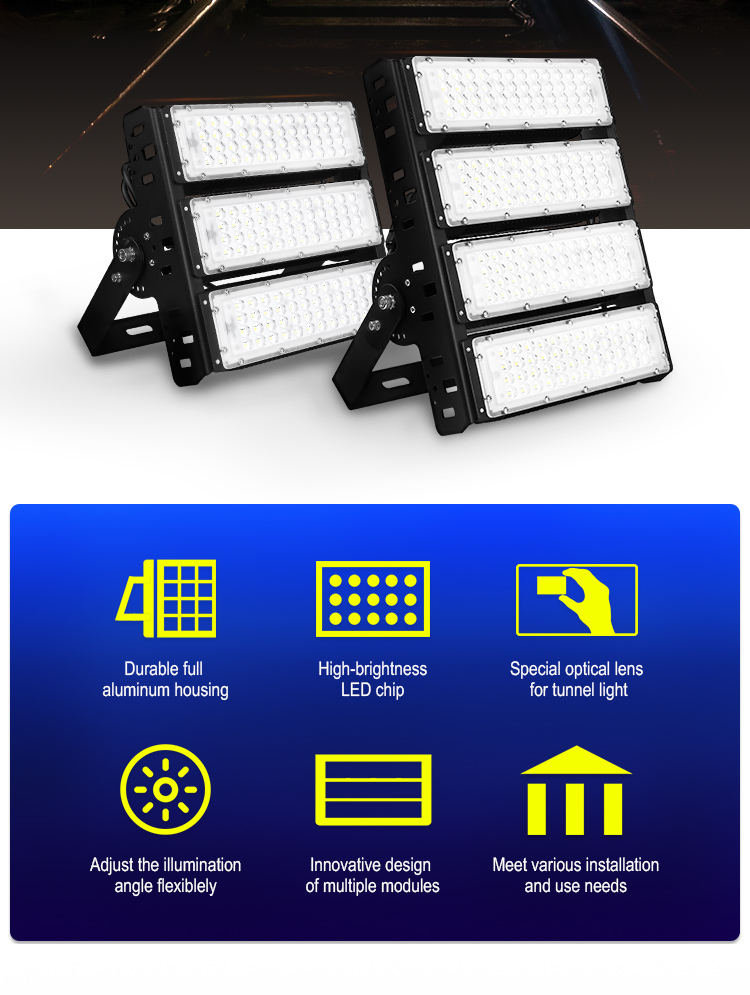

100W 120w tunnel light aluminum body outdoor 150w 200 watt LED tunnel light flood light ip65 for tunnel
| scope | ||||

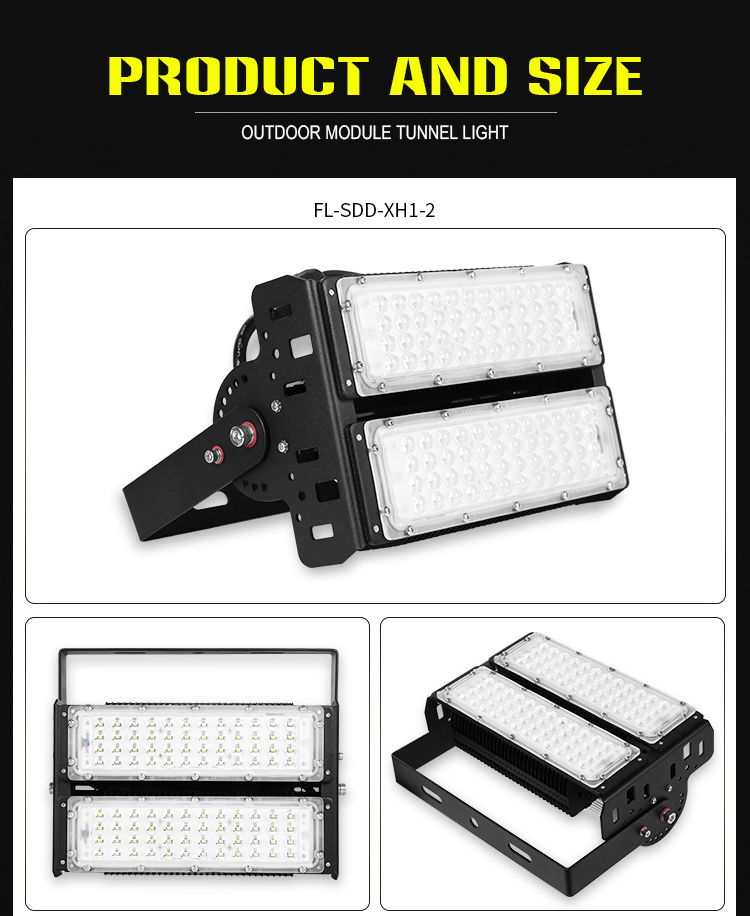

| Product number | 2 modules | 3 modules | 4 modules | 6 modules |
| strength | 60W/80W/100W | 90W/120W/150W | 120W/160W/200W | 180W/240W/300W |
| Chip model | SMD 3030 | |||
| Number of LEDs | 96 | 144 | 192 | 288 |
| Lamp efficacy | 120-140LM/W | |||

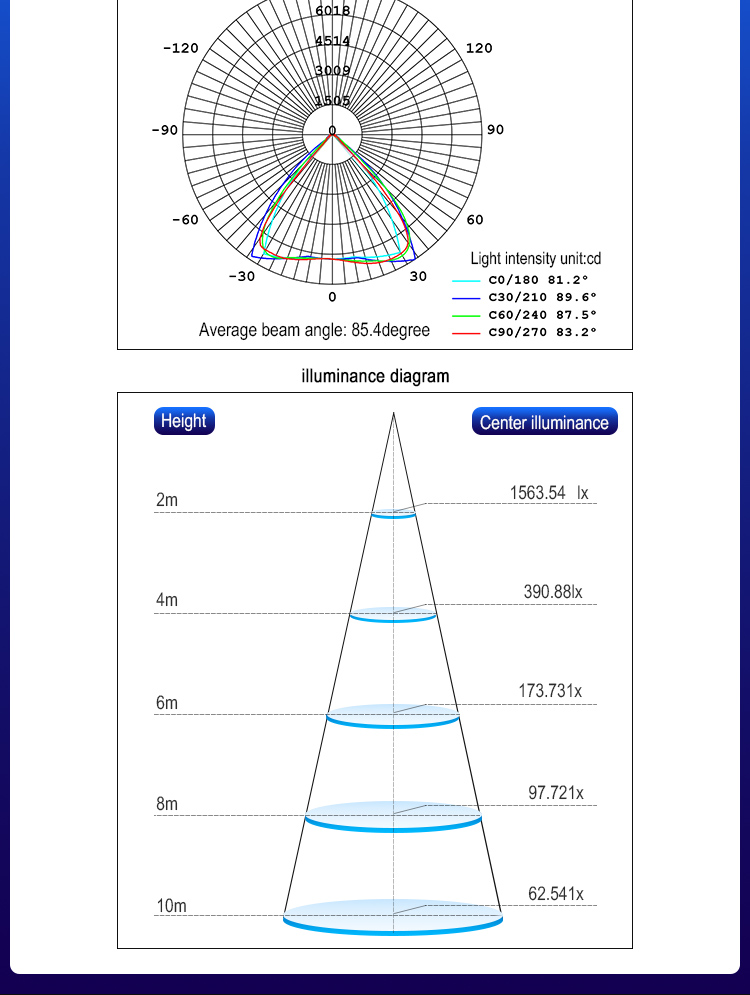

| Beam angle | 60°,90°,60°×150° | |||
| color rendering index | ≥70 | |||
| color temperature | 3000-6500K | |||
| Input voltage | AC100-277(V) | |||
| life | 50000(H) | |||
| IP level | IP65 | |||
| Operating temperature | -30℃ ~+60℃ | |||

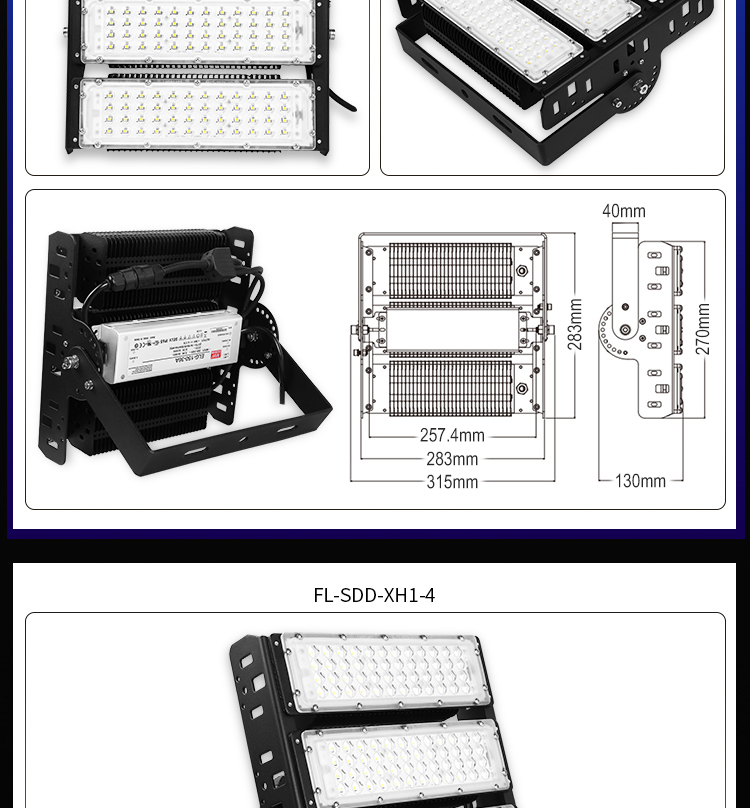

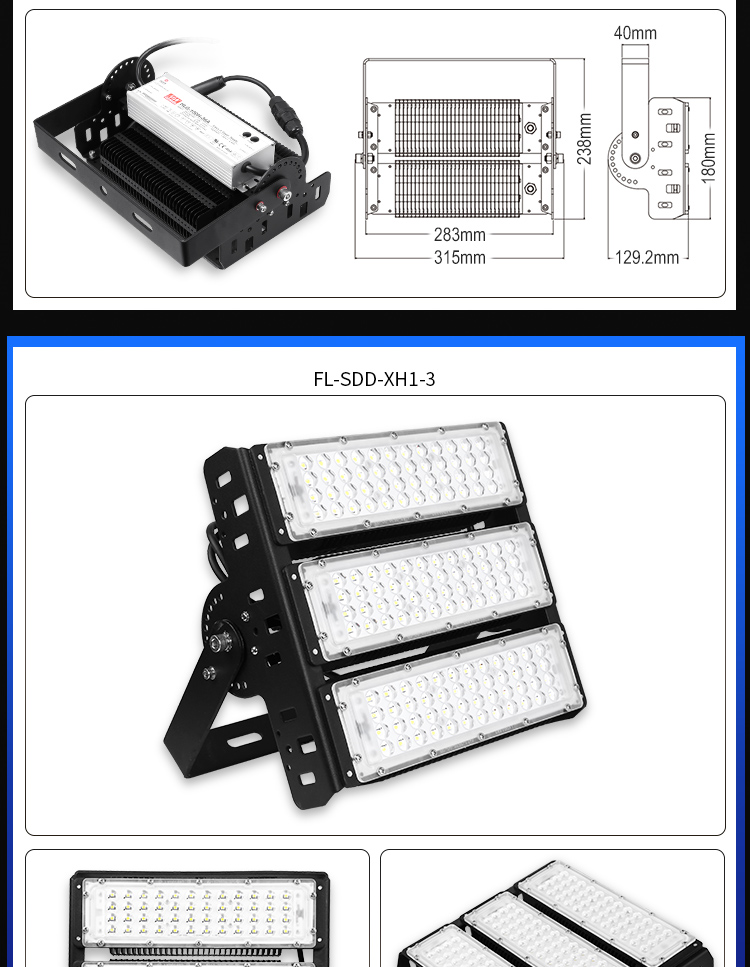

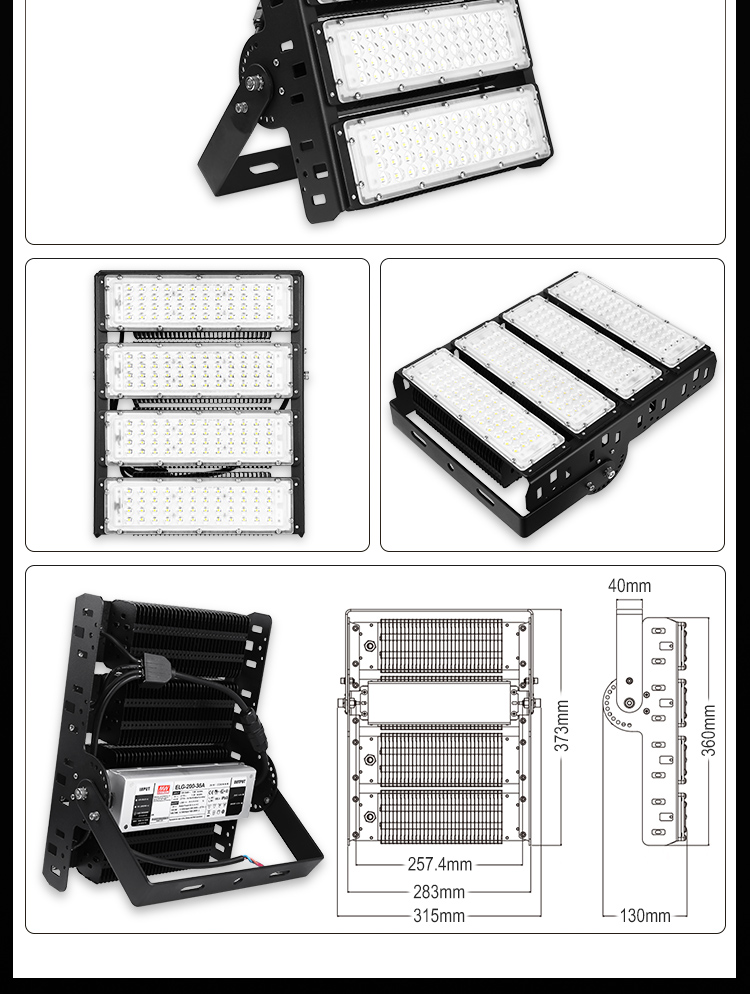

| aspect | 315*193*129.2mm | 315*283*130mm | 315*373*130mm | 599*193*283mm |
| Package dimensions | 320*210*215mm | 340*250*160mm | 340*300*160mm | 630*320*160mm |
| net weight | 2.91kg | 2.92kg | 3.87kg | 6.8kg |
| Warranty | 3-5 years | |||

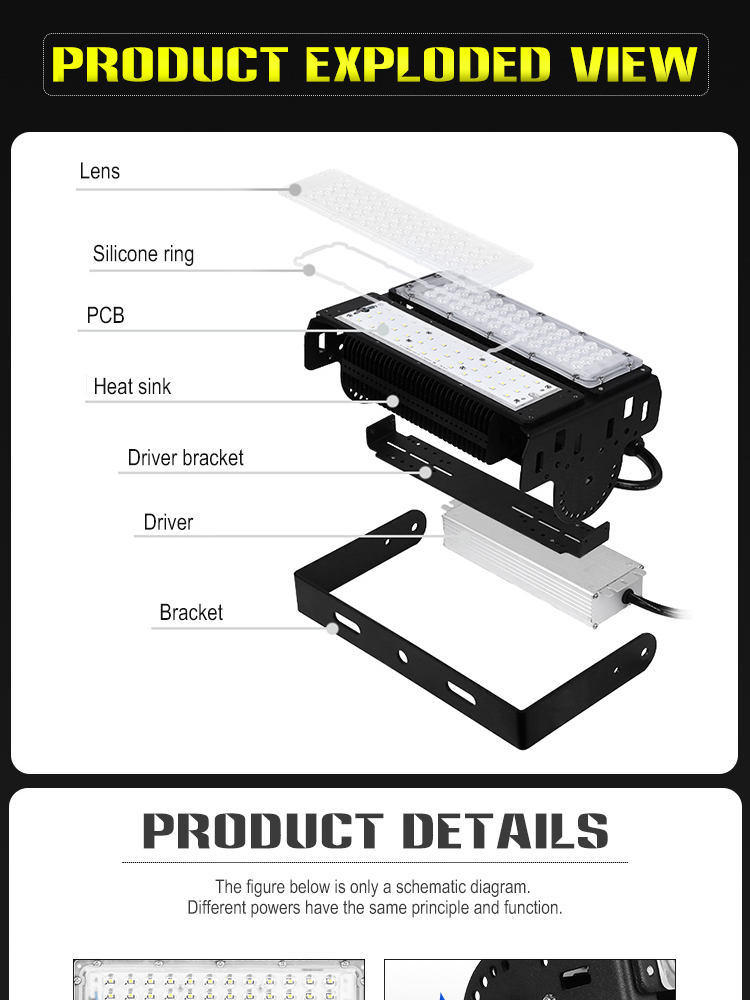

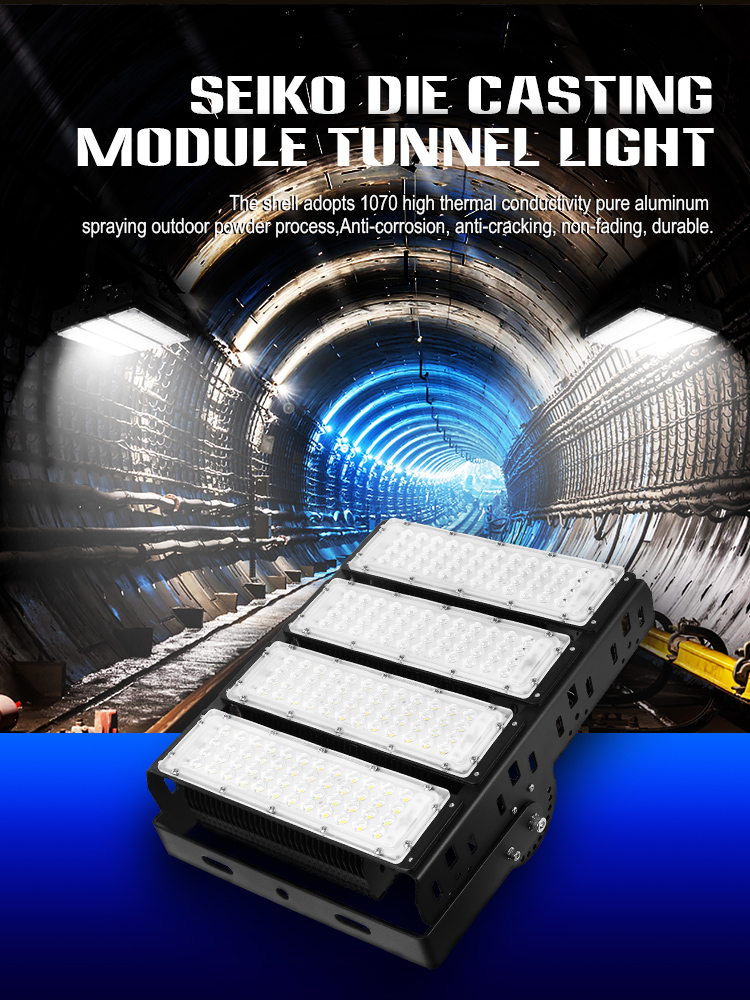

| Lamp body material | Aluminum + PC lens | |||

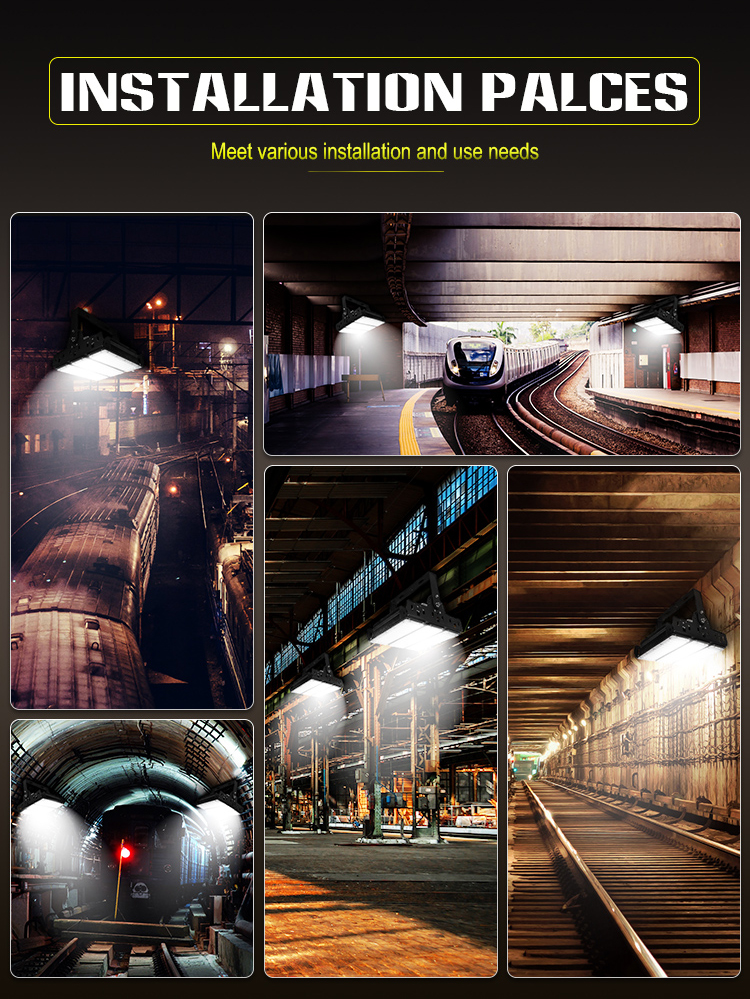

| Applicable | Widely used in highway, subway, tunnel and other underground passage lighting. | |||
