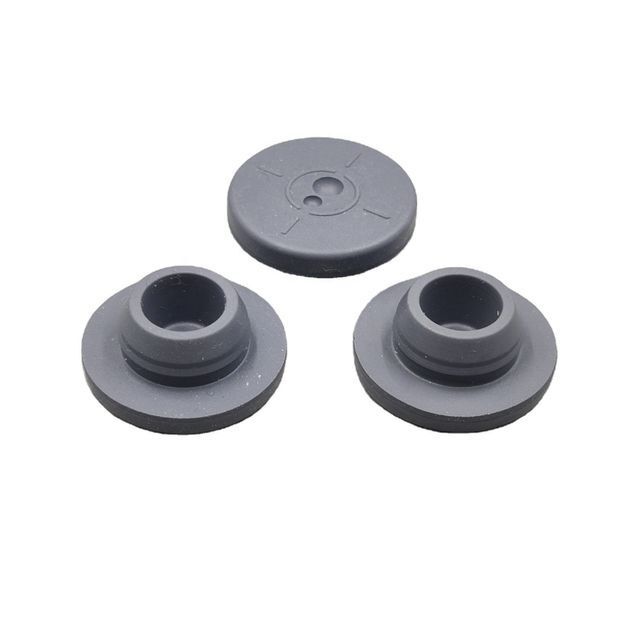

20mm medical rubber IV bag stopper for infusion and injection
- $0.01 / >=10000 pieces
- 10000 pieces
- Qingdao Huaren Medical Product Co., Ltd.
- Shandong, China
- Mr David Chen
| MOQ: | 100000; | Keyword: | 20MM Rubber Stopper; |
| Supply Ability: | 120000000 Pieces per Month; | Place of Origin: | Shandong, China; |
| Brand Name: | HUAREN; | Size: | 20mm 13mm 32mm 28mm; |
| Material: | Bromobutyl Rubber; | Packing: | RFS Bag+ Carton; |
| Color: | Grey; | Payment Terms: | L/C,Western Union,T/T; |
| Payment Term: | T/T; | Port: | Qingdao; |
| Model Number: | 20-B2; | Shipping Method: | FedEX DHL TNT; |
| Sample: | Free; | Certification: | CE ISO DMF; |
| Packaging Detail: | PE BAGS + CARTON OUTSIDE; |

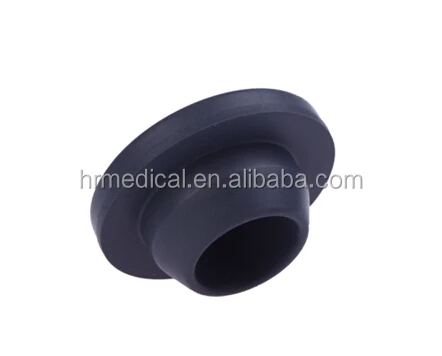

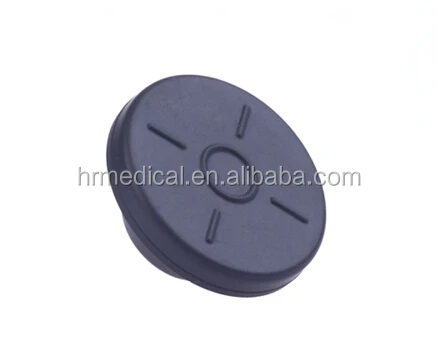

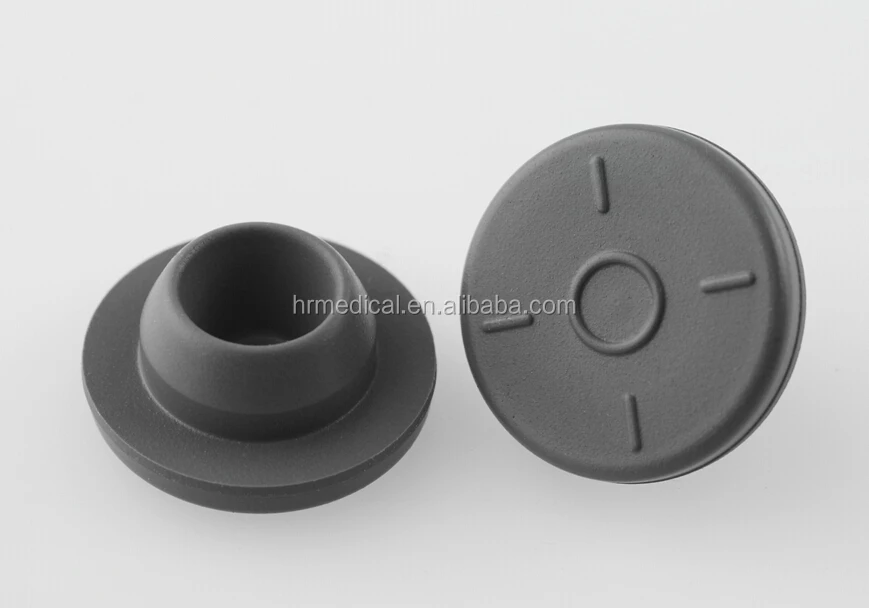

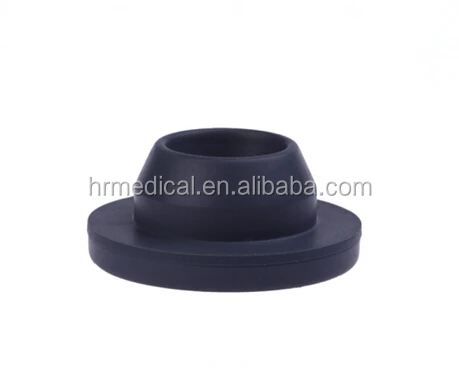

Bromobutyl Rubber Stopper for injectable powder
Pharmaceutical Rubber Stopper
Butyl Rubber Stopper for Antibiotics
Butyl Rubber Closure
YBB / JP / EP / USP / GMP

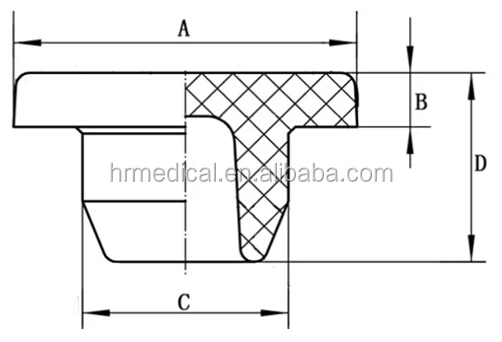

Pharmaceutical Rubber Stopper Dimension
|
Item(mm) Model |
Diameter of top part (A) |
Thickness of top part(B) |
Diameter of the plug stem (C) |
Total height(D) |
|
20-B2 |
19.5±0.2 |
3.0±0.25 |
13.0±0.1 |
8.7±0.3 |
|
20-A |
18.8±0.2 |
3.3±0.25 |
13.2±0.1 |
8.8±0.3 |
|
20-D2 |
18.8±0.2 |
3.3±0.2 |
13.2±0.1 |
13.8±0.3 |
|
20-D3 |
18.8±0.2 |
3.3±0.25 |
13.2±0.1 |
13.8±0.3 |
|
20-D2-1 |
18.8±0.2 |
3.3±0.25 |
13.2±0.1 |
12.6±0.3 |
|
13-D1 |
12.5±0.2 |
2.0±0.20 |
7.6±0.1 |
12.0±0.3 |
|
13-D2 |
12.5±0.2 |
2.0±0.2 |
7.5±0.1 |
9.8±0.3 |
|
26-B3 |
25.5±0.1 |
4.0±0.20 |
15.2±0.1 |
10.1±0.2 |
|
26-B4 |
25.5±0.2 |
3.7±0.20 |
15.7±0.1 |
11.1±0.2 |
|
28-B |
26.6±0.1 |
3.75±0.2 |
18.35±0.1 |
12.2±0.2 |
Pharmaceutical Polyisoprene Rubber Mat Dimension
|
Item(mm) Model |
Diameter |
Height |
Thickness |
|
25-PP |
24.7±0.1 |
7.0±0.15 |
2.5±0.1 |
|
20-PP |
21.0±0.1 |
5.5±0.2 |
2.9±0.2 |
|
12-Y |
11.95-12.1 |
5.4±0.2 |
3.0±0.1 |
|
fai 7 |
7.4±0.1 |
7.6±0.2 |
2.4±0.2 |
|
fai 14 |
14.10±0.1 |
6.4 - 6.95 |
5.05-5.55 |
1 High cleanliness
2 Well ozone-resistance and weather-resistance
3 High heat-aging resistance
4 Excellent medicine compatibility
5 Super air impermeability
6 Good radiosterilization stability
-
High-quality raw material from world famous companies—ExxonMobil & ZEON
-
Strict Qualit-Control team to make sure product quality from testing raw material, semi-product to final product
-
Advanced manufacturing device from Germany and Italy
-
ISO9001 / ISO14001 / OHSAS18001 certificates
-
DMF approved under US
-
Good after-sale service to make you satisfaction
An Original Manufacture
First-rate Raw Material Assurance
World-class Produce Equipment
Strict Checking & Rechecking System
Available Price
