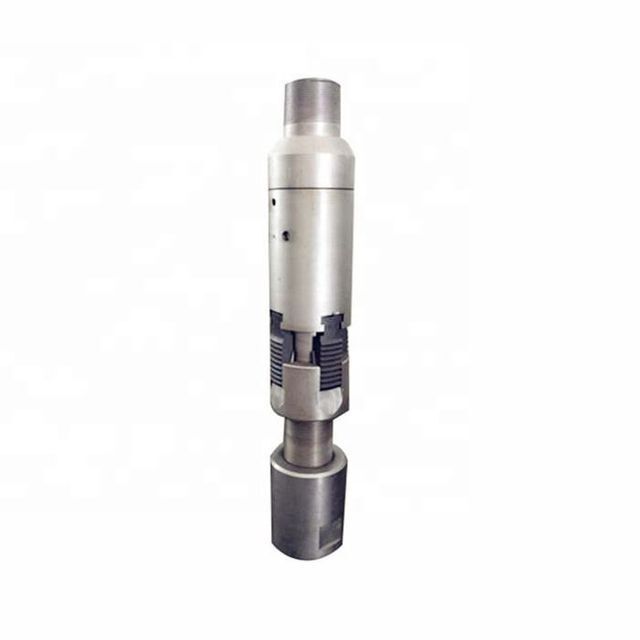

API Downhole Tool Torque Anchor for PC Pumps
- $199.00 / 10 - 49 sets
$179.00 / 50 - 99 sets
$159.00 / 100 - 499 sets
$129.00 / >=500 sets - 10 sets
- Tianjin Soright Technology Development Co., Ltd.
- Tianjin, China
- Ms Peggy Lee
| Marketing Type: | Ordinary Product; | Size: | 5-1/2" - 9-5/8"; |
| Applicable Industries: | Petroleum Equipment; | Thread type: | EUE, NUE; |
| Type: | Torque Anchor for PC Pump; | After Warranty Service: | Spare parts,Field maintenance and repair service; |
| Unlock Force: | 80-120KN; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,TT, VISA, e-Checking, Paypal; |
| Minimum Path: | 48-98mm; | Warranty of core components: | 1 Year; |
| Condition: | New; | Body Diameter: | 114-190mm; |
| Brand Name: | SRD; | Local Service Location: | None; |
| Tool Type: | Downhole Tool; | Model Number: | 5-1/2" - 9-5/8"; |
| Supply Ability: | 1200 Sets per Week; | Video outgoing-inspection: | Provided; |
| Showroom Location: | None; | Port: | Tianjin Xingang or other Chinese Port; |
| Warranty: | 1 Year; | The Torque: | ≥ 5000N m; |
| Packaging Detail: | Packed by wooden box or other standard package; | Machinery Test Report: | Provided; |
| Overall Length: | 610-711mm; | Core Components: | Torque Anchor; |
| Package Preview: | ; |

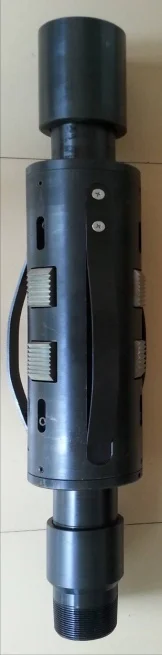

API Downhole Tool Torque Anchor for PC Pumps

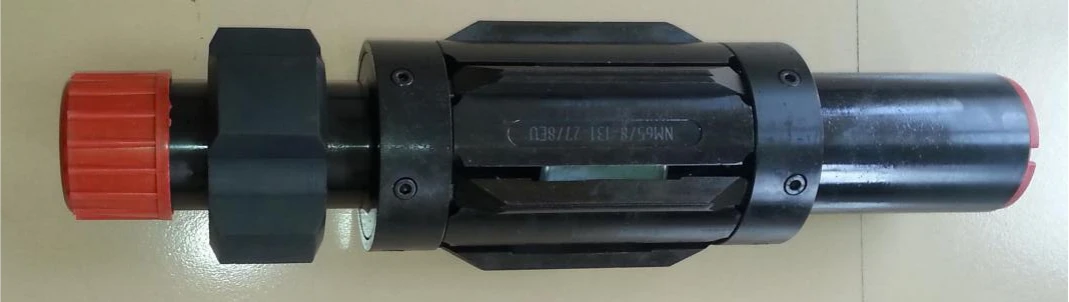

1. Introduction of torque anchor
The torque anchor is a special anchor for PC pump. With good centering performance, the anchor is seated in the well without lifting and down. It has easy operation and good stability. The anchor’s blocks are anchored in the inner wall of the casing at same time with same pressure pressing on the casing from three points to avoid damage the casing. To avoid the tubing thread being tripping, the anchor has anchor force as greater as reverse torque. The Torque ≥ 5000N •m. Alloy material of the anchor is suit for corrosion oil and gas well. The anchor has very good anchoring performance, easy operation, good centering performance.
The torque anchors are mainly exported to Peru, Venezuela, Kazakhstan, Russia, Sudan, Chad, and Algeria.
2. Material
2.1. Body: 42CrMo Hardness: HB277--311
2.2. Block: 20CrMnTi Hardness: HRC52--60
3. Specification
|
Size |
zh (mm) |
Minimum Path (mm) |
Overall length (mm) |
Scope of work (mm) |
Thread |
|
|
One side (EUE,NUE) |
Another side (EUE,NUE) |
|||||
|
51/2″ |
Φ114 |
Φ48 |
610 |
116-130 |
2-3/8” PIN 2-7/8”PIN 3-/12”PIN 4-1/2”PIN |
2-3/8”BOX 2-7/8”BOX 3-/12”BOX 4-1/2”BOX |
|
65/8″ |
Φ137 |
Φ60 |
610 |
140-156 |
||
|
7″ |
Φ137 |
Φ60 |
610 |
150-168 |
||
|
95/8″ |
Φ190 |
Φ98 |
711 |
208-232 |
||
4. Usage
4.1 Choose the anchor according to the casing size.
4.2 Connecting the anchor under the PC pump.
4.3 Checking the block is working well.
4.4 Put the anchor into the casing.
4.5 Arriving at the desired depth, turning the tubing string clockwise with 400N.m torque and at same time the anchor has anchored on the casing.
4.6 Fix the tubing string with the wellhead for finishing loading the anchor.
4.7 Turning the tubing string1-5 rounds to unloading the anchor.

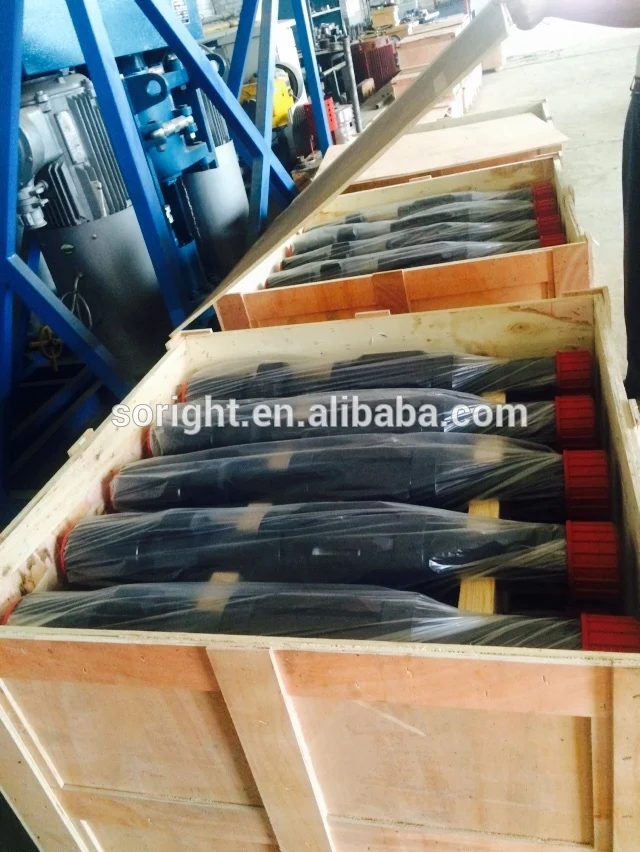

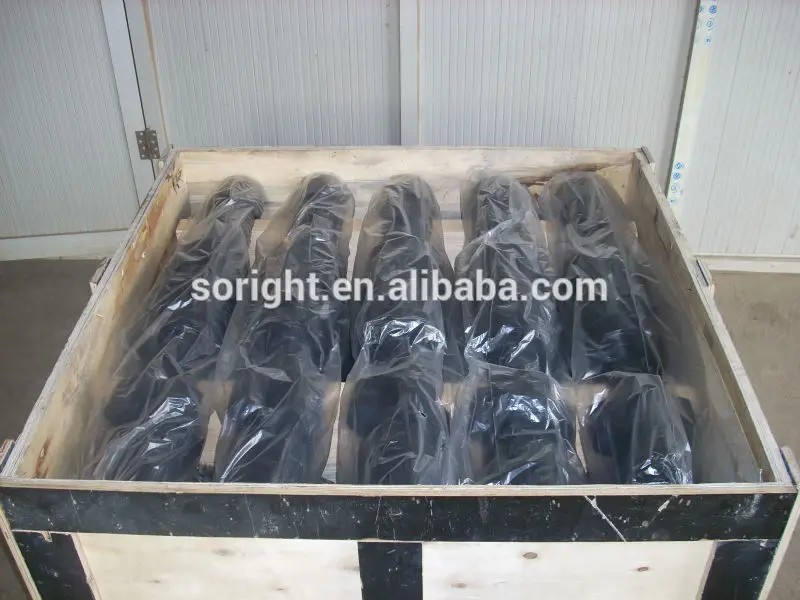

5. Packaging of the Torque Anchor
6. Our Company Brief Introduction
Tianjin Soright Technology & Development Co.,Ltd (hereafter called Soright Tech) is one of exporting windows of China Petroleum Machinery. It is an integrity combined with R&D, machinery and processing, technical services on petroleum machinery products and services.
Soright Tech primarily provides clients with the production equipments, tools, spare parts and accessories that been manufactured by high quality petroleum equipments manufacturers of CNPC (China National Petroleum Corporation). Our main products are as follows: subsurface sucker rod pump, sucker rod, tubing crossover, tubing/casing couplings, stuffing box, thread protector, packings, float shoe and float collar etc.
The company keeps on the Quality is the first. All of products are designed and processed meeting API Specifications. Quality Management System has been set up to ensure the whole process being properly controlled.
7. Our Certificates

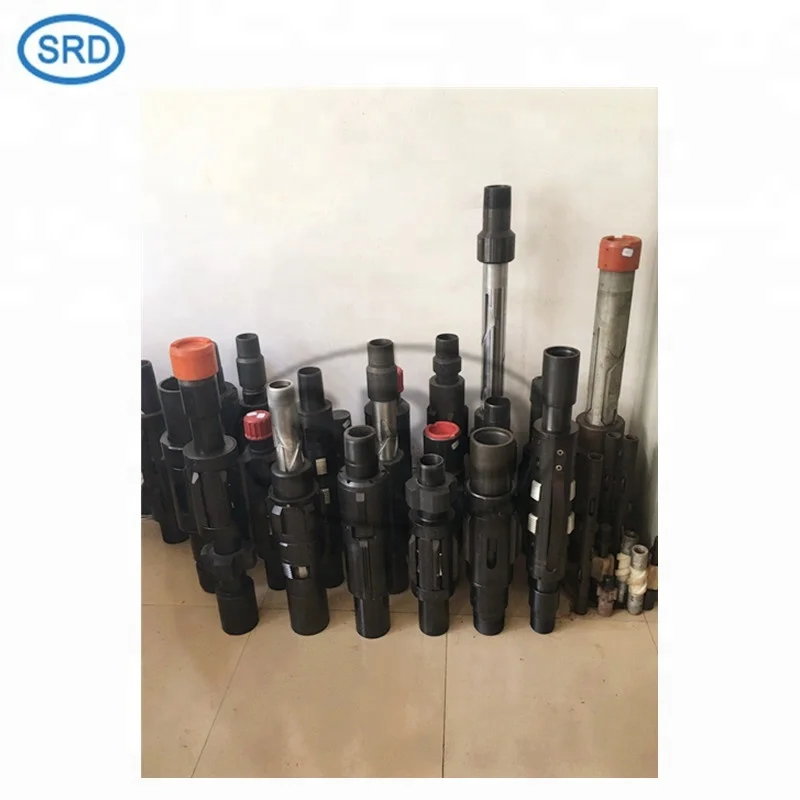

8. Our Factory

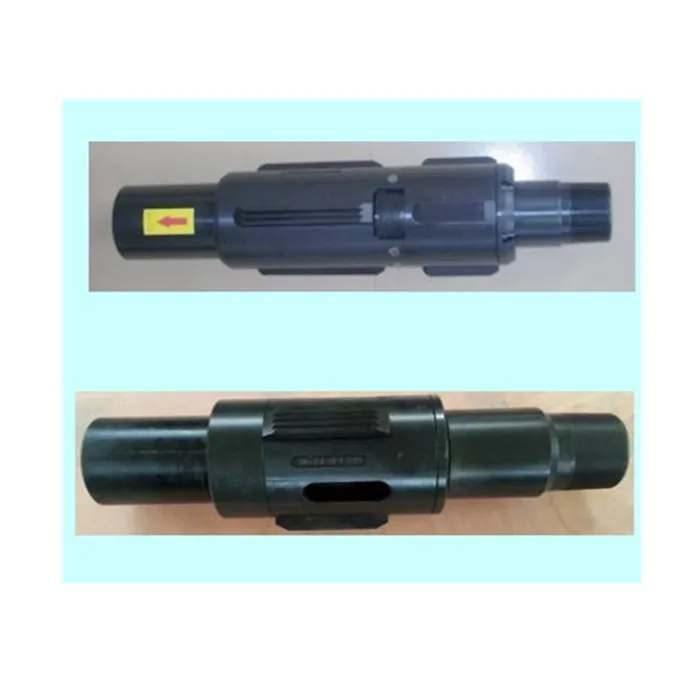

9. Hot-sale Products
