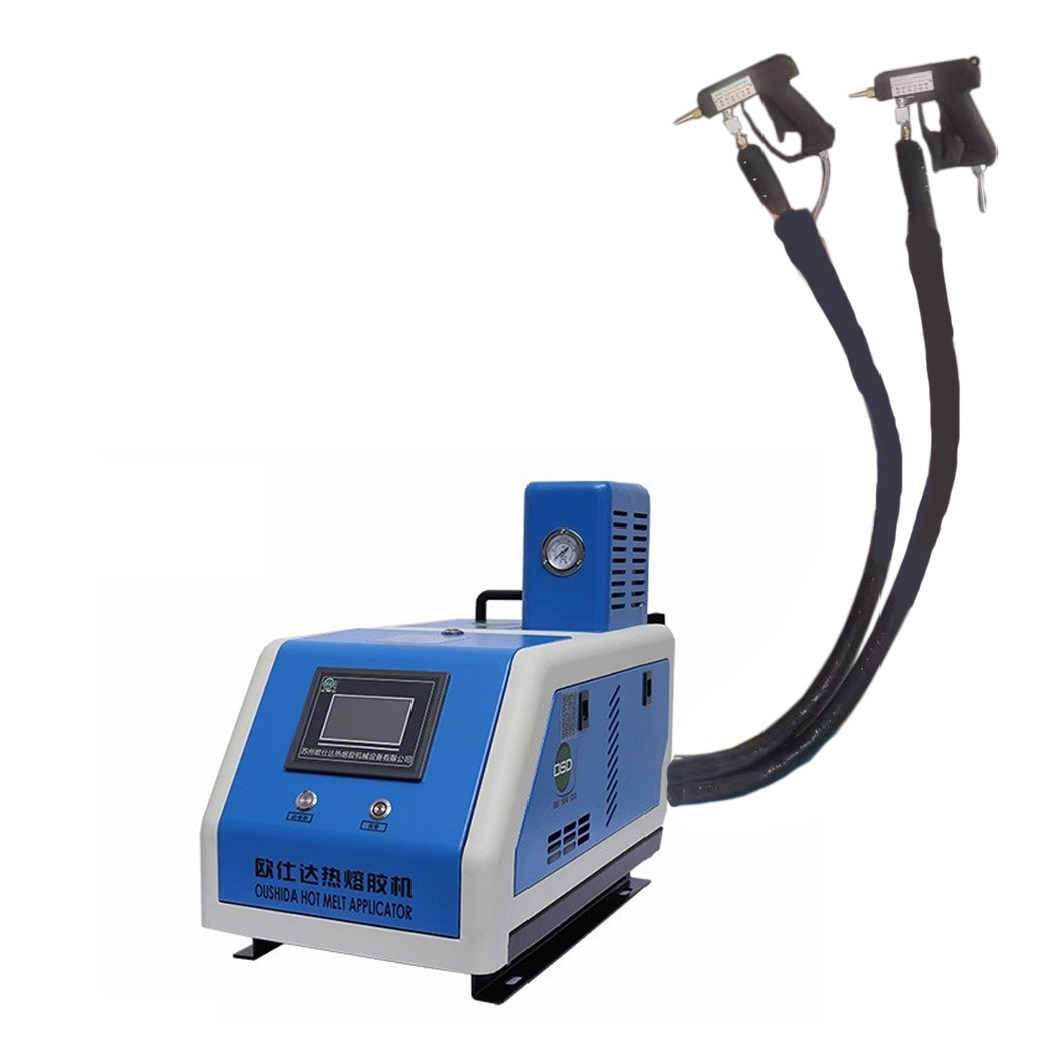

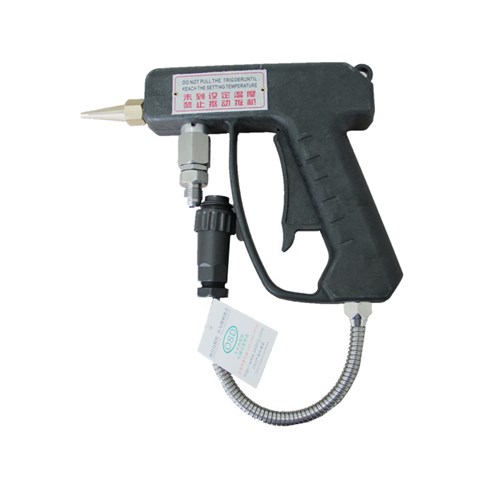

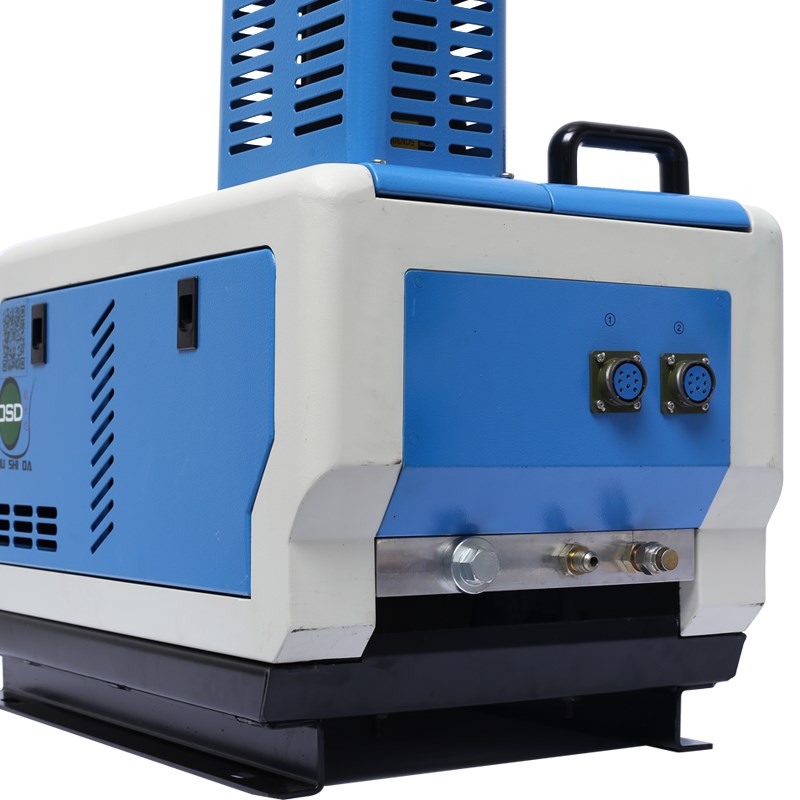

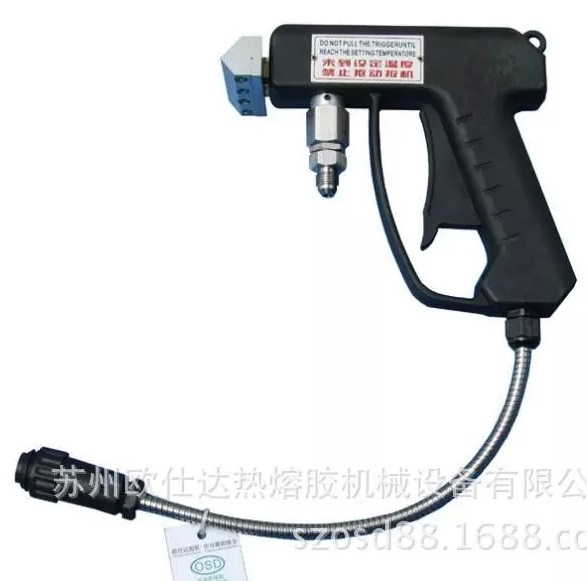

Automatic 5L hot melt adhesive applicator with nozzle gun
- $2000.00 / 1 - 9 sets
$1000.00 / >=10 sets - 1 set
- Suzhou Automatic Precision Dispensing System Co., Ltd.
- Jiangsu, China
- Ms Winni Chow
| Main selling points: | Easy to operate | usage: | Corrugated cardboard folding and gluing |
| type of packaging: | case | Health status: | new |
| Dimensions (L*W*H): | 780mm×360mm×580mm | speed: | adjustable |
| Fuel tank capacity: | 5 liters | Packaging details: | Export wooden box |
| product name: | Hot melt glue machine | Gross weight per piece: | 50.000kg |
| Core component warranty: | 1 year | Automatic level: | automatic |
| Materials used for packaging: | wood | Origin: | Jiangsu, China |
| brand: | Ostar | Warranty: | 1 year |
| application: | Commodities, medical, textiles | Applicable industries: | Print shops, construction projects, advertising agencies |
| Marketing Type: | 2020 new products | Key words: | Hot melt adhesive sealing machine |
| type: | Glue coating machine | Sales unit: | Single product |
| Feeding method: | continuous feeding | weight: | 50kg |
| Single pack size: | 60X60X60cm | Voltage: | 220V |
| Mechanical test report: | if | color: | blue |
| Driver type: | electrical | Certification: | CE |
| Package preview: | Core components: | Engines, gears, pumps | |
| Showroom location: | not any | Video outbound inspection: | if |
| Glue type: | hot melt glue |
Automatic 5L hot melt adhesive applicator with nozzle gun
Specification
|
thing |
OSD-105A |
|
Fuel tank capacity |
5 liters |
|
maximum. Melting speed |
5 liters/hour |
|
maximum. Operating temperature |
250℃ |
|
maximum. viscosity |
20000cps |
|

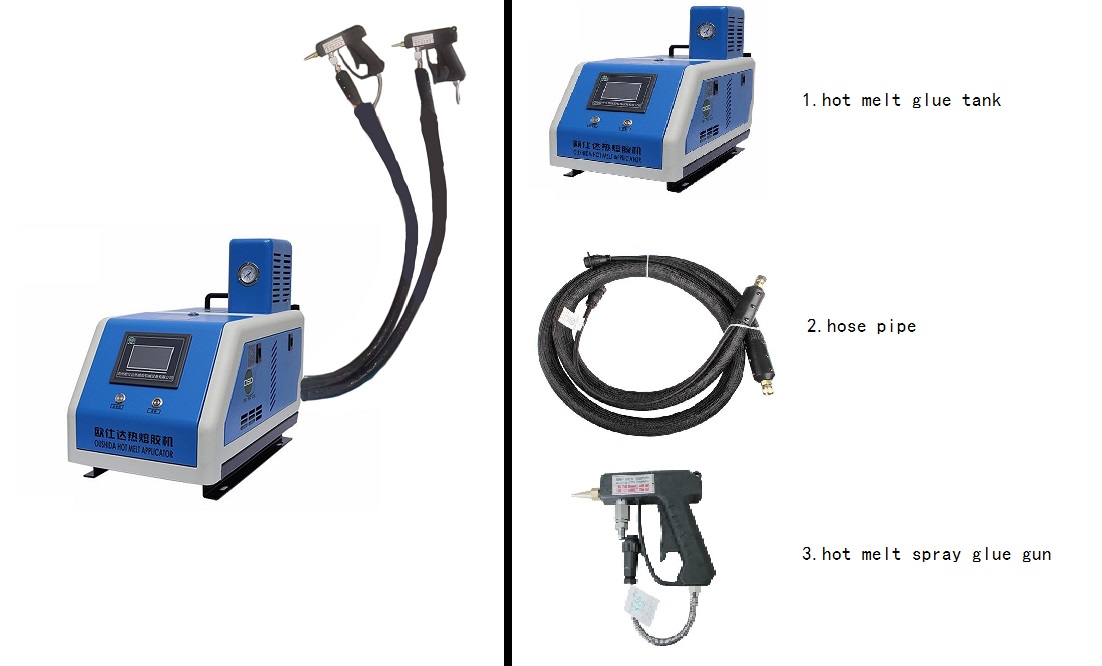

hose set |
1-2 pieces |
|
temperature. sensor |
K type thermocouple |
|
Machine power |
2.5kW |
|
Pump type |
gear pump |
|
Temperature type control |
PLC |
|
Machine weight |
50kg |
|
Machine size |
780*360*580mm |
|
electricity demand |
AC 220V/50Hz |
This series of equipment can be widely used in the production of sanitary products (diapers, sanitary products). Air filters, refrigerators, anti-rodent and anti-fly tapes; Non-woven fabric lamination, book binding, label making, carton sealing, cigarette packaging, beverage packaging, double-sided tape, medical bandages; Automotive interior parts, lamp production , windshield installation; carpet production; preheating large roller coating machine or laminator 10-20Kg large capacity hot melt adhesive or customer-specified tank available.
Features of hot melt adhesive equipment:

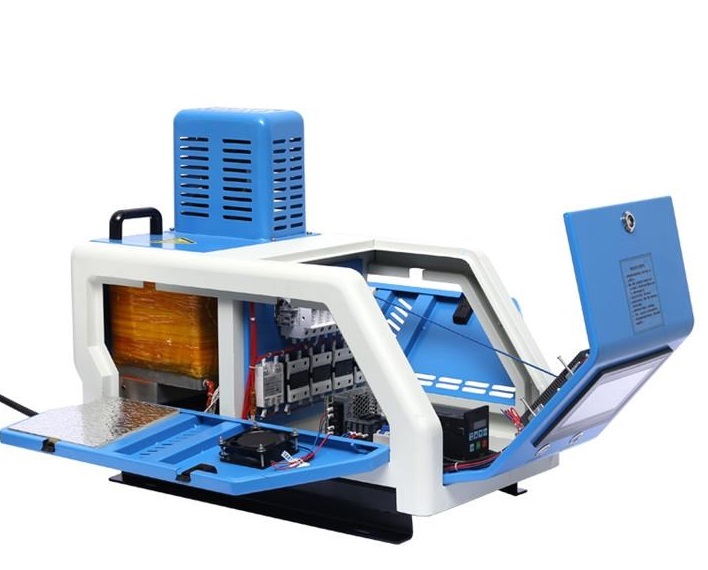

Modular frame, easy maintenance after the cabinet door is opened. Easy to move the machine, friendly control panel.
Connection size of heating hose, gear pump or air pump, voltage, tank capacity. All of these configurations are flexible and prices will vary based on these.
