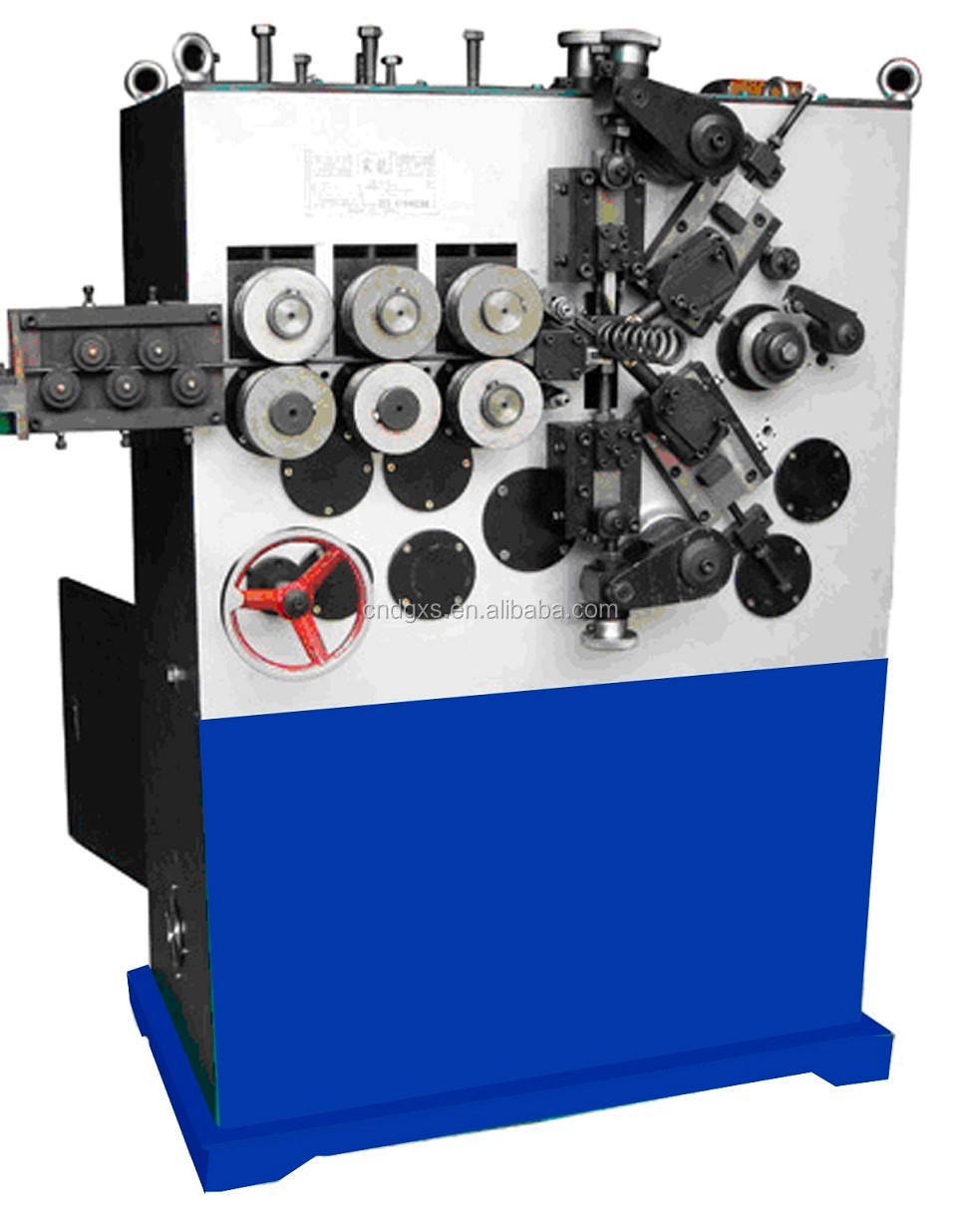

Automatic Spring Coiling Machine Spring Forming Machine
- $5200.00 /set
- 1 set
- Dongguan Xinsheng Hardware Machinery Co., Ltd.
- Guangdong, China
- Mr Jerry Lin
PRODUCT DETAIL
| Core component warranty: | 1 year | Main selling points: | multifunctional |
| Marketing Type: | normal product | Core components: | PLC, motor |
| Showroom location: | not any | Warranty: | 1 year |
| Local service location: | India | Video shipment inspection: | if |
| brand: | work group | Packaging Details: | Standard Fumigated Wooden Box |
| Health status: | new | port: | Shenzhen |
| Weight (kg): | 1000 | application: | Production of various coil springs |
| Power (kW): | 1.1 | Supply capacity: | 10 sets per month |
| Mechanical test report: | if | After warranty service: | Video technical support, online support |
| Applicable industries: | mechanical repair shop | Voltage: | 220 |
| Certification: | ce | After-sales service provided: | Engineers can repair machinery overseas, online support, video technical support |
| Origin: | Guangdong, China | payment terms: | L/C, T/T |
Technical Parameters
thing | GT-MS-2B | GT-MS-4B | GT-MS-8B | ||
Fully automatic (universal) precision spring coiling machine | |||||
Wire diameter | 0.5-2.5 | 2.0-4.5 | 3.0-8.0 | ||
Spring outer diameter | 3-60 | 6-100 | 10-200 | ||
Adjustable length, automatic cutting | 0-3000 | 0-4500 | 0-8000 | ||
coil spring shape | Various coil springs (such as compression springs, circlips, conical springs, convex springs, concave springs, equidistant or unequal spacing, left-handed or right-handed and combinations thereof, etc.) | ||||
Output (per minute) | 8-100 | 8-50 | 5-45 | ||
Motor (KW) | 1.1 | 2.2 | 5.5 | ||
Suitable for wire diameters from 0.1mm to 10.0mm. We have different option models:
B series automatic (universal) precision spring coiling machine improves feeding size, shape and accuracy
Frameworks, reducer structures and variables
spacing frame. This series of products is most suitable for processing springs with high requirements on the number of turns and free height
(For example, the finished spring can be directly ground and cut on the double-sided spring grinder, which can save inspection time
with hand spring). The models, specifications and performance of this series of products are as follows:
Frameworks, reducer structures and variables
spacing frame. This series of products is most suitable for processing springs with high requirements on the number of turns and free height
(For example, the finished spring can be directly ground and cut on the double-sided spring grinder, which can save inspection time
with hand spring). The models, specifications and performance of this series of products are as follows:

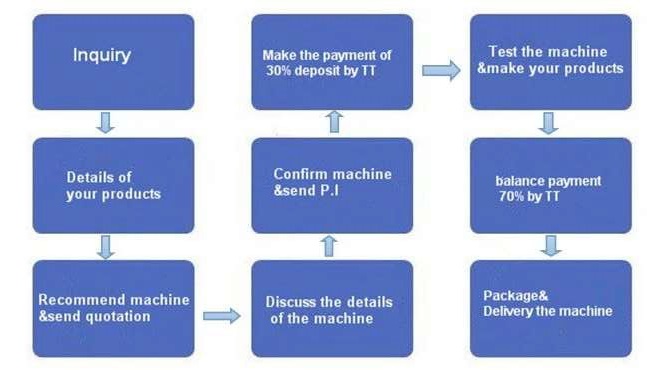

our service
* Inquiry and consultation support.
* Sample testing support.
* Check out our factory.
* Sample testing support.
* Check out our factory.
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
