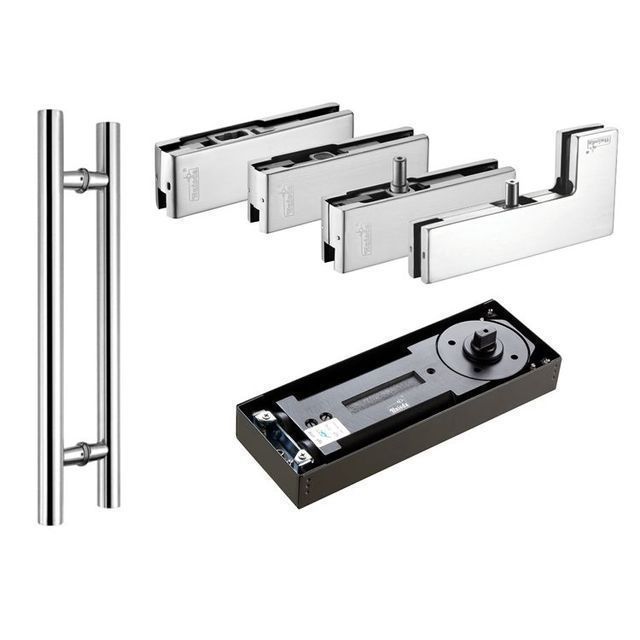

BTS84 hydraulic ground hinge double-cylinder gymnastics floor spring 120KG frameless hydraulic glass door closer
- $17.50 / 2 - 499 pieces
$17.00 / 500 - 999 pieces
$16.50 / 1000 - 9999 pieces
$14.50 / >=10000 pieces - 2 pieces
- Zhaoqing Huisda Hardware Products Co., Ltd.
- Guangdong, China
- Mr Samuel Leung
PRODUCT DETAIL
| port: | Guangzhou/Foshan | design style: | modern |
| Project Solving Ability: | graphic design | place of origin; place of origin: | Guangdong, China |
| brand: | Whistard | Warranty: | 3 years |
| Packaging Details: | Brown box or color box | Maximum door weight: | 120kg |
| Finish: | PSS/SSS | Maximum door width: | 1000 mm |
| Maximum opening angle: | 116° | Material: | SS304 + cast iron |
| title: | floor hinge | Function: | Adjustable closing speed |
| Supply capacity: | 50,000 pieces per month | Keep the open angle: | 90° |
| Durability Test: | 500,000 cycles | application: | office building |
| After-sale service: | Online technical support, free spare parts, return and exchange | model: | HSD 8400 |
| payment terms: | wire transfer | OEM/ODM: | usable |
Product Description
title | floor spring |

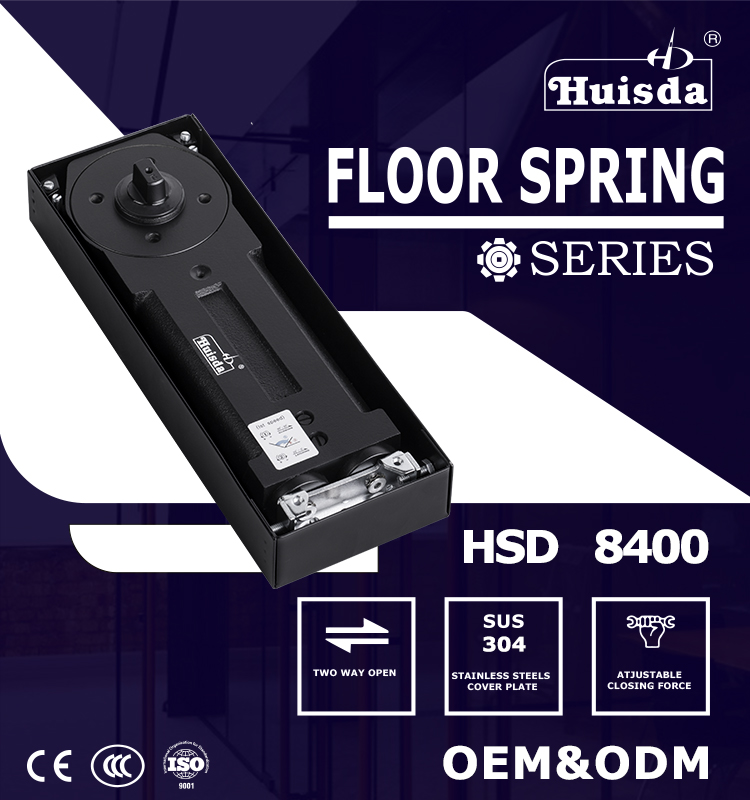

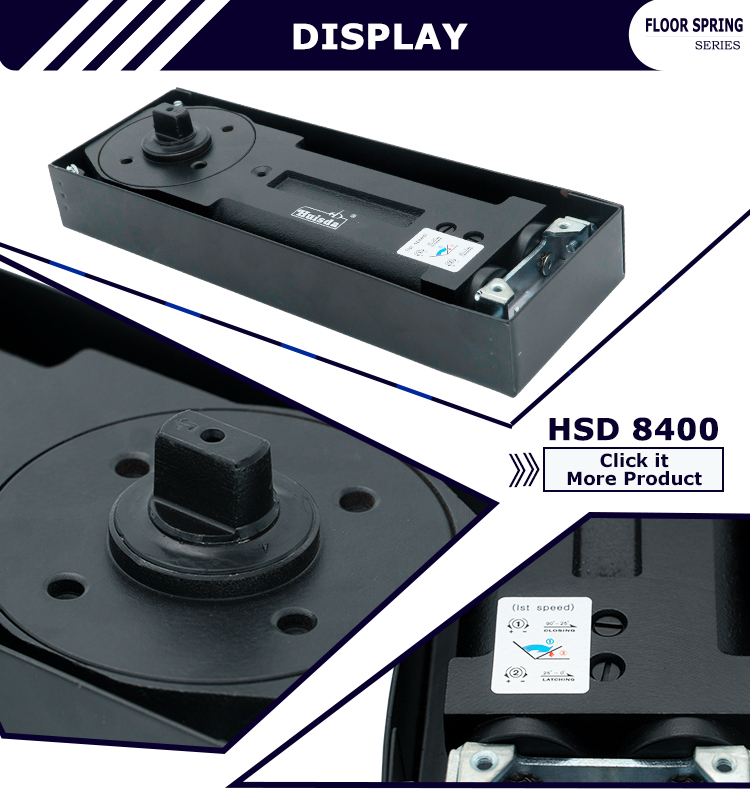

project code | HSD 8400 |
door weight | 120kg |
door width | 1000 mm |
keep it open | 90° |
Maximum opening angle | 116° |

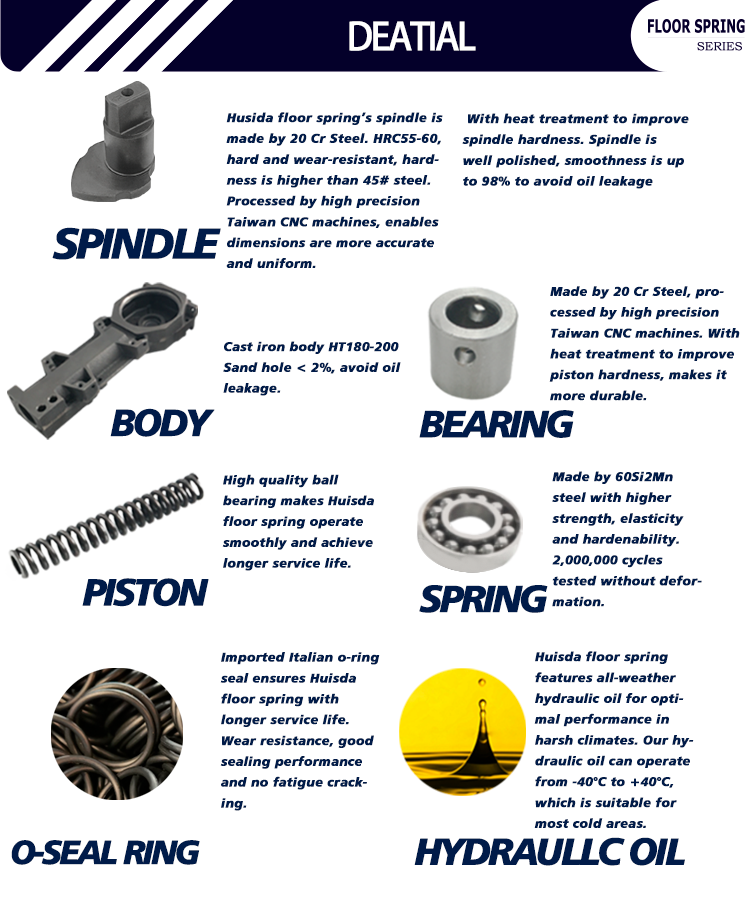

Material | SS304 cover + cast iron body |
door closing speed adjustment | Valve 1: 90°-25°, Valve 2: 25°-0° |
proper temperature | -40°C ~ 45°C |
Passed the EN 1154/CE mark test | Yes |
Durability Test | 600,000 cycles |
OEM&ODM | usable |
Recommended Products

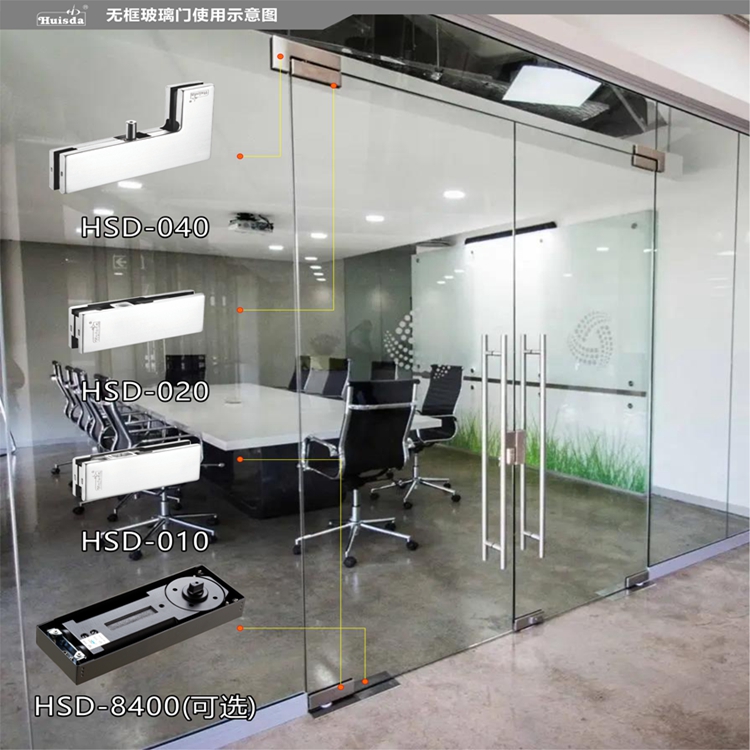

application

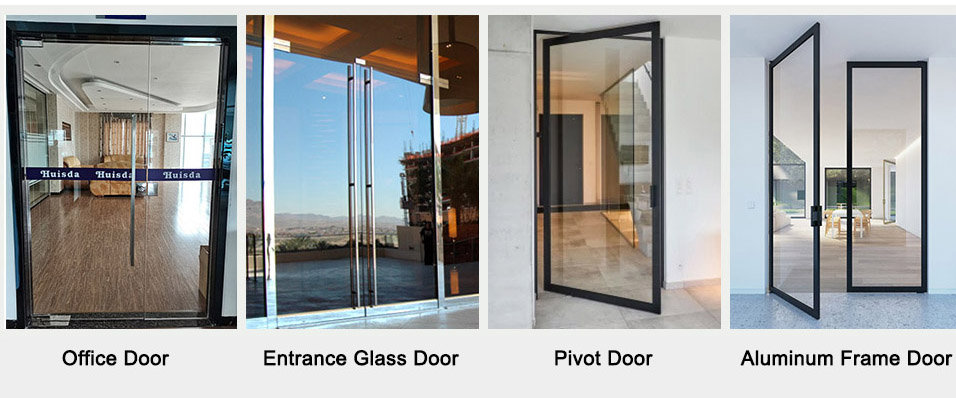

Huistar products have been selected by the Ministry of Engineering and Construction of the People's Republic of China and are used in shopping malls, apartments, office buildings and commercial fields

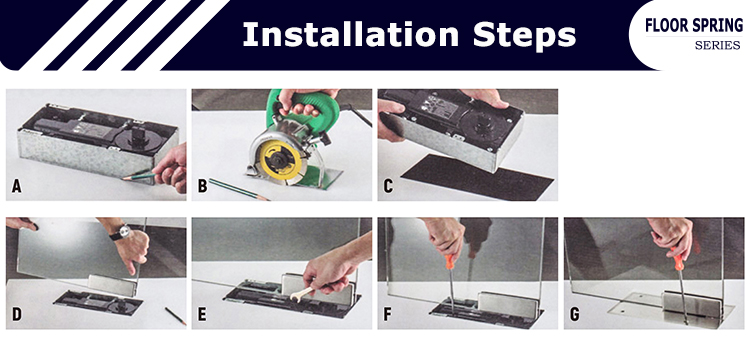

Floor spring installation steps:
A. Draw a line so that the center of the floor spring's shaft coincides with the door's shaft.
B. Drill holes in the ground as directed and required. The size of the hole should be the same as
Floor spring housings so that they cannot come loose.
C. Place floor spring into opening and set correctly.
D. Lift the door with the door clip and insert the pivot of the floor spring into the pivot hole of the door.
E. Adjust the screws in three directions of the floor spring to keep the door vertical and the axis of up and down rotation
coincide.
F. Adjust the closing speed.
G. Cover the floor spring trim cover.
A. Draw a line so that the center of the floor spring's shaft coincides with the door's shaft.
B. Drill holes in the ground as directed and required. The size of the hole should be the same as
Floor spring housings so that they cannot come loose.
C. Place floor spring into opening and set correctly.
D. Lift the door with the door clip and insert the pivot of the floor spring into the pivot hole of the door.
E. Adjust the screws in three directions of the floor spring to keep the door vertical and the axis of up and down rotation
coincide.
F. Adjust the closing speed.
G. Cover the floor spring trim cover.
