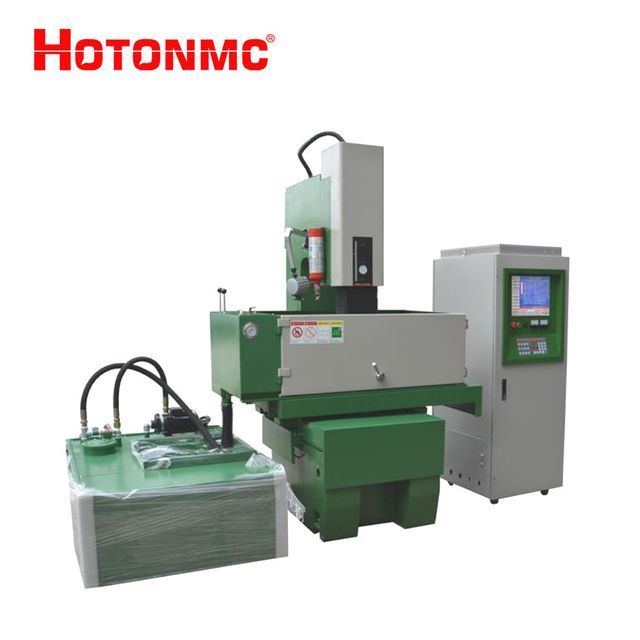

CNC machine tool CNC540
- $2000.00 /set
- 1 set
- Tengzhou Hoton Machinery Co., Ltd.
- Shandong, China
- Ms Wang Andy
PRODUCT DETAIL
| Whether CNC: | CNC system | Main selling points: | multifunctional |
| Supply capacity: | 30 sets per month | Showroom location: | not any |
| Mechanical test report: | if | product name: | EDM processing |
| port: | Qingdao Port Shanghai Port | Internal dimensions of working tank: | 1370*720*450mm |
| working desk size: | 850*500mm | Marketing type: | New products for 2022 |
| Year: | 2022 | Packaging details: | In the case of plywood |
| Type of machine: | wire cutting | Applicable industries: | Machinery repair shop, manufacturing plant |
| Core component warranty: | 1 year | payment terms: | L/C, Western Union, T/T |
| application: | industry | Voltage: | custom |
| Weight (kg): | 2500 | Place of origin: | China |
| Model: | CNC540 | Core components: | Bearings, motors |
| Health status: | new | Warranty: | 1 year |
| Video outbound inspection: | if | 3 axis travel: | 500*400*300mm |
| control method: | CNC system | maximum. Work piece weight: | 1800kg |
| Key words: | Wire cutting equipment | color: | Customer optional |
welcome
Introduction to CNC system
1. Each module of the system is connected by CAN bus, with modular design and high integration to ensure the stability of system operation.
2. Independently designed EDM closed-loop servo system, adaptable to various working conditions, with a minimum control accuracy of 1um.
3. The servo module is installed on the host machine, and the motor control and signal feedback lines do not need to be connected to the control system, which greatly reduces the complexity of the installation technology.
4. Special mirror processing circuits, graphite processing circuits, and low electrode loss processing circuits.
5. The main control module is not controlled by PC, but adopts embedded system design, which reduces the complexity of the system and ensures better stability.
6. The simple-to-operate hand control box greatly improves efficiency, and three-axis operations can be completed immediately through the hand control box.
7. M818 DC servo motor, 1um precision single peak wave grating ruler, 9-pin interface.
8. The application of SMT reduces the size of the control board and ensures stability.
9. System functions: 2.5-axis servo circular vibration, square vibration discharge, three-axis linkage of space line, spiral line and taper, seamless connection of multiple movements.
10. The independently developed and designed system can be customized according to customer needs.
1. Each module of the system is connected by CAN bus, with modular design and high integration to ensure the stability of system operation.
2. Independently designed EDM closed-loop servo system, adaptable to various working conditions, with a minimum control accuracy of 1um.
3. The servo module is installed on the host machine, and the motor control and signal feedback lines do not need to be connected to the control system, which greatly reduces the complexity of the installation technology.
4. Special mirror processing circuits, graphite processing circuits, and low electrode loss processing circuits.
5. The main control module is not controlled by PC, but adopts embedded system design, which reduces the complexity of the system and ensures better stability.
6. The simple-to-operate hand control box greatly improves efficiency, and three-axis operations can be completed immediately through the hand control box.
7. M818 DC servo motor, 1um precision single peak wave grating ruler, 9-pin interface.
8. The application of SMT reduces the size of the control board and ensures stability.
9. System functions: 2.5-axis servo circular vibration, square vibration discharge, three-axis linkage of space line, spiral line and taper, seamless connection of multiple movements.
10. The independently developed and designed system can be customized according to customer needs.
Specification | unit | CNC540 |
X, Y, stroke size | mm | 500×400 |
working desk size | mm | 850×500 |
Z-axis travel | mm | 300 |
Maximum workpiece weight | Kilogram | 1800 |
maximum. Electrode weight | Kilogram | 150 |
Distance from electrode plate to workbench | mm | 390-690 |
Fuel tank capacity | L | 800 |
Machine weight | Kilogram | 2500 |
Internal dimensions of working tank (length*width*height) | mm | 1370*720*450 |
Electric cabinet parameters and specifications | AC servo | |
Maximum processing current | A | 30 |
Maximum processing speed | mm3/min | 300 |
Minimum electrode consumption | ≤0.1% | |
Best roughness | Um | 0.1 |
total input power | kilowatt | 10 |
