China Manual Surface Digital Touch Screen Rockwell Hardness Tester
- $1100.00 /set
- 1 set
- Dongguan Best Instrument Technology Co.,Ltd.
- Guangdong, China
- Ms Hao Rachel
PRODUCT DETAIL
| model: | XHRS-150 | maximum height: | 200mm |
| Supply capacity: | 10 sets per day | Custom Support: | OEM, ODM, OBM |
| port: | Shenzhen | Hardness Resolution: | 0.1 hour |
| Measuring range: | 70-100HREW,50-115HRLW | brand: | the best |
| place of origin; place of origin: | Guangdong, China | Dimensions: | 510*290*730mm |
| product name: | Rockwell hardness | Packaging Preview: | |
| strength: | AC220V, 50Hz | Distance from the center of the indenter to the wall: | 130mm |
| payment terms: | L/C,Western Union,T/T | Packaging Details: | Wooden box packaging |
| Test force: | 60,100,150kgf | type: | XHRS-150, electronic |
| weight: | 80kg | Warranty: | 1 year |
Product Description
Rockwell hardness

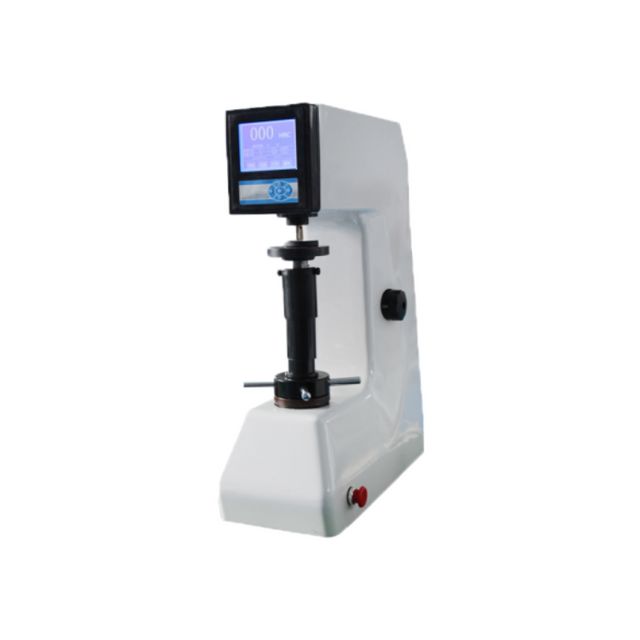

Model: XHRS-150
1. Product Information

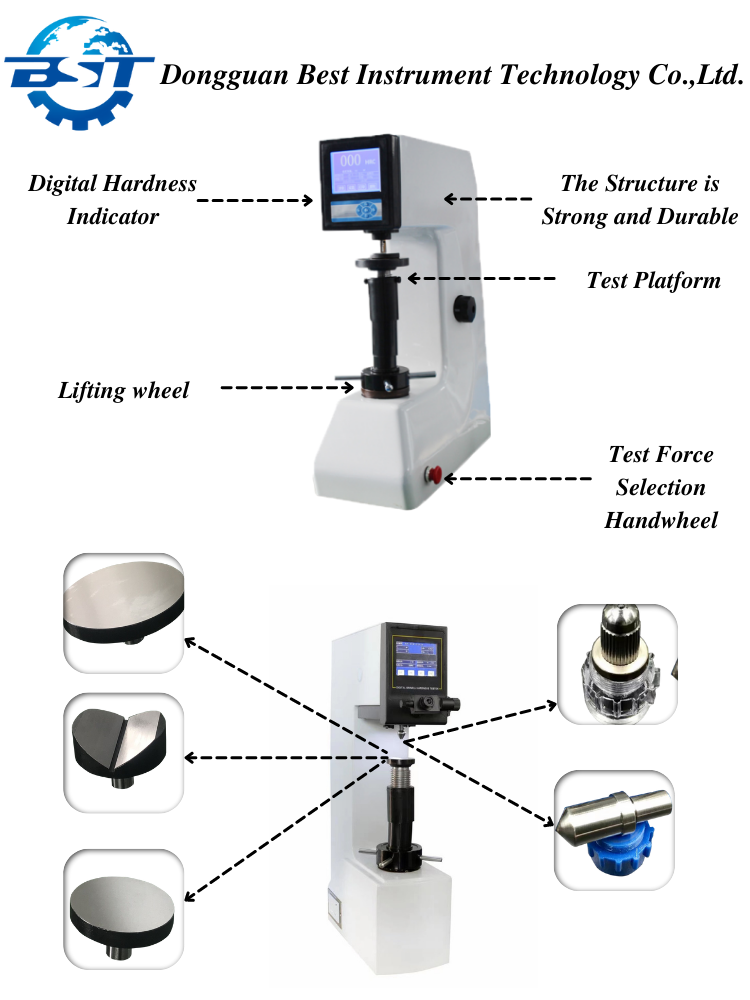

XHRS-150 Digital Plastic Rockwell Hardness Tester is a high-tech product with high precision and stable performance. The interface is menu type, the operation is simple, intuitive and convenient. The measuring device adopts grating displacement sensor and ARM32-bit chip control system. Directly displayed on the screen, it is a mechatronics hardness testing instrument.2. Product advantages
One. Using grating displacement sensor measurement device: the results are displayed on the LCD screen, and the test scale, test force, indenter type, dwell time, conversion unit, etc. can be displayed and set.
b.The fuselage is made of high-quality cast iron one-time casting, and is treated with car paint, with a round and beautiful appearance.
C.Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)The three test forces can be changed at will.

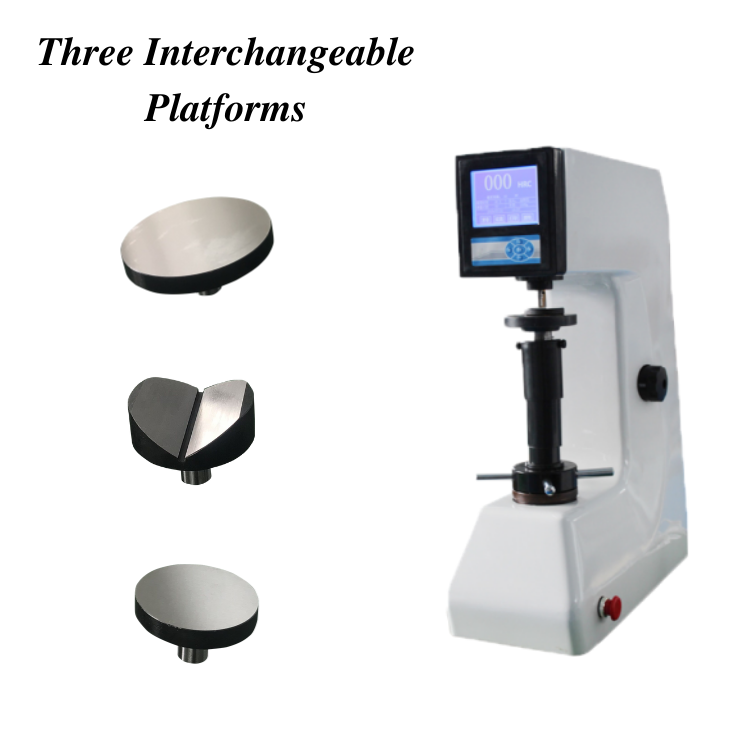

d.Three kinds of interchangeable worktables: equipped with large flat, V-shaped and small flat worktables, which are convenient for measuring the hardness of different workpieces.

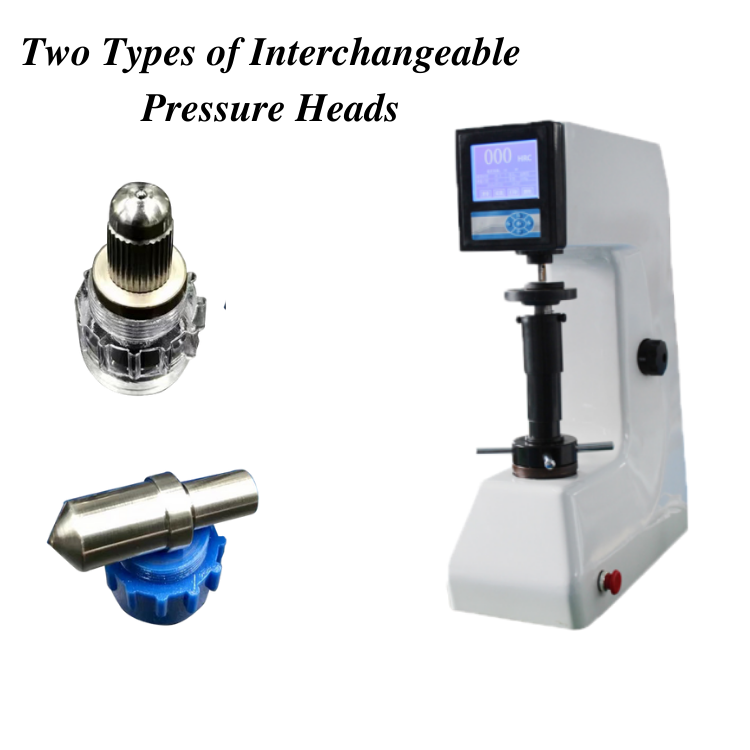

e.Two interchangeable indenters: equipped with diamond indenter and 1.5875mm indenter, can measure different hardness
3. Specifications
test force | 60, 100, 150kgf |
Measuring range | 70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW |
maximum height | 200mm |
The distance from the center of the indenter to the machine wall | 130mm |
Hardness Resolution | 0.1 hour |
aspect | 510*290*730mm |
weight | 80kg |
power supply | AC220V, 50Hz |
