Concrete collection plant for drum mixer
- $14500.00 /set
- 1 set
- Shandong Jinrui Heavy Industry Machinery Co., Ltd.
- Shandong, China
- Mr Paul Qiu
| Type of machine: | Drum concrete batching plant | payment terms: | Letter of Credit, T/T, Western Union, MoneyGram |
| Packaging Details: | container transportation | weight: | 11T |
| port: | Qingdao | Health status: | new |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Supply capacity: | 10 sets per week 30% deposit, 70% balance before shipment |
| Showroom location: | the Philippines | Power Type: | electrical |
| Dimensions (L*W*H): | 11600*2060*2200mm | Ingredients: | Electric belt |
| color: | customer request | brand: | Jin Ruifu |
| Key words: | Compact concrete batching plant | Aggregate Type: | 2 |
| Measurement methods: | electronic scale | Applicable industries: | Building Materials Stores, Manufacturing Plants, Construction Engineering, Energy & Mining |
| Warranty: | 1 year | Certification: | International Organization for Standardization |
| Maximum weighing value: | 1500 | productivity: | 25 cubic meters/hour |
| strength: | 45kW | Local service location: | the Philippines |
| Feed height: | 2400mm | place of origin; place of origin: | Shandong China |
| After-sales service provided: | Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support, engineers can service machinery overseas | Model: | HZS25 |

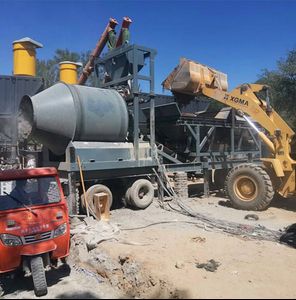

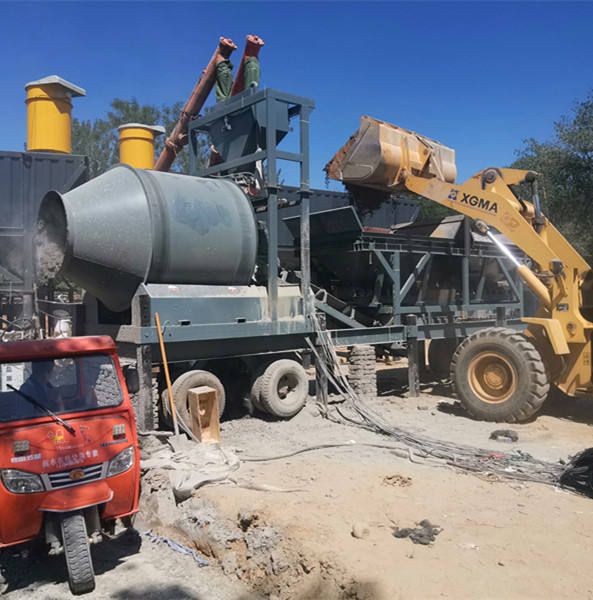

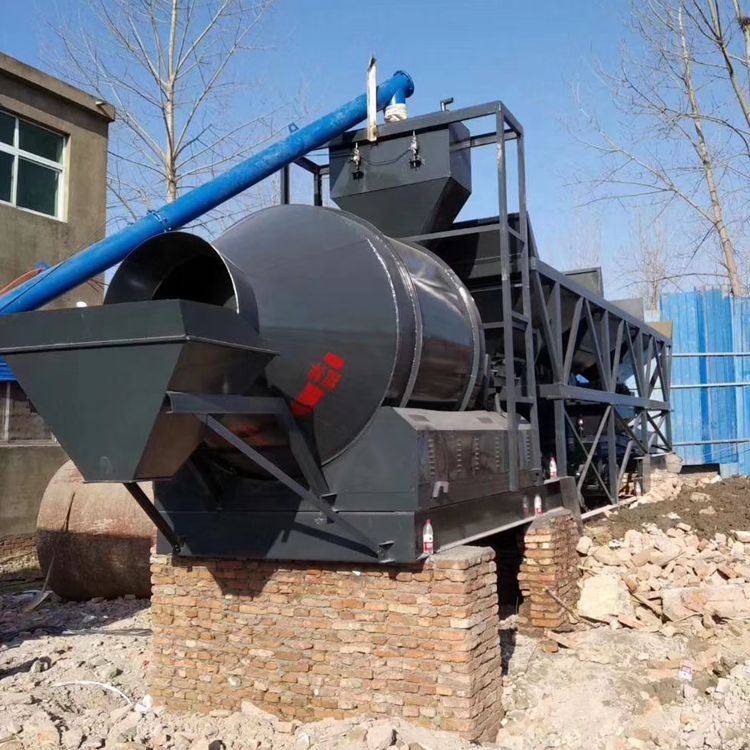

Drum mixer concrete batching plant
 |  |  |
Model | HZS25 |
Productivity (m3/h) | 25 |
master mixer | JZM500 |
batching machine | PL800 |
Mixing volume (L) | 500 |
Stirring Motor (KW) | 2*5.5KW |
Hoisting Motor(KW) | 5.5 |
Water Pump Motor(KW) | 0.75 |
Discharge height (m) | 3.8 |
Stirring blade speed (r/min) | 35 |
maximum. Aggregate size (mm) | 60 |
control method | Electric control box |
Liner | Manganese steel |
Discharge method | Manual or Pneumatic |
Packing size(mm) | 1100*2200*2400 |
Packing | 1 set/40HQ |
Total weight (kg) | 9000 |

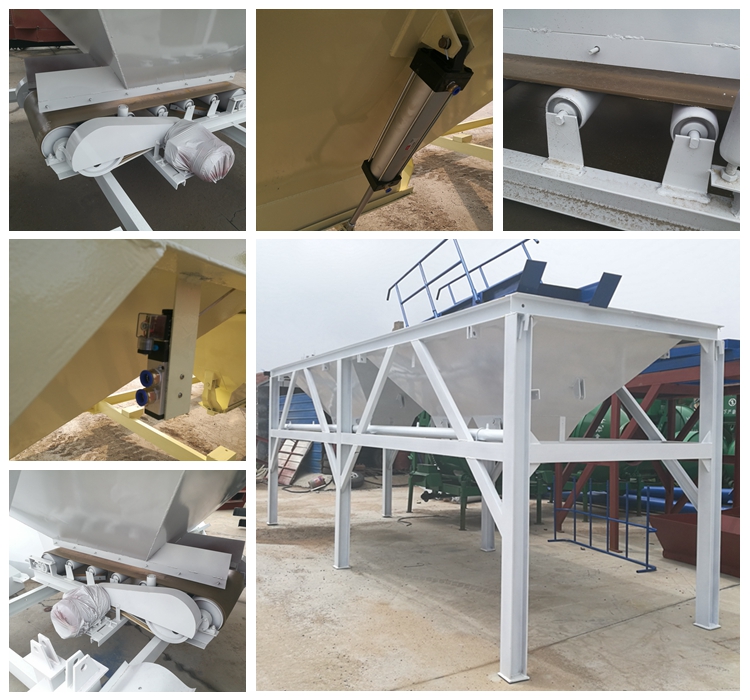

PL800 batching machine
Advantage:
1. Used in the concrete construction industry.
2. Instead of manual platform scale or volume measurement.
3. High measurement accuracy.
JZM500 Concrete Mixer
Advantage:
Thickened track: 16# channel steel
Protector: Travel Witch
Wear-resistant steel wire: alloy steel
Larger hopper: 800L
Weighing system (cement and water)
Pneumatic discharge
Discharge door with sealing ring
Pneumatic unloading and manual unloading
Air pump control
Electric pump with throttle valve
Large Flow
cleaning device
spraying device
1. Our company is located in Weifang City, Shandong Province, close to the beautiful Qingdao Port, which can be reached in two hours, and the transportation of goods is very convenient.
2. We are a manufacturing factory. The goods are processed in the factory, and the containers are transported directly to the port, without the need for middlemen. The transaction process is fast and the cost is reduced.
