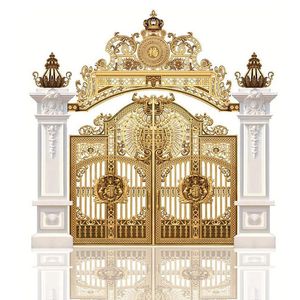

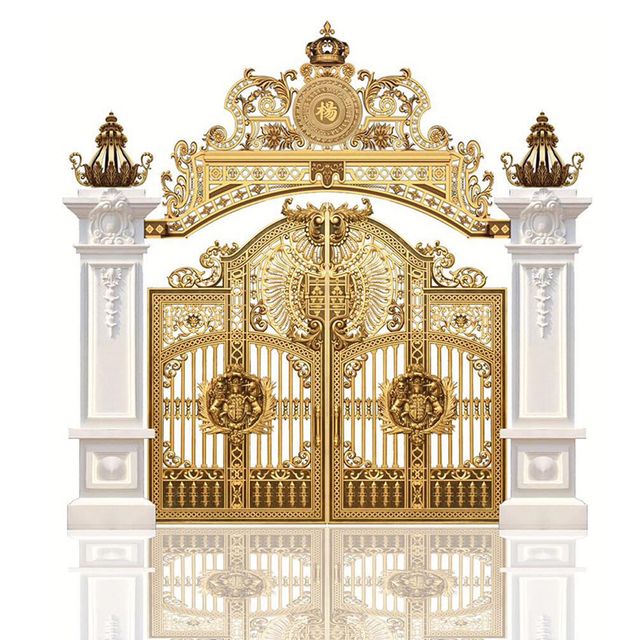

Factory wholesale wrought iron driveway gate villa swing door

Price:$188.00 / >=8 square meters
Min. Order:8 square meters
Supplier:Quanzhou Huayi Metal Products Co., Ltd.
Region:fujian, China
Contact:Mr Lynn Huang

PRODUCT DETAIL

feature:	durable	Supply capacity:	2000 meters per month
type:	double door	product name:	wrought iron gate
model:	wrought iron gate	color:	custom color
payment terms:	wire transfer	Warranty:	3 years
brand:	Huayi	Open method:	automatic
application:	villa, garden, courtyard, apartment, entrance	Surface treatment:	Galvanized + Powder Coated
Function:	Corrosion resistance	Name:	gate design
Key words:	wrought iron entrance door	After-sale service:	Online technical support, free spare parts, return and exchange, other
place of origin; place of origin:	Fujian China	Material:	Wrought iron, steel, aluminum
size:	custom size	port:	Xiamen
design style:	modern	Packaging Details:	After the paint is dry, it should be packed in a box after inspection. Smaller parts are clamped and secured in wooden boxes. Other parts are wrapped with pearl cotton, fixed with wooden strips, and wrapped with packing tape. And if conditions permit, it is fixed on the iron pallet. Large trim pieces have additional packaging protection.
Open:	swing	Project Solving Ability:	Graphic Design, 3D Model Design, Other
Packaging Preview:

Product Description

product name	wrought iron gate
color	black, brown, other
size	W8'xH8' / W10'xH8'/ W12'xH8'/ Any size can be customized
Material	Wrought iron, steel, aluminum
Accessories	Special security locks, handles, latches, viewer if necessary
Door leaf thickness	1-1/5'' (36mm) / 2'' (50mm)/any thickness can be customized
door panel design	Any relief design can be made on both sides
drawing design	We can provide 3D design
surface treatment	Paint/Powder Coating
Anti-rust method	never rusted
delivery time	Within 35-45 working days after payment
expiration of pay	T/T, 50% deposit, balance paid before shipment
OEM&ODM	Provide services

detailed picture

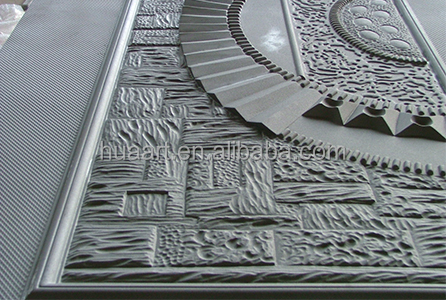

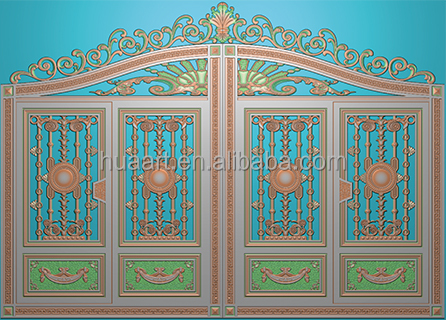

1. Professional relief design

Designed by our team of designers
Relief on cast aluminium door or railing surfaces detailed according to style and size provided
customer, let the customer understand the 3D effect of his product more clearly.

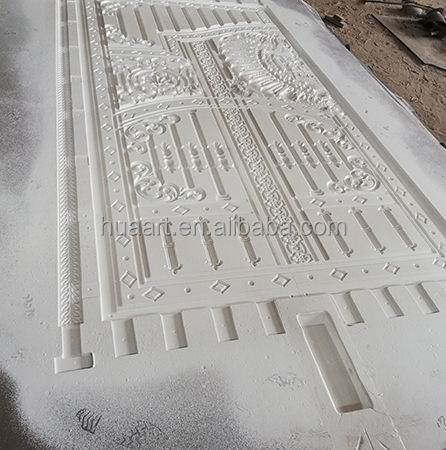

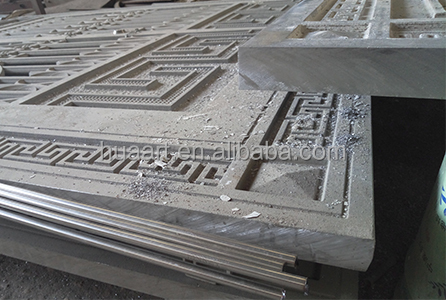

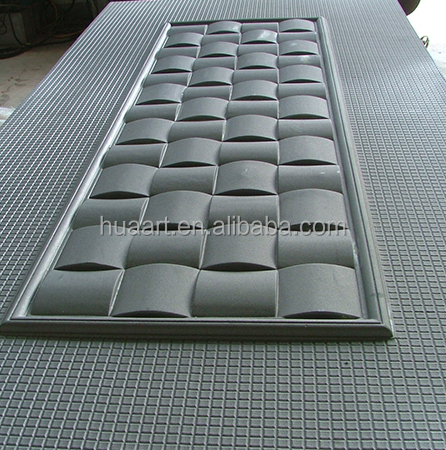

2. Professional mold CNC machining center

Our designer will input the designed relief drawing into our mold processing center, the mold will be based on
Design drawings.

3. Electric furnace smelting

Put the raw material standard aluminum ingot "Material: A102" into the electric furnace and smelt it into aluminum paste
Withstand high temperature of 800 degrees

4. Install the mold

^{Install the mold on the table of the large vacuum casting equipment.}

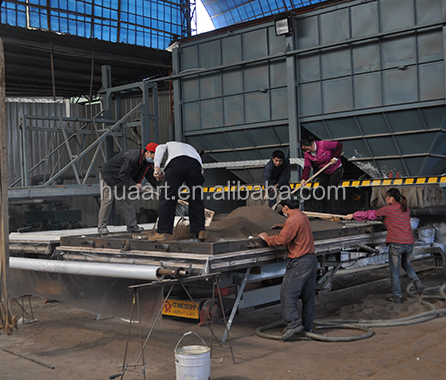

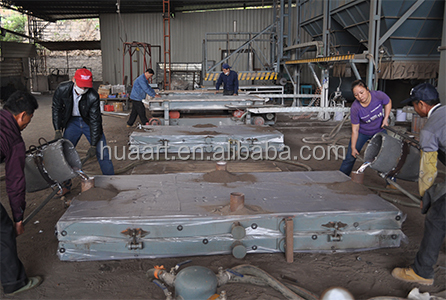

5. Product mold modeling

Put the engraved mold into a large vacuum casting equipment, completely cover the mold with sand, and use vacuum casting
The principle of complete solidification of sand.

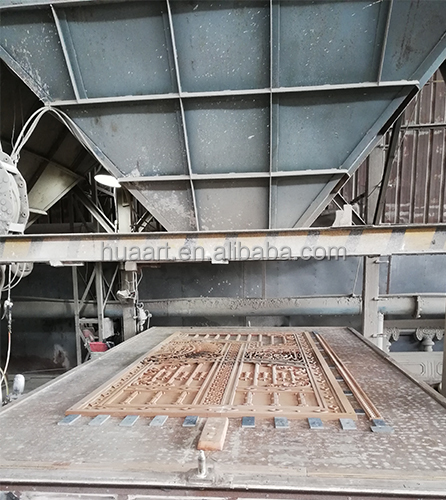

6. Product mold modeling

Through the principle of vacuum casting, the sand is solidified into the design of the product, and the mold assembly is completed through the upper mold and the lower mold.

7. Cast aluminum pouring

Pour molten aluminum (800 degrees) into the mold. Molten aluminum is quickly poured into every part of the product,
Slowly solidify.

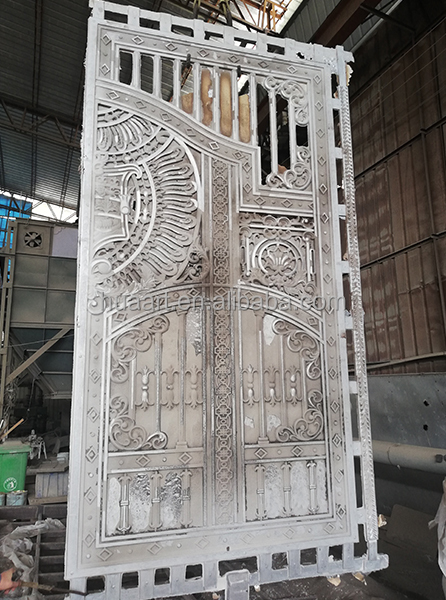

8. Demoulding

After about 40 minutes after the aluminum water in the mold, the product has been fully formed and cured. mold can
Open to pick up the product we need.

9. Thickness of cast aluminum products

in the gate we are currently using. Normal thickness is 36mm (1 1/4") 50mm (2"), any thickness can be customized.

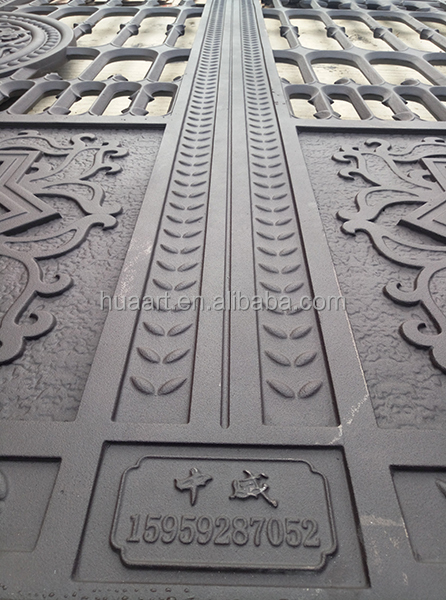

10. Vacuum cast aluminum surface details

At present, only the vacuum casting aluminum method can achieve the delicate edges and corners of the product surface relief
And no pores. The maximum size of our single product can be 2mx3m.

Factory wholesale wrought iron driveway gate villa swing door
