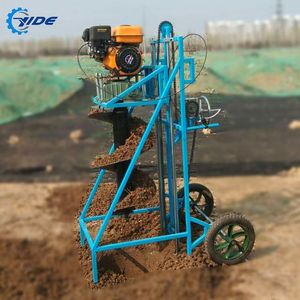

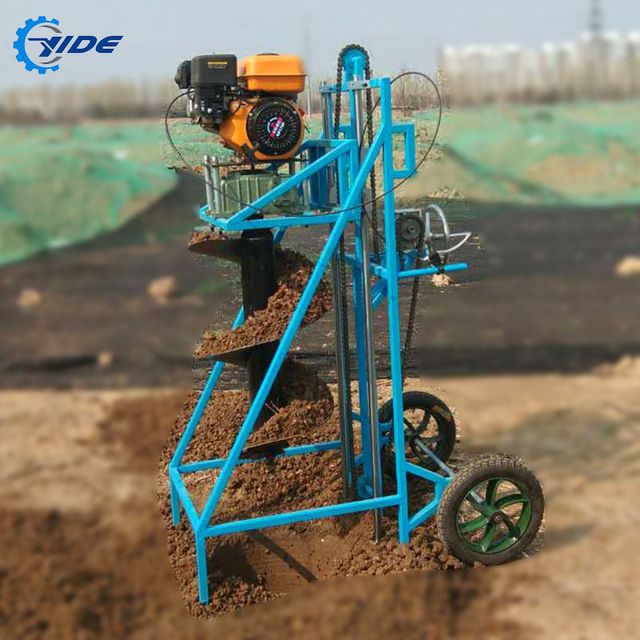

Guardrail post gasoline pile driver ground screw screw pile driver for sale

PRODUCT DETAIL
Packaging Details:Engine Packing: Wooden Case Rig Packing: Thickened Protective FilmPower head power:4kW
payment terms:L/C,T/T,Western UnionGradeability:28°
Swing speed:360mengine capacity:212CC
Power head speed:360 rpmDrilling depth:0.5-1.5 (m)
Type of engine:Four-strokeMax torque:400 km

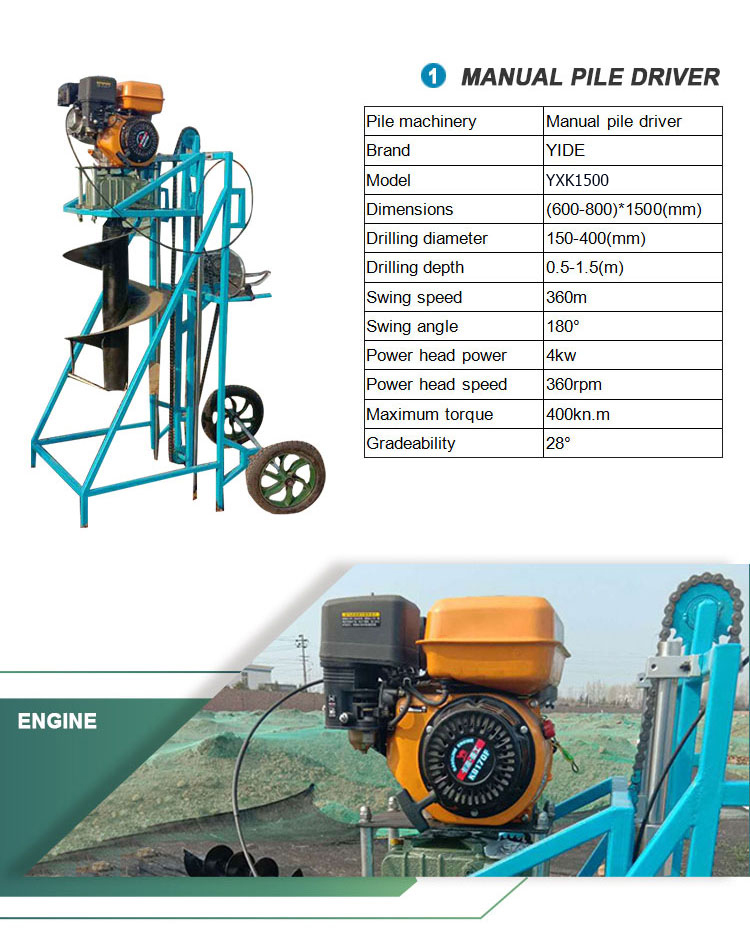

Name:Manual pile driver/drillport:Qingdao, Shanghai
place of origin; place of origin:Shandong Chinamodel:YXK1500
Supply capacity:5000 sets per yearSwing angle:180°

Guardrail post gasoline pile driver ground screw screw pile driver for sale

Product Description

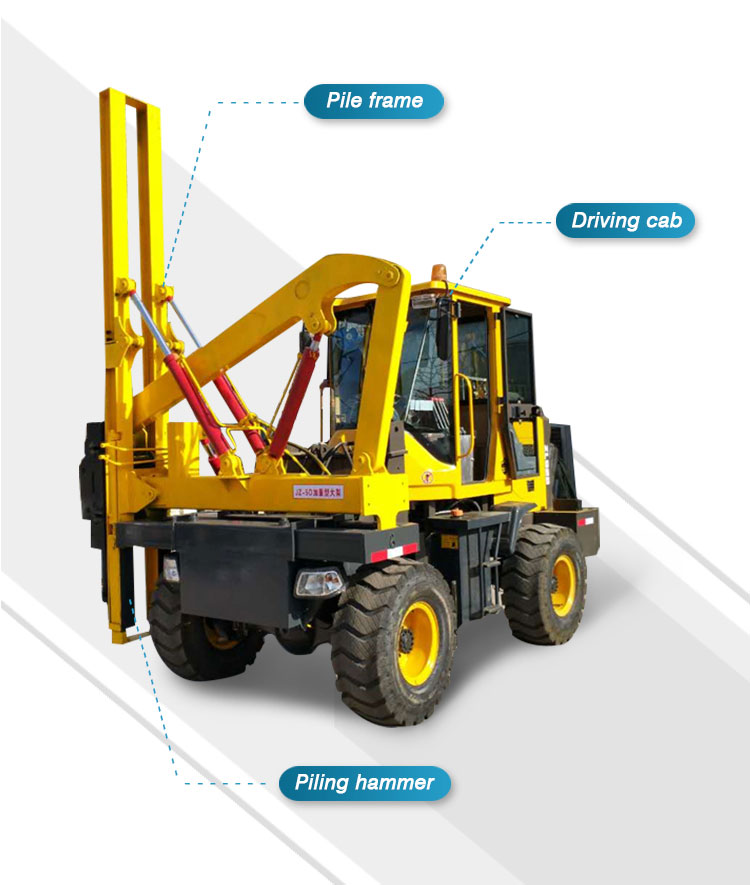

Highway guardrail drilling rig is a piling drilling rig widely used in highway, railway, construction, hydropower, port and other construction projects. The product has advanced performance, high work efficiency, comfortable operation, standardized key components, and can adapt to various harsh working environments. It is an ideal equipment for construction.



Pressure system:Advanced hydraulic system, high-quality hydraulic components and strict assembly process ensure the high efficiency and durability of the hydraulic system.

Model Design:The overall frame structure is excellent, and the materials used are completely national standard. High strength, good stability, industrial design, more spacious working space for operators.

Production Process:The production process is more reasonable, and the wearing parts are heat treated. The welding process is rigorous, the overall welding of the frame is stress-relieved, the deformation is reduced, and the testing equipment is perfect.


Piling machineryLoad pile driver
Carda virtue
ModelYD920
Drilling diameter114-160(mm)
Drilling depth1.6 (m)
Swing speed2 (meters)
Swing angle180(°)
power head power45 (kW)
Power head speed1500 (rev)
maximum torque2500(kn.m)
Gradeability15(°)
Walking speed40 (km/h)
vehicle weight4.2 (tons)
Matching drill pipe typeConcrete drilling
aspect420*228*270(cm)
Hydraulic Hammer Impact Frequency13-18HZ
hydraulic hammer flow60-851/min
Hydraulic hammer working pressure14-16MPA
Diesel engine power45kW
hydraulic system flow55-65ml/rev
distance between wheels1670mm
Machine quality4200kg
Configuration detailsHuichai 4102 engine (with integrated piling oil pump) 1 set, 1 260 hammer head, 1 hammer cake,
1 set of O-rings, 1 set of wrench kit.

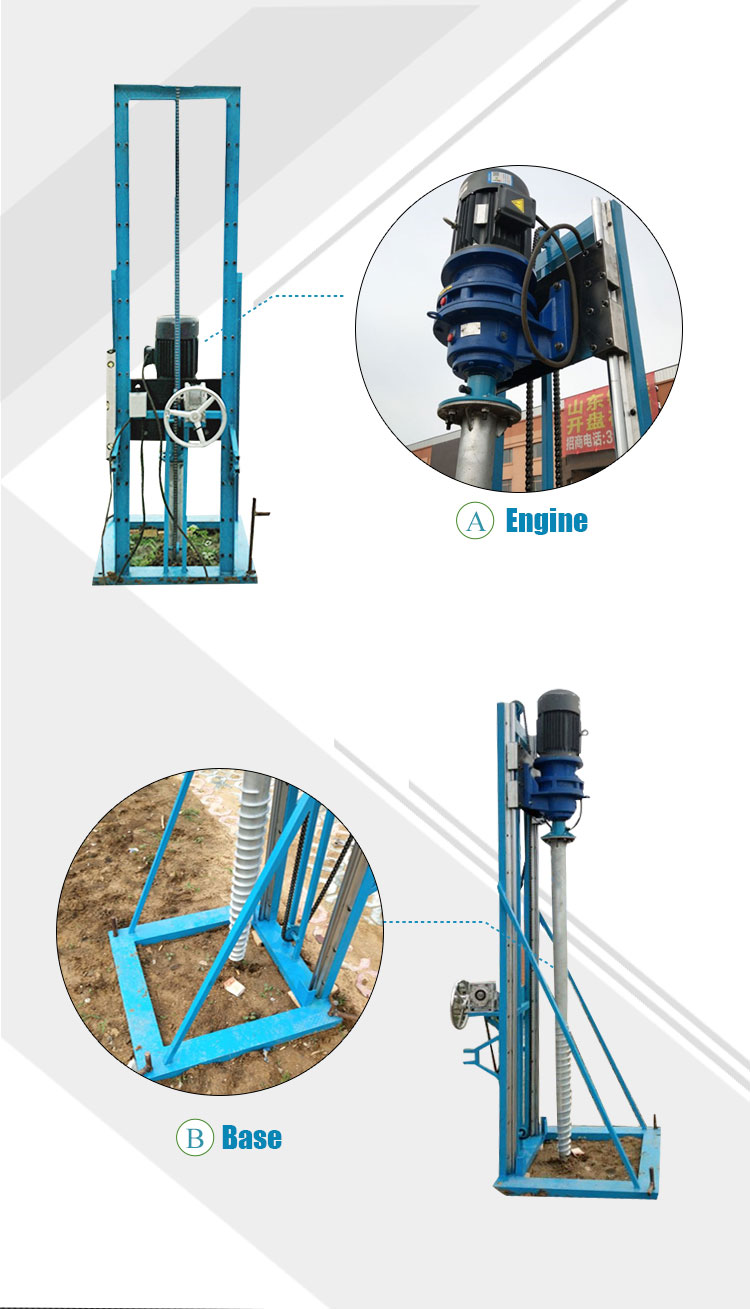

NameElectric Pile Driver/Screw Pile Driver
Carda virtue
ModelYXK-350
Drilling diameter150(mm)
Drilling depth2.2 (meters)
Swing speed30 (m)
Swing angle360(°)
power head power5.5kw / 7.5kw
Power head speed36 (turn)
maximum torque20(kn.m)
Gradeability25(°)
Walking speed3-5 (km/h)
vehicle weight0.03 (ton)
Matching drill pipe typescrew peg
aspect2200*500*450mm(cm)
Motor voltage380V
Number of motor phasesThree-phase power
mobile modepush the wheel
machine weight150-220KG
Drilling speed2 min/m
Rotating speed36 rpm
transfer methodUpper sliding chain drive
Hoisting methodManual hoist
Rail diameter30MM
Pile length range≤2mm
Pile diameter range≤110MM

Packaging and Shipping
