Heavy Duty DC Motor Card Reader Vehicle Access Control Mechanism Solar Swing Automatic Price Fence Railing Bar Parking
- $259.00 /set
- 1 set
- Shenzhen Wonsun Machinery & Electrical Technology Co., Ltd.
- Guangdong, China
- Ms Keira Xia
| color: | Black red, blue and white, gray and white | Certificate: | CE certification |
| Package preview: | Name: | Automatic price increase door | |
| brand: | Yuan Sheng | Packaging Details: | Carton for Barrier Enclosure, Pearl Wool DC Brushless Motor for Arm Remote Parking Barrier Boom Barrier Factory Price |
| Arm Type: | Straight type, folding type, fencing type | Material: | 2.0mm cold rolled sheet or galvanized sheet |
| Boom length: | up to 6 meters | speed: | 1.5s-6s |
| OEM/Design Manufacturer: | supported | port: | Shenzhen |
| payment terms: | Western Union, T/T | place of origin; place of origin: | Guangdong, China |
| Motor type: | AC motor | feature: | heavy duty, swing out, remote control |
| Supply capacity: | 2400 sets per month |

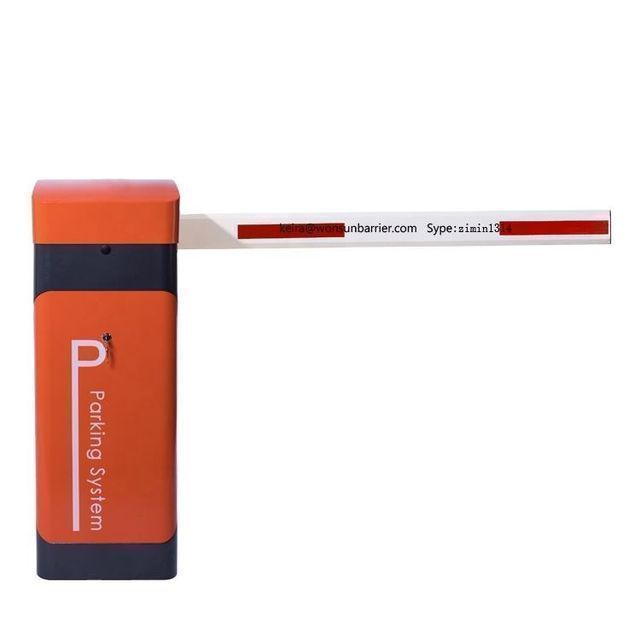

Heavy Duty 24V Brushless DC Motor Automatic Arm Barrier Gate Price Automatic Barrier Gate
Specifications of brushless DC motor barrier gate:
Heavy Duty 24V Brushless DC Motor Automatic Arm Barrier Gate Price Automatic Barrier Gate
| model. | DZ-132 Automatic Arm Barrier Gate |
| frame material | cold rolled sheet |
| beam | aluminum alloy |
| aspect | 352*302*1120mm |
| net weight | 48KG |
| input interface | Photocells, loop detectors, parking systems, wire controls |
| enter | 12V relay signal or Pulse Wide>100MS |
| power supply | DC24V |
| motor consumption | 80W |
| Operating temperature | -35°C to +85°C |
| Relative humidity | ≥90% |
| MCBF | 5 million times |
| button | support |
| remote control | Two-button remote control transmitter, distance ≤100m |

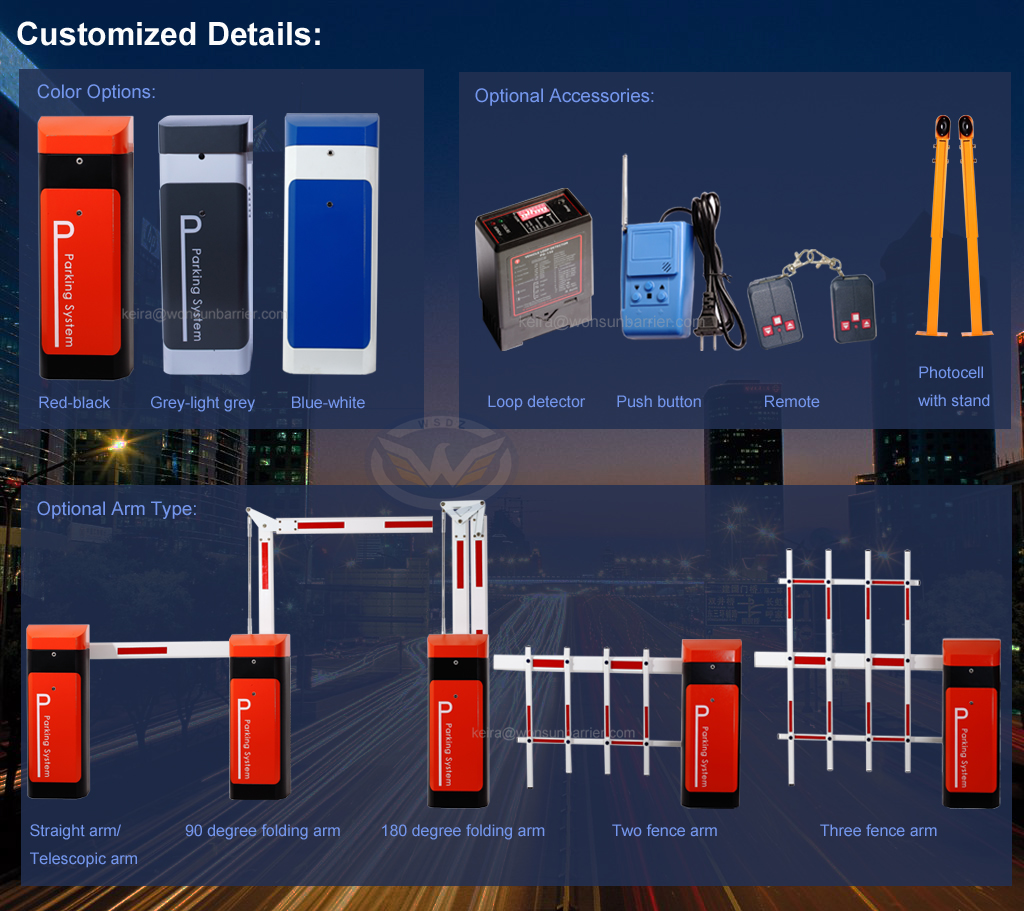

| Optional accessories | cycle detector; infrared photocell |
| beam length | 1M - 6M |
| on/off time | 1.5sec-6sec |

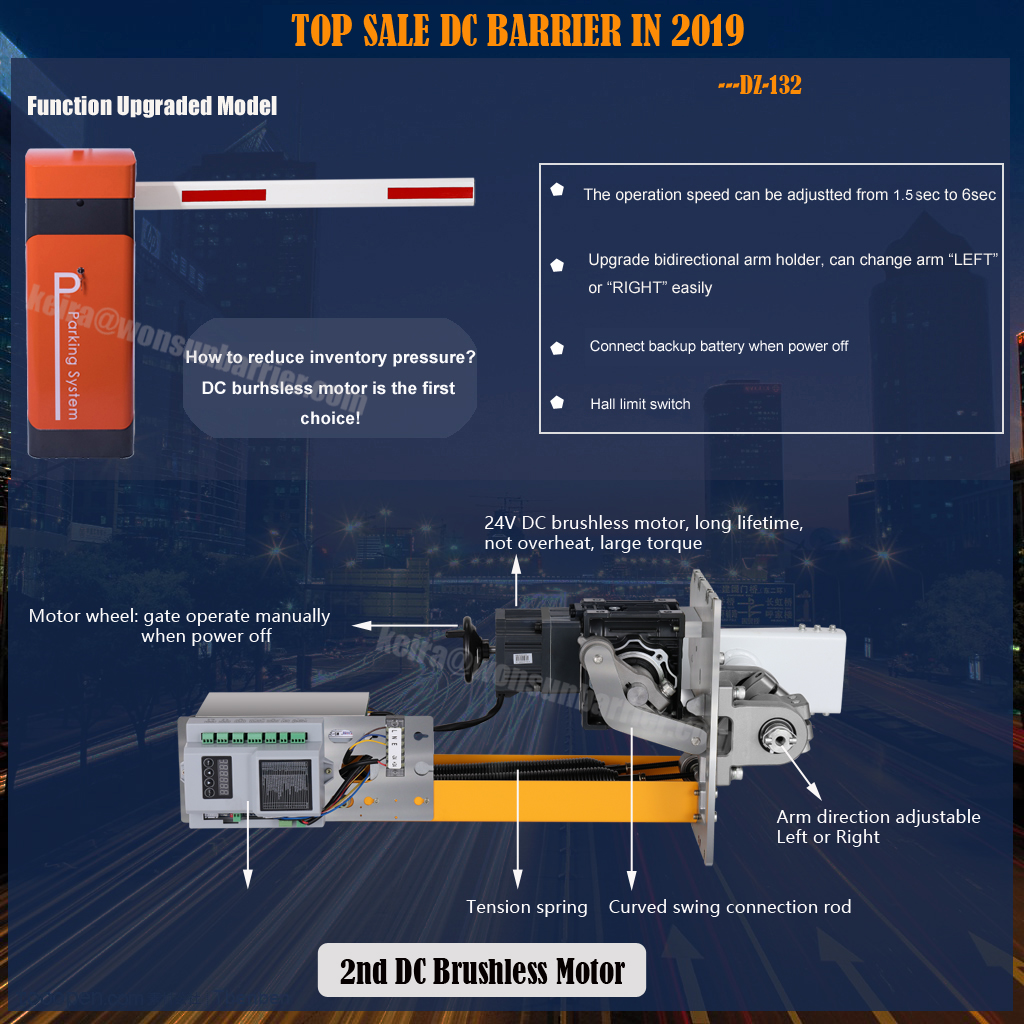

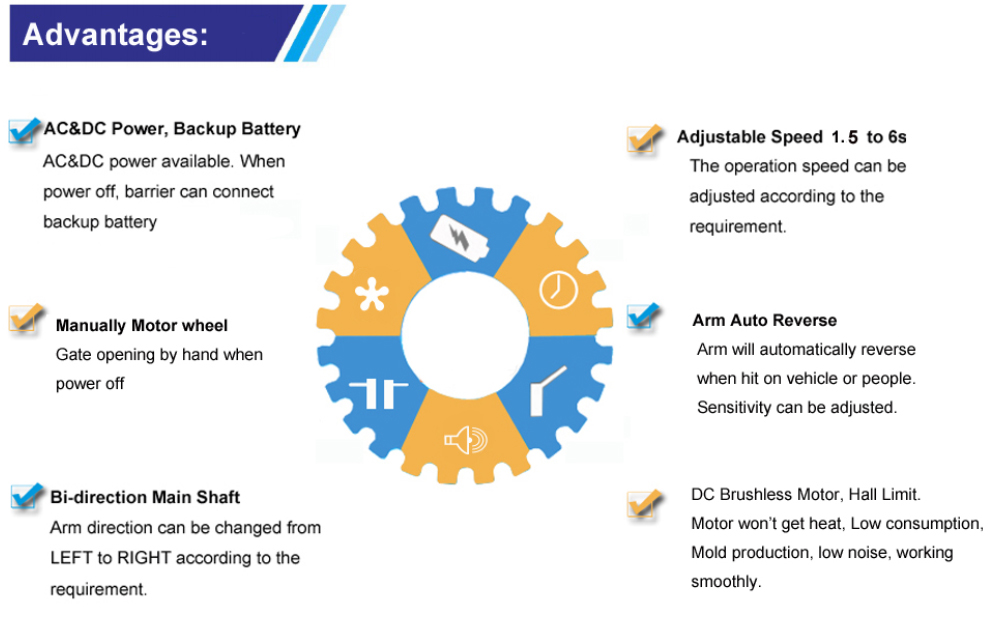

Functions and Features:
1 The operating speed is adjustable from 1.5s to 8s
2 quick interchangeable
3 Open the gate through the motor wheel when the power is off, and automatically reset after power on
4-crank arm three-link movement structure, smooth operation
5 Wireless remote control on/off
6 Automatic reverse function (adjustable intensity)
7 IR photocell connector available
8 loop detector connectors are available.
9 Perfect combination with parking lot system equipment, wire control (must be switch signal)
10 Traffic light connector (AC220V, power less than 40W)
11 Provide dry contact signals (COM, NC, NO) for the parking lot system
12 Closing automatic delay (adjustable)
13 RS485 or CAN network communication interface (no need to install modules)
14 count interface
15 24V backup battery interfaces (can be charged by solar energy)
Free service:
1. Provide one year free service (excluding arm and remote control)
2. Provide lifetime fee service
3. Provide technical services
4. OEM: We can customize the case, color, logo for you according to your detailed requirements.
5. Technical support and after-sales service, this is a long-term relationship between us.
6. Negotiable for large order quantity.
Charging service:
1. Wrong installation leads to damage
2. Disconnection caused by improper voltage
3. Improper installation and use of damaged barrier surfaces
4. Overdue service items are not within the scope of our commitment.
