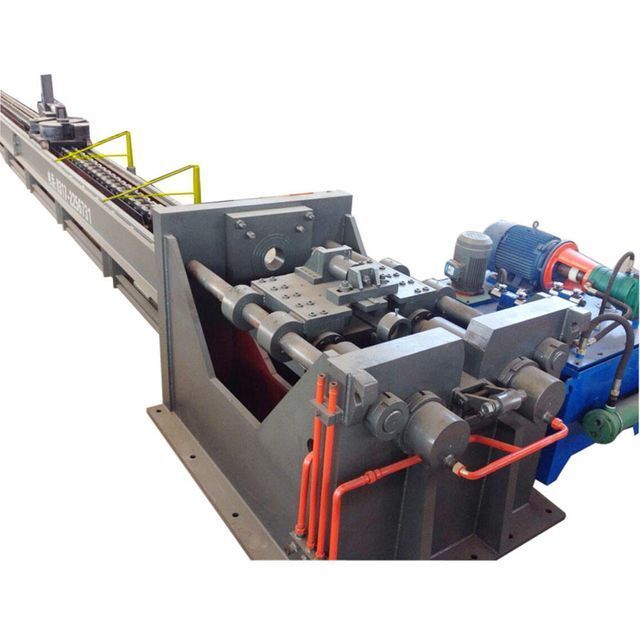

High performance durable quality drawing machine for metal pipe
- $5000.00 /set
- 1 set
- Shijiazhuang Aisen Machinery Co., Ltd.
- Hebei, China
- Ms Judy Chen
| Voltage: | 380V; | Power: | 18.5KW; |
| Key Selling Points: | Automatic; | Payment Terms: | L/C,T/T; |
| Machinery Test Report: | Provided; | Packaging Detail: | wooden case; |
| Maximum reduction: | 2-3MM; | Local Service Location: | Turkey,Russia; |
| Marketing Type: | New Product 2020; | Showroom Location: | Turkey,Russia; |
| After-sales Service Provided: | Overseas service center available; | Supply Ability: | 10 Sets per Month; |
| Inlet Diameter: | 5-25mm; | Brand Name: | AISEN; |
| Core Components: | Gearbox,Pump,Bearing,Motor; | Warranty: | ONE YEAR; |
| Certification: | CE; | After Warranty Service: | Video technical support,Online support,Spare parts; |
| Warranty of core components: | 1 Year; | Weight: | 2500KG; |
| Place of Origin: | Hebei, China; | Year: | 2019; |
| Outlet Diameter: | 5-23mm; | Dimension(L*W*H): | 8500*2300*1200; |
| Video outgoing-inspection: | Provided; | Package Preview: | ; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use; | Port: | Tianjin; |
| Condition: | New; | Reduce: | ZQ650; |
The cold drawing machine refers to a mechanical device that strongly stretches ferrous materials and non-ferrous materials under normal temperature conditions, and can also pull out various shaped materials such as square steel and hexagonal steel.
|
Model |
LB-5 |
LB-10 |
LB-15 |
LB-25 |
LB-30 |
|
Max. pulling force |
5T |
10T |
15T |
25T |
30T |
|
Max. bar diameter |
20mm |
25mm |
30mm |
40mm |
50mm |
|
Max. pipe diameter |
60mm |
90mm |
114mm |
140mm |
195mm |
|
Max. reduction diameter |
2mm |
2-3mm |
2-3mm |
2-3mm |
2-5mm |
|
Chain size |
78.18mm |
100mm |
125mm |
150mm |
203mm |
|
Cold drawing length |
Customizable |
Customizable |
Customizable |
Customizable |
Customizable |
|
Main power |
18.5kw |
18.5kw |
22kw |
45kw |
55kw |
|
Reducer model |
ZQ500 |
ZQ650 |
ZQ750 |
ZQ850 |
ZQ950 |
|
Model |
LB-50 |
LB-60 |
LB-100 |
LB-120 |
|
Max. pulling force |
50T |
60T |
100T |
120T |
|
Max. bar diameter |
60mm |
80mm |
100mm |
120mm |
|
Max. pipe diameter |
220mm |
273mm |
324mm |
400mm |
|
Max. reduction diameter |
2-5mm |
2-5mm |
2-5mm |
2-5mm |
|
Chain size |
216mm |
200mm |
220mm |
240mm |
|
Cold drawing length |
Customizable |
Customizable |
Customizable |
Customizable |
|
Main power |
75kw |
90kw |
55kw*2 |
75kw*2 |
|
Reducer model |
ZQ1000 |
ZQ1100 |
ZQ950*2 |
ZQ1000*2 |
