Industrial Furnace Heating Ceramic Fiber Module Promotional Price
- $0.95 / >=100 kilograms
- 100 kilograms
- Beijing Jiahe Hengtai Material Technology Co., Ltd.
- Beijing, China
- Mr Kevin Feng
PRODUCT DETAIL
| product name: | Ceramic Fiber Module | port: | Tianjin |
| Common size: | 300*300*300MM/Customized | feature: | fire protection |
| payment terms: | L/C, T/T | Operating temperature: | 1000-1430℃ |
| Supply capacity: | 50 metric tons per month | Packaging Details: | Polyethylene bag+carton+pallet |
Product Description

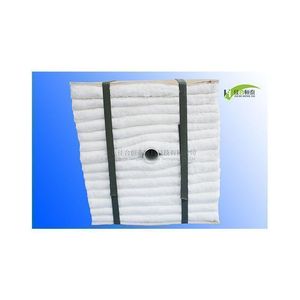

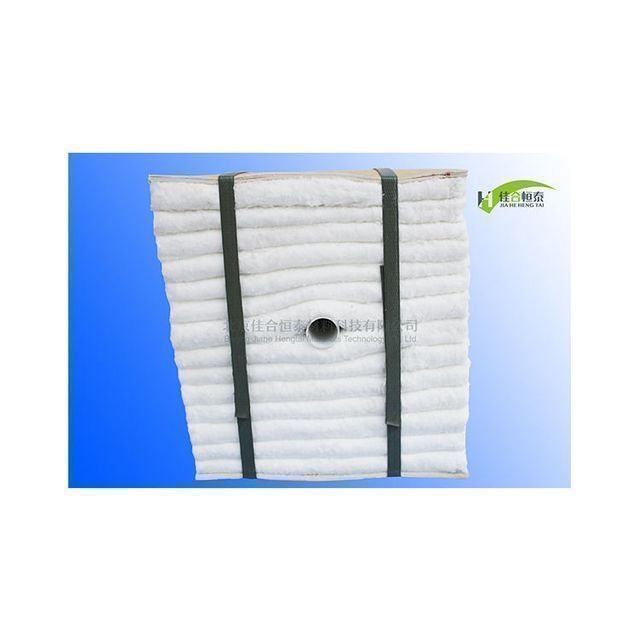

Ceramic Fiber Module
Product performance:The ceramic fiber module is made of ceramic fiber needle-punched blanket according to the fiber assembly structure and size required by the customer. It has good thermal stability and flexibility, and is convenient for construction. The expansion of the modules after the liner is installed is just enough to make the liner seamless. The overall thermal performance of the fiber lining can thus be improved.Applications:Lining of steel, metallurgy, petrochemical and other industrial furnaces and heating plants.Product Specifications:Dimensions are made according to customer requirements. The normal size is 300*300*300mm. Working temperature: 1000-1430℃
Specification
Ceramic Fiber Module Technical Data
Grading temperature | 1260 | 1400 | |||||||
the code | Beijing JH-289 | Beijing JH-389 | Beijing JH-489 | BJJH-589 | |||||
Heat shrinkage (%) | 1000℃×24h≤-3 | 1100℃×24h≤-3 | 1200℃×24h≤-3 | 1350℃×24h≤-3 | |||||
Theoretical density (kg/m3) | 200±10; 220±10 | ||||||||
Pill content (φ≥0.25mm) (%) | ≤15 | ||||||||
Theoretical thermal conductivity (W/m·k) | (average 200°C) | 0.050-0.060 | |||||||
(Average 400°C) | 0.095-0.120 | ||||||||
(average 600°C) | 0.160-0.195 | ||||||||
chemical composition(%) | Al2O3(%) | ≥45 | ≥45 | 52-55 | - | ||||
Ferric oxide(%) | ≤1.0 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
ZrO2(%) | - | - | - | 15-17 | |||||
Al2O3+SiO2+ZrO2(%) | - | - | - | ≥99 | |||||
Al2O3+SiO2(%) | ≥97 | ≥99 | ≥99 | - | |||||
K2O+Na2O(%) | ≤0.5 | ≤0.2 | ≤0.2 | ≤0.2 | |||||
Conventional specifications (mm) | 300×300×250 | ||||||||
pack | carton | ||||||||
Quality and Environmental System Certificate | ISO9001-2000ISO14001-1996 | ||||||||
Note: Other sizes are available upon special request
