JH Whiskey Alcohol Distillation Equipment
- $100.00 /set
- 1 set
- Wenzhou Aowei Machinery Co., Ltd.
- Zhejiang, China
- Ms Tina Zhang
| Processing: | distillation, concentrator | Supply capacity: | 10 sets of whisky distillery equipment per month |
| Health status: | new | Video external inspection: | if |
| Core components: | engine | port: | Shanghai/Ningbo |
| Voltage: | pending | weight: | pending |
| Applicable industries: | Manufacturing Plants, Food and Beverage Plants | Material: | Stainless Steel 304, 316L |
| strength: | pending | Processing Type: | Carbonated drinks |
| Warranty: | 12 months | vitality: | steam. |
| Output alcohol: | 90-95% degree | Surface treatment: | Mirror or matte finish |
| After Warranty Service: | Video technical support, online support, spare parts | Marketing Type: | Hot Products of 2019 |
| height: | ≤9m | Feed: | Dilute alcohol or fermentation broth |
| Showroom location: | not any | Mechanical test report: | if |
| After-sales service provided: | Engineers can repair machinery overseas | Local service location: | not any |
| Packaging Details: | Plastic film, cotton cloth and wooden cases - whisky equipment. | Dimensions (L*W*H): | pending |
| payment terms: | letter of credit, wire transfer | Certification: | pending |
| brand: | ONW | Core Components Warranty: | 1 year |
| place of origin; place of origin: | Zhejiang, China |

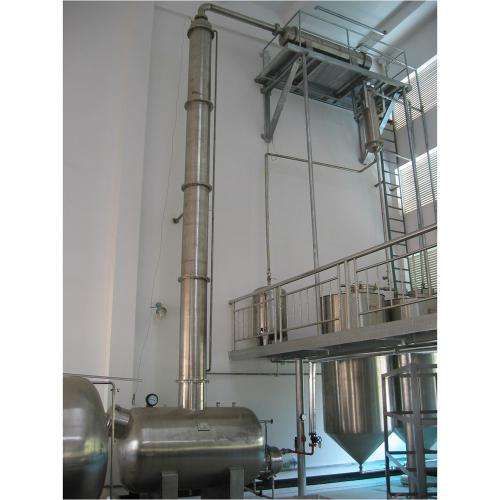

JHAlcohol stills(Alcohol distillation equipment, whiskey distillation equipment) consists of a receiver, a tower body, a condenser, a cooler, a buffer tank and a high-level storage tank.
This equipment changes the traditional tower pot into a concentrator, which integrates concentration and recovery. It is especially suitable for the concentration and recovery of alcohol solvent under normal pressure and high temperature. But not for heat-sensitive materials.
It is suitable for dilute alcohol recovery in medicine, food, light industry, chemical industry and other industries. Conducive to reducing production costs and economic benefits. Dilute alcohol from 30~50 degrees to 93~95 degrees can be distilled. The alcohol content of the finished product is high, which can increase the reflux ratio, but it will reduce the output of the finished product. The alcohol content of the raffinate discharged is less than or equal to 3 degrees. It is a special equipment for alcohol recovery and distillation.
Technical Parameters of Alcohol Distiller - Whiskey Distillery Equipment
|
|
JH-200 |
JH-300 |
JH-400 |
JH-500 |
JH-600 |
JH-800 |
|
Tower volume (L) |
640 |
1220 |
1450 |
2300 |
2505 |
3200 |
|
Tower height (mm) |
6000 |
7000 |
7000 |
7000 |
7500 |
7500 |
|
High tank volume (L) |
300 |
400 |
650 |
800 |
1000 |
1500 |
|
Condenser area (m2) |
5 |
8 |
11 |
18 |
25 |
45 |
|
Cooling area (m2) |
1 |
1.5 |
2.2 |
4 |
6 |
8 |
|
Heating area (m2) |
3.0 |
6.0 |
6.5 |
10 |
15 |
26 |
|
Recovery capacity (kg/h) |
45~50 |
90~1000 |
150~160 |
280~300 |
420~440 |
600~620 |
|
Recovery Concentration (%) |
93~95 |
|||||
|
package style |
Stainless steel corrugated charging |
|||||
|
size length x width x height |
2300×700×7300 |
2600×800×7500 |
2500×1000×9000 |
3000×1200×9000 |
3500×1400×1000 |
4200×1800×1000 |
