JUNZHENG 220v multi-function variable speed 2x72 inches double bracket abrasive belt sander polishing machine abrasive belt sander
- $1250.00 / 2 - 9 sets
$1190.00 / 10 - 49 sets
$990.00 / >=50 sets - 2 sets
- Henan Junzheng Import And Export Co., Ltd.
- Henan, China
- Mr Yuan
PRODUCT DETAIL
| frequency: | 50Hz/60Hz | grade: | DIY, industrial |
| Rubber contact wheels: | PH 427 X 12" | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Warranty: | 1 year | weight: | 90KG |
| Grinder type: | Horizontal Belt Grinder, Vertical Belt Grinder | Packaging Details: | Wooden box or carton packaging, suitable for long-distance sea and rail transportation, or machine-loaded container transportation. |
| type: | Belt Grinder | Dimensions (L*W*H): | 68*58*64cm |
| Rotating speed: | 3000 rpm | Voltage: | 110V-230V, 380V |
| Customization support: | OEM,ODM,OBM | Energy source: | electrical |
| Rated voltage: | 380v/220v | Supply capacity: | 100 sets per quarter |
| current: | 3.5A/7.5A, others | Applicable industries: | Belt Grinder |
| Package preview: | Maximum motor speed: | other | |
| place of origin; place of origin: | Henan | application: | Copper, LRON, ferrous materials, brass, steel |
| model: | JZ-S03 | Sand mat size: | 1880*50/2100*50mm |
| Abrasive belt motor power: | 1.5kw/2.0kw | port: | Shanghai/Qingdao/Tianjin/Ningbo etc. |
Product Description
Variable Speed Belt Sander (Reversible) Heavy Duty with Inverter 2 HP 1500W 220V
* Belt Grinder Variable Speed Chassis is designed for professional knife and other cutting tool and machine builders. we provide full
A range of accessories for making knives, blades, scissors and other metalworking materials.
A range of accessories for making knives, blades, scissors and other metalworking materials.
* The unit is very easy to maintain
And doesn't require any special skills from an engineer and can be built in your workshop. You have to place the motor additionally
and pulleys.
And doesn't require any special skills from an engineer and can be built in your workshop. You have to place the motor additionally
and pulleys.
* Available abrasive belt size: 70.9-82.7"*2"/1800-2100mm*50MM (our machine is equipped with 1800mm abrasive belt)
detailed drawing

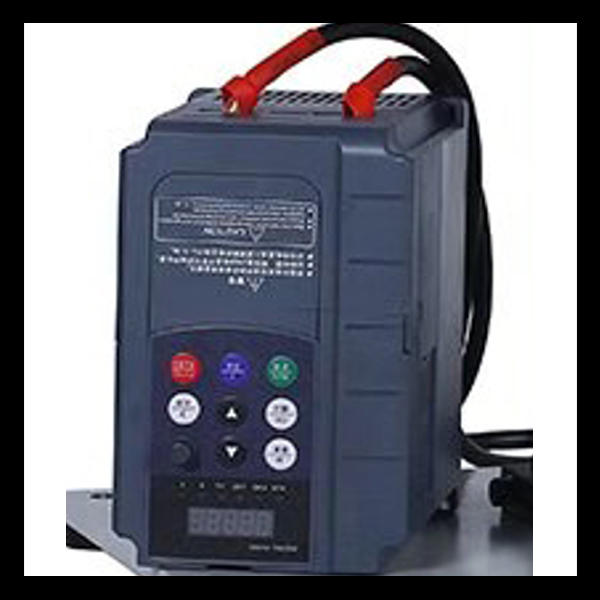

Heavy duty inverter
Equipped with heavy-duty frequency converter, high torque at low speed. The whole machine is fixed with all bolts, which greatly improves the running accuracy of the machine.
Wide range of applications
The main frame is made of 12mm thick steel plate, which is not easy to deform. It is used for regular and irregular polishing of stone, wood, metal appliance parts and accessories.
Title here.
The machine board is equipped with reinforcing ribs, which effectively avoids the deformation of the frame due to gravity after long-term use. The all-steel frame is welded at all joints, very strong and stable.
Title here.

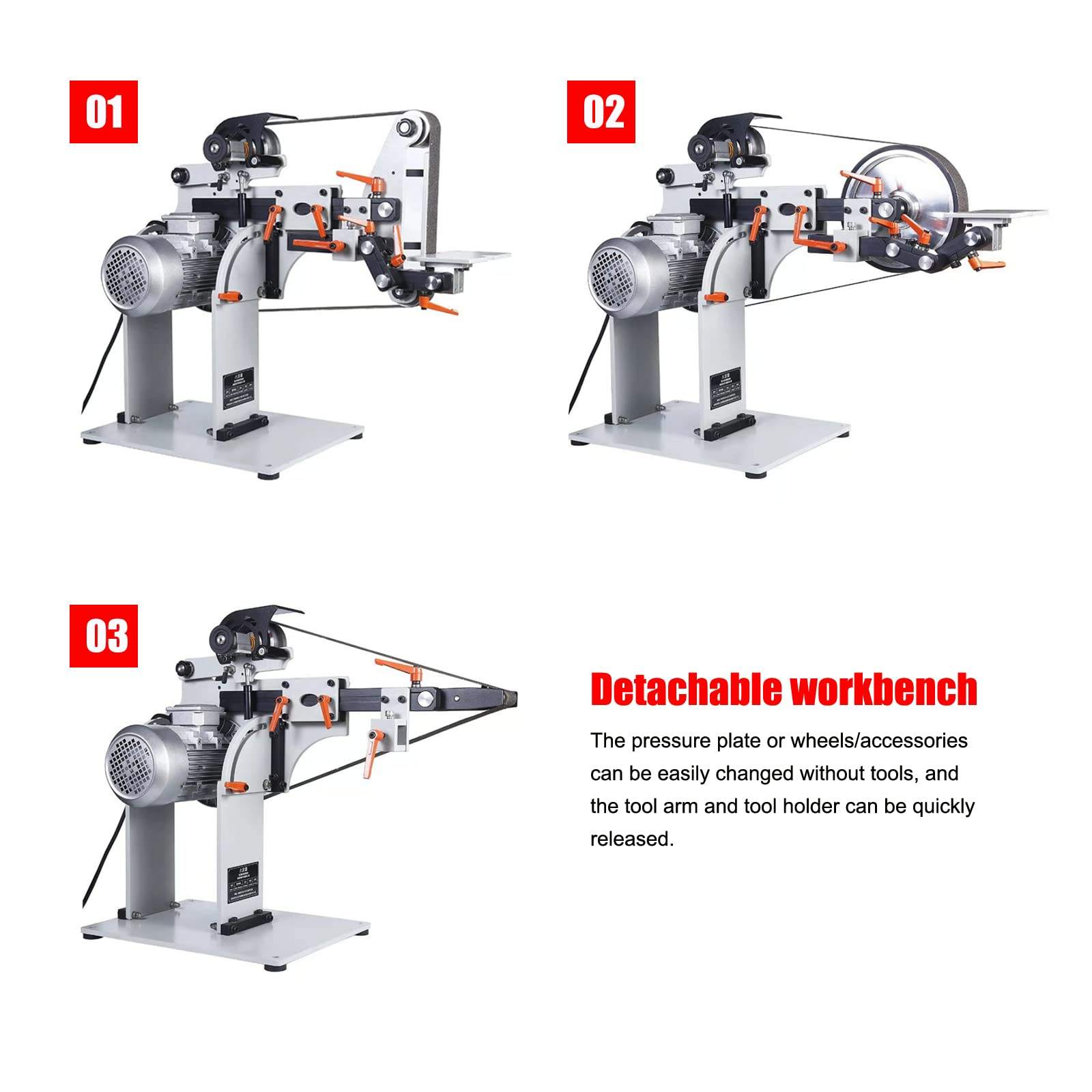

Detachable workbench. Platen or wheels/attachments can be easily changed without tools, and tool arms and tool holders can be quickly released.

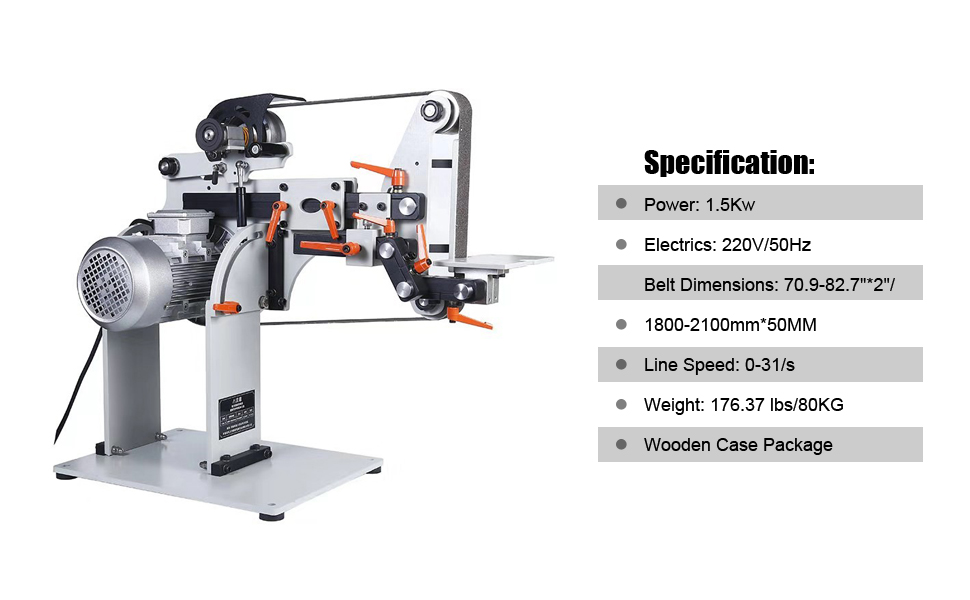

Product parameters
* Motor power 1.5KW; line speed 0-31/s; speed: 2800r/min; motor: 2HP;
* Knife and steel working belt: 2" X 48". Inverter*1
* All-steel structure, the surface of the machine is polished and sprayed, which is durable and durable.* Knife and steel working belt: 2" X 48". Inverter*1

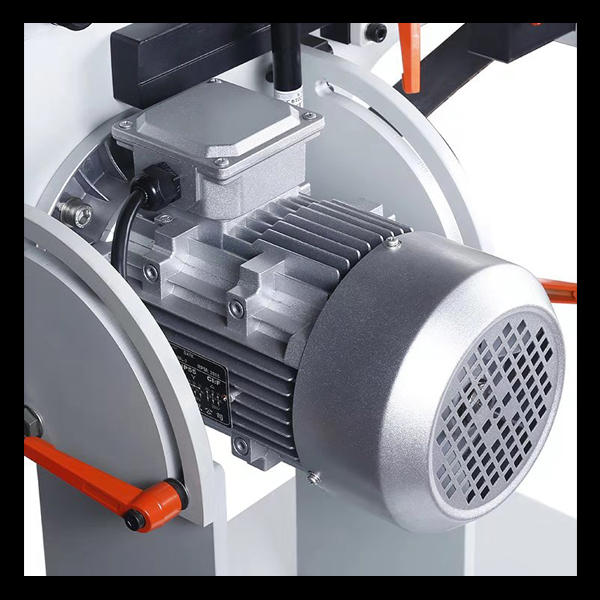

* Equipped with 1500w pure copper motor.
* Adjustable table.

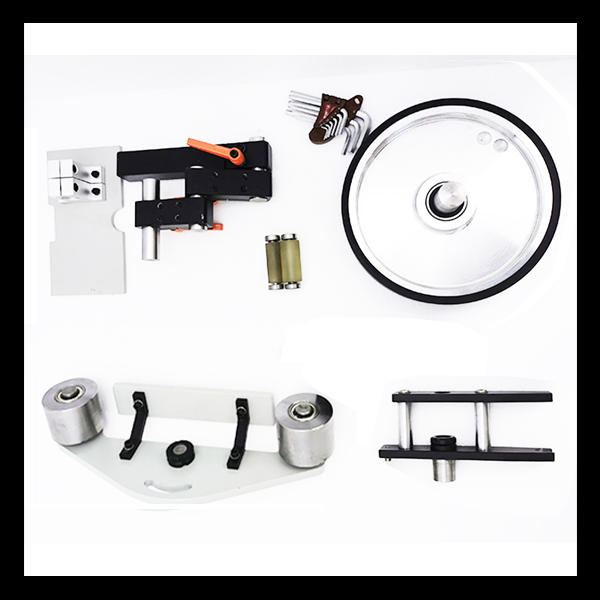

* It comes with three different grinding wheels.
Voltage | 220V | weight | 152 lbs/69 kg |
belt size | 72"*2"/1828mm*50MM | pack | wooden box |
multipurpose machine
Multi-field application
