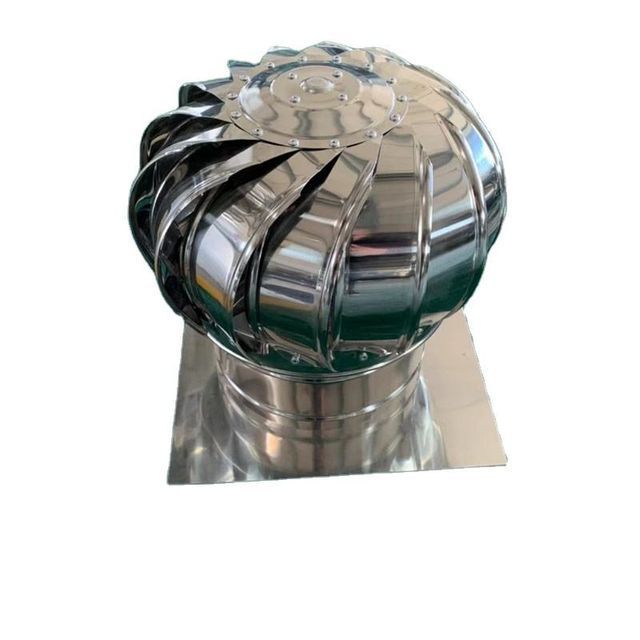

LC-BEST 150 mm with the base plate wind driven roof turbine ventilator fan for pipe / chimney
- $19.99 / 200 - 499 pieces
$18.98 / 500 - 999 pieces
$16.96 / 1000 - 1999 pieces
$15.95 / >=2000 pieces - 200 pieces
- Liaocheng Best Resources Co., Ltd.
- Shandong, China
- Ms Helen Jin
| After-sales Service Provided: | Online support; | Warranty: | 1 Year; |
| Mounting: | Roof Fan; | Packaging Detail: | Standard export packing: Single box; |
| Inside Material: | Usually Galvanized steel,( or stainless steel, Accept customized; | Power: | No power; |
| Outside Material: | Stainless Steel 201/304/316L/Aluminim; | Voltage: | No power; |
| Size (Throat / Neck Diameter): | 150 mm, (75 mm To 300 mm Mini series, Accept customized); | High: | 280 mm (260 mm To 300 mm, Accept customized); |
| Brand Name: | LC-BEST; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company,Pipe,Tube,Chimney; |
| Blade Material: | stainless steel; | Blade Quantity: | 14 pieces, (14 pieces /24 pieces); |
| Type: | wind driven / No power Mini ser,Other; | Certification: | ce,CCC; |
| Packing Size: | 280 mm*280 mm * 270 mm, (Accept customized; | Customized support: | OEM; |
| Air Capacity: | 2280 m3/h, (1900 m3/h to 2650 m3/h); | Single package size: | 30X30X30 cm; |
| Turbine Wheel Outside Diameter: | 280 mm, (250 mm to 400 mm); | Place of Origin: | Shandong, China; |
| Package Preview: | ; | Packing: | Single box; |
| Single gross weight: | 2.100 KG; | Selling Units: | Single item; |
LC-BEST 150 mm wind driven roof turbine ventilator fan for pipe / chimney
LC-BEST 150 mm No Powered roof turbine ventilator fan for pipe / chimney
LC-BEST 150 mm wind driven roof turbine exhaust fan for pipe / chimney
LC-BEST 150 mm No Powered roof turbine exhaust fan for pipe / chimney
LC-BEST 150 mm to LC-BEST 300 mm Mini series, Accept customized
LC-BEST 150 mm wind driven rotary ventilation fan for tube / chimney
1. Products material:
Outside material: Usually choose stainless steel SS201 or SS304, SS316L and Aluminum is not the best choose.
Insider material: Usually choose Galvanized steel, you also can choose stainless steel.

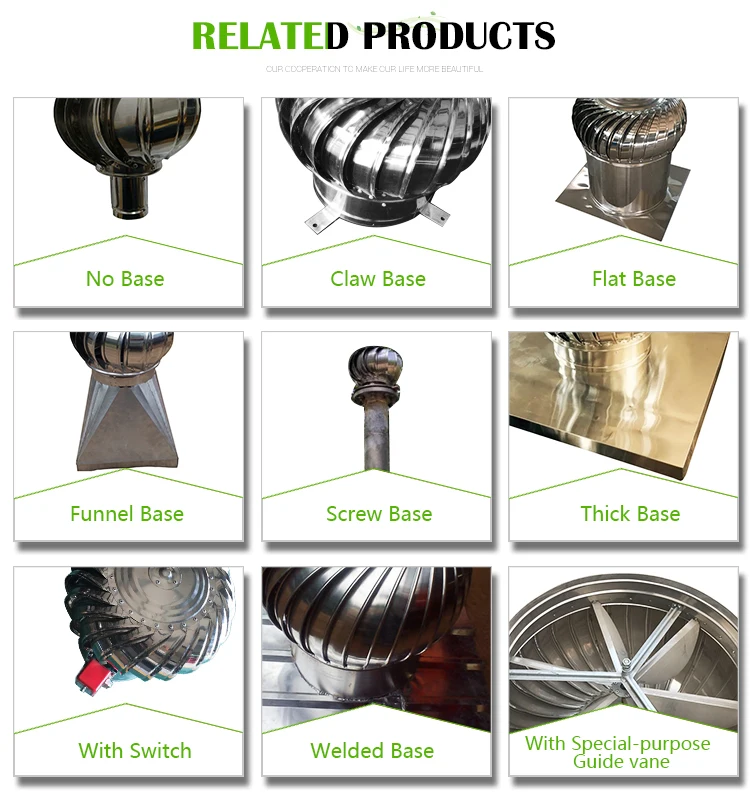

2. The popular size (its throat/neck diameter): 75mm, 80mm, 100mm, 110mm, 112mm, 120mm, 150mm, 153mm, 155mm, 160mm, 180mm, 200mm, 220mm, 250mm, 300mm, Accept any size custmized, surely, usually 100mm, 150mm, 200mm, 250mm, 300mm with the base plate, so don't worried. surely, if your quantity is more enough, we also accept customized the base plate, so don't worried.
| Wind Driven Roof Turbine Ventilator Fans, Mini series Type: LC-BEST 75mm -LC-BEST 300mm (Powerless Roof Turbine ventilator Fans) (No Power Roof Turbine Ventilator Fans ) |
||||||||
| No. | Model | Number of leaves | Ventilates the caliber ¢(mm) |
Turbine wheel outer diameter ¢(mm) |
Common high (mm) |
Outline diameter D*D*H (mm) |
Foundation size A*B(mm) |
the wind speed 11km/h(3.05m/s) air ventilation (m³/per hour) |
| NO. | common Product's Model |
the blades number (pcs) |
Neck/Throat Diameter (mm) |
Ball Diameter (mm) |
Common high (mm) |
Packing size L*W*H (mm) |
the common base plate size A*B(mm) |
the wind speed 11km/h(3.05m/s) air ventilation (m³/per hour) |
| 1 | LC-BEST 75mm (3") |
14 | 75mm | 250mm | 260mm | 260*260*270mm | 1900 m³ | |
| 2 | LC-BEST 80mm (3") |
14 | 80mm | 250mm | 260mm | 260*260*270mm | 1980 m³ | |
| 3 | LC-BEST 100mm (4") |
14 | 100mm | 250mm | 260mm | 260*260*270mm | 2000 m³ | |
| 4 | LC-BEST 110mm (4") |
14 | 110mm | 255mm | 260mm | 270*270*270mm | 2050 m³ | |
| 5 | LC-BEST 120mm (5") |
14 | 120mm | 260mm | 270mm | 270*270*280mm | 2100 m³ | |
| 6 | LC-BEST 150mm (6") |
14 | 150mm | 270mm | 280mm | 280*280*290mm | 260mm*260mm | 2250 m³ |
| 7 | LC-BEST 153mm (6") |
14 | 153mm | 272mm | 280mm | 280*280*290mm | 260mm*260mm | 2265 m³ |
| 8 | LC-BEST 155mm (6") |
14 | 155mm | 275mm | 280mm | 280*280*290mm | 2280 m³ | |
| 9 | LC-BEST 160mm (6") |
14 | 160mm | 280mm | 290mm | 290*290*300mm | 2300 m³ | |
| 10 | LC-BEST 200mm (8") |
14 | 200mm | 300mm | 300mm | 310*310*310mm | 300mm*300mm | 2500 m³ |
| 11 | LC-BEST 220mm (9") |
14 | 220mm | 320mm | 300mm | 330*330*310mm | 2580 m³ | |
| 12 | LC-BEST 250mm (10") |
14/24 | 250mm | 350mm | 300mm | 360*360*310mm | 350mm*350mm | 2650 m³ |
| 13 | LC-BEST 300mm (12") | 24 | 300mm | 400mm | 350mm | 420*420*360mm | 500mm*500mm | 2800 m³ |
3. Product Advantages:
1).Old air is extracted removing heat,fumes,steam and dust 2).Improves people’s productivity 3).Improves indoor air quality 4).Water and bird proof 5).Reduces structural damage in lofts 6).Protects stored goods 7).Human and environmentally friendly 8).Requires no electricity 9).Suit to all kinds of buildings, for example: pipe/tube, chimney,family,factory, room, hospital, and so on.
4. We supply and export within all over the world!
Turbine ventilators remove the heat from your building inducing currents of fresh air cooling your people and the environment.High quality,one-time stamping forming,enough strong and fast turning.Simple installation, long service life. Ideal to ventilate factories, workshops, warehouses, agricultural applications, schools, hospitals, assembly halls and other buildings which require effective and efficient ventilation. The extraction produces fresh cool breezes into the building and ensures a cleaner, cooler and more healthy working environment.

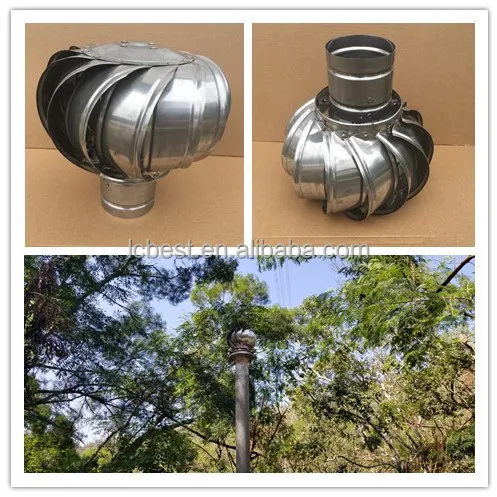

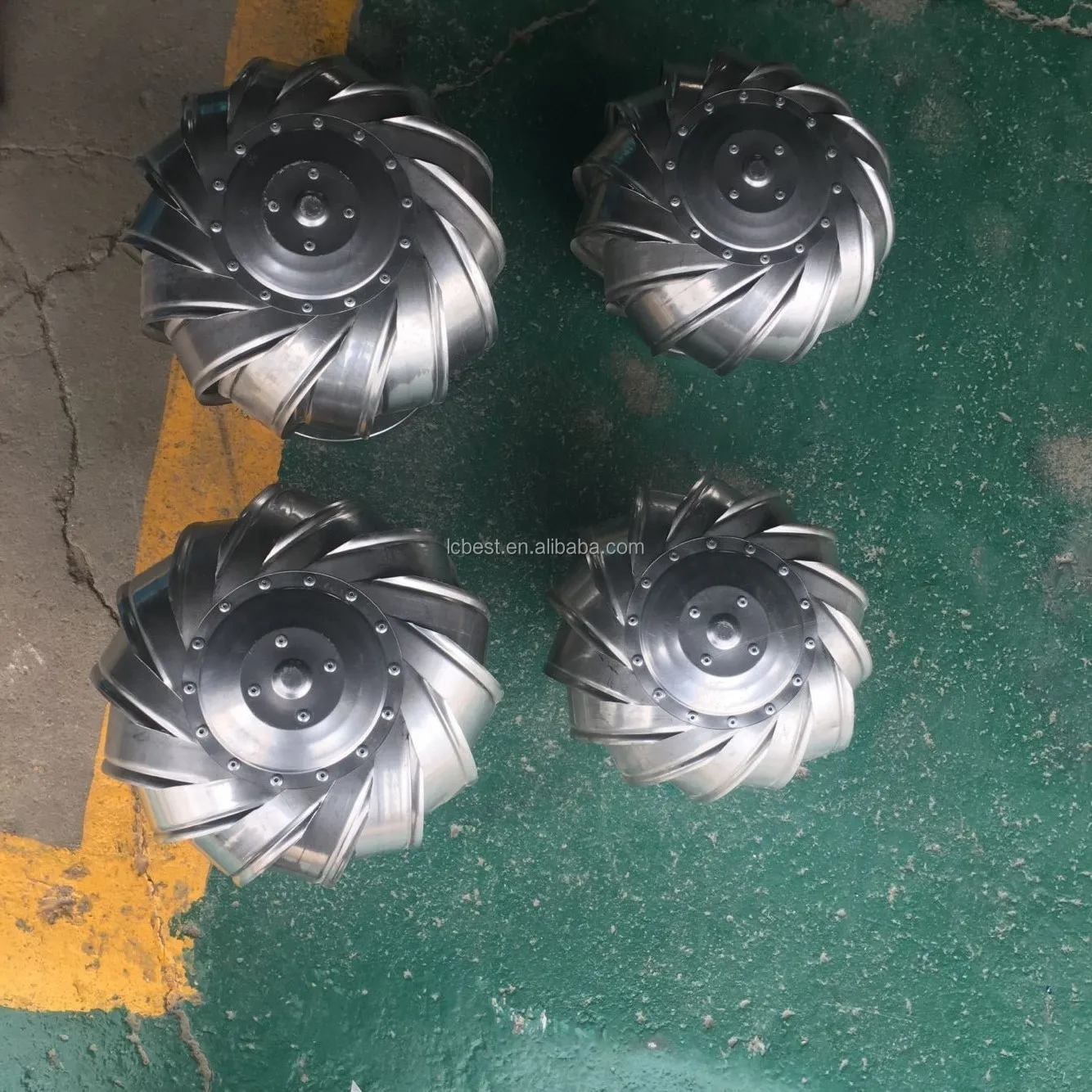

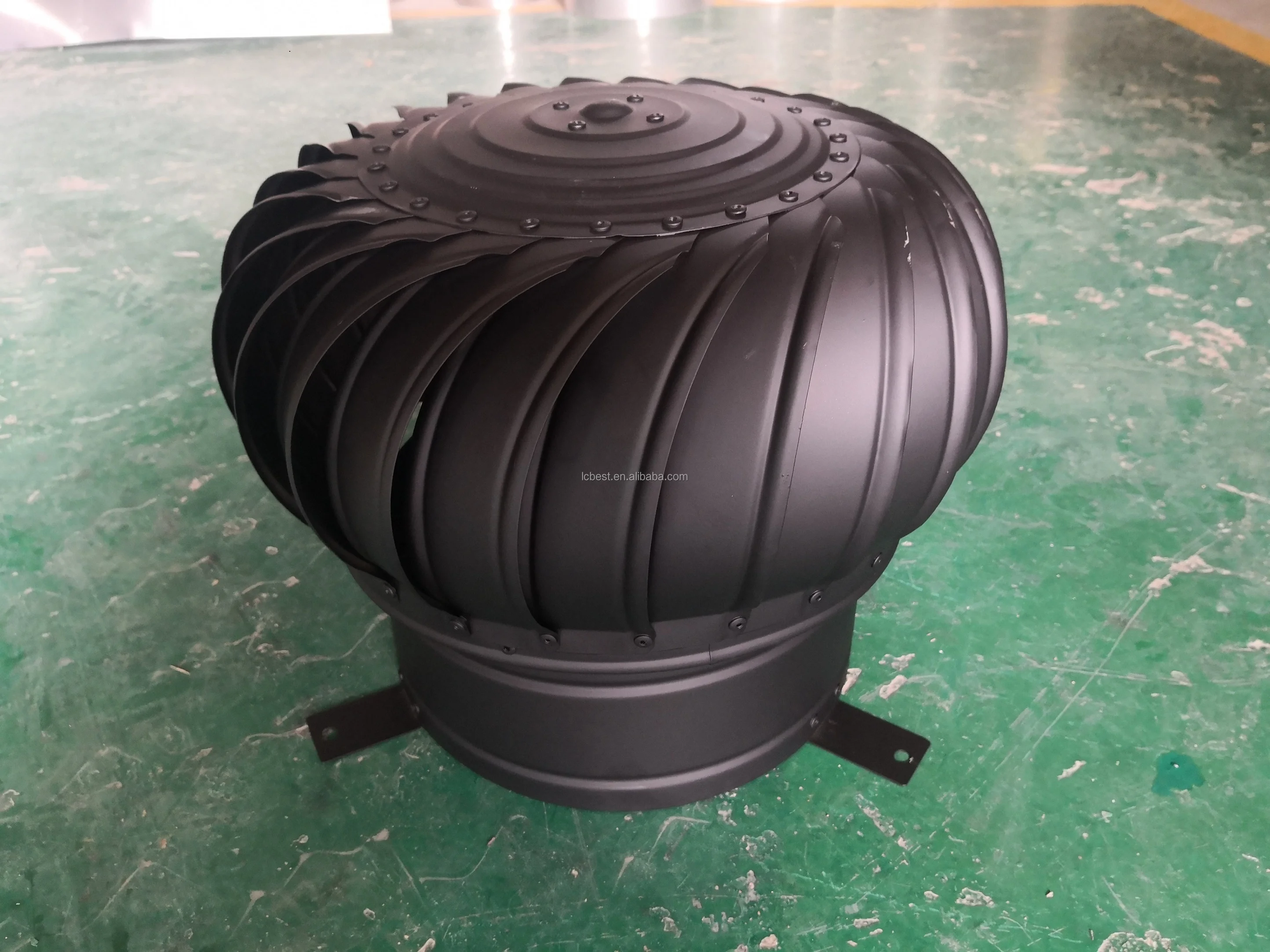

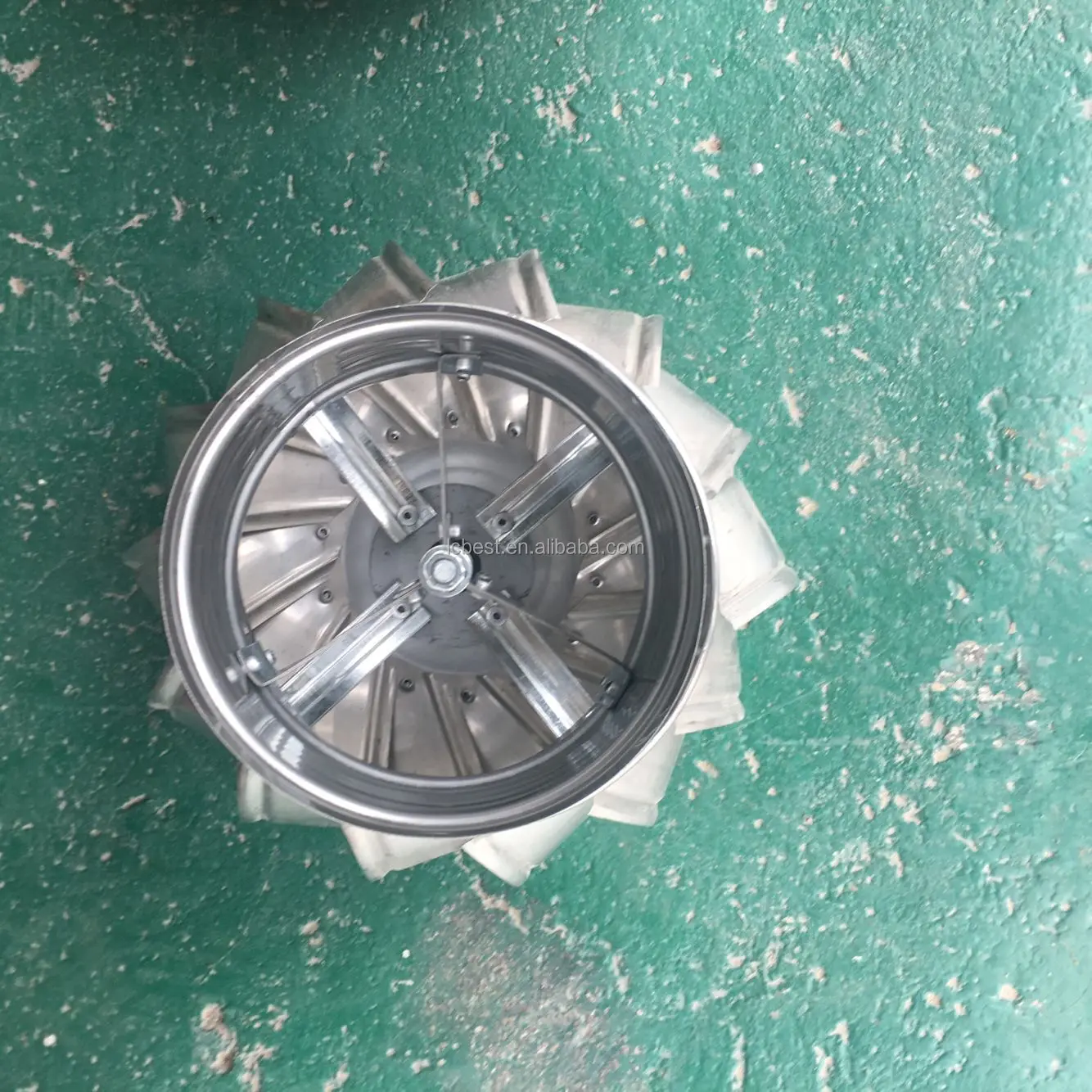

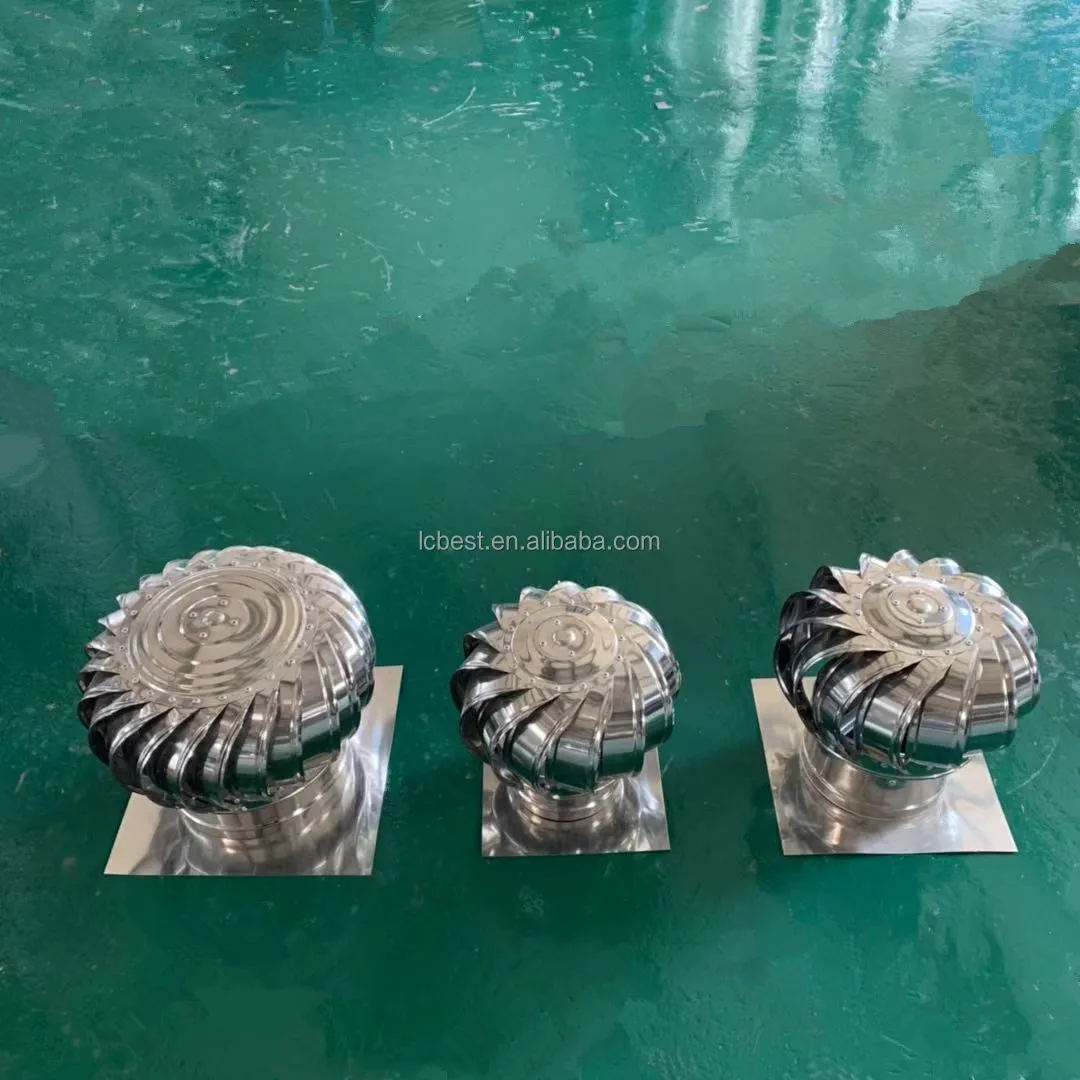

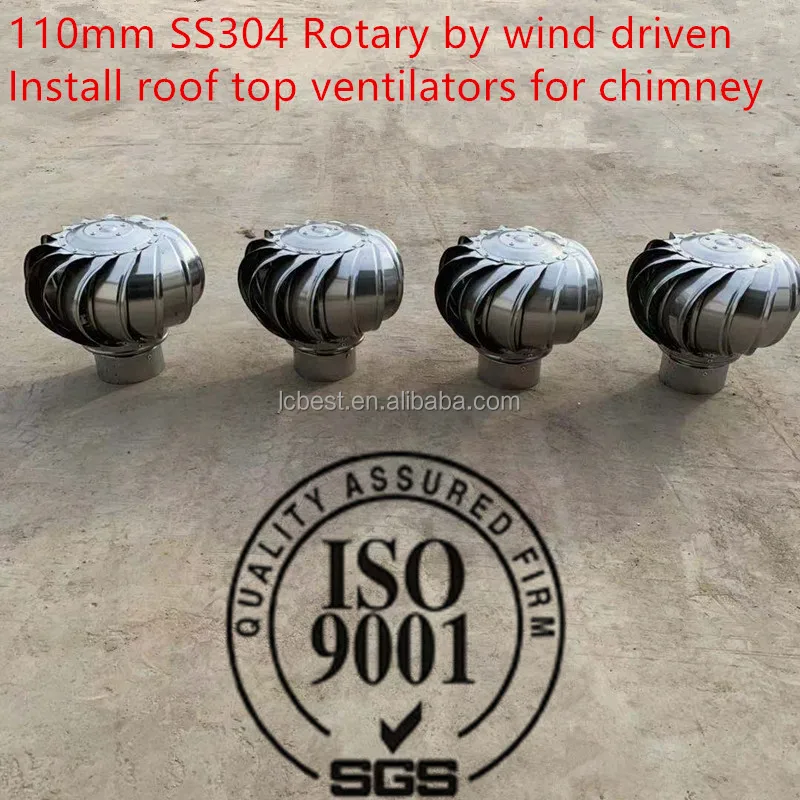

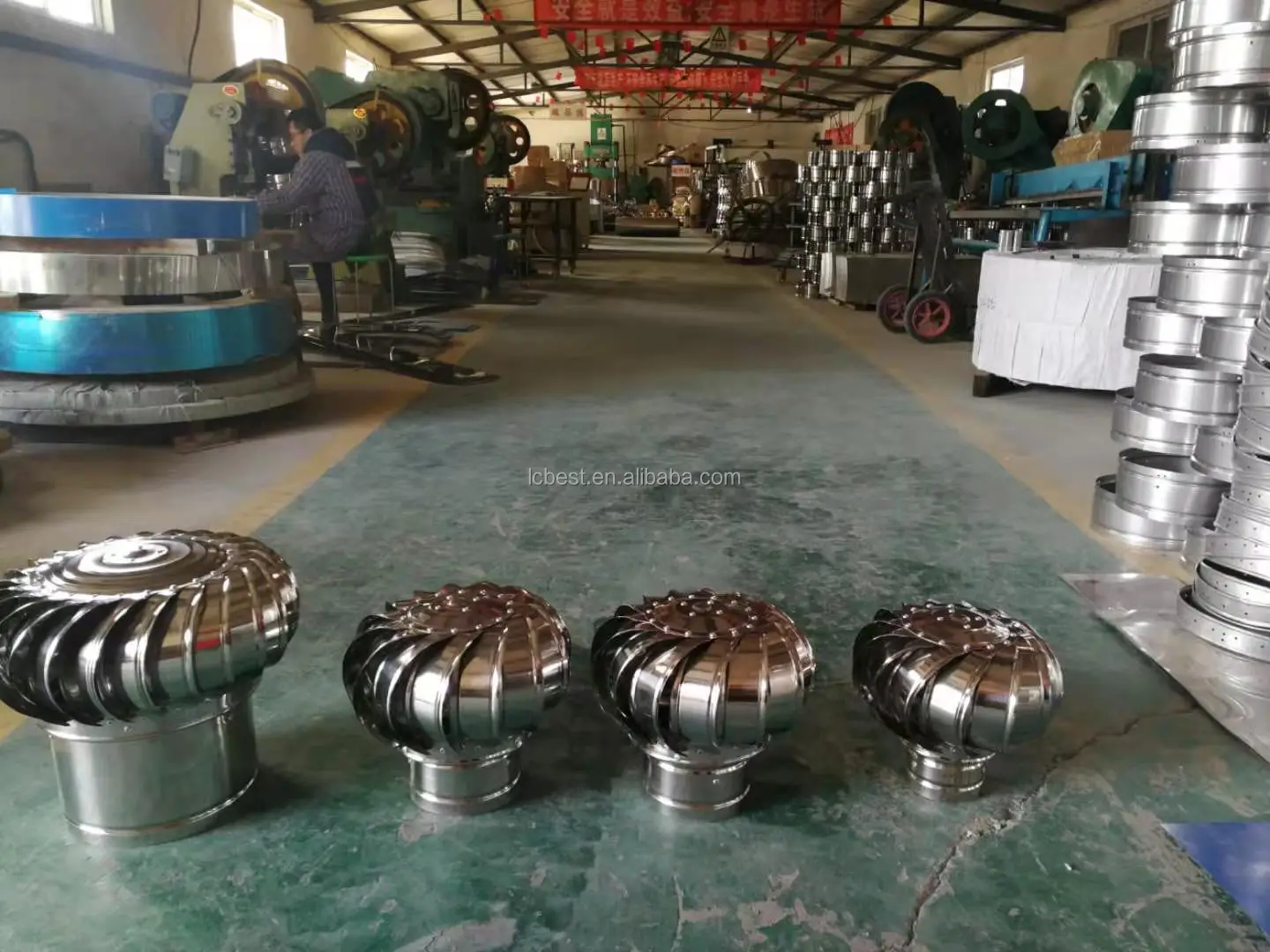

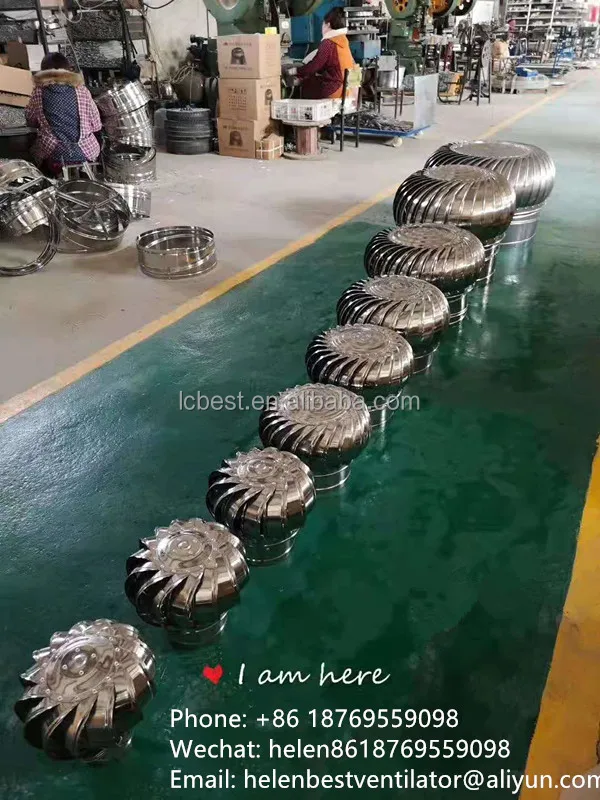

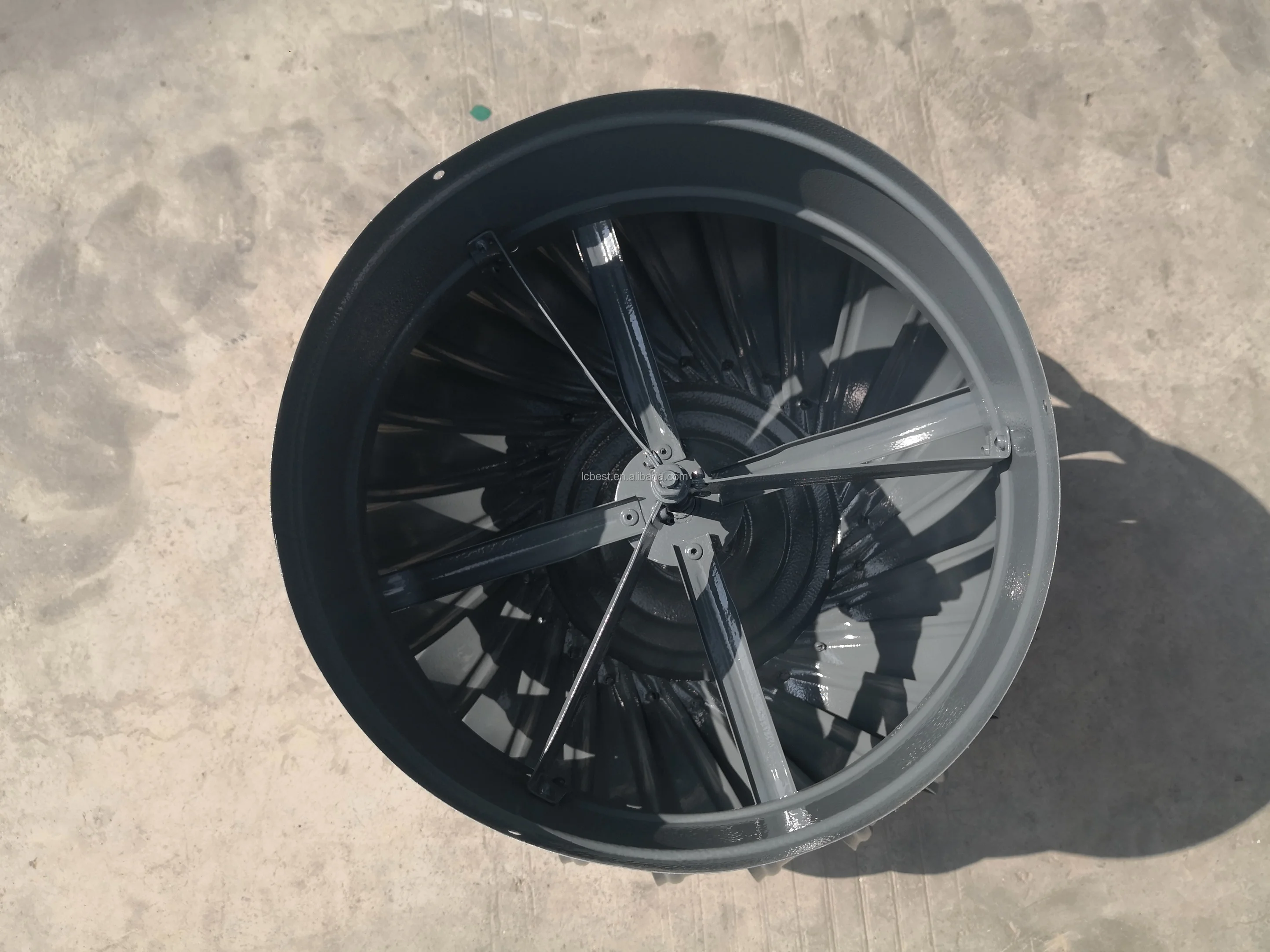

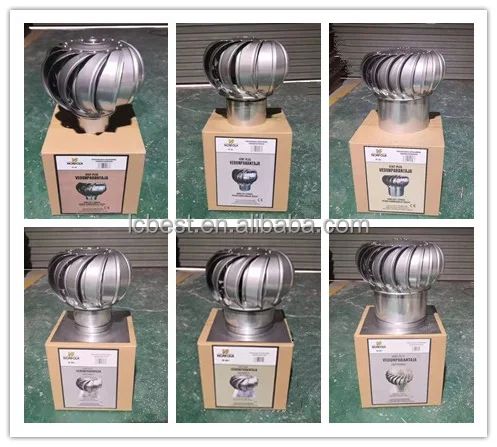

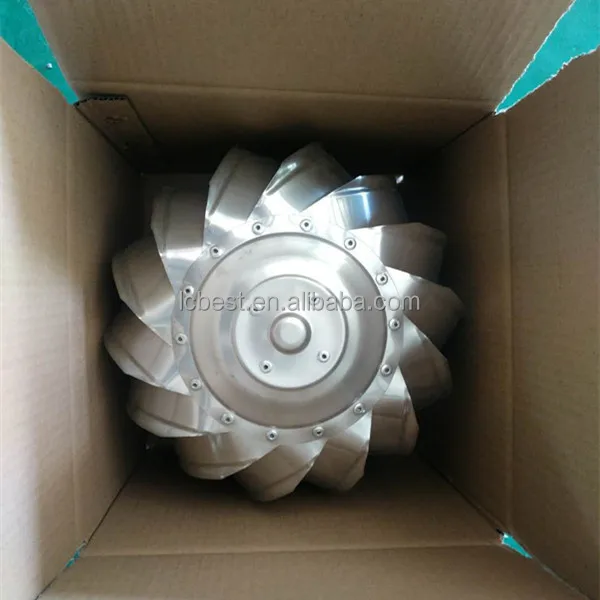

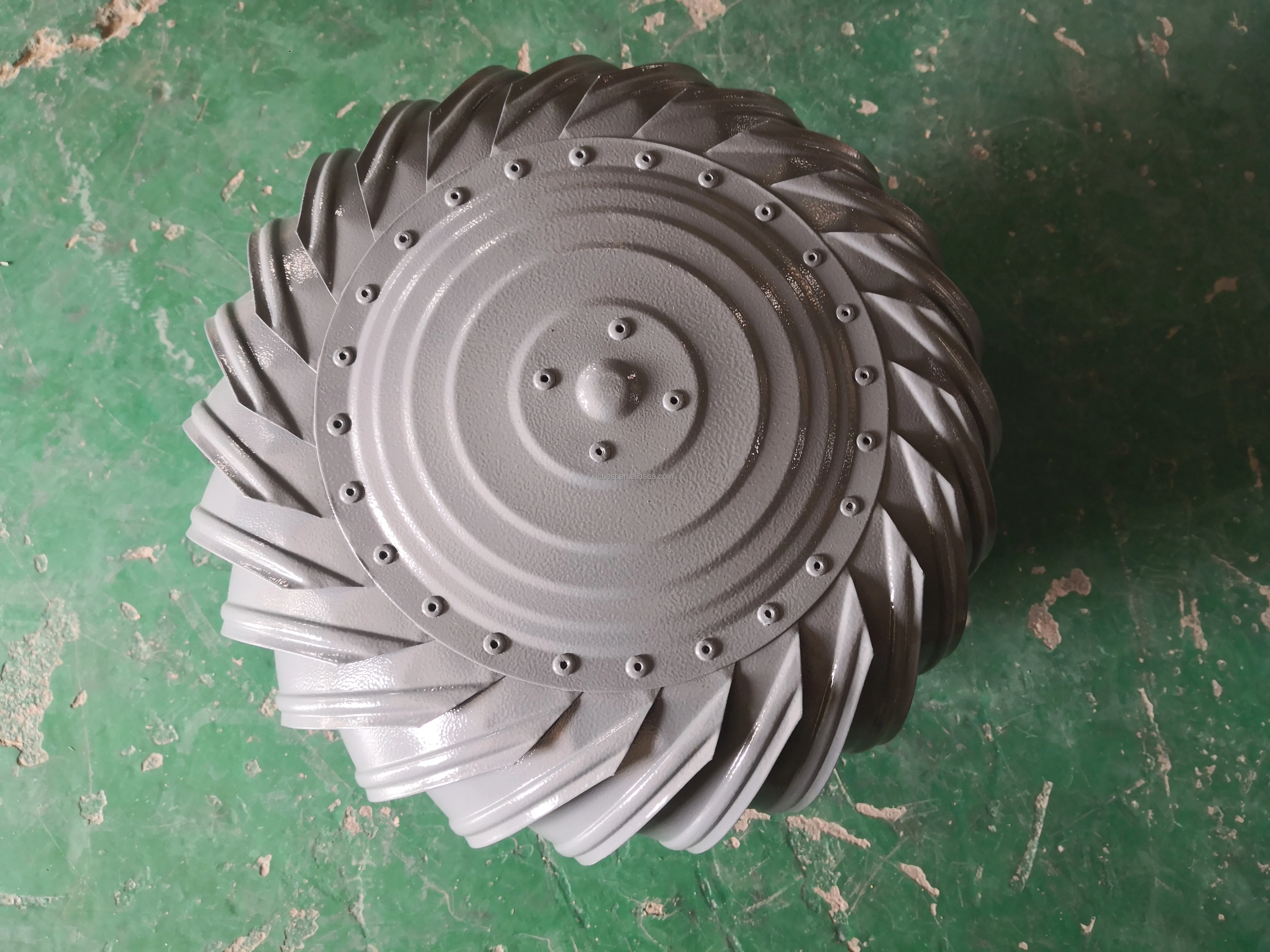

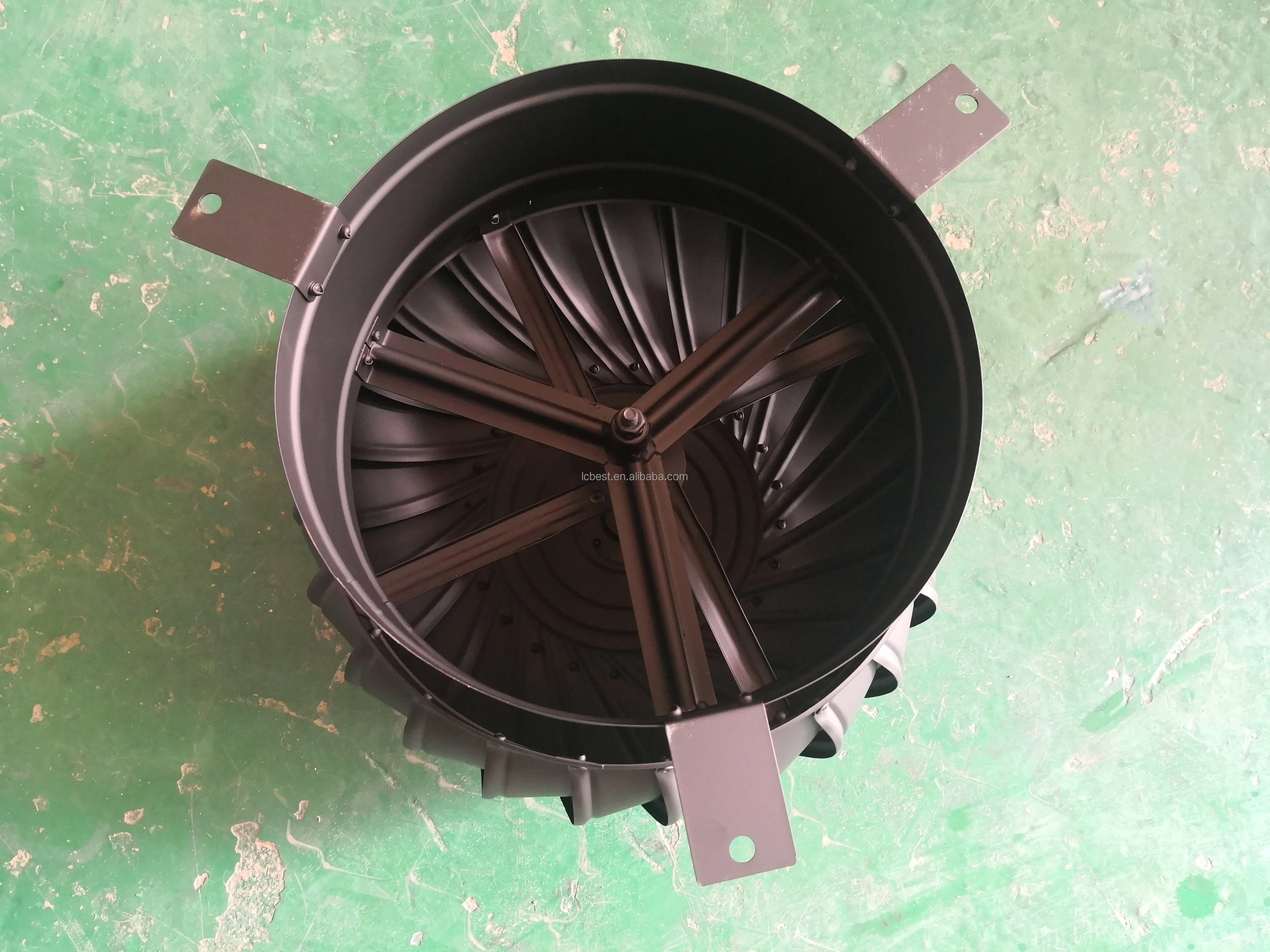

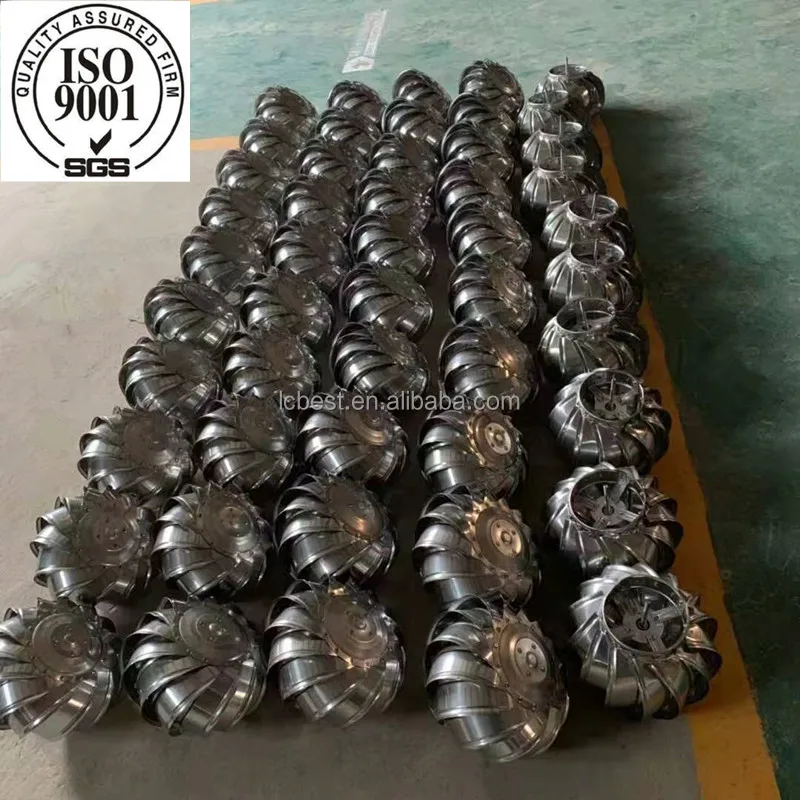

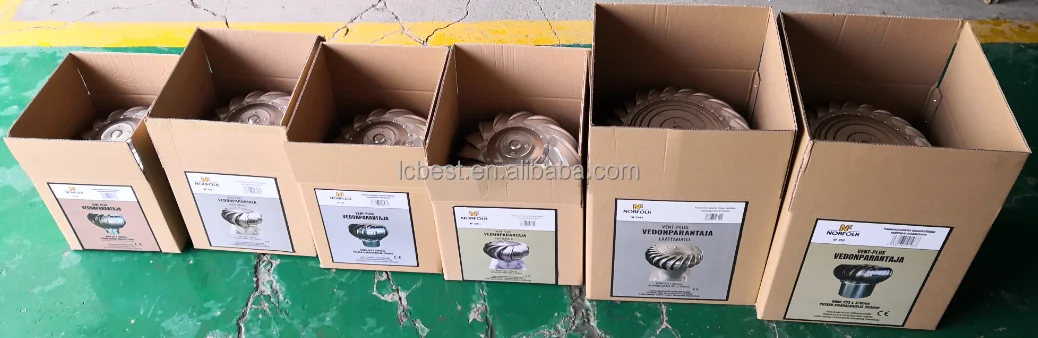

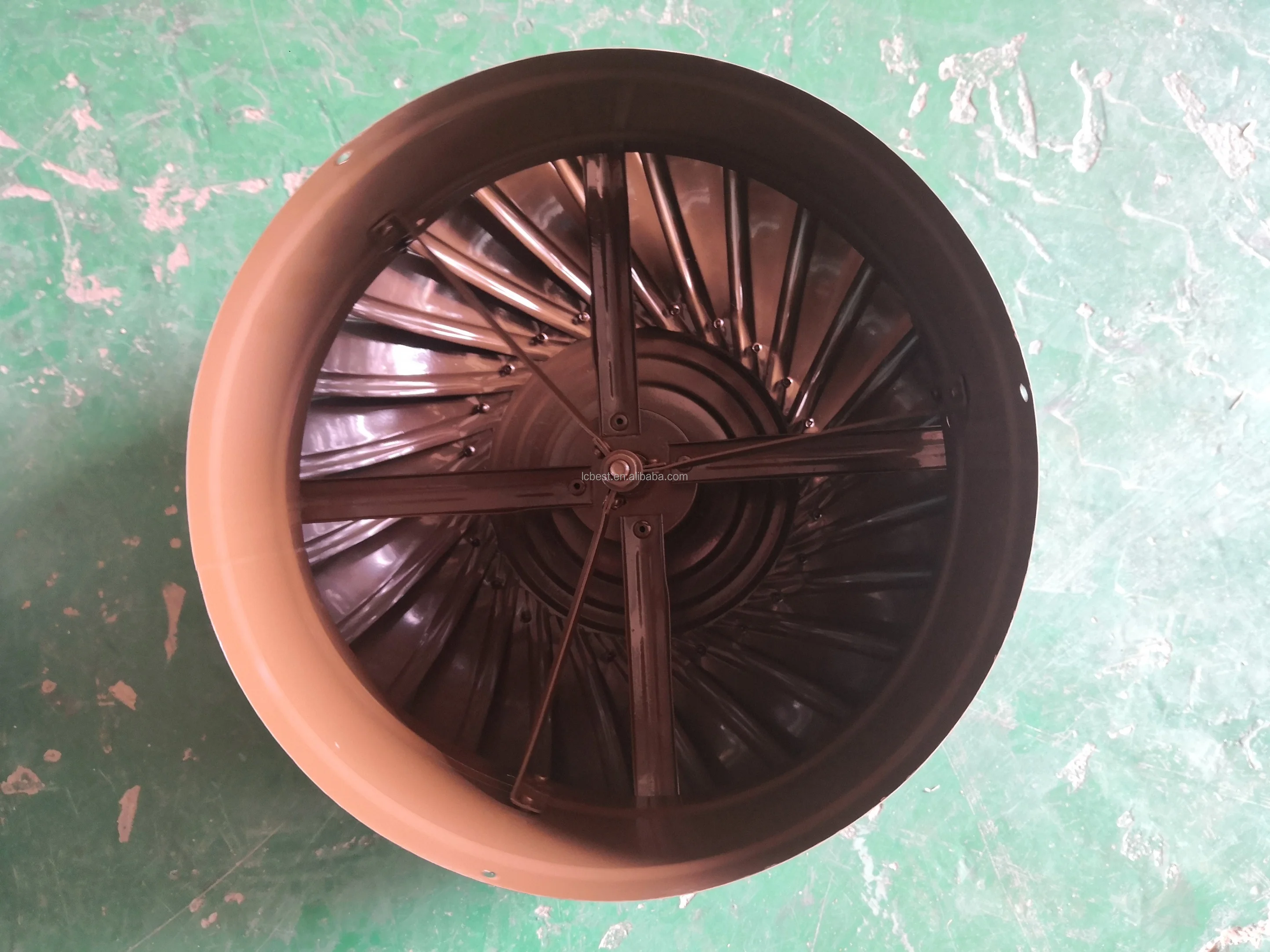

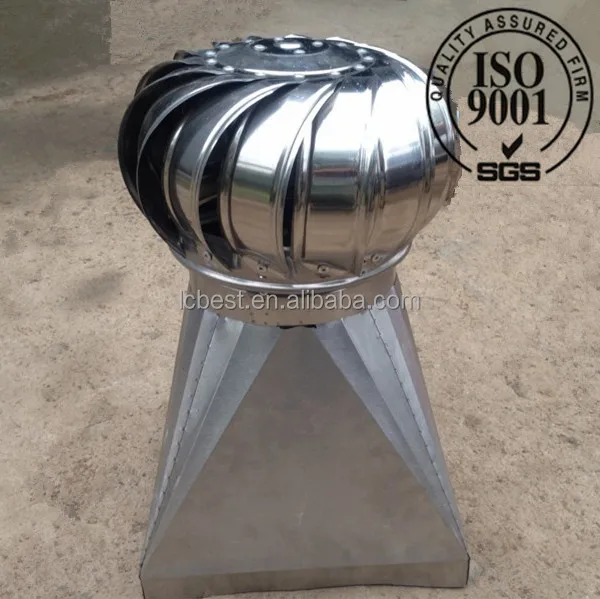

5. Products' pictures & products' packing piactures & Installed projects pictures:
