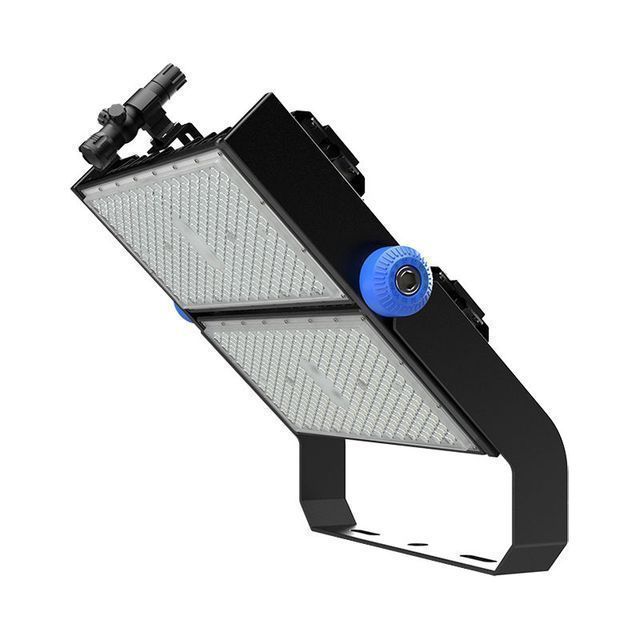

LED Flood Light 500W IP66 250 500W Stadium Sports Lighting with Laser Sight
- $155.00 / 1 - 499 pieces
$146.00 / 500 - 9999 pieces
$126.50 / >=10000 pieces - 1 piece
- Shenzhen Yongxinrui Lighting Technology Co., Limited
- Guangdong, China
- Mr Rony Zhu
PRODUCT DETAIL
| Supply capacity: | 1500 pieces per week | Material: | Aluminum profile + PC lens |
| Supported dimmers: | Yes | Color rendering index (Ra): | 80 |
| Input voltage (V): | AC100-305V | product name: | High Mast Stadium Light 500W |
| light source: | to lead | payment terms: | Western Union, T/T, Trade Assurance order payment |
| Package preview: | Beam Angle(°): | 30° / 45° / 60° / 90° | |
| Origin: | China | Light body material: | aluminum alloy |
| port: | Shenzhen, Hong Kong | Lamp luminous flux (lm): | 80000 |
| Lamp Luminous Efficiency (lm/w): | 160 | Lifespan (hours): | 50000 |
| brand: | micron | strength: | 500W |
| Certification: | CCC CE RoHS FCC CQC | Working life (hours): | 50000 |
| Power supply optional: | 250W, 750W, 1000W, 1250W, 1500W, 2000W, 2500W | Working temperature(℃): | -35~55℃ |
| Color rendering index (Ra>): | 80 | Power factor: | 0.97 |
| Working hours (hours): | 50000 | application: | Theme parks, tennis courts, plazas, stadiums |
| Color temperature (CCT): | 3000-6500K, 2800-6500K | type: | LED High Mast Outdoor Sports Light |
| Product weight (kg): | 13.5 | Lighting Solutions Services: | Lighting and circuit design, DIALux evo layout, LitePro DLX layout, auto CAD layout, Project Installation |
| application: | Stadiums, squares, airports | Protection class: | IP66 |
| Warranty (year): | 5 years | Packaging Details: | 1 inner box size: 52*49*18CM Gross weight: 13.5KG |
| model: | YXR-QC-500W-G |
Product Description
feature:
1. Sturdy bracket, more secure installation 2. Optical PC lens, non-yellowing material. 3. Silicone waterproof sealing strip. UV resistant material, reliable and trouble-free. 4. 3030 SMD light source design, light efficiency 160lm/W. 5. High thermal conductivity aluminum substrate, fast heat dissipation, reduce light decay. 6. ADC12 die-casting aluminum heat sink, the efficiency is as high as 96W/MK 7. With laser light positioner, it is easy to adjust the lighting direction to achieve maximum illumination and uniformity. 8. The design of the heat dissipation respirator can avoid the problem of seal failure caused by thermal expansion and contraction. 9. The external waterproof power supply is installed on a special iron shell, without contact with the lamp body, separated from heat and electricity, and has a longer life.
Product parameters
Model | YXR-QC-500W-G |
strength | 500W |
Input voltage | AC100-305V |
effect | 160 lumens/watt |
32 lumens | 80000 lumens |
Beam angle | 30° / 45° / 60° / 90° |
to lead | Sanan/Lumileds SMD 3030, 336pcs/module |
CCT | 2800~6500K |
Color rendering index | ≥80Ra |
PF | >0.97 |
Total Harmonic Distortion | 15%＜Total Harmonic Distortion＜20% |
Weight (kg) | 13.5 |
Dimensions (mm) | 436*499*183 |
Operating temperature | 35~55℃ |
humidity | 15%~90% RH, no condensation |
degree of protection | IP66 |
IK level | IK08 |
life | ≥50,000 hours (LM70 @ 35℃ ) |
Finish | Spraying outdoor special powder |
product material | PC lens + aluminum shell |
Electronic security level | level one |
power cable | Rubber cable (3*1mm²) L=0.5m |

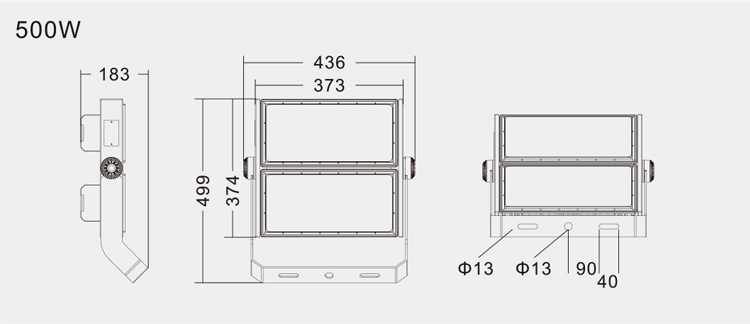

Product Size
detailed drawing

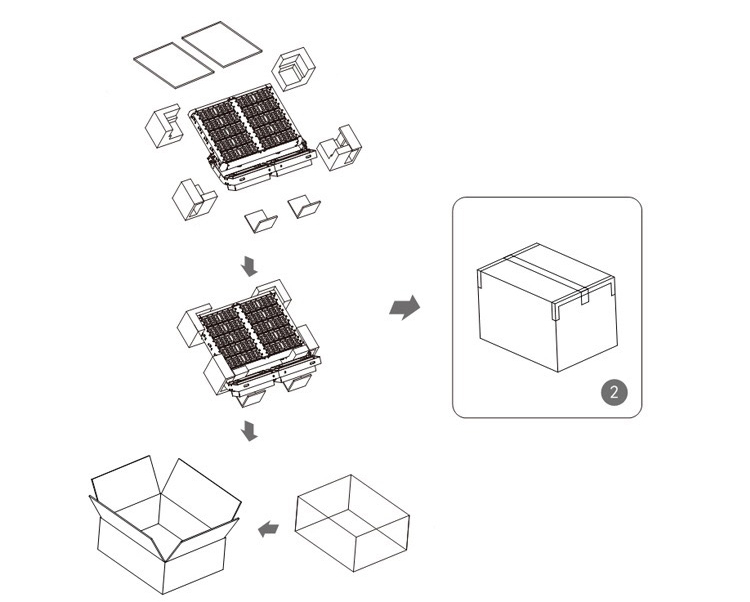

pack
application
Soccer fields, tennis courts, golf courses, badminton courts, sports football fields, driving ranges, hockey fields, hockey fields, cricket fields, swimming pools, racetracks, racetracks, pickleball fields, skateboarding fields, baseball fields, softball fields, rugby fields Fields, sports site construction, industrial bridges, cranes, container ports, airports, billboards, mining, parks, etc.
