LPG tank
- $30.00 / >=100 pieces
- 100 pieces
- Zhejiang Tianen Pressure Vessel Co., Ltd.
- Zhejiang, China
- Mr yun wang
| Core components: | pressure vessel | Dimensions (L*W*H): | 650*240*63L |
| payment terms: | wire transfer | Main selling points: | high security level |
| Working temperature(℃): | -20 - 60°C | Supply capacity: | 10000 pieces per month |
| Health status: | new | After warranty service: | online support |
| Mechanical test report: | Not available | After-sales service provided: | online support |
| weight: | 28.8 kg | Packaging Details: | Loose packaging. |
| Core component warranty: | over 5 years | capacity: | 63L |
| Marketing Type: | New Products 2020 | product name: | LPG filling skid |
| Applicable industries: | Energy and Mining | place of origin; place of origin: | Zhejiang, China |
| port: | Ningbo | Video shipment inspection: | Not available |
| Warranty: | over 5 years | Maximum working pressure (MPa): | 200MPa |
| type: | storage of liquefied petroleum gas | brand: | TE |
| Local service location: | not any | Showroom location: | not any |
Built-in annular tank for liquefied petroleum gas for vehicles
Specification
1.ECER67, Q/SN001-2020, standard
2. Steel plates and strips for welding gas cylinders
3.WP/TP:22/33bar
Welding gas cylinders for vehicles
Standards: Produced in strict accordance with ECER67, Q/SN001-2020 standards;
Test: carry out the water pressure test and UT test required by the EN standard for each cylinder;

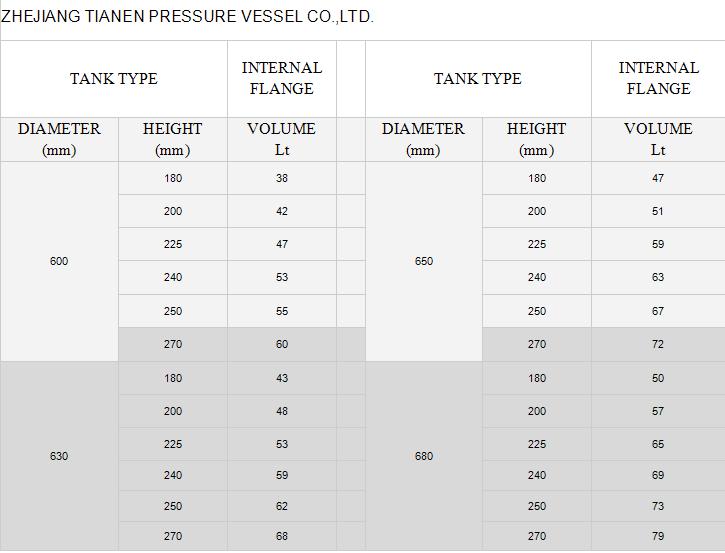

ECE R67 CNG cylinder series for vehicles:
Outer diameter (mm): 600, 630, 650, 680;
Water capacity (L): 38, 42, 47, 53, 55, 59, 60, 62, 68, 72, 73, 79, etc.;
Composite cylinders are also available.
company:
Monthly export quantity: 20,000 pieces
Customers from: CIS, Latin America, Asia, Europe, Middle East, Africa, etc.
type: T01D650H.240 63L
Manufacturer: Zhejiang Tianen Pressure Vessel Co., Ltd.
Nominal outer diameter (mm):650
Volume (Large): 63
Length (mm):240 Weight: 28.8KGS
Nominal working pressure (MPa):2.2
