Long Life Quartz Ceramic Crucible for Casting Refining
- $1.00 / >=5 pieces
- 5 pieces
- Shanghai Yunnuo Industrial Co., Ltd.
- Shanghai, China
- Ms Amanda Song
PRODUCT DETAIL
| Capacity: | 15ml,30ml,50ml,80ml,100ml,150-1200ml; | Port: | Shanghai; |
| Shape: | dish with spout; | Packaging Detail: | carton or plywood case; |
| Feature: | Corrosion resistance,high shock resistance; | Color: | white color; |
| Working Temperature: | 1800-3000C; | Use: | melting of gold,platinum, dental alloys,other high-temperature alloys; |
| Payment Terms: | Western Union,T/T,MoneyGram; | Materials: | silica; |
| Applications: | Melting Gold, Silver, Brass, Copper; | Usage: | Gold Silver Metal Jewelry casting container; |
| Material: | SiO2 >99.0%,Quartz Silica; | Supply Ability: | 10000 Pieces per Week; |
| Package Preview: | ; | Item: | Gold Silver Copper Casting bowl; |
| Application: | metallurgy, building materials, chemical, mechanical, electrical; |
Product Description

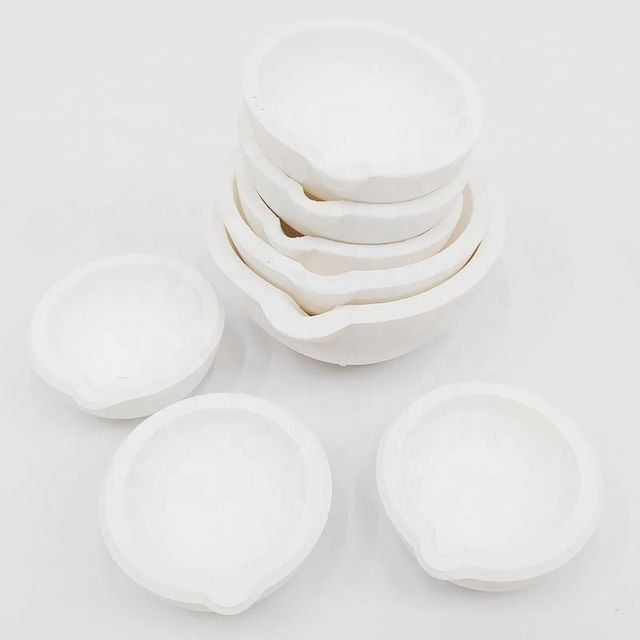

Fused quartz bowls,melting dish
Selecting fused quartz as the main raw material, processed by modern ceramic technology, mainly used for the melting of gold,platinum, dental alloys, and other high-temperature alloys.
SiO2:>99.0%,
Content of impurities (K2O, Na2O, Fe2O3) < 0.10%,
High strength
Compressive strength at room temperature ≥70MPa,
Withstand high temperature of 2800C and limit of 3000C.
Features: high temperature resistance, room temperature pressure resistance, strong thermal shock resistance,
SiO2:>99.0%,
Content of impurities (K2O, Na2O, Fe2O3) < 0.10%,
High strength
Compressive strength at room temperature ≥70MPa,
Withstand high temperature of 2800C and limit of 3000C.
Features: high temperature resistance, room temperature pressure resistance, strong thermal shock resistance,
corrosion resistance,long service life.
Note:
Fused Quartz Bowl is easy to absorb moisture during transportation. Dry it with low temperature before use. In order to prolong its service life, please preheat a large area before heating at high temperature and gradually increase the temperature. Then sprinkle some borax on the bottom of the bowl and overfire. After the borax is melted, a layer of thin film crystals will be formed on the bottom of the bowl to prevent the gold and silver from sticking to the bottom of the bowl after melting.
Application: dedicated refractory bowls such as leather tiger wind balls, gold melting machines.
Note:
Fused Quartz Bowl is easy to absorb moisture during transportation. Dry it with low temperature before use. In order to prolong its service life, please preheat a large area before heating at high temperature and gradually increase the temperature. Then sprinkle some borax on the bottom of the bowl and overfire. After the borax is melted, a layer of thin film crystals will be formed on the bottom of the bowl to prevent the gold and silver from sticking to the bottom of the bowl after melting.
Application: dedicated refractory bowls such as leather tiger wind balls, gold melting machines.
Model No. | Appro.capacity in ml | Size in mm |
YN-002 | 15 | Ф56*H20 |
YN-005 | 28 | Ф79*H36 |
YN-010 | 70 | Ф88*H36 |
YN-015 | 90 | Ф99*H36 |
YN-020 | 128 | Ф108*H44 |
YN-030 | 175 | Ф118*H49 |
YN-050 | 330 | Ф140*H54 |
YN-100 | 450 | Ф172*H63 |
YN-200 | 740 | Ф220*H70 |
Company Profile
Products Description
Certifications
Way of shipping
Our Advantages
FAQ
Q1: How can know your quality?
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we receive payment.
Q5:Payment terms:
We can negotiate.
We can send you samples or sample material for you to check or test.Let our physical samples speak loudly.
Q2:Are these samples free of charge?
Some standard small samples are free.If same as your requirements,we will just charge for mould to support.
Q3:If products are not to requirement,how can you do?
We will try our every best to solove it.Meeting your requirement is our mission.
Q4:What's the lead time?
Normally,for standard items,will ship within 1-10 days.For mass production order,we will finish within 30 working days after we receive payment.
Q5:Payment terms:
We can negotiate.
