Lovtec cga540/870/bullnose stainless steel oxygen tube high pressure hose
- $8.00 / >=100 pieces
- 100 pieces
- Danyang Airtech Co., Ltd.
- Jiangsu, China
- Ms Cindy leng
PRODUCT DETAIL
| type: | Oxygen supply system | Packaging Details: | Packaging Details: Plain carton as your request Delivery Details: Ships within 7 days after payment |
| Certificate: | CE/ISO13485 | After-sale service: | Online technical support |
| Original Equipment Manufacturer: | available | model: | ATOC-1 |
| port: | Shanghai | color: | silver |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | place of origin; place of origin: | Jiangsu, China |
| Warranty: | 1 year, 1 year | Material: | brass stainless steel |
| Instrument classification: | the first sort | brand: | Lovetech |
| Supply capacity: | 30000 pieces per month |
Recommended Products
Product Description
Applications

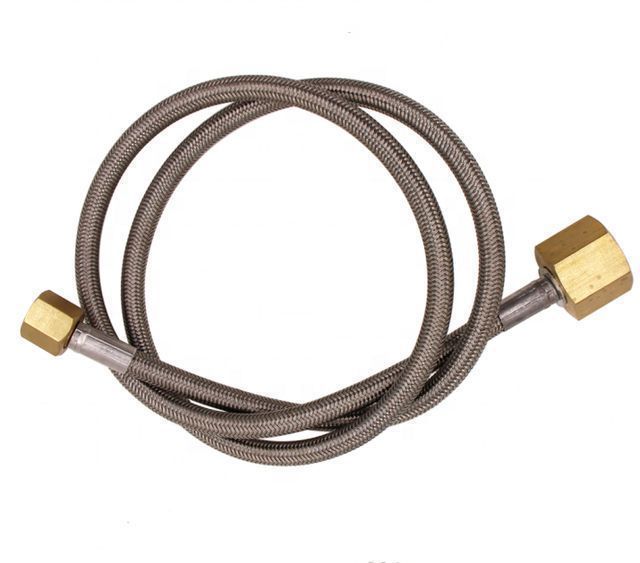

Medical Oxygen Cylinder Hose Stainless Steel High Pressure Flexible Hose Assembly Features: PTFE extruded hose is reinforced with stainless steel wire braid with metal fittings on both sides. Inner tube: PTFE/FEP extruded hose, with high and low temperature resistance, corrosion resistance, anti-adhesion and other characteristics. Outer Sheath: Stainless steel SS304 braided mesh to improve compression resistance, quick connector connection. Operating temperature range: constant temperature -50°C~+210°C, short-term temperature -70°C~+260°C. Reinforcement: SS304 double wire braid, SS316 double wire braid
Suitable for cylinder valve type | Customized valves such as CGA540\BULLNOSE\CGA870 | ||||||
inner hose | PTFE/FEP | ||||||
strengthen | SS304 double wire braid, SS316 double wire braid | ||||||
put up | Extruded ptfe/FEP tube with stainless steel double wire braided cover. | ||||||
temperature | -70°C to +260°C | ||||||
color | Natural stainless steel finish or support custom | ||||||
cover | stainless steel braid | ||||||
work pressure | 15-20Mpa | ||||||
Specification | According to customer's need | ||||||
thickness | 1mm-1.5mm | ||||||
length | According to customer requirements | ||||||
detailed image
