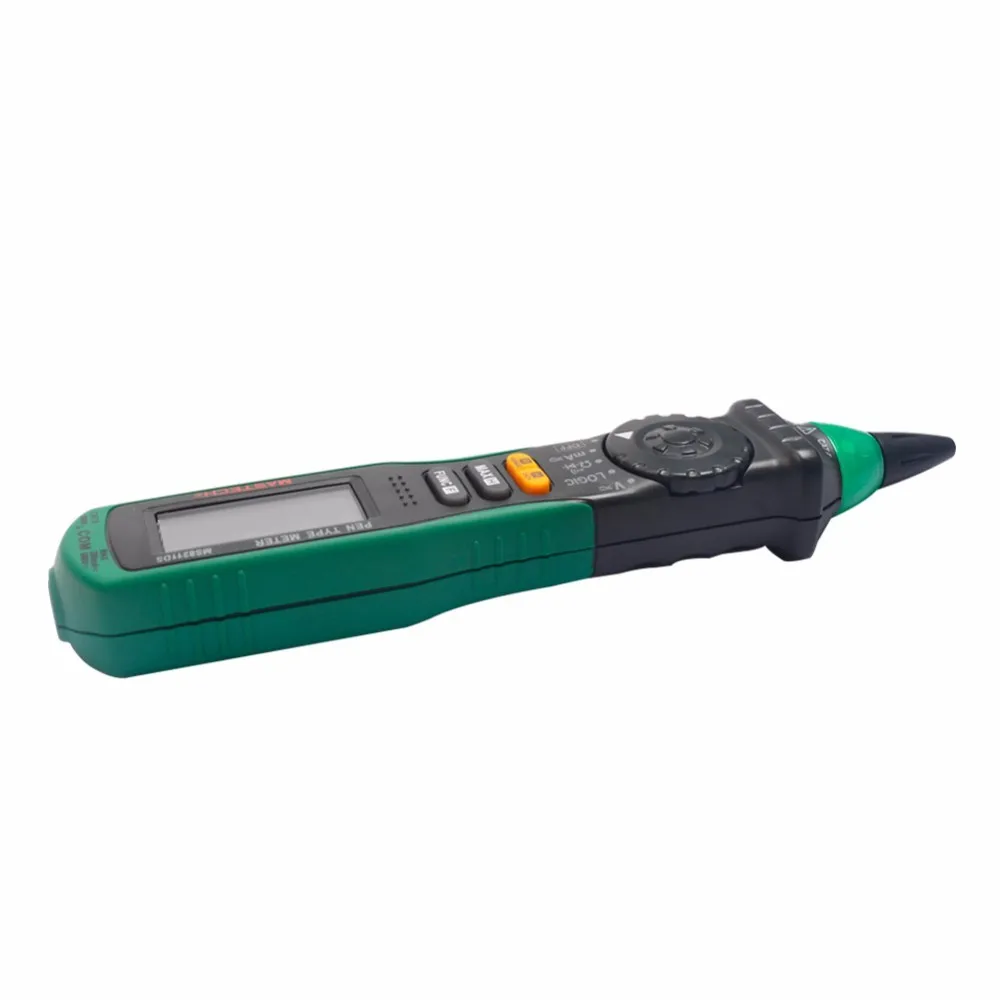

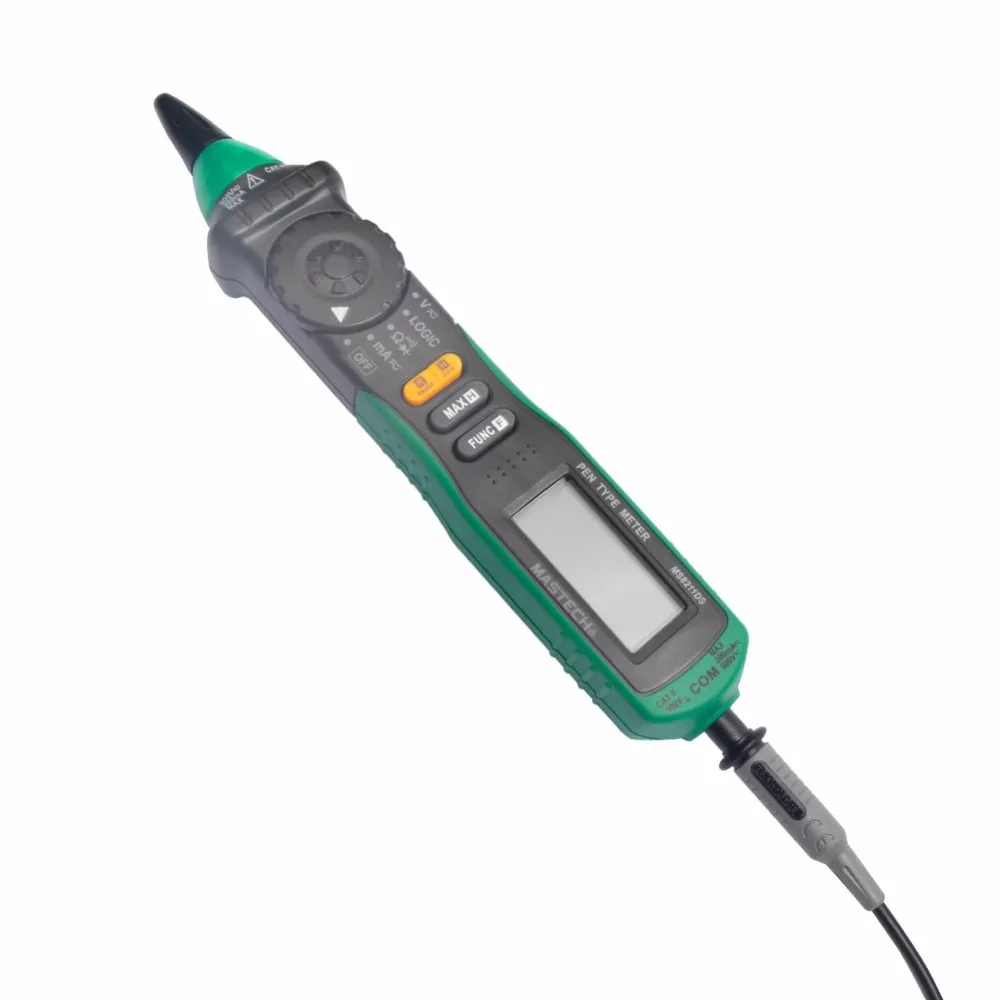

MS8211D Pen Type Digital Pen Meter Automatic Range Multimeter Voltage and Current Tester
- $2.00 / 1 - 9 pieces
$1.00 / 10 - 99 pieces
$0.50 / 100 - 999 pieces
$0.10 / >=1000 pieces - 1 piece
- Cixi Sunstar Electronic Technology Co., Ltd.
- Zhejiang, China
- Mr Jack Hu
aspect: | 208x38x29mm, 150mm x 109mm | Accuracy class: | High |

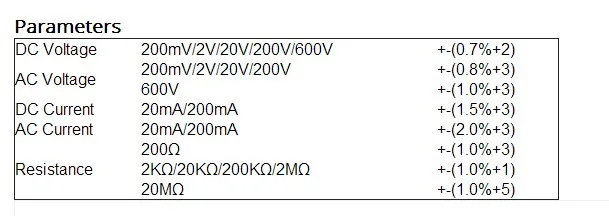

Measuring voltage range: | 200mV/2V/20V/200V/600V | model: | digital multimeter |
place of origin; place of origin: | Zhejiang, China | Measuring range: | 200mV/2V/20V/200V/600V |
payment terms: | L/C,D/A,D/P,T/T,Western Union | Operation Mode: | Autoranging and manual ranging |
brand: | sun star | Environmental conditions: | 600V CAT II |
port: | Ningbo or Shanghai | Overrange indication: | Show "OL" |
Measuring resistance range: | 200-20M ohms | Supply capacity: | 10000 pieces per day |
Packaging Details: | Standard export carton | Operating temperature: | 0 - 40℃ |
Automatic shutdown time: | 15 minutes. | exhibit: | 20mm LCD monitor |
Display type: | numbers only | Sampling time is approximately: | 0.4 seconds |
Measuring current range: | 20mA/200mA |
Accuracy is specified for one year after calibration, at 18C to 28C (64F to 82F) and 75% relative humidity.
Environmental conditions: 600V CAT II
Pollution Degree: 2
Altitude < 2000m
Operating temperature: 0C to 40C (32F to 122F) (<80%RH, <10C non-condensing)
Storage temperature: -10C to 50C (10F to 122F) (<70%RH, battery removed)
maximum. Voltage between terminal and ground: 600V DC or AC
Autoranging and manual ranging.
Display: 20mm LCD monitor
maximum. Displayed value: 1999 (3 1/2)
Polarity indication: "-" means negative polarity.
Overrange indication: display "OL"
Sampling time is about 0.4 seconds
Unit display: Display of function and capacitance.
low battery indicator
Automatic shutdown time: 15 minutes.
Power: 1.5Vx2 AAA battery (not included)

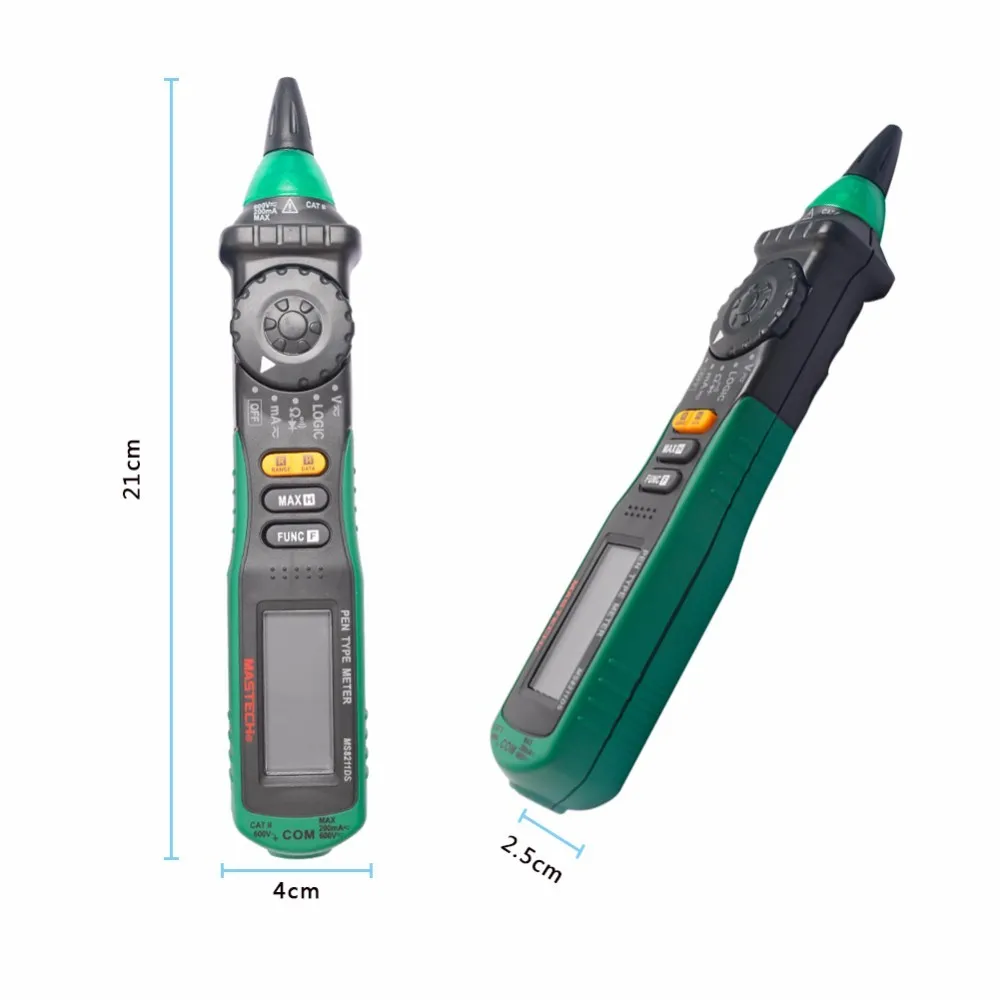

Dimensions (LxWxH): 208x38x29mm
Weight: Approx. 110 grams
Order reference. Serial number: MS8211DE08
Safety class: ETL CAT II 600V RoHS
feature
Display: 2000 counts
Automatic ranging
Automatic shut-down
Logic level test: >3.5V: high level; <3.5V: low level
Diode: 2.7V
On buzzer: <50Ω
maximum volume hold
data retention
low battery indicator

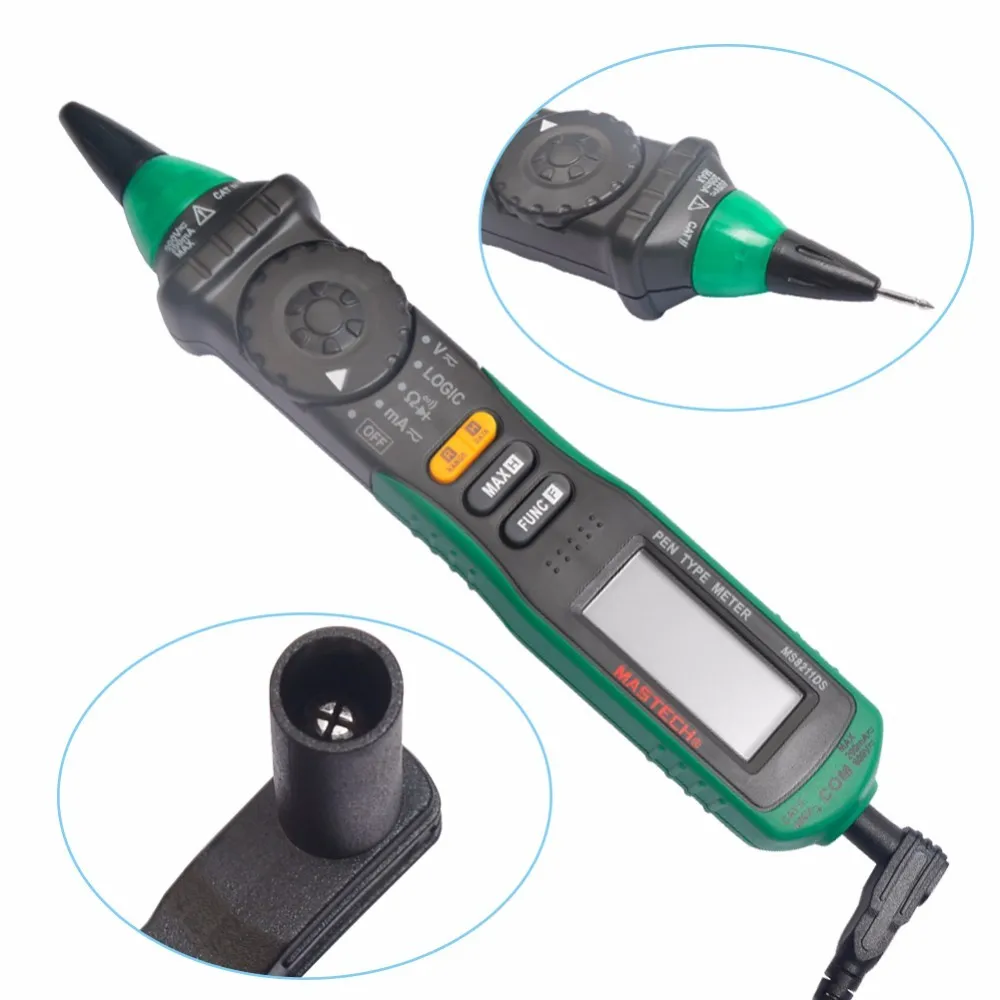

Retractable tip for secure storage
