Manufacturer Price!! Insulation 15.875mm x 76.2m Aluminium Silicate RCF Fiber Twisted Rope Pipe work and Valve use
- $2.30 / >=200 kilograms
- 200 kilograms
- Sanmenxia Longhui Ceramic Fiber Technology Co., Ltd.
- Henan, China
- Mr
PRODUCT DETAIL
| Package Preview: | ; | Length: | can be customized; |
| Working Temperature: | 1200C 2192F; | Reinforcement: | Glass Filament+stainless Steel Wire; |
| Chemical Composition: | Al2O3+SiO2; | Functions: | Seal Lining and Gasket; |
| Grade: | HP (High Pure); | Application: | Heat Insulation; |
| Packaging Detail: | plastic woven bags or carton Palletized with shrinked film; | Ultimate Strength (≥ MPa): | 0.04; |
| Thickness: | 6-50mm; | Shrinkage (1800℉, 3h): | 0.3; |
| Supply Ability: | 20 Ton/Tons per Day; | Thermal Conductivity: | 0.2; |
| Port: | Qingdao and any other China main port; | Fiber Diameter: | 3um; |
| Model Number: | GB-208BT; | Place of Origin: | HEN; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram; | Width: | 6-50mm; |
| Type: | Twisted Rope; | Brand Name: | LONGHUI; |
Insulating lining of metallurgical ovens and furnaces, petrochemical heaters, and ceramic kilns etc.
Welding curtains in steel fabrication
Fire blankets for commercial and domestic kitchens
Smoke and fire curtains in buildings
Kiln car, expansion joint and door seals in furnaces
Gaskets in furnaces and domestic appliances
Flexible expansion compensators in power generation equipment
Removable, flexible thermal insulation quilts for pipe work and valves in the petrochemical and power generation
industry
Provide excellent thermal protection
Heat resistant
Chemically resistant to most elements
High temperature stability
Lightweight and flexibility in use
Excellent thermal shock resistance
Excellent tensile strength
Excellent corrosive attack resistance
Steel wire and fibreglass reinforced

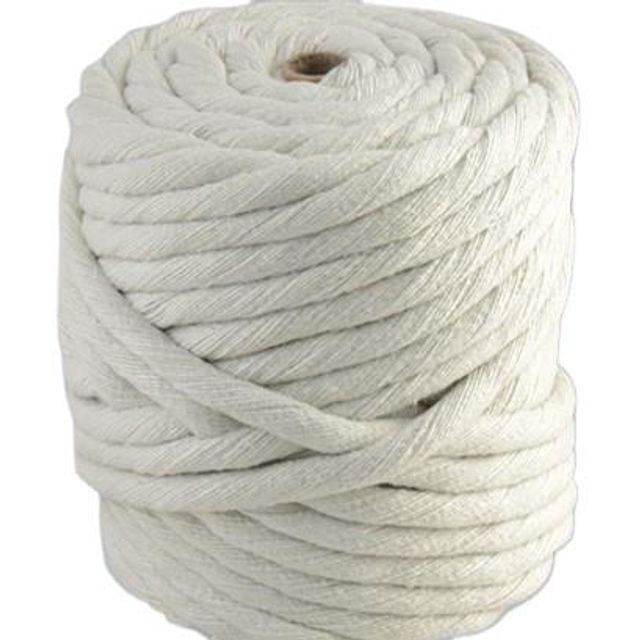

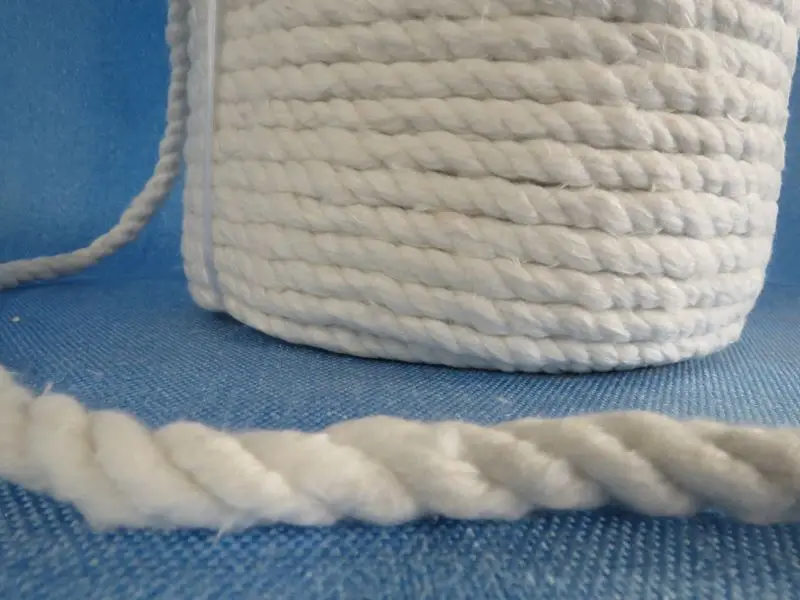

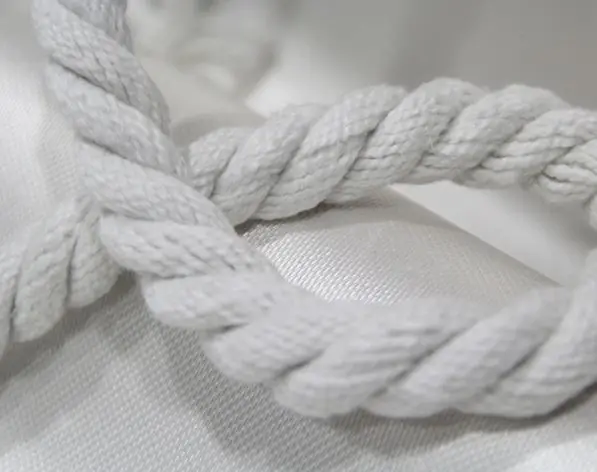

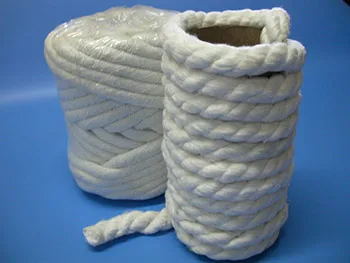

LONGHUI Ceramic Fiber Twisted Rope is manufactured by over-braiding around a core of ceramic fiber to achieve maximum resistance to mechanical abuse. Made by ceramic fiber textiles and reinforced with glass filament or stainless steel wires. It has much higher tensile strength than blankets.
LONGHUI Ceramic Fiber Twisted Rope can be continuously used at temperature up to 1800°F for long-term, is a woven fabric made from our high quality ceramic fiber woven yarn. It is featured with heat insulation and high temperature protective materials in all kind of thermal installations and heat-conducting systems, widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.
Products Description
Type | Rope Lagging | Rope | Tape | Cloth | Sleeves | ||||
Code | GB-208A | GB-208B | GB-208C | GB-208D | GB-208E | ||||
Classification Temperature(℃) | 1200℃ 2192℉ | 1200℃ 2192℉ | 1200℃ 2192℉ | 1200℃ 2192℉ | 1200℃ 2192℉ | ||||
Working Temperature(℃) | 600℃ 1112℉ Glass Filament） | 2.6 | 2.56 | 1000℃ 1832℉ (Inconel Stainless Stell) | 2.65 | ||||
Density (Kg/m3) | 350-600 | ||||||||
Tensile Strength(Kgf/mm) | ＞1.2 | 1.2-2.8 | Vertical: 76Kgf/5cm Weft: 37Kgf/5cm | ＞1.2 | |||||
Size(mm) | 5*5--50*50 | Twisted: ID 3-40 Square: ID 5*5 50*50 Round: ID 5-50 | Width: 10-150 Thickness: 1.1-10 | Width: 1000-1500 Thickness: 1.2-6 | Inner Diameter: 10*25 | ||||
Organic Content(%) | 10-20% Size can be customized. | ||||||||

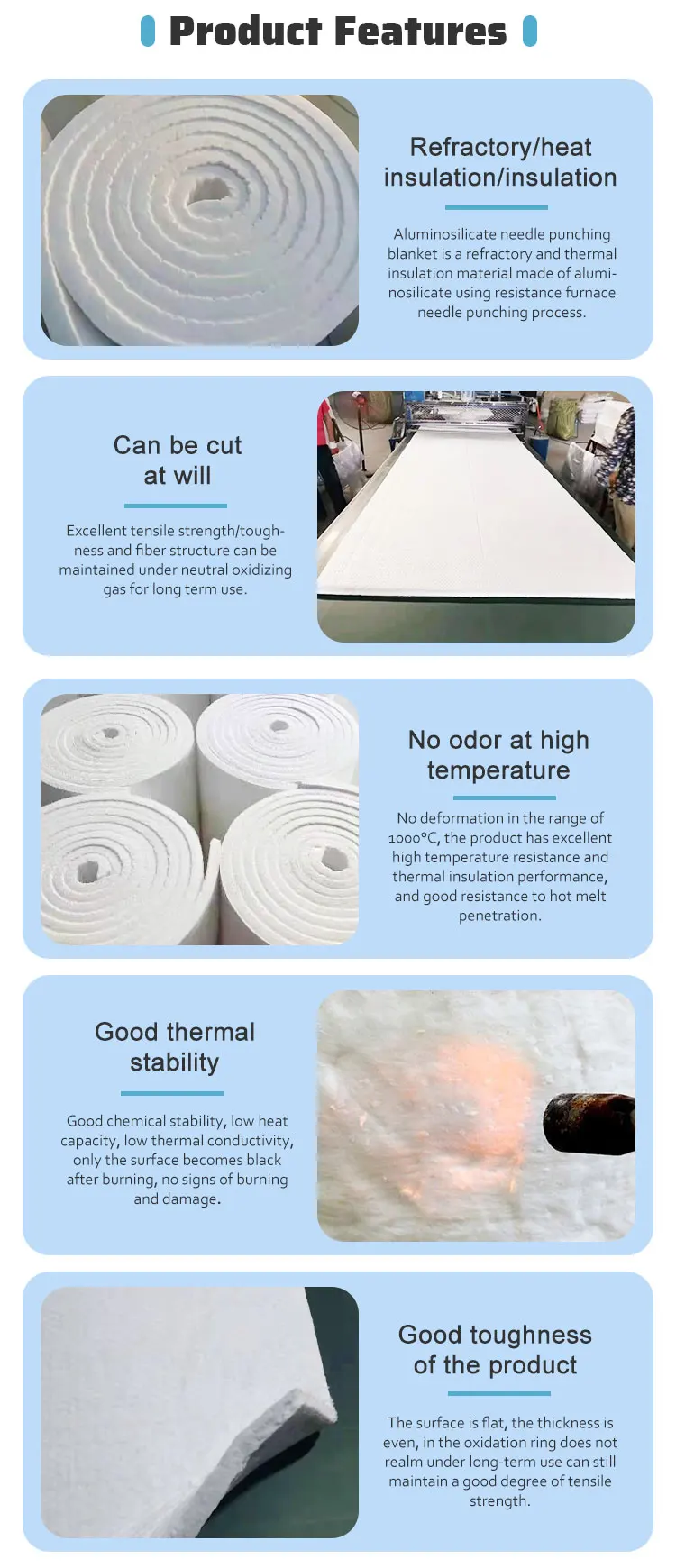

Product Features

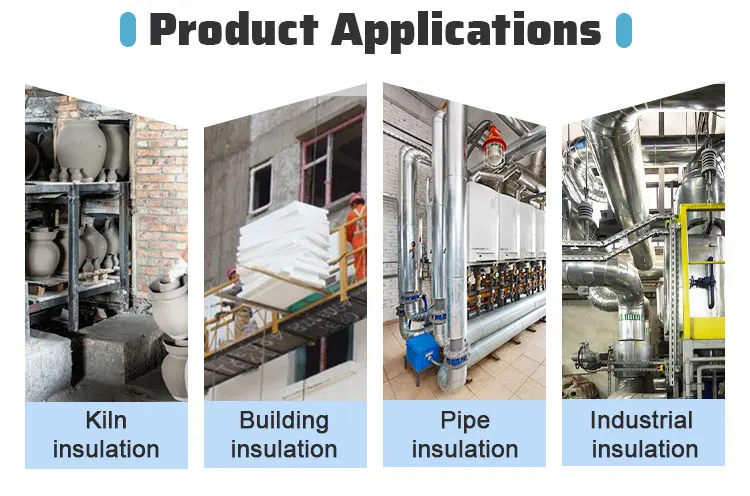

Application

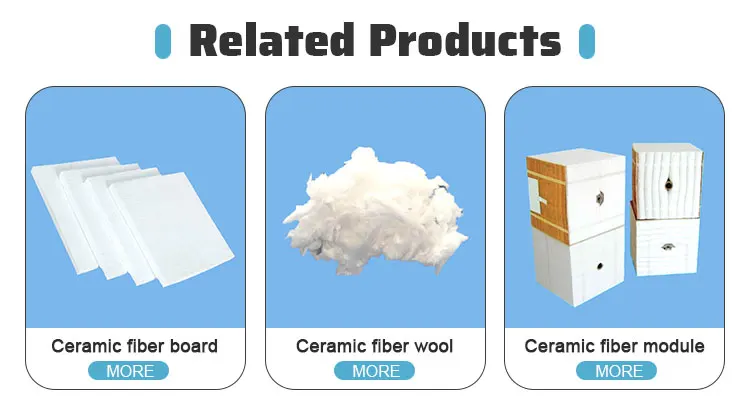

Recommend Products
Company Profile

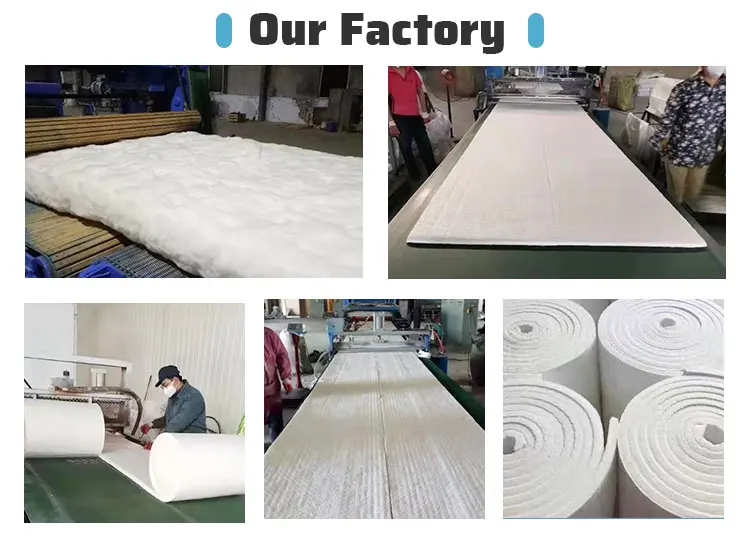

Factory
Product packaging
FAQ
1 : How can you control your quality?
A1 : For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
A1 : For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
2 : Do you provide free samples?
A2 : Yes, free samples are available, generlly speaking, the buyer shall bear all the delivery cost
A2 : Yes, free samples are available, generlly speaking, the buyer shall bear all the delivery cost
3: How long is your delivery time?
A4: Normally about 10-30 days, but it depends on the products and quantity.
A4: Normally about 10-30 days, but it depends on the products and quantity.
4: Do you have a factory?
A5: Yes, we have factory located in LuoYang HeNan. Welcome to visit our factory at any time.
A5: Yes, we have factory located in LuoYang HeNan. Welcome to visit our factory at any time.
