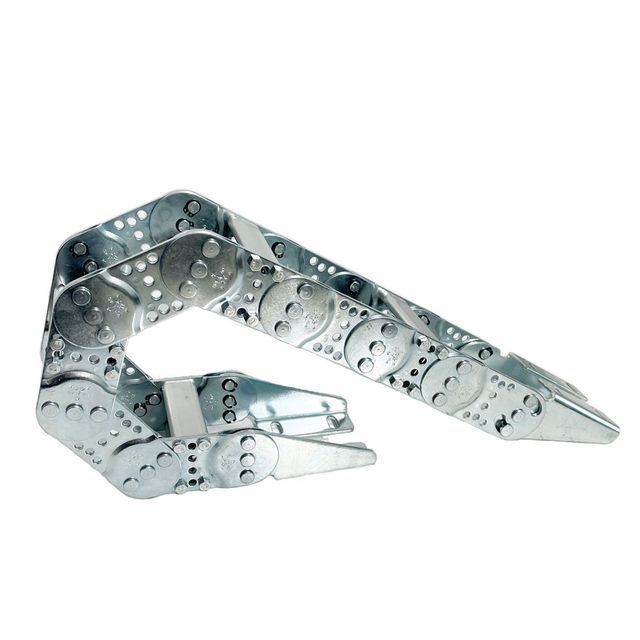

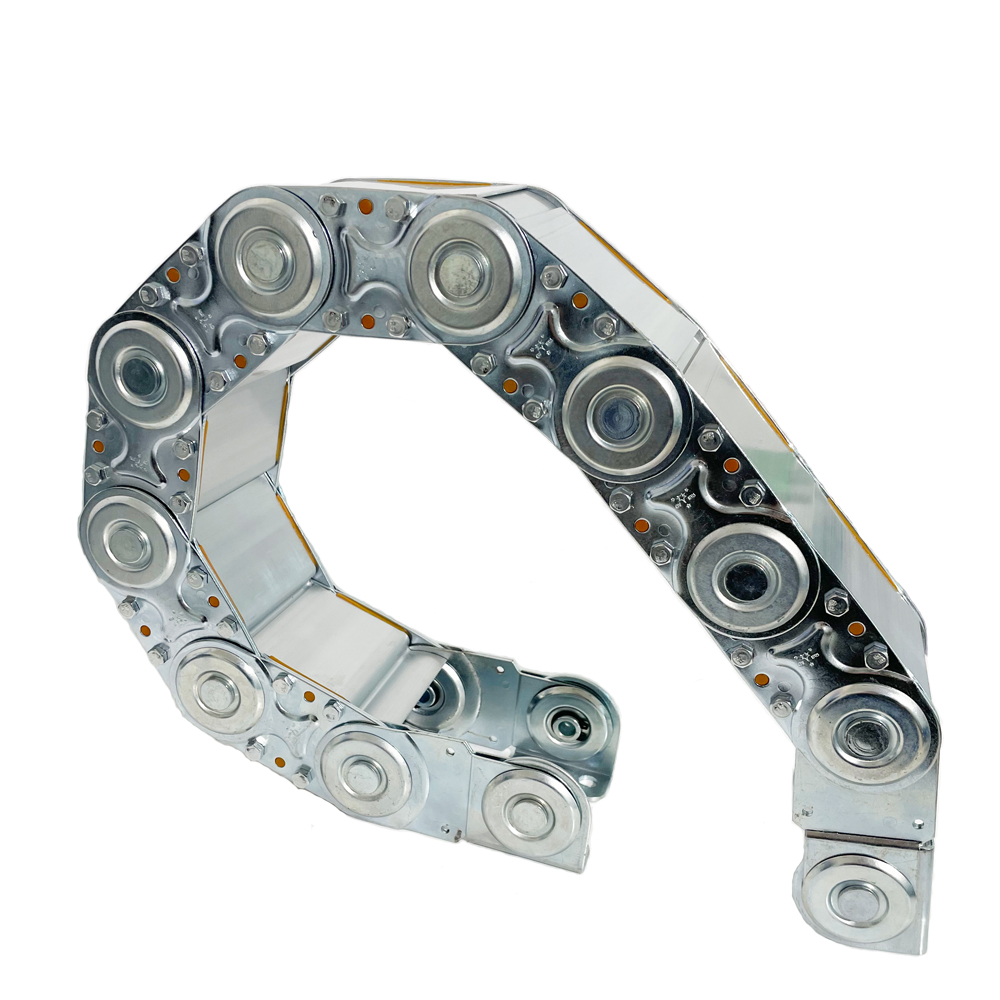

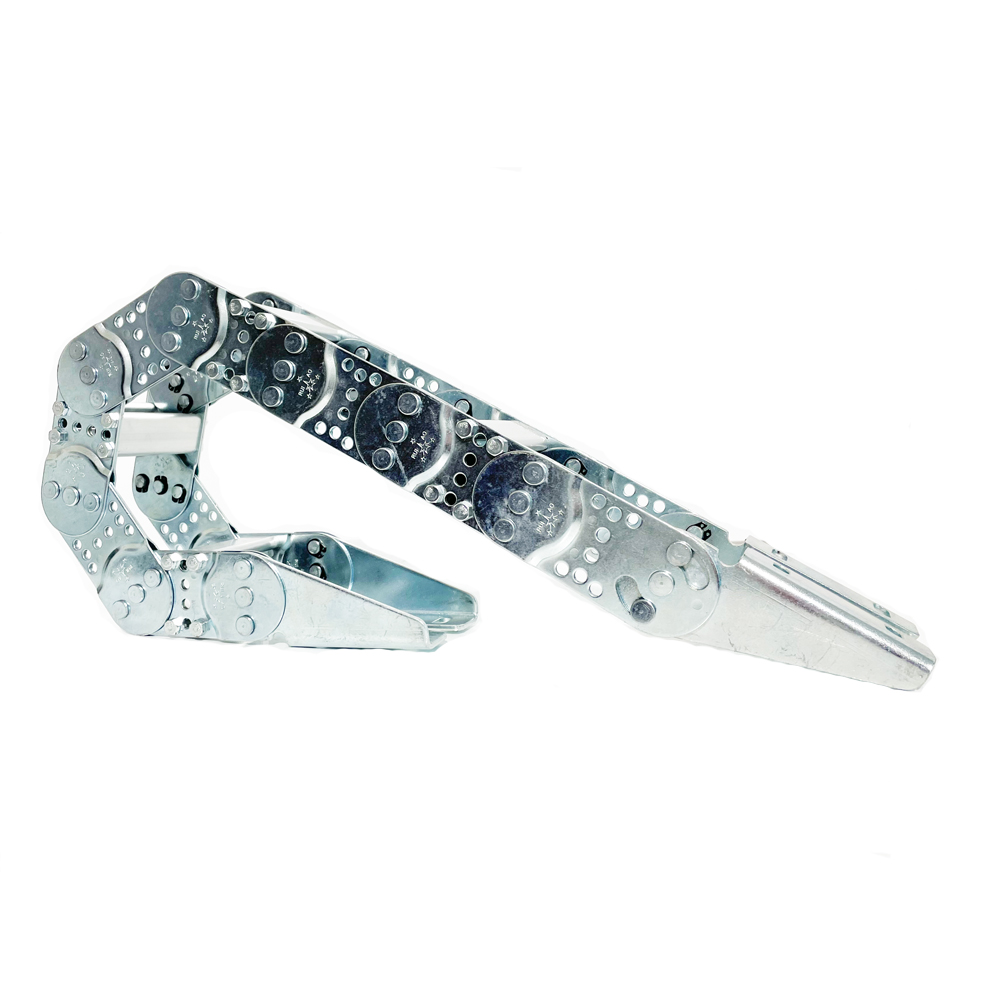

Mechanical stainless steel flexible protection cable towline rail bracket tray chain towline
- $50.00 / 1 - 49 pieces
$30.00 / 50 - 99 pieces
$15.00 / >=100 pieces - 1 piece
- Suzhou Keview Mechanical & Electrical Equipment Co., Ltd.
- Jiangsu, China
- Ms Anna Li
PRODUCT DETAIL
| application: | CNC machine tool | Drag chain type: | Super heavy-duty/anti-noise/light |
| product name: | Cable drag chain | place of origin; place of origin: | Jiangsu |
| Packaging Details: | Flexible Steel Cable Drag Chain Rail Carrier Wire Rail Drag Chain Drag Chain Drag Chain Package 1.Carton 2.Pallet for Plasma Cutting Machine | warranty period: | one year |
| Certificate: | CE ISO9001 | Material: | Carbon Steel/Stainless Steel 304 or 316L, Carbon Steel, Stainless Steel 304/316L |

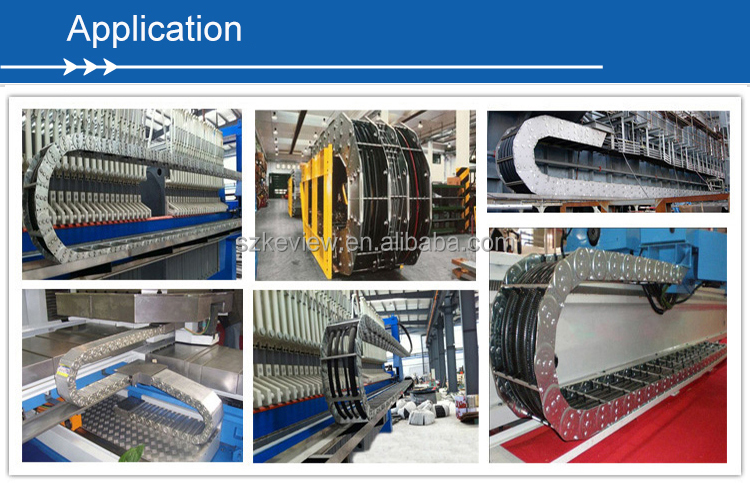

| Applicable industries: | Machinery Repair Shop, CNC Machines, Laser Cutting Machines, Plasma Cutting Machines | MOQ: | 1 meter |
| Video shipment inspection: | if | Warranty: | 3 years |
| port: | Shanghai/Tianjin | type: | drag chain |
| Package preview: | Showroom location: | not any | |
| Weight (kg): | 5 | Marketing Type: | New Products 2020 |
| length: | buyer's request | Speed of work: | 6 m/s |
| Mechanical test report: | if | Model: | -40-130 |
| Core components: | nylon, steel | Health status: | new |
| payment terms: | Western Union, T/T |
Product overview
Mechanical stainless steel flexible protection cable towline rail bracket tray chain towline
Cable drag chainIt is mainly composed of chain plates (high-quality stainless steel chrome-plated). Support plate (extruded aluminum alloy) and pin shaft, etc. There is no relative movement between the cable/rubber hose and the steel drag chain, no deformation or twisting. The chrome-plated chain plate has beautiful appearance, reasonable structure, flexibility and high strength. It is reliable and easy to operate, install, disassemble or assemble. It is worth mentioning that due to the use of wear-resistant materials and alloy pins, the wear resistance has been greatly improved. The product has flexible bending, low resistance and low noise. It can be used for a long time without deforming or drooping.
product name | Cable drag chain |
Material | Carbon steel, stainless steel 304 /316L |

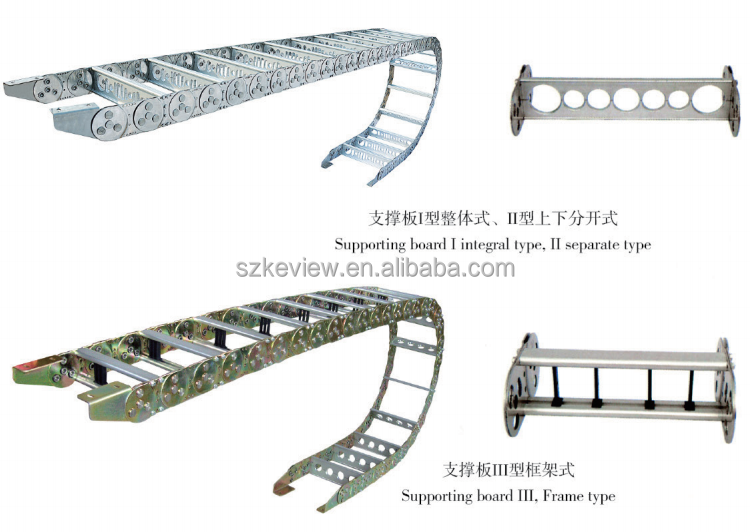

type | Bridge/fully enclosed |

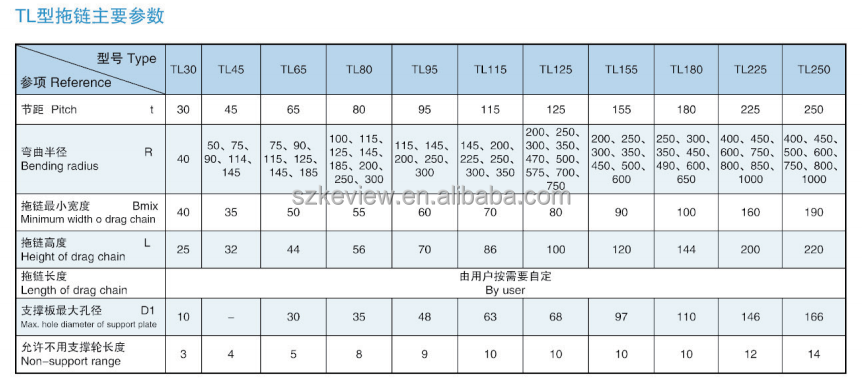

detailed drawing
Internal height:Cable drag chainTake the thickest section of cables, oil pipes, air pipes or water pipes installed inside as the reference height, and add at least 10% of the space height as the internal height Hi. If overlapping, the overlapping height is used as the actual height.
Inner width: Cable drag chainUse the sum of the outer diameters of the thicker cables, oil pipes, gas pipes or water pipes as a reference for the inner width, and leave at least 10% of the space as a margin.
Bending radius:Cable drag chainTake the maximum bending radius of cables, oil pipes, gas pipes or water pipes as a reference value, and leave 10% of the space as a margin.
Inner width: Cable drag chainUse the sum of the outer diameters of the thicker cables, oil pipes, gas pipes or water pipes as a reference for the inner width, and leave at least 10% of the space as a margin.
Bending radius:Cable drag chainTake the maximum bending radius of cables, oil pipes, gas pipes or water pipes as a reference value, and leave 10% of the space as a margin.
