Metallized and sprayed pure zinc wire for film capacitors

PRODUCT DETAIL
Zinc wire certification:ISO9001:2008Powder or not:not powder
Use of zinc wire:Anti-corrosion industryplace of origin; place of origin:Hebei china
Zinc wire appearance:Smooth, no oil stains and burrs, no scratchesAlloy or not:non-alloy
Supply capacity:50,000 tons/yearDelivery Details:15 days after receiving T/T
brand:a dustZinc wire color:silver, bright
model:1.2mm/1.6mm/2.0mm/3.0mmport:Tianjin
type:Zinc wireZinc (minimum):99.99%
payment terms:letter of credit, wire transferPackaging Details:25kg/bundle; 15-18kg/bundle; 50-200kg/drum
Zinc wire purity:99.995%

product name

diameter

pack

Zinc content

application

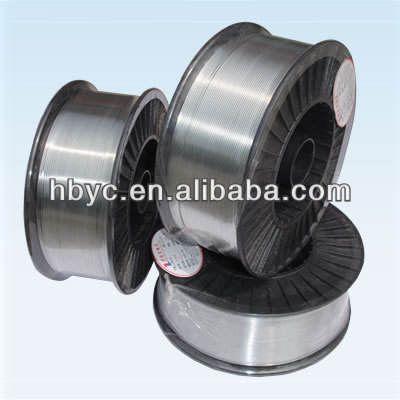

Coiled zinc wire

Φ1.3mm

25kg/bundle; 15-18kg/roll; 50-200/barrel

≥99.9953


Thermal spray, zinc spray and

ductile surface corrosion protection

Iron pipes, capacitors, power towers, iron

tower, container, derrick, bridge, sluice

Doors, tunnel frames, metal supports,

Large steel structures, etc.



Φ1.6mm

25kg/bundle; 15-18kg/roll; 50-200/barrel

≥99.9953

Φ2.0mm

25kg/bundle; 15-18kg/roll; 50-200/barrel

≥99.9953

Φ2.3mm

25kg/bundle; 15-18kg/roll; 50-200/barrel

≥99.9953

Φ2.8mm

25kg/bundle; 15-18kg/roll; 50-200/barrel

≥99.9953

Φ3.0mm

25kg/bundle; 15-18kg/roll; 50-200/barrel

≥99.9953

Φ3.175mm

250kg/drum

≥99.9953

Φ4.0mm

200kg/drum

≥99.9953



1. Application:

Anticorrosion of steel structure surface, containers, bridges, derricks, storage tanks, power towers, power towers, capacitors, metal supports, ductile iron pipes, transportation equipment and other anti-corrosion industries.

2. Diameter:0.3mm~12.0mm



3. Packaging:50kg/drum-250kg/drum



4. Chemical composition%

. chemical composition

Zinc

CD

lead

iron

copper

total non-zinc

face value

≥99.995

≤0.002

≤0.003

≤0.002

≤0.001

0.005

actual value

99.9957

0.0017

0.0015

0.0008

0.0003

0.0043



5. Physical properties

semester



Specification

Tensile strength Mpa

115±10

Elongation

45±5

melting point

419

Density g/m3

7.14



Why use zinc wire spraying in anti-corrosion surface treatment technology?

- Zinc-sprayed surfaces are a good basis for painting due to their porosity, but should be painted immediately after spraying to avoid corrosion products.

- Can be sprayed on large pieces that are not suitable for hot-dip galvanized pots.

- The work can be done on site (bridges, railings) and can be sprayed in special thicknesses.

- The surface to be coated does not heat up, i.e. the structure does not change due to heat.

- The life of the spray coating can be estimated in most environments based on the coating thickness. This makes it possible to carry out a maintenance plan for the system.

- If the paint layer is damaged, a zinc coating can be applied to protect the steel structure from cathodic corrosion.
