New Enduro full suspension E-MTB carbon frame set fit for Bafang M500/600 motor, E-bike mountain carbon frame
- $740.00 / 1 - 9 sets
$700.00 / 10 - 49 sets
$640.00 / >=50 sets - 1 set
- Xiamen Lightcarbon Composite Technology Co., Ltd.
- Fujian, China
- Mr Johnny Cai
PRODUCT DETAIL
| Components: | frame+seat clamp; | Motor System: | Bafang M500(95NM) or M600(120NM) mid drive engine; |
| Battery: | BTF03(450Wh) or BTF04(600Wh); | Packaging Detail: | En Standard carton packing with inner foam protection; |
| Foldable: | No; | Head Tube: | Tapered 1 1/8 "- 1 1/2"; |
| Model Number: | LCES004; | Supply Ability: | 2000 Sets per Month; |
| Brand Name: | LightCarbon; | Warranty: | 2 years; |
| Surface Processing Mode: | UD Matte or glossy; | Use: | Cruisers,Mountain Bikes,Road Bicycles,Ebike; |
| Type: | Carbon fiber frame; | Rear shock size: | 185*55mm(trunnion mount); |
| Size: | M/L; | Place of Origin: | Fujian, China; |
| Front travel: | 150mm; | Package Preview: | ; |
| Rear travel: | 150mm; | Port: | Xiamen Port; |
| Payment Terms: | L/C,Western Union,T/T,Paypal; | Dropout: | Thru Axle 12*148mm boost; |
| Brake Type: | Post Mount Disc brake 180mm disc rotor; | Weight: | 3300±45g/Medium; |
Products Description
New LightCarbon Enduro Full Suspension Ebike Frameset Designing For Bafang Motor
- 27.5 plus full suspension Enduro ebike frameset
- 12*148mm plus thru axle
- Bafang M500(95NM)/M600(120NM) mid drive engine
- Bafang BTF03 battery
- 185*55mm trunnion mount rear shock size
- 12*148mm plus thru axle
- Bafang M500(95NM)/M600(120NM) mid drive engine
- Bafang BTF03 battery
- 185*55mm trunnion mount rear shock size

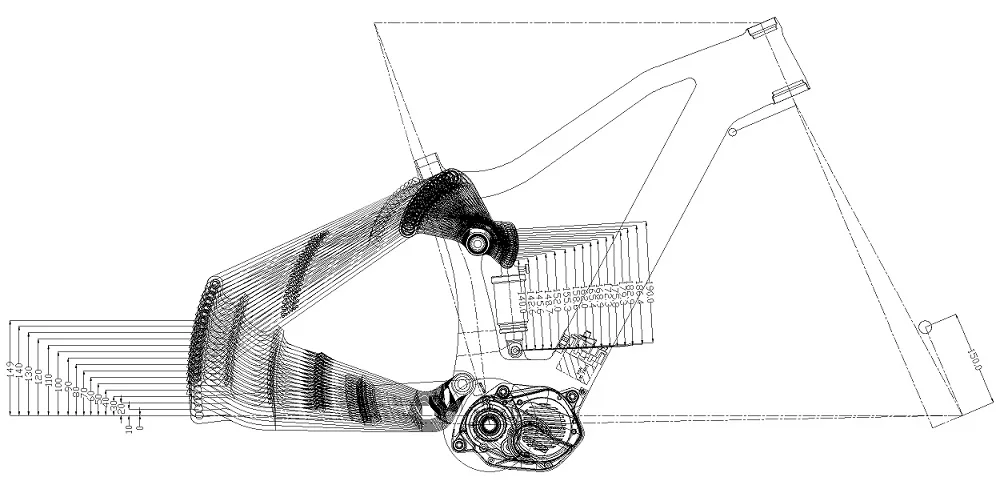

Frame travel leverage ratio infographic
Frame | New LightCarbon Enduro Full Suspension Ebike frameset designing for Bafang motor |
Material | High modulus Toray T700 carbon fiber |
Size | Medium/Large |
Headtube | Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57E) |
Weight | 3300±45g/Medium |
Seatpost Diameter | 31.6mm(34.9mm seat clamp) |
Motor System | Bafang M500(95NM) or M600(120NM) mid drive engine |
Battery | Bafang BTF03(450Wh) or BTF04(600Wh) |
Max Tire Clearance | 650b*2.8" and 29er*2.35" |
Front travel | 150mm |
Rear travel | 150mm |
Rear shock size | 185*55mm(trunnion mount) |
Brake Type | Post Mount Disc brake 180mm disc rotor |
Dropout | Thru Axle 12*148mm boost |
Max Chainring | 34T |
Test Standard | ISO4210 |
Warranty | 2 years |

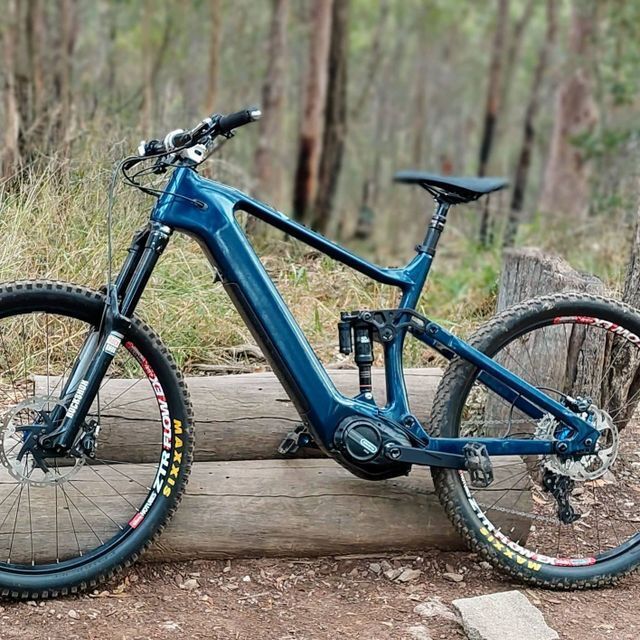

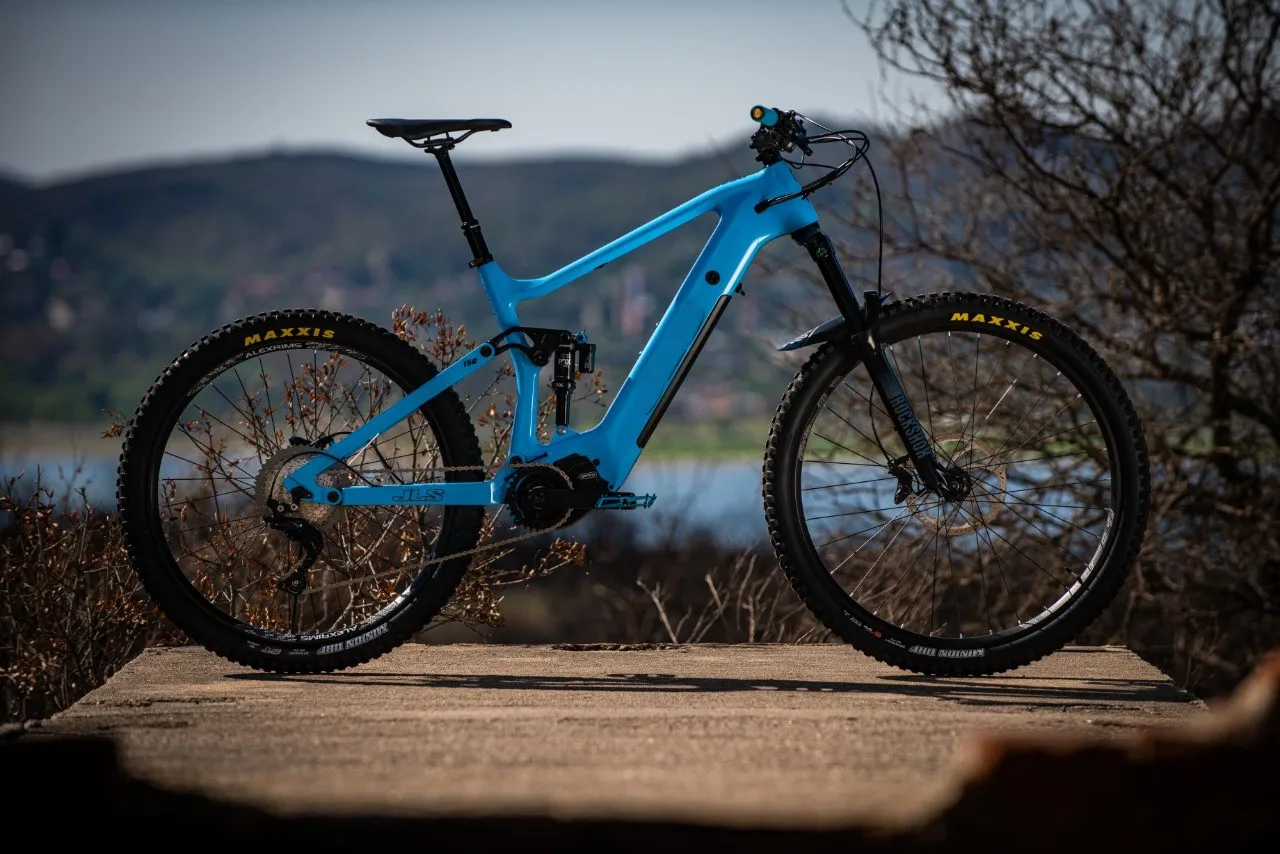

Customer Photos
Technology & Test
Who is LightCarbon?
Xiamen LightCarbon Composite Technology Co., Ltd. is the leading manufacturer of carbon bike components in China.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Why Trust Us?
We have more than 20 engineers in our R&D Dept. Some of them have over 15 years experience in carbon frame bicycle industry, plus worked in OE factories for brands of Specialized, Cannondale, Pinarello etc... With the support of experienced R&D Dept., we are always in the leading for new products developing.
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
Exhibition
2019 LIGHTCARBON Eurobike Show
2019 Taipei Cycling Show
2018 Interbike E-bike Show
2018 Eurobike Show
2017 Italy Cosmo Bike Show
2017 Spain UNIBIKE SHOW
2016 Italy Cosmo Bike
2016 America Interbike show
......
