Newly designed multifunctional knife sharpener universal knife sharpener
- $285.00 /set
- 1 set
- Shandong Songli Machinery Co., Ltd.
- Shandong, China
- Ms Vivien Han
| usage: | drill sharpener | Supply capacity: | 1000 boxes per month |
| payment terms: | L/C, Western Union, T/T | Origin: | China |
| Voltage: | 220V, 380V | port: | Qingdao Guangzhou Yiwu |
| grade: | DIY | product name: | Universal sharpener |
| Package preview: | Packaging Details: | Double-layer carton packaging | |
| Power type: | 0.37 kW | Energy source: | electrical |
| application: | Grinding, milling cutter |
Product Description
1. Used for grinding high-speed steel and carbide engraving knives and single-edged or multi-edged knives of various shapes, such as round knives or negative taper knives.

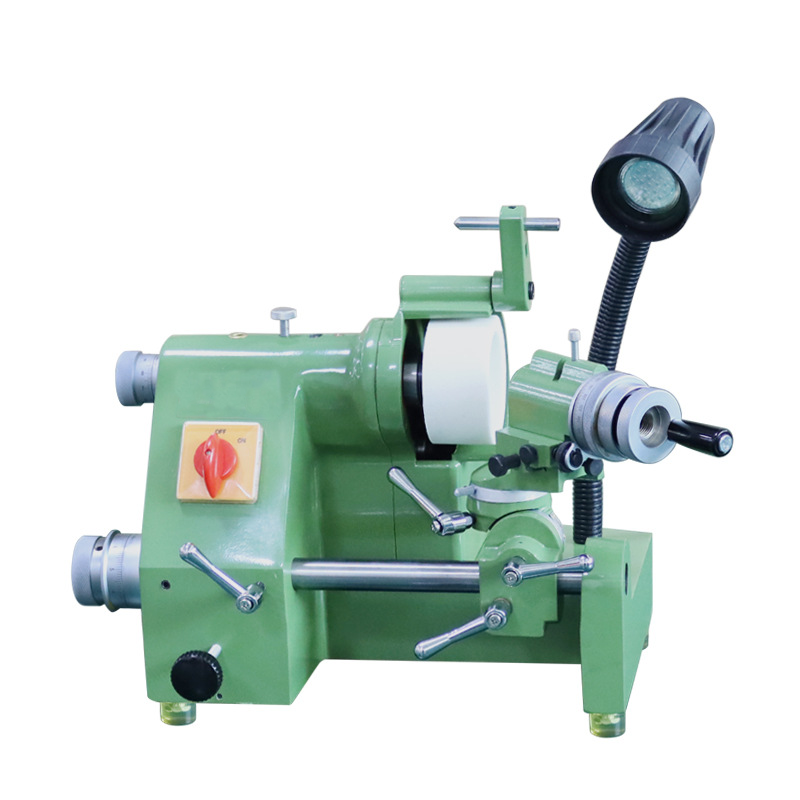

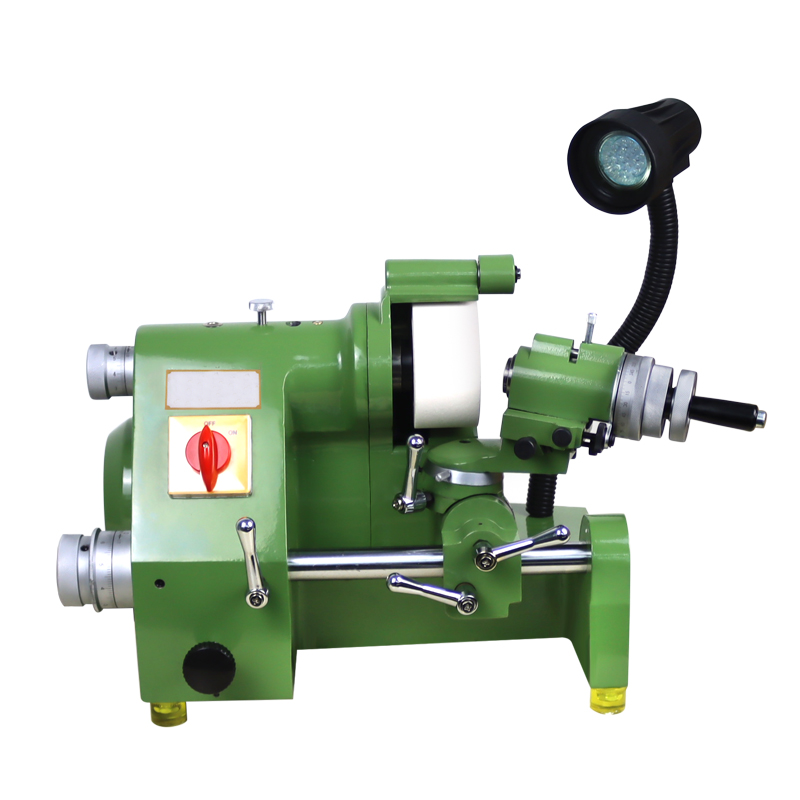

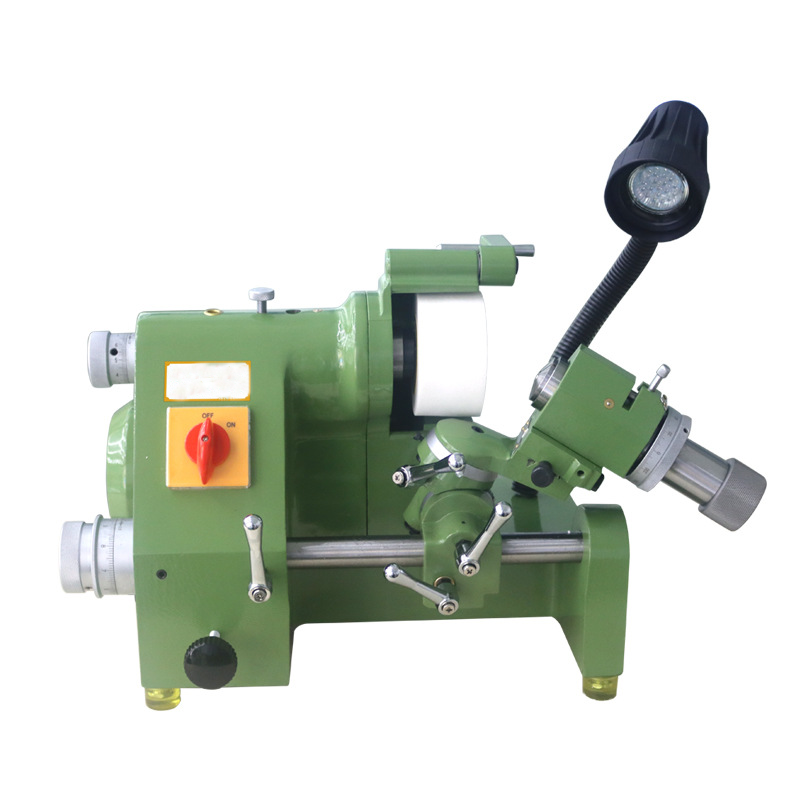

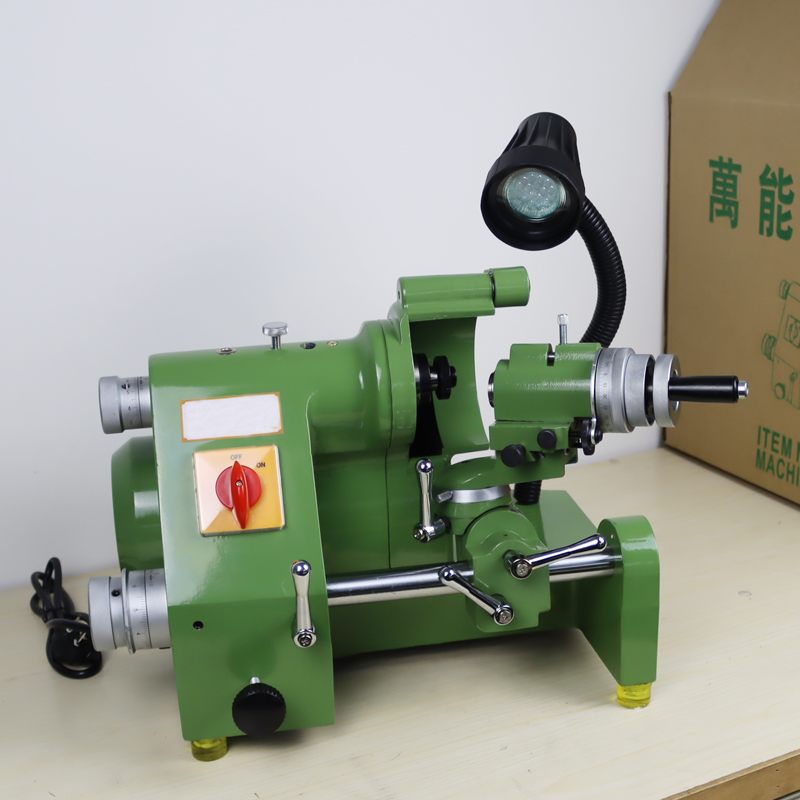

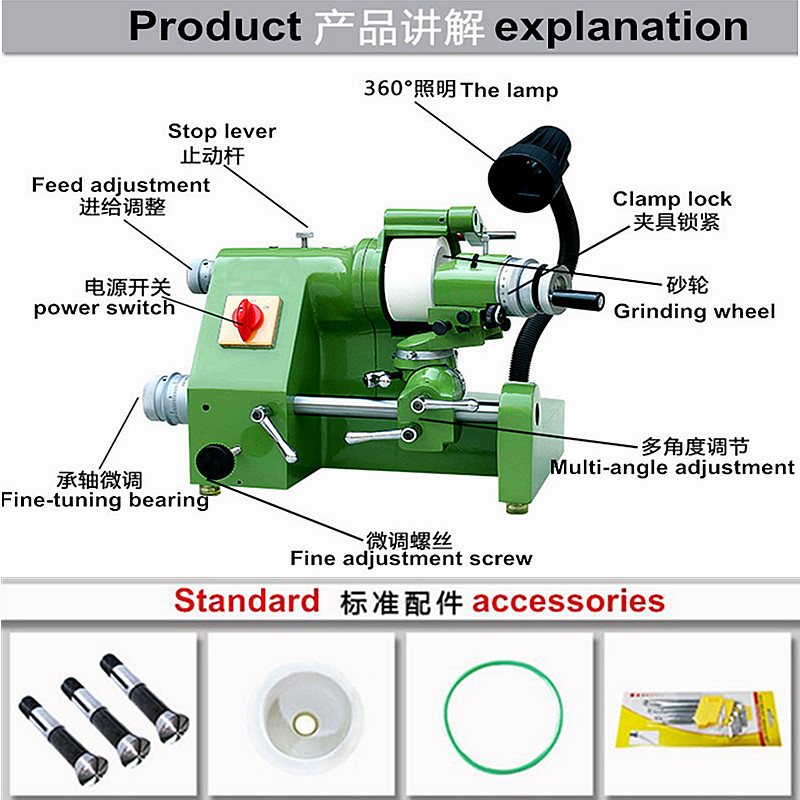

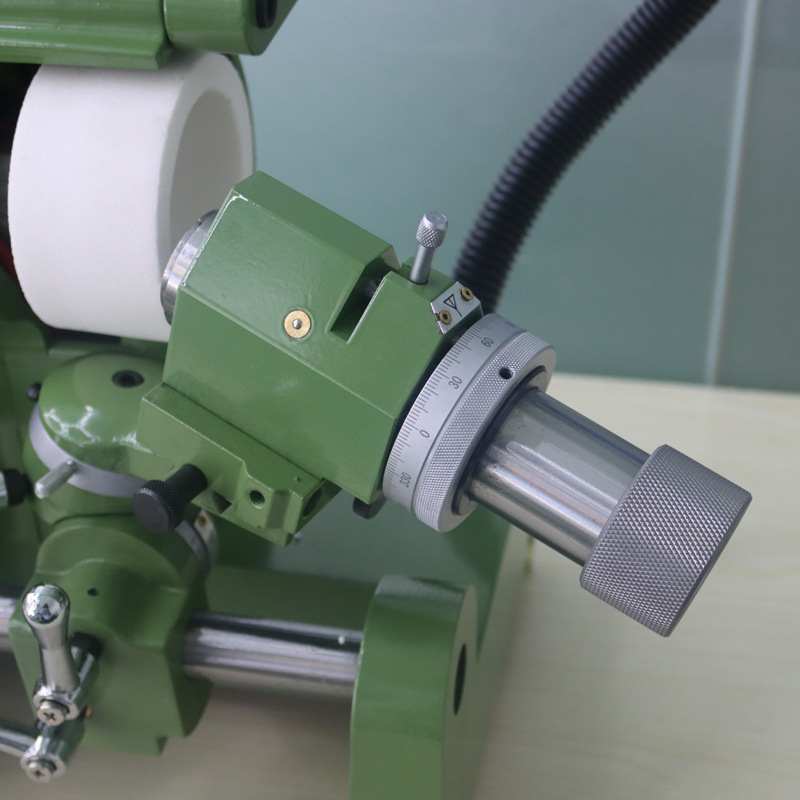

2. The universal indexing head has 24 positions, and the shape of any angle can be obtained. Milling cutters, twist drills, and turning tools can freely rotate 360 degrees or 100 degrees, and complex settings can be made by simply replacing the indexing head accessories.GD-U2Universal milling cutter grinder

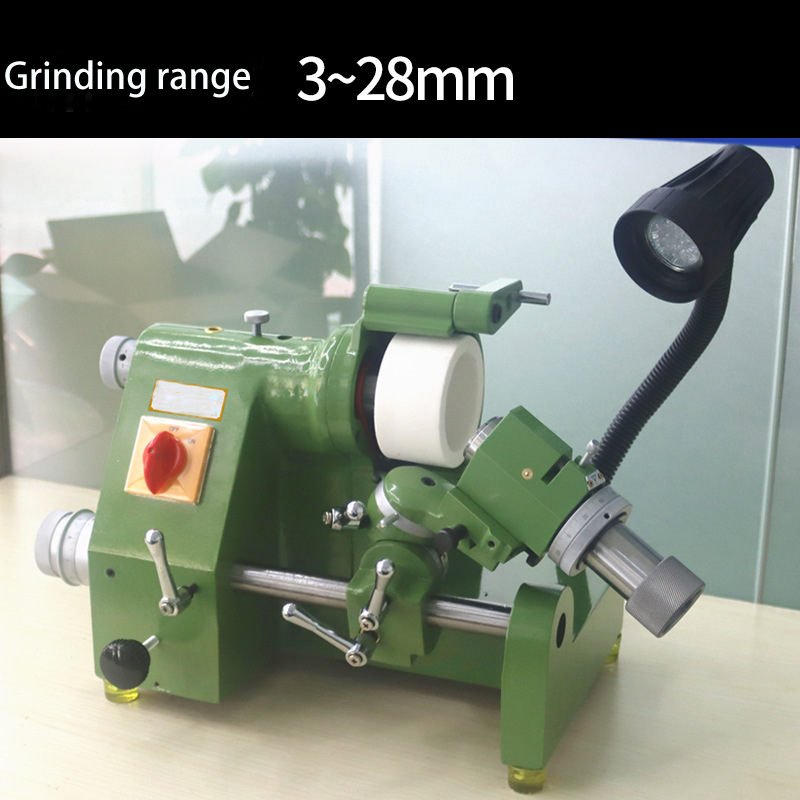

Designed for sharpening carving knives, round knives, straight shank knives, end mills, drills, turning knives, carving knives, etc. of various diameters, shapes and angles;
It has good precision, competitive price, according to skill requirement.
| Model | GD-U2 |
| maximum. Chuck Capacity | Φ25mm |
| maximum. Grinding diameter | Φ25mm |
| Indexing head carrier longitudinal travel | 140mm |
| Dividing head bracket longitudinal adjustment stroke | 180mm |
| Spindle grinding wheel longitudinal adjustment stroke | 600mm |
| Cone Angle Range | 0～180 (degrees) |
| Angle range | 0~45 (degrees) |
| Negative angle range | 0~25 (degrees) |
| engine | 1/3HP 220V/380V 50HZ |
| grinding spindle | 5300 rpm |
| Grinding wheel | Φ100×50×Φ20 |
| aspect | 55×43×42cm |
| weight | 45KG |
· All of our machines will be fully inspected and tested by our QC department before shipment.
· Lifetime free technical maintenance and spare parts supply.
· Free training. Our engineers can speak English.
· 24 hours technical support.
· We will provide you with "Instruction Manual", "Operation Manual" and "Training Video". It's easy to understand.
· We will also provide online face-to-face training, through our dedicated software, our engineer can control the machine computer and show you the machine step by step.
