PZ-3 spray gun 5m3 concrete spraying equipment spray gun dry spray concrete spray gun tunnel sales
- $1620.00 /set
- 1 set
- Henan Xuanhua Imp.& Exp. Trading Co., Ltd.
- Henan, China
- Ms Amanda Lee
PRODUCT DETAIL
| Applicable industries: | Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Retail, Construction Engineering, Energy and Mining | Air consumption: | 7~8m3/min |
| Unique Selling Points: | High operating efficiency | product name: | Concrete Gun Applicator |
| Video external inspection: | if | Core Components Warranty: | 1 year |
| place of origin; place of origin: | Henan, China | Voltage: | 380v or according to your request, 220v.380v,50HZ,60HZ |
| Maximum aggregate size: | 20mm | payment terms: | L/C,Western Union,T/T |
| Supply capacity: | 200 sets of 5m3 concrete spraying equipment spray guns per month | port: | Shanghai, Qingdao, Ningbo |
| Motor Power: | 3-7.5kw | Maximum aggregate size: | 20mm |
| Model: | PZ-3 PZ-5/7 PZ-5P PZ-5D/7D | Marketing Type: | New Products 2020 |
| Core components: | engine, motor | application: | Shotcrete equipment |
| weight: | 900 kg | Packaging Details: | PZ-3 Spray Gun 5m3 Concrete Spraying Equipment Spray Gun Dry Shot Concrete Spray Gun Tunnel Sales Standard Export Package |
| working pressure: | 0.4~0.6MPa | strength: | 7.5kW |
| output: | 3-7m3/h | Dimensions (L*W*H): | 1350*700*1200mm |
| Hose inner diameter: | 64 mm | Health status: | new |
| Mechanical test report: | if | Key words: | concrete spray gun |
| brand: | Xuanhua | Showroom location: | Peru, Saudi Arabia, India, Russia, UAE, Australia |
| type: | spray gun | Warranty: | 1 year |
| maximum. Conveying distance: | 300m |

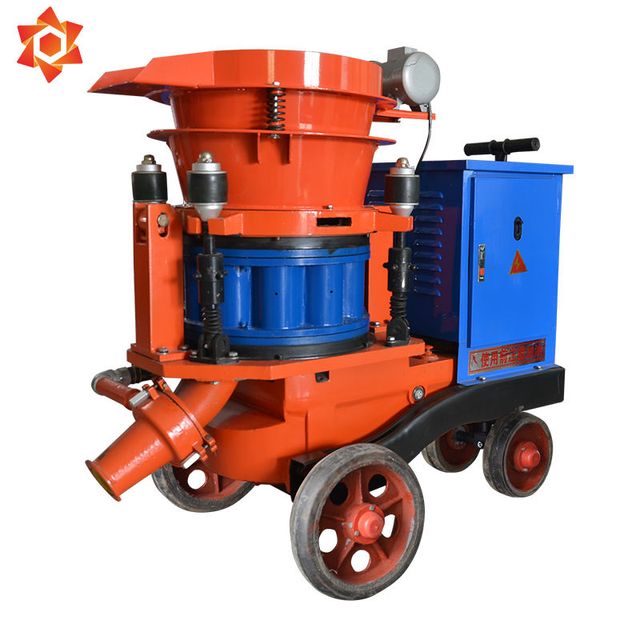

product photo

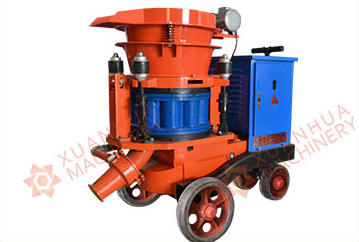

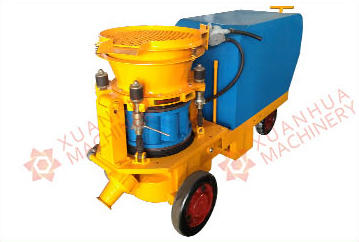

PZ-3

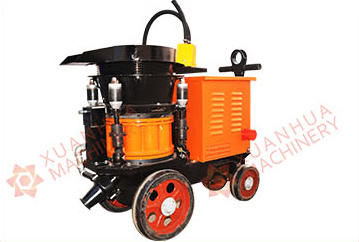

PZ-5/7

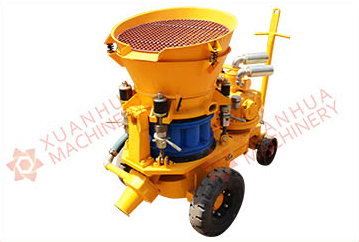

PZ-5P
PZ-5D/7D
Product Description
application
Concrete sprayers are widely used in the protection of houses, roads, tunnels, culverts, subways, bridges, coal mines and other projects, as well as spraying and repairing industrial furnaces.

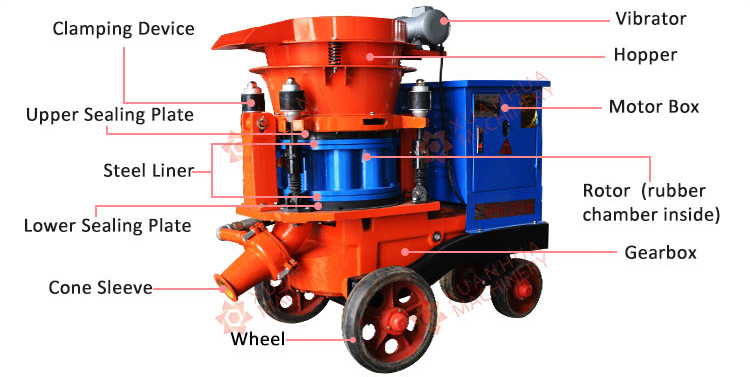

Product details
productadvantage
We have been focusing on construction machinery manufacturing for 20 years. Fine workmanship is our aim. We will do the best in every detail and provide you with the best experience.

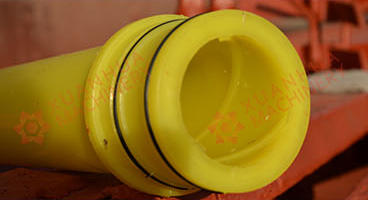

Shotcrete Nozzle
The new nozzle improves the spray effect, with less springback and high quality spray layer. The nozzle material is upgraded and the service life is longer.

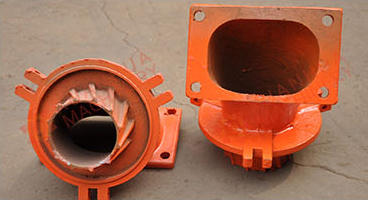

cyclone
Adopt low-pressure high-speed vortex airflow conveying, which overcomes the problems of sticking, pipeline blockage and impulse force in material conveying.

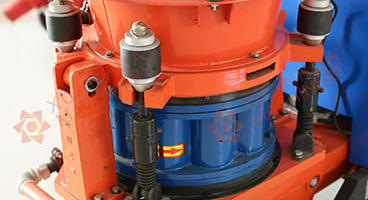

Clamping device
Four-point elastic compensation compaction, good sealing effect, less dust beside the machine, and long service life of wearing parts.

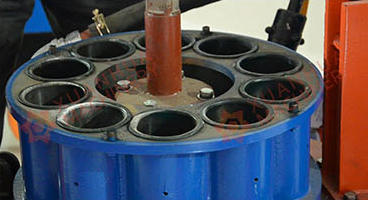

rotor
Straight-through rotor design, non-stick material cavity, smooth material discharge, high efficiency and time saving.
our partners
ourPartner
Trust us, join us and give you the best experience

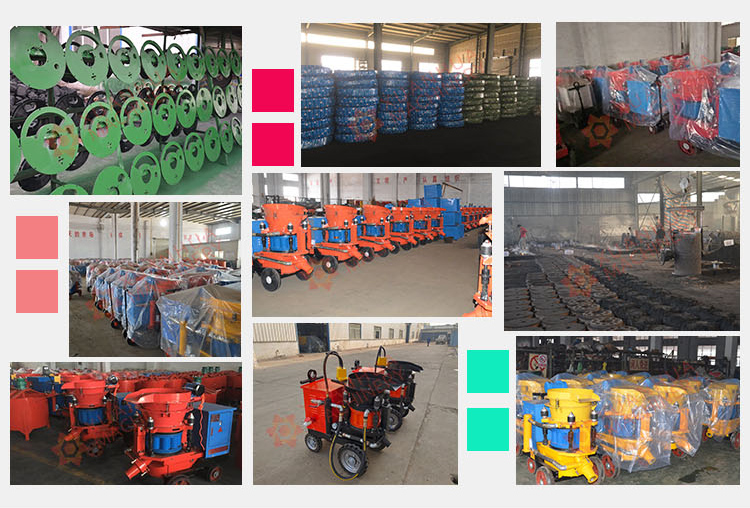

mass production
Lots ofProduction
We can provide customized dry concrete shotcrete machine according to customer's requirements of workload, weight, shape, color, etc. At present, we have advanced production technology and advanced product testing equipment, scientific and perfect enterprise management, strict operation in accordance with the ISO/TS9001:2008 international quality standard management system, strict quality control, and provide customers with qualified products. For ten years, our products have been sold to 39 countries and regions. With the accumulation of customers, our export volume has grown at an average annual rate of 36%.
