Plastic Mannequin Extrusion Blow Molding Machine
- $5000.00 /set
- 1 set
- Taizhou Shengda Plastic Machinery Co., Ltd.
- Zhejiang, China
- Ms Ashley Huang
| Screw diameter (mm): | 90 mm | Mold platen size (width) (mm): | 1000 mm |
| place of origin; place of origin: | China | Clamping force (kN): | 300 |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Applicable industries: | manufacturing plant |
| Die head heating power (kW): | 20kW | Extruder motor power (kW): | 37kW |
| Blow molding type: | Extrusion blow molding | Health status: | new |
| model: | ZK-90B | Supply capacity: | 2000 sets per year |
| Accumulator capacity (L): | 8 liters | Average energy consumption: | 35 kWh |
| port: | Ningbo | Voltage: | 380V/440/220V |
| automation: | automatic | After-sales service provided: | Engineers can go overseas to service machinery, on-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support |
| Main selling point: | long lasting | Showroom location: | not any |
| payment terms: | letter of credit, wire transfer | Local service location: | not any |
| Output (kg/hour): | 120 kg/h | Mold platen size (height) (mm): | 1000 mm |
| Parison Controller: | 30 points | Plastic Processing: | polyethylene/polypropylene |
| Air pressure (MPa): | 0.7 MPa | Warranty: | 1 year |
| Air consumption (m³/min): | 0.9 m3/min | Volume of hollow part: | 60L |
| Weight (tons): | 9 | Power (kW): | 70 |
| Dimensions (L*W*H): | 5*3.1*3.9M | Screw heating power (kW): | 12.5 kW |
| Packaging Details: | Shipping packing... |
Welcome to "Shengda"

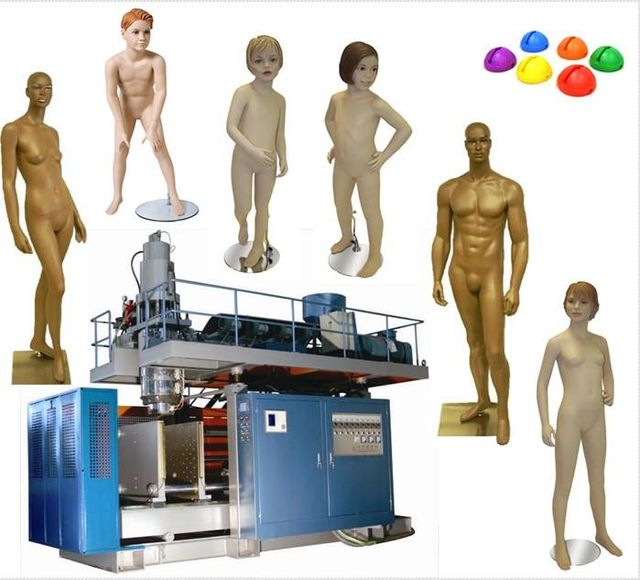

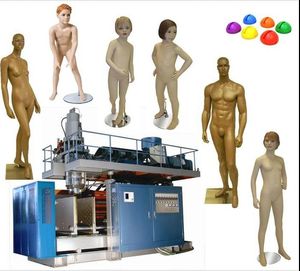

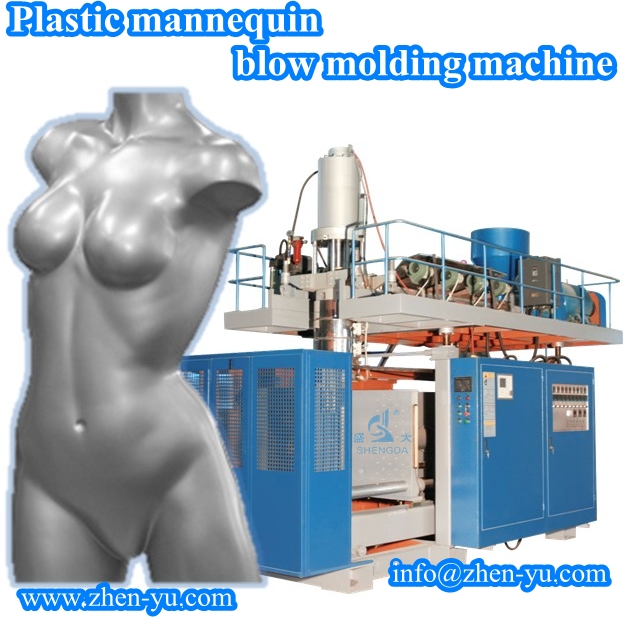

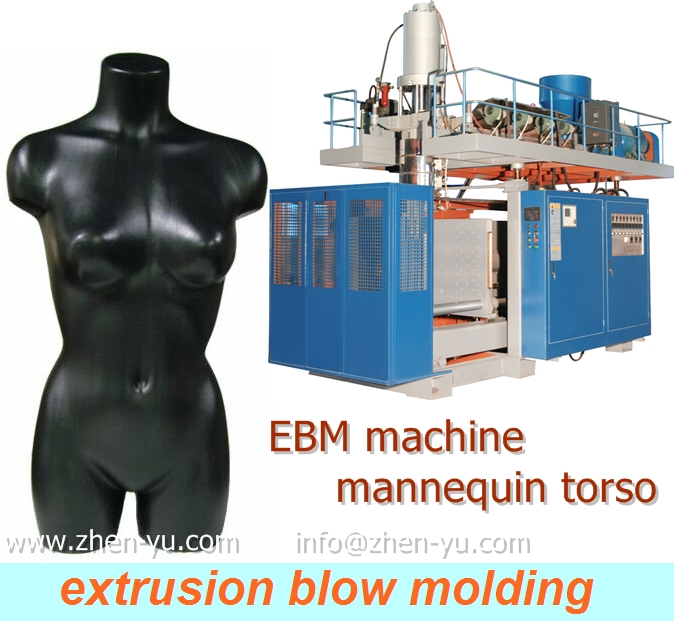

Plastic mannequin model extrusion blow molding machine machine
(Extrusion blow molding machine) ZK-90B making drum mannequin baby car seat bus seat)

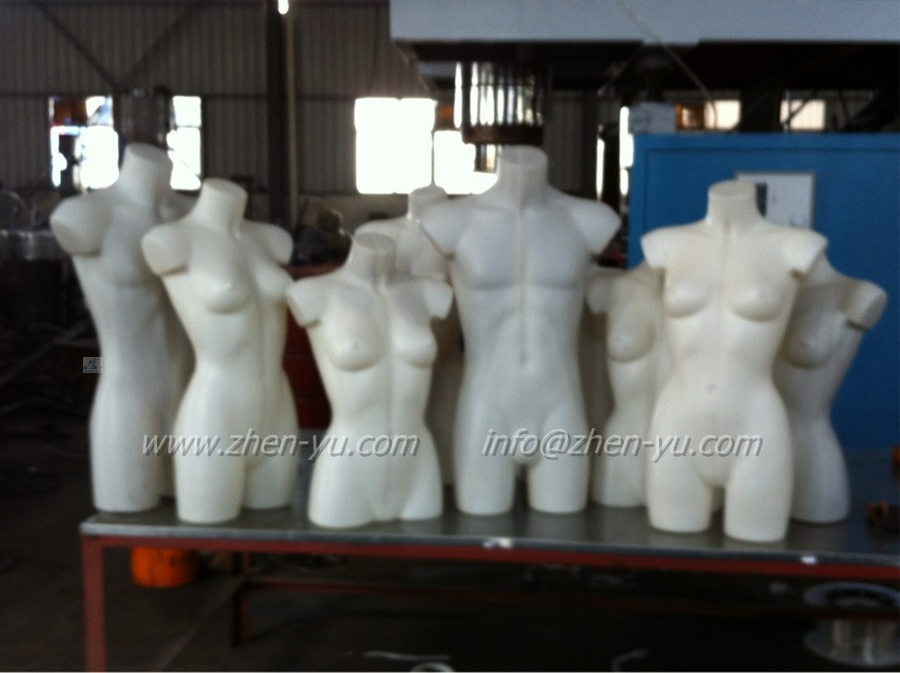

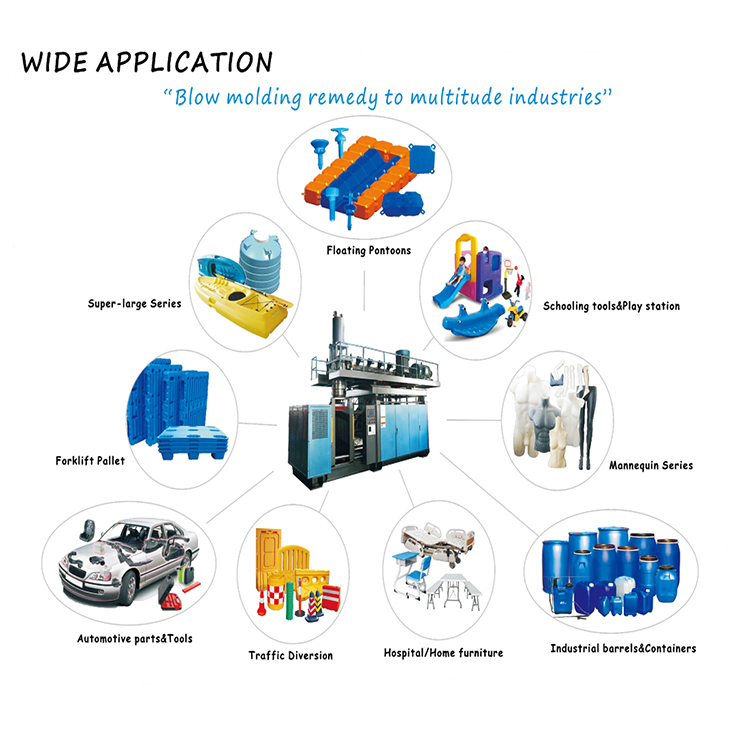

This model adopts accumulator mold. The parison programmer controls the thickness. This model is an automatic process, which has the advantages of low noise, energy saving, high efficiency, safe operation and convenient maintenance. This model is widely used in the production of various mannequins, PE, PP material packaging barrels, the capacity is between 10-60L. Toolboxes, auto parts such as gasoline tanks, air ducts and other large and medium-sized plastic hollow products, etc.
feature:
1) Taiwan PLC control
2) Temperature control model
3) Interactive monitor with human-machine interface
4) Imported hydraulic components
5) Hydraulic proportional control
(The hydraulic system is designed with the principle of energy-saving hydraulic pressure, and adopts the structure of two oil pumps, which reduces the energy consumption by 20%-40% compared with the traditional model. At the same time, the oil temperature is significantly reduced, and the service life of the hydraulic parts is prolonged.)
6) Imported electrical components
7) Hardened gear reducer
8) Special steel accumulator head
(The die head of the accumulator, the flow channel is made of high-quality nitrided alloy steel, mirror-finished, and the material and color are fast-installed.)
9) Vicker Hydraulic Valves, Seals and Proportional Controls
10) Taiwan PLC + Taiwan man-machine interface + touch software + famous brand electrical components.
(PLC plus man-machine interface, touch screen operation. Self-diagnosis and alarm, clear at a glance.)
11) The unique "three tie rods + two cylinders + linear guide rail" clamping structure ensures more uniform clamping and smoother braiding.
Technical Specifications:
| Specification | unit | ZK-90A | ZK-90B | ZK-90S |
| Maximum product reference. | large | 50 | 60 | 50 |
| Machine Dimensions (LxMxH) | Meter | 5x3.1x3.2 | 5x3.1x3.9 | 5x5x3.9 |
| gross weight | Ton | 7 | 9 | 13 |
| Clamping unit | ||||
| clamping force | KN | 300 | 300 | 300 |
| Platen opening stroke | mm | 350-1050 | 350-1050 | 350-1050 |
| maximum. Die size (WxH) | mm | 700x1000 | 700x1000 | 700x1000 |
| Die thickness | mm | 360-500 | 360-500 | 360-500 |
| Dual mode stroke | mm | 1400 | ||
| strength | ||||
| Hydraulic Motor (Servo) | kilowatt | 15 | 15 | 15 |
| total power | kilowatt | 63 | 70 | 85 |
| Screw fan power | kilowatt | 0.72 | 0.72 | 0.72 |
| air pressure | MPa | 0.7 | 0.7 | 0.7 |
| Air consumption | m3/min | 0.9 | 0.9 | 0.9 |
| average energy consumption | kWh | 28 | 30 | 45 |
| extruder unit | ||||
| Screw diameter | mm | 90 | 90 | 100 |
| Screw aspect ratio | long/deep | 25:1 | 30:1 | 30:1 |
| Plasticizing ability | kg/hour | 100 | 160 | 180 |
| Heating power number | Area | 4 | 4 | 4 |
| Extruder heating power | kilowatt | 12.5 | 12.5 | 18 |
| Extruder Motor | kilowatt | twenty two | 30/37 | 45 |
| die | ||||
| Number of heating zones | Area | 3 | 5 | 5 |
| Mold heating power | kilowatt | 7 | 20 | 20 |
| Accumulator capacity | large | 5 | 8 | 8 |
| Core diameter | mm | 50-350 | 50-350 | 50-350 |

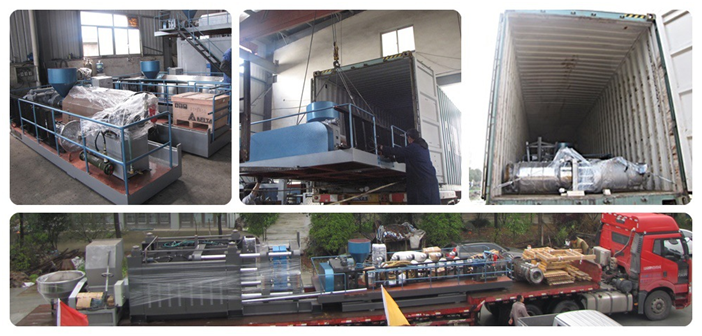

Packaging and Shipping:
