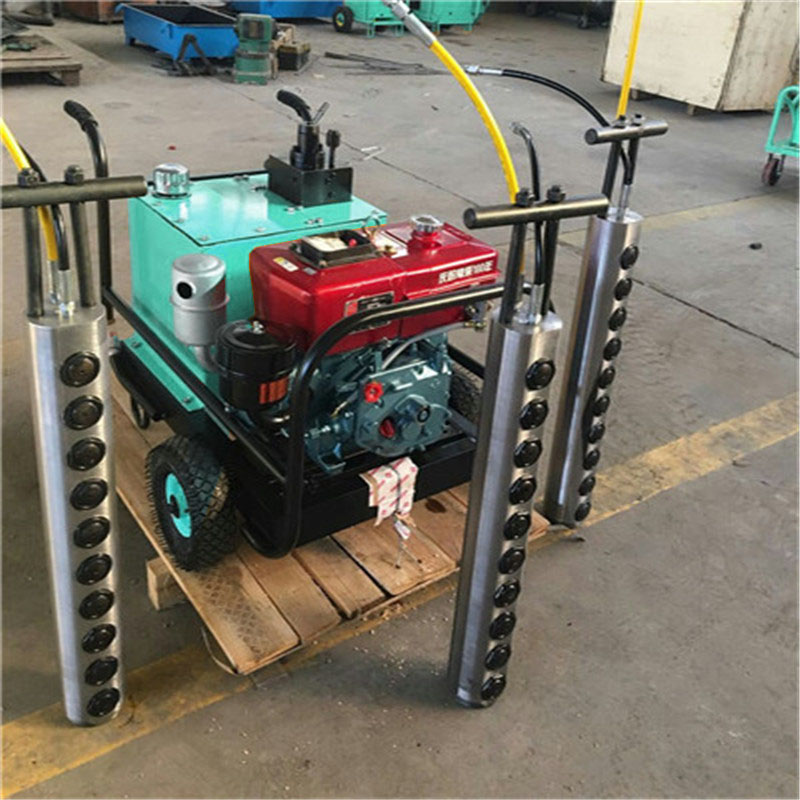

Professional Rock Crusher Diesel Rock Splitter Splitter Rod Hydraulic Rock Splitter For Sale
- $500.00 / 1 - 1 sets
$450.00 / >=2 sets - 1 set
- Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
- Henan, China
- Mr Vincent Guo
PRODUCT DETAIL
| After-sales service: | lifetime service | Core components: | engine, motor |
| port: | Qingdao, Tianjin, Shanghai | Crack Width: | 2-3cm |
| product name: | rock splitter | brand: | Hanfa |
| Model: | PXQ-180 | Drilling depth: | 1.2-1.5m |
| Showroom location: | not any | Dimensions (L*W*H): | 1150*180*310mm |
| Weight (kg): | 120 | Warranty: | 1 year |
| Supply capacity: | 15 sets per month | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Advantage: | high efficiency | Install: | under the guidance of engineers |
| Mechanical test report: | if | place of origin; place of origin: | Henan, China |
| Video shipment inspection: | if | Spare parts supply: | lifetime time |
| color: | customized | Types of: | stone crusher |
| strength: | 7.5kw | Core component warranty: | 1 year |
| Marketing Type: | New Products 2022 | application: | Rock and quarry stone cutting, rock/stone separators |
| Applicable industries: | Building material stores, manufacturing plants, energy and mining, other | State of health: | new |
| Motor type: | AC motor |
Product Description
How hydraulic splitters work
It consists of a cylinder, 10 pistons or multiple plungers, multiple seals, multiple high-pressure oil pipes and several main components. Divided into oil inlet pipe and oil return pipe. When the oil enters, the piston of the hydraulic rock breaker extends. This is a working process, which is the time when the rock is broken. Its power source is a hydraulic power station, which transmits hydraulic oil through oil pipes, with a power of up to 100mp and a theoretical splitting force of 3000t. A single 30kj, a power station can be equipped with 6 high. The standard configuration is 4.
Specification
technical parameter
Click here to contact us! ! ! We will provide you with detailed quotations and high-quality services! ! ! | ||||||||||||
Model | Drilling diameter | Drilling depth | crack width | split time | Disintegration of theory | pumping station electrical4KW 5.5KW 7.5KW diesel dye 6 hp 8 hp 18 hp | ||||||
PXQ-110 | 110mm | 1.2-1.5m | 2-3cm | 30-40s | 2000-3000 tons | |||||||
PXQ-130 | 130mm | 1.2-1.5m | 2-3cm | 30-40s | 2500T-3500T | |||||||
PXQ-150 | 150mm | 1.2-1.5m | 2-3cm | 30-40s | 3500T-4500T | |||||||
PXQ-180 | 180mm | 1.2-1.5m | 2-3cm | 30-40s | 4500T-5000T | |||||||
Product advantages
✔️ Compared with cement expansion agent, the waiting time for quarrying is too long, the speed of quarrying is too slow, manual drilling, heavy workload, and the amount of space cannot be improved. Cannot be reused.
✔️ The hydraulic splitter is also a high-quality equipment produced by our company.
✔️ Only suitable for small batches of stone mining. As far as drilling is concerned, hydraulic splitters and manual drilling can only drill 46 small holes.
✔️Cracking rod, machine punched, need to punch 180 large holes. The rock mining speed is fast, the cost is saved, the rock mining is silent, hydraulic blasting, and good equipment.
Main areas of hydraulic splitter bars
It is suitable for static mining of all kinds of hard rock, granite, volcanic rock, quartzite, basalt, quartz porphyry, siliceous schist, sandstone, limestone, marble, dolomite, pyrite, etc. Move, the expansion agent cannot be separated, the speed of the splitter is slow, hydraulic splittingPole is a good choice.
Applicable material
Suitable for limestone, iron ore, basalt, granite, river pebbles, gold mines, etc.
If you need our products, please contact us, this is my WhatsApp. Or just click the blue font below to send
Ask and we'll help you make more money.
WeChat: +8617739786040
Email: [email protected]
Ask and we'll help you make more money.
WeChat: +8617739786040
Email: [email protected]
Click here to contact us! ! !
