Professional Textile Cotton Cards for Open-End Yarns
- $17000.00 / 1 - 1 sets
$16500.00 / >=2 sets - 1 set
- Qingdao Lebon Industry Co., Ltd.
- Shandong, China
- Ms Sophia Ding
| Packaging Details: | export standard | Package preview: | |
| Applicable industries: | manufacturing plant | Showroom location: | Indonesia, Pakistan |
| Mechanical test report: | if | width: | 1m-1.5m |
| Working width: | 1000-1500mm | Core components: | PLC, motor |
| Supply capacity: | 50 sets per month | Core component warranty: | 1 year |
| capacity: | 150-500kg per hour | color: | custom made |
| Key words: | carding machine | brand: | Le Bon |
| Final product: | Cotton ball | Marketing Type: | normal product |
| strength: | 4~6.5kw | Video shipment inspection: | if |
| Voltage: | 380v-440v | Origin: | Shandong China |
| weight: | 5500 kg | Dimensions (L*W*H): | 3300mm*1800mm*1800mm |
| Production capacity: | 99% | port: | Qingdao |
| application: | Open-end spinning, ring spinning, cotton carded yarn | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Automatic level: | automatic | Material: | raw cotton |
| Warranty: | 1 year | After-sales service provided: | Engineers available to service machinery overseas |
| Function: | yarn making | Health status: | new |
| feature: | High Yield Cotton Card |
Spinning yarn professional textile cotton carding machine
Technical data:
The carding machine is suitable for processing cotton, cotton-type chemical fiber, and medium-length synthetic fiber raw materials.
The carding machine is a patented product successfully developed by our company's scientific research personnel. It is the most advanced fiber carding machine in China. The biggest advantage is that it uses a large roller and multiple small rollers to card three-dimensional cotton at a low speed (1400whirl/min), and the carding rate reaches 98. % above, the cotton will not be damaged during processing. Especially if there is a metal flaw detection alarm, it will be shut down immediately and there will be water leakage. The carding machine has the advantages of small size, good quality, long life and low maintenance rate.
And it can automatically unload the cotton to ensure the safety of the operator

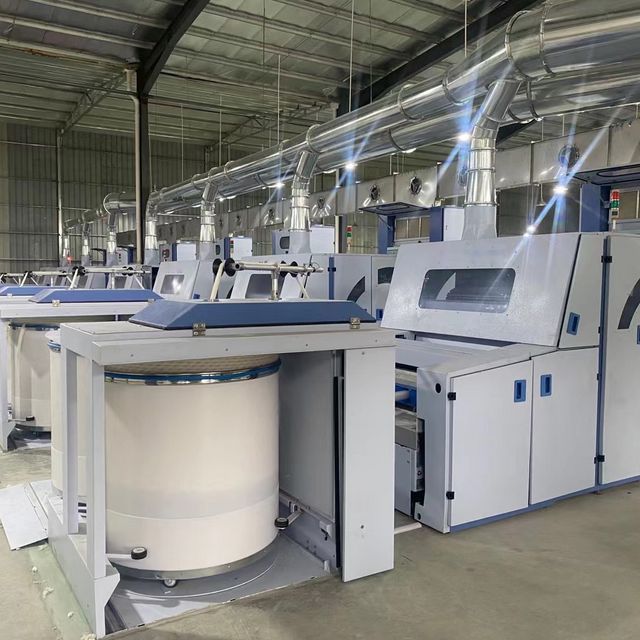

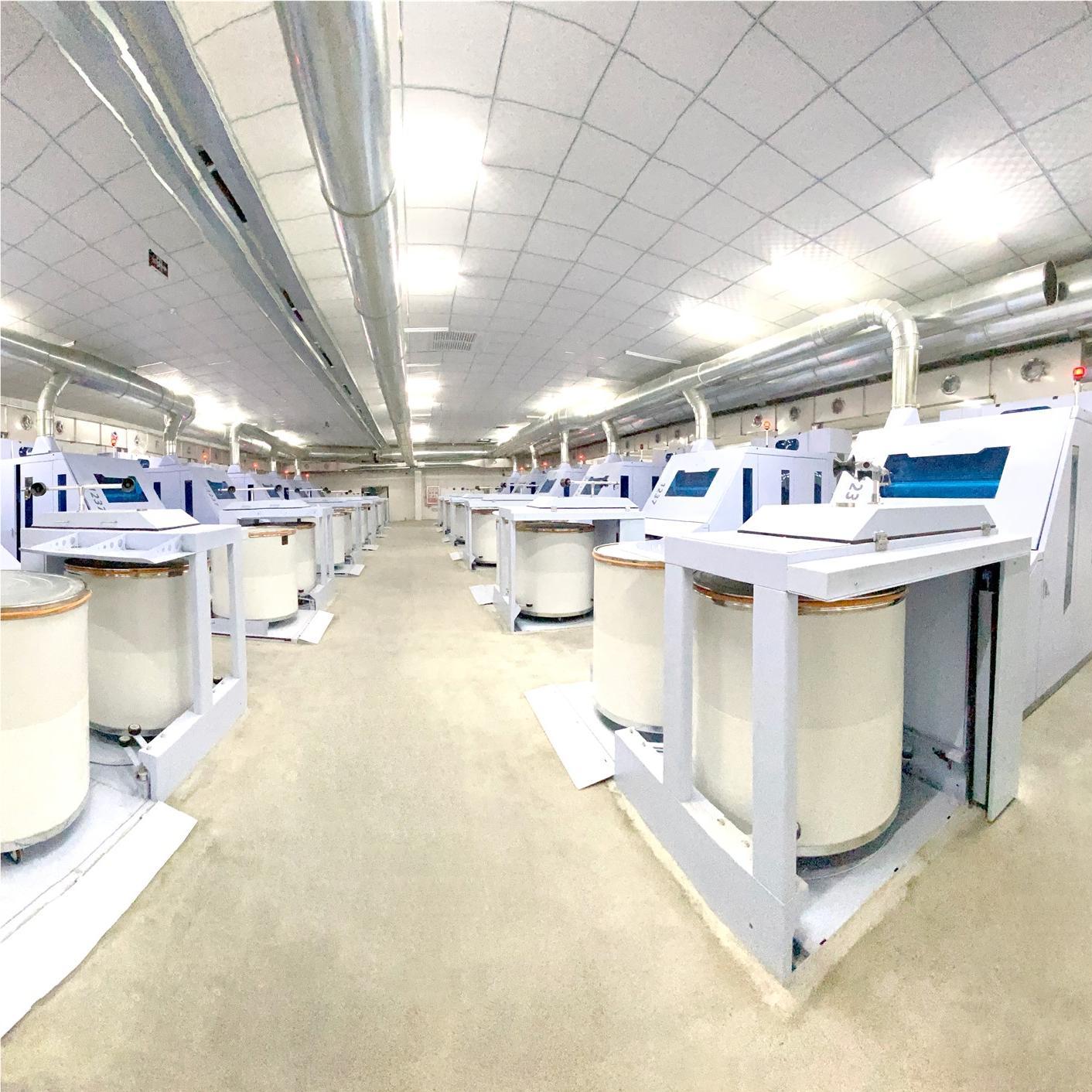

Our Carding and Spinning Machine Workshop:
Carding machine main technical parameters:
|
width |
1020mm |
|
delivery speed |
20-220 m/min |
|
output |
25-80kg/hour |
|
Sliver weight |
3.6-6.5 g/m |
|
Continuous vacuum air volume |
3500 cubic meters per hour, Air pressure -850~950pa |
|
compressed air |
0.4-0.7Mpa |
|
Air consumption |
0.01M3/h, if the machine is equipped with closed-loop autoleveler, the air consumption is 0.03m3/h |
|
construction area |
3132*1974mm(L*w)(without coiler) |
|
total power |
6.88kw |
|
Net weight of carding machine |
5500 kg |
Highlights of our spare parts for cotton card and spinning machines:
1. One year warranty, forever technical and spare parts support.
2. When customers come to our factory for inspection, our factory will provide pre-test.
3. We provide detailed technical specifications, electrical diagrams, installation books, operation manuals, drawings, etc.
4. If the customer needs, we can send engineers to the customer's factory to help install and train workers.
