Refport new free piston Stirling engine deep fast cooling -130 degrees

Price:$380.00 / 2 - 9 pieces
$370.00 / 10 - 49 pieces
$350.00 / 50 - 499 pieces
$316.00 / >=500 pieces
Min. Order:2 pieces
Supplier:Ningbo Juxin Ult-Low Temperature Technology Co., Ltd.
Region:Zhejiang, China
Contact:Mr Patrick Zhu

PRODUCT DETAIL

Supply capacity:	1000 pieces per month	model:	JX-80W
payment terms:	L/C, T/T	Packaging Details:	Carton and pearl cotton; allow customization
Energy source:	Batteries, Electricity, Solar Energy, Vehicle Power	After-sales service provided:	Free spare parts, returns and replacements
port:	Ningbo Port, Shanghai Port	Private Mold:	Yes
Application Control:	No	application:	car, outdoor
brand:	Report	Warranty:	1 year
Origin:	Zhejiang, China

Specification

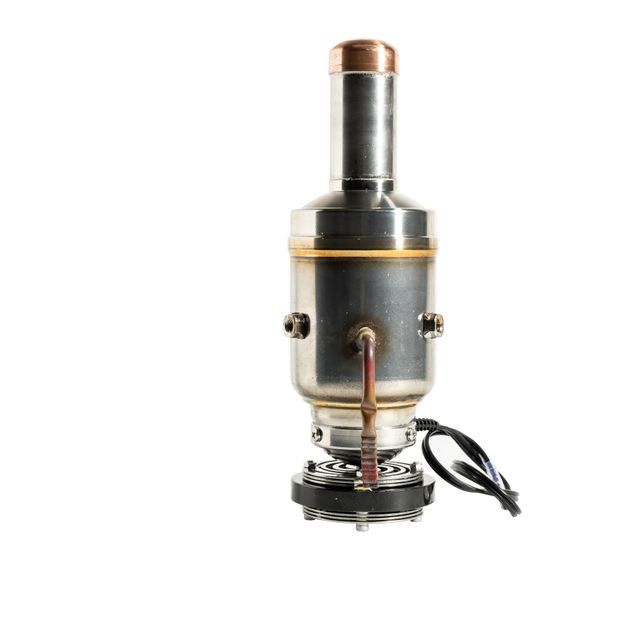

product name	Free Piston Stirling Cooled Engine
type	JX-80W1
enter date
Rated input voltage	24V DC
Rated input voltage range	21.6V to 26.4V DC
Rated input current	≤6A
output date
Output current range	0 to 9A
output voltage range	0 to 16V
Output frequency	80.0 Hz
base date
Appearance (length x width x depth)	165140290mm
net weight	3.2 kg
Cooling capacity	Over 30W @ minus 80 degrees
head temperature	minus 120 degrees
Operating temperature	minus 10 degrees to 32 degrees
Storage temperature	minus 20 degrees to 60 degrees
humidity	20% to 90%
cooling	air cooled
noise	≤55dB

Our advantage

installation method

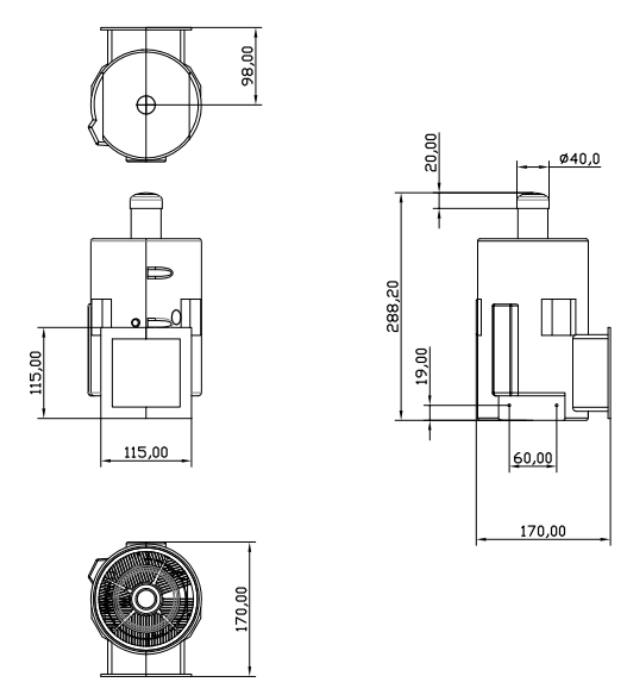

installation size

Application field
