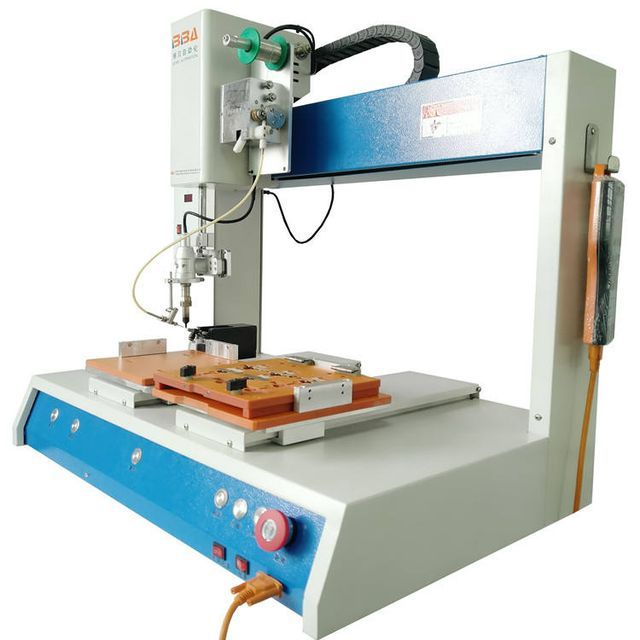

Robot PCB/LED Bulb/Connector/Wire Automatic Soldering Machine Automatic Arrangement Soldering Machine
- $3000.00 /piece
- 1 piece
- Dongguan City Bobang Intelligent Technology Co., Ltd.
- Guangdong, China
- Ms Misha Xu
PRODUCT DETAIL
| Weight (kg): | 90 kg | Health status: | new |
| Video outbound inspection: | if | brand: | BBA |
| Maximum load weight: | 8KG (for working platform) | Rated Capacity: | 350W |
| product name: | Automatic soldering machine | Packaging Details: | Standard export wooden box packaging |
| Voltage: | 110/220V 50HZ | Working platform size: | 500*300*300*100mm(X*Y*Y*Z) |
| Rated duty cycle: | 60% | heating power: | 150~300W |
| Package preview: | Supply capacity: | 200 sets per month | |
| Mechanical test report: | if | current: | alternating current |
| Motor shaft: | Four | Operating temperature: | 0℃~40℃ |
| type: | Soldering machine | port: | Shenzhen |
| Marketing Type: | Hot Products of 2019 | Core component warranty: | 2 years |
| Repeatability: | ±0.02mm (X*Y*Z) | usage: | Electronic product soldering iron solder |
| Preheat temperature range: | 0℃~ 550℃ | Warranty: | 2 years |
| Showroom location: | not any | Applicable industries: | Mechanical repair shop, manufacturing plant, retail, other, electronics industry |
| Origin: | Guangdong, China | Core components: | Motor, temperature controller, welding torch, welding head, tin feeder |
| Main selling points: | high accuracy | aspect: | 85*60*85CM |
| Movement Speed (X, Y, Z): | 10-800 mm/s | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram |

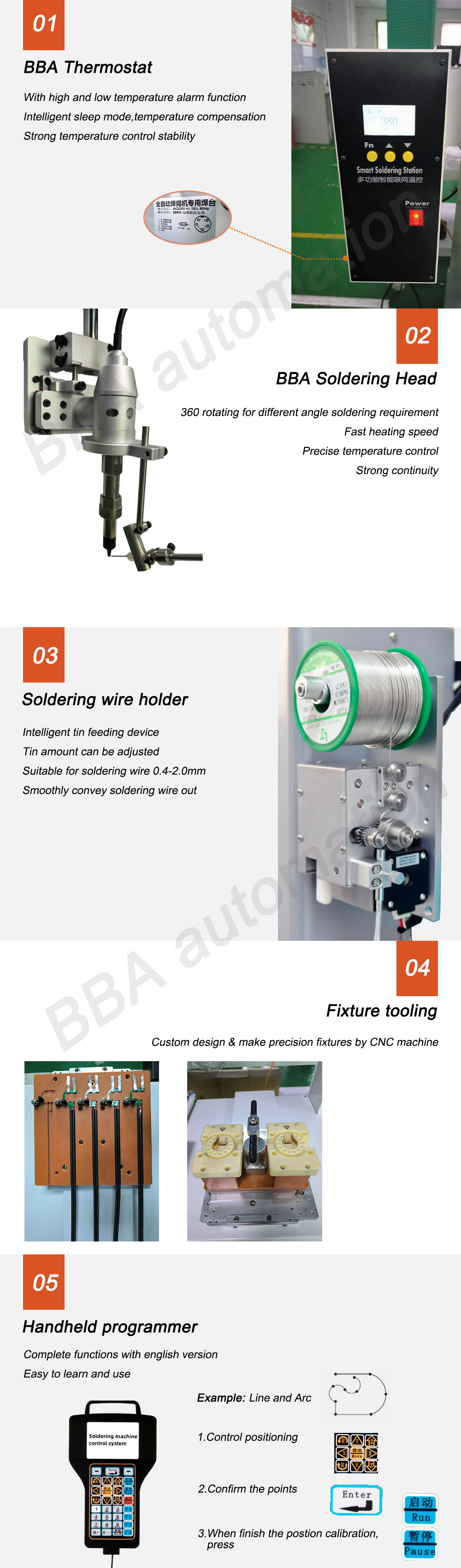

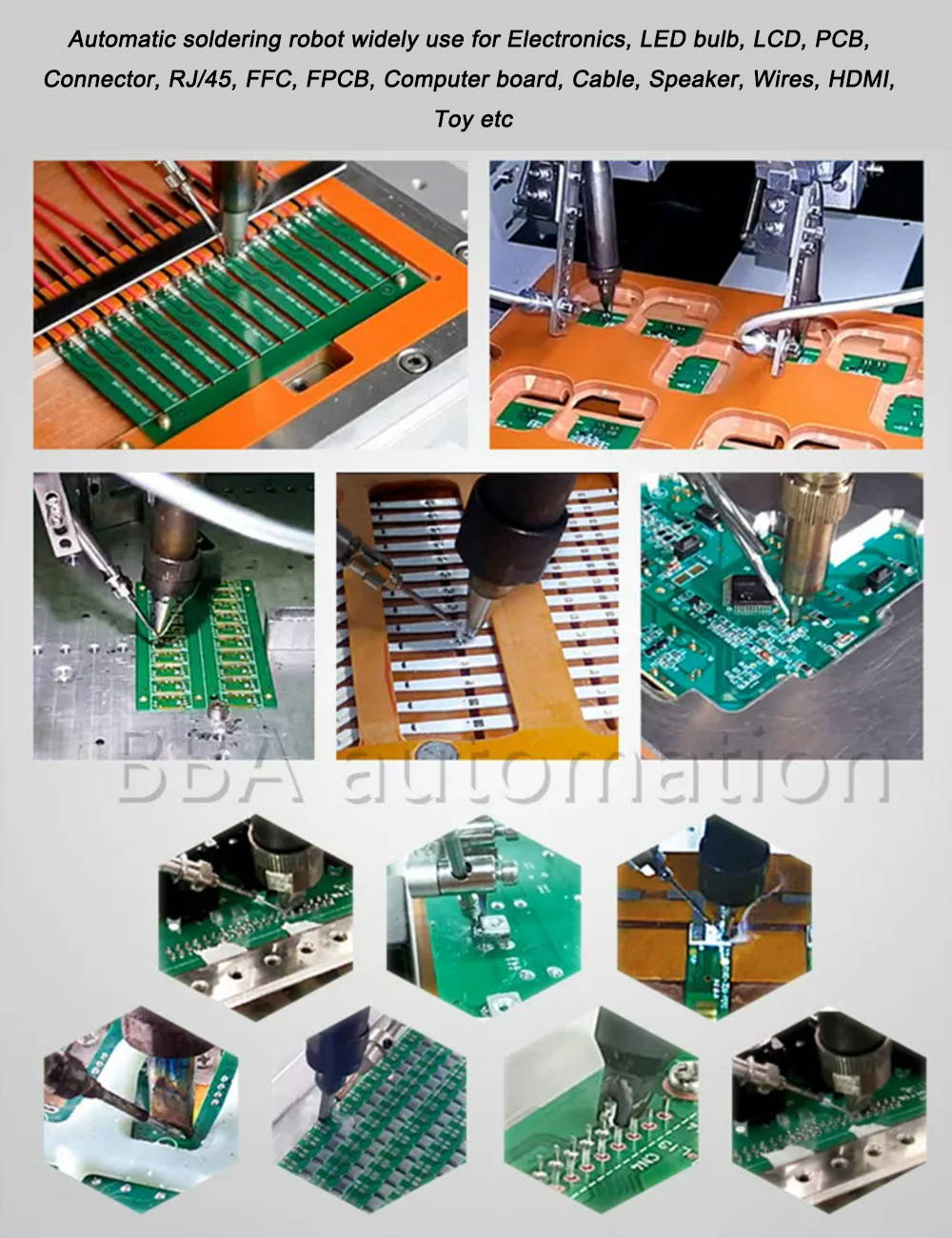

The automatic soldering machine is a kind of automatic soldering equipment, which mainly uses the movement function of the manipulator to complete the soldering operation. The core part of the automatic PCB soldering machine is the soldering system. The welding system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron tip. The tip of the soldering iron can be adjusted in any direction, and the R-axis can rotate 360° freely. The data line soldering machine is XYZ movement, equipped with a teaching pendant, which is convenient for programming, and even beginners can quickly grasp the essentials of operation. Widely used in wires, PCBA, LED lights, circuit boards, home appliances and other electronic products.
Product Description

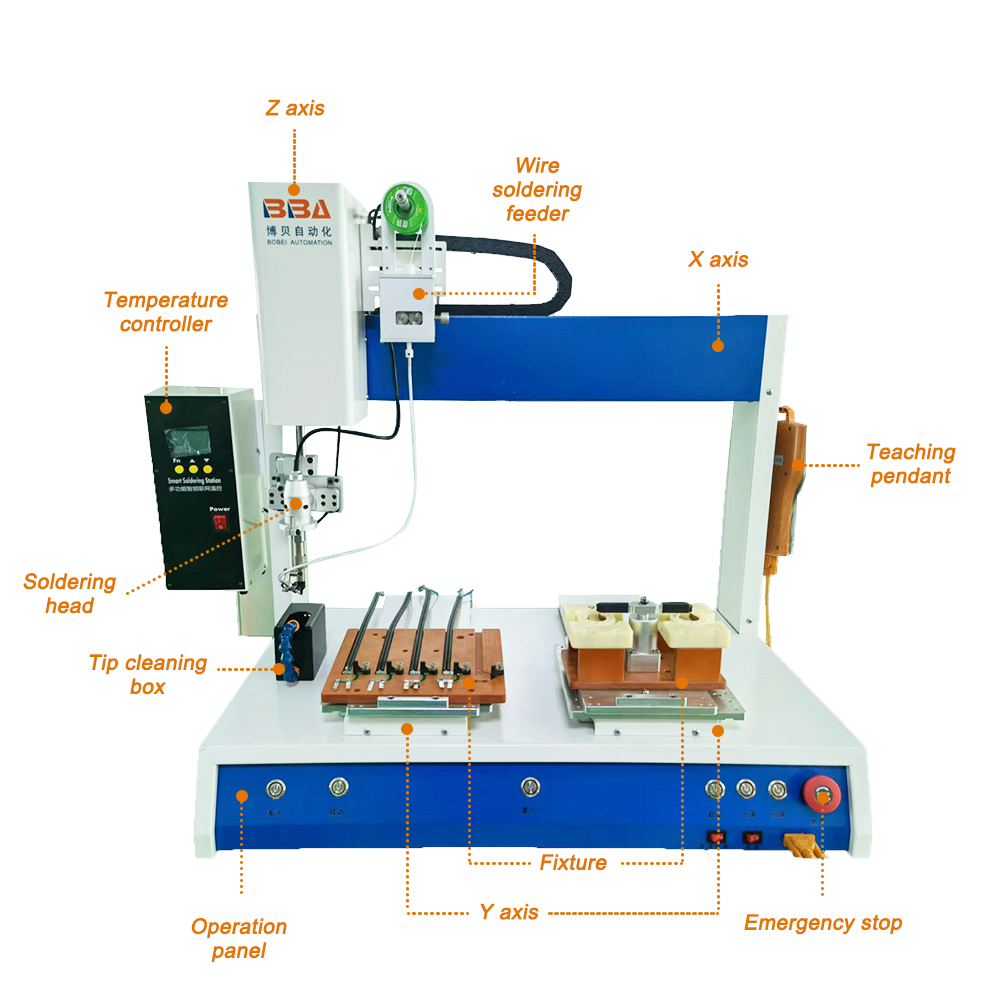

Machine External Accessories
Prepared detailed operating instructions and videos to teach you step by step

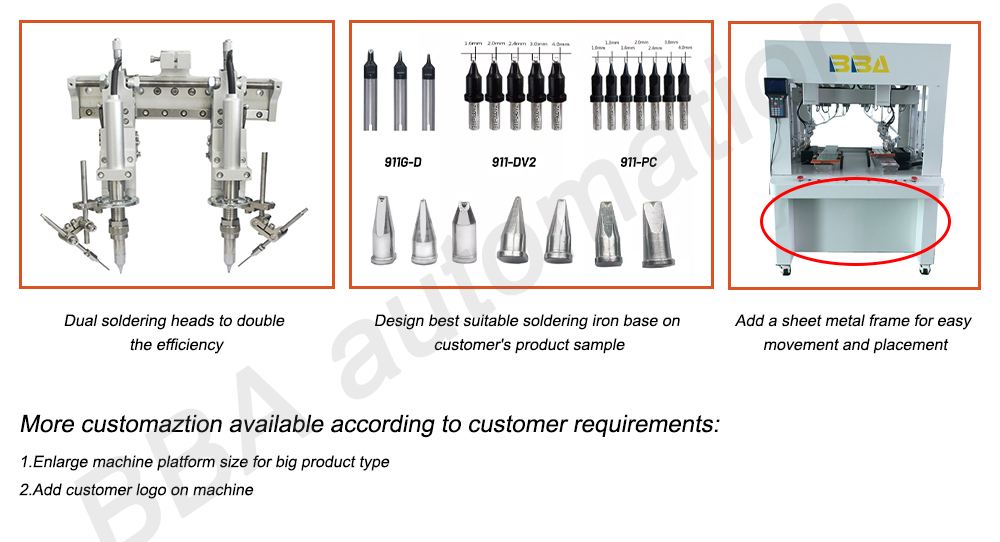

customizable
Soldering machine series specifications
Model | BBA-331HX (single Y platform) | BBA-5331HX (Doubleyesplatform) | BBA-6331HX (double welding system) | BBA customization | |||||||||
Voltage | AC 110/220V 50/60HZ | ||||||||||||
strength | 350W | 350W | 700W | order | |||||||||
movable range | x | 300mm | x | 500mm | x | 500mm | order | ||||||
yes | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||||||||
Z | 100mm | Z | 100mm | Z | 100mm | ||||||||
right | 360° | right | 360° | right | 360° | ||||||||
maximum movement speed | x | 600 mm/s | x | 600 mm/s | x | 600 mm/s | order | ||||||
yes | 600 mm/s | Y1/Y2 | 600 mm/s | Y1/Y2 | 600 mm/s | ||||||||
Z | 400 mm/s | Z | 400 mm/s | Z | 400 mm/s | ||||||||
right | 300°/sec | right | 300°/sec | right | 300°/sec | ||||||||
Repeatability | ±0.02mm (X*Y*Z), ±0.05°(R) | order | |||||||||||
Maximum load weight | 8KG (for working platform) | order | |||||||||||
Programming file capacity | 256MB, up to 999 files, up to 1000 points per file | order | |||||||||||
Preheat temperature range | 0℃~ 550℃ | order | |||||||||||
Solder wire diameter | 0.4, 0.6, 0.8, 1.0, 1.2, 1.6 (mm) | order | |||||||||||
Tin feeding control | Precision stepper motor | order | |||||||||||
Dimensions (L*W*H) | 70*60*85(cm) | 85*60*85(cm) | 100*60*85(cm) | order | |||||||||
weight | 65 kg | 90 kg | 120 kg | order | |||||||||
