Shipbuilding Military Defense Launch Industry Compressor Vibration Shock JGX-0956D-104A Wire Rope Protector
- $101.00 / 4 - 199 pieces
$98.00 / 200 - 499 pieces
$91.00 / >=500 pieces - 4 pieces
- Xi'an Hoan Microwave Co., Ltd.
- Shaanxi, China
- Ms Isabella Hou
| payment terms: | T/T, Western Union | Model: | JGX-0956D-104A |
| port: | Xi'an or designated | application: | Defense, Launchers, Industrial Aerospace, Compressors, Shipbuilding |
| Supply capacity: | 600 pieces per month | Material: | Stainless steel or aluminum, stainless steel or aluminum |
| Certification: | ISO9001:2015 | Packaging Details: | Standard export packing or according to customer's requirement. |
| Types of: | shock absorber |

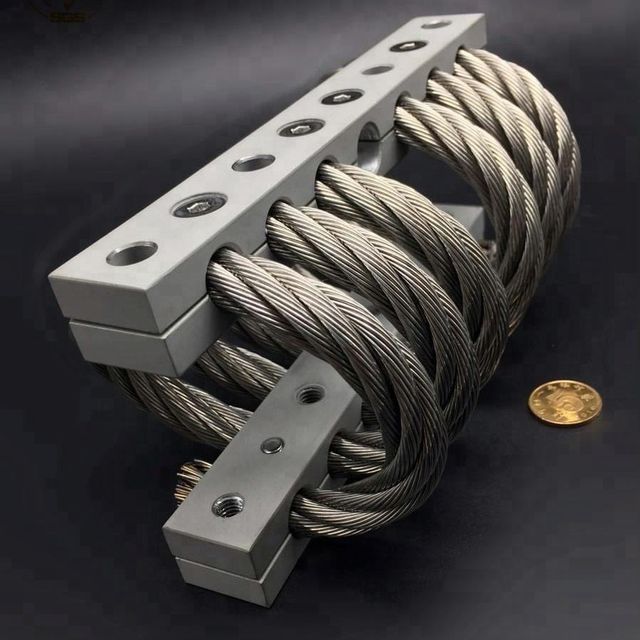

JGX-0956D-104A is a newly designed 6-turn 9.5mm diameter wire rope damper with a maximum static load of 104kg, especially for noise attenuation of any instrument or system. This wire rope isolator is made of stainless steel material, which has perfect waterproof, anti-corrosion and durable performance.
JGX-0956D-104A wire rope damper is widely used in road traffic, navigation, shipboard, navy, photographic equipment, aerial photography equipment, communication equipment, electronic sensing equipment, mobile electronic equipment, camera or any other required working environment.

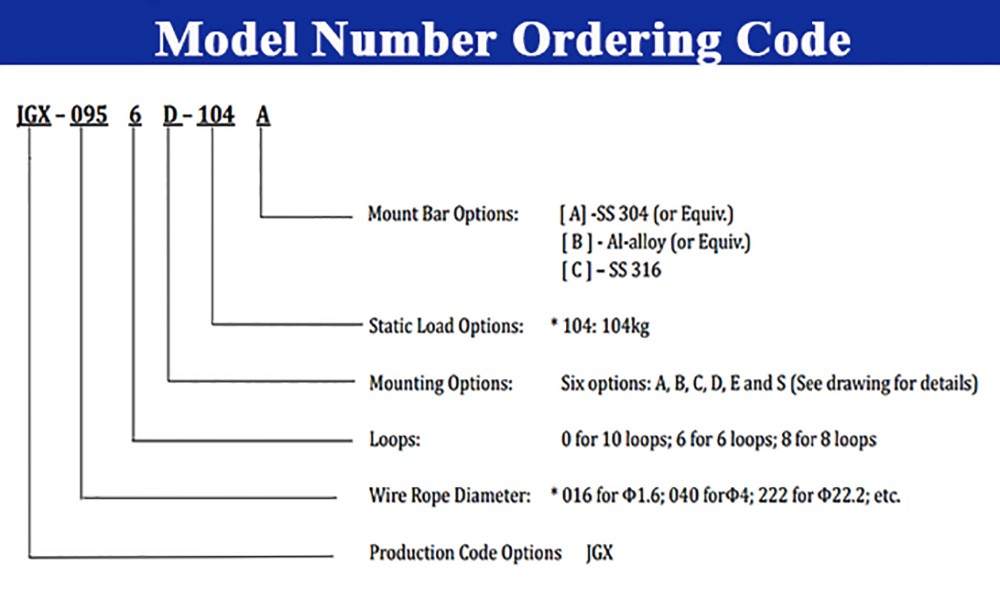

- Model Code OrderingJGX-0956D-104A:

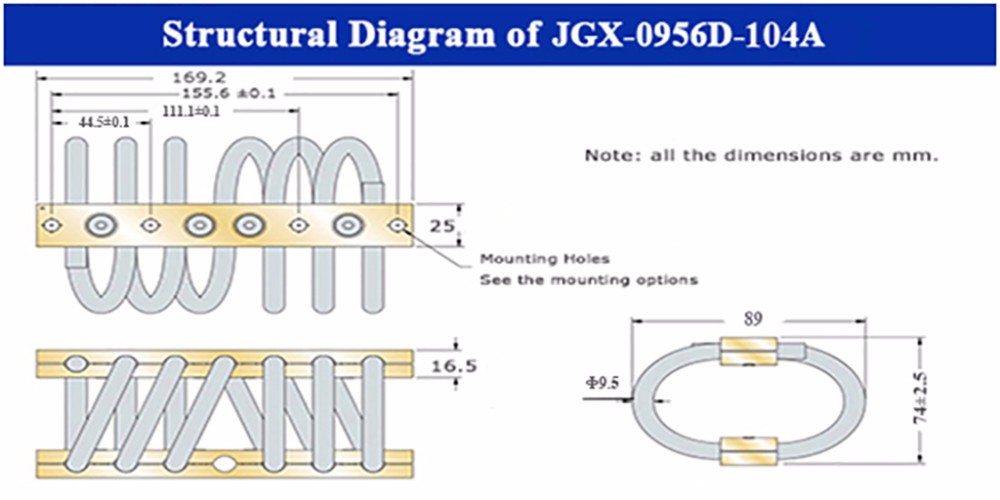

- structure diagramJGX-0956D-104A:

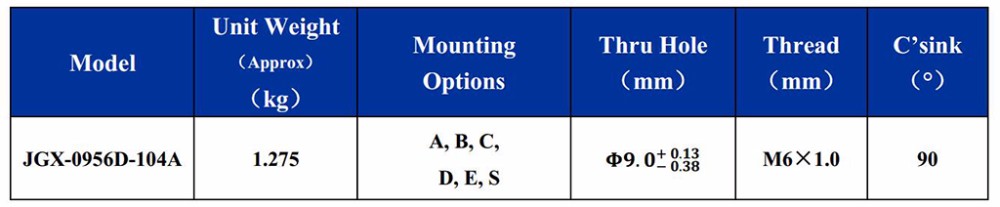

- dimensionJGX-0956D-104A:

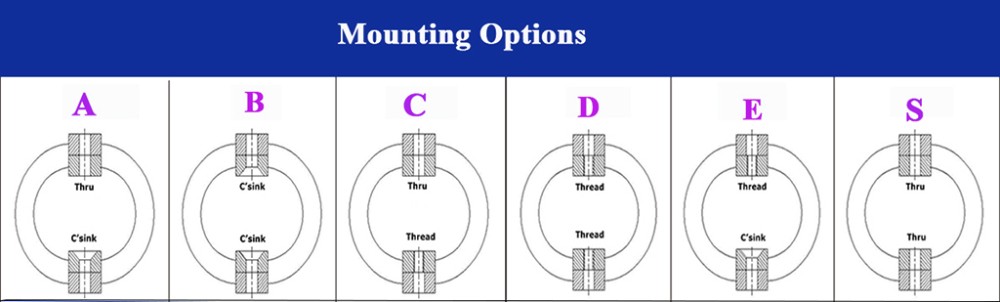

- installation optionsJGX-0956D-104A:

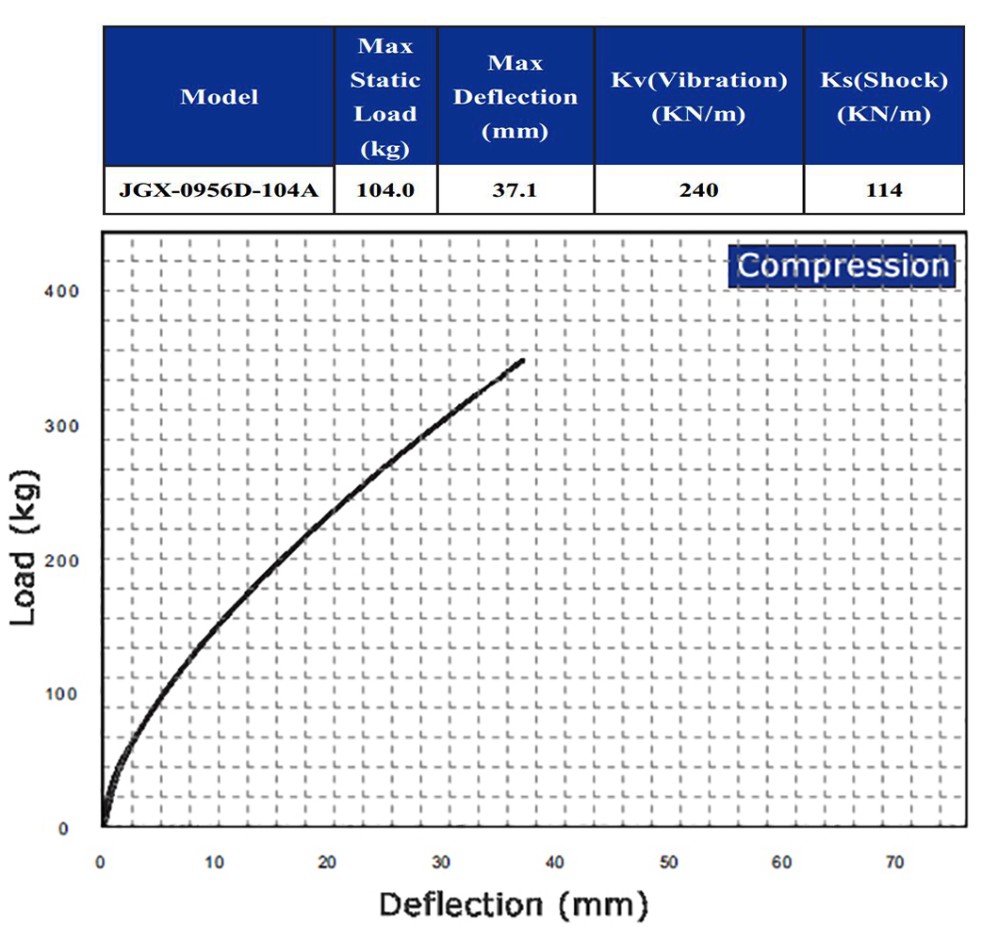

- compressionJGX-0956D-104A:

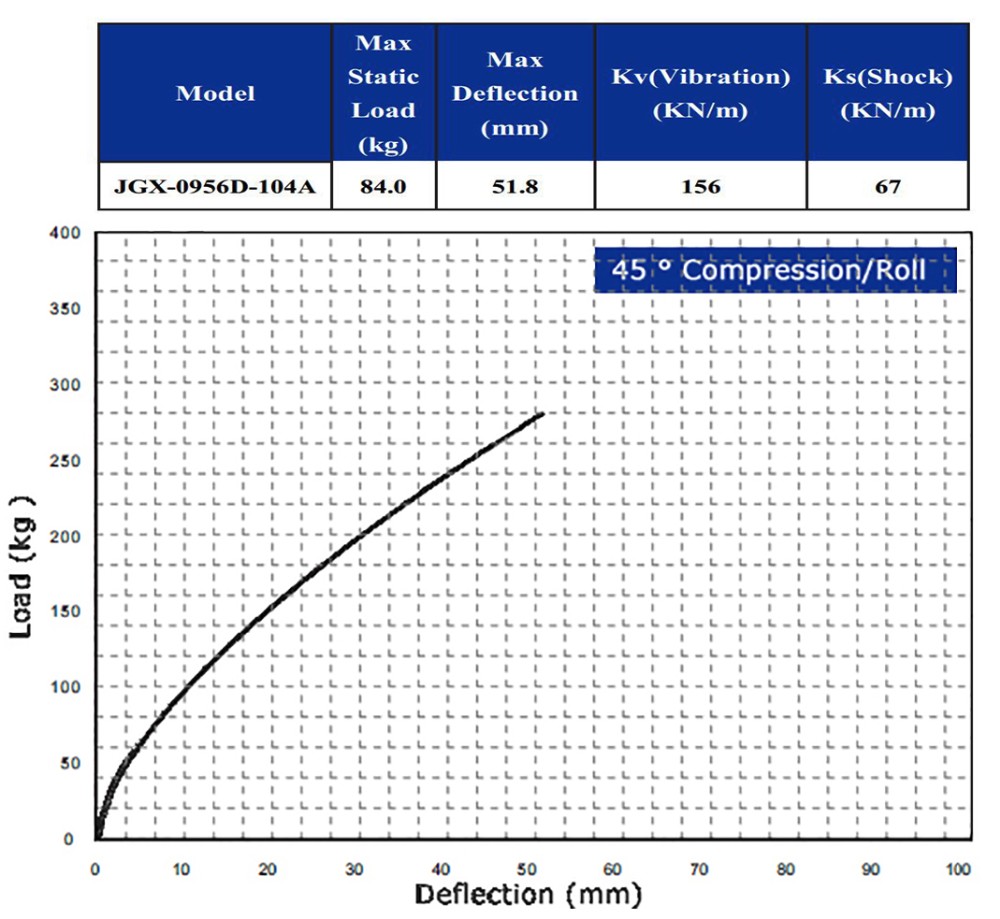

- 45°compressionJGX-0956D-104A:

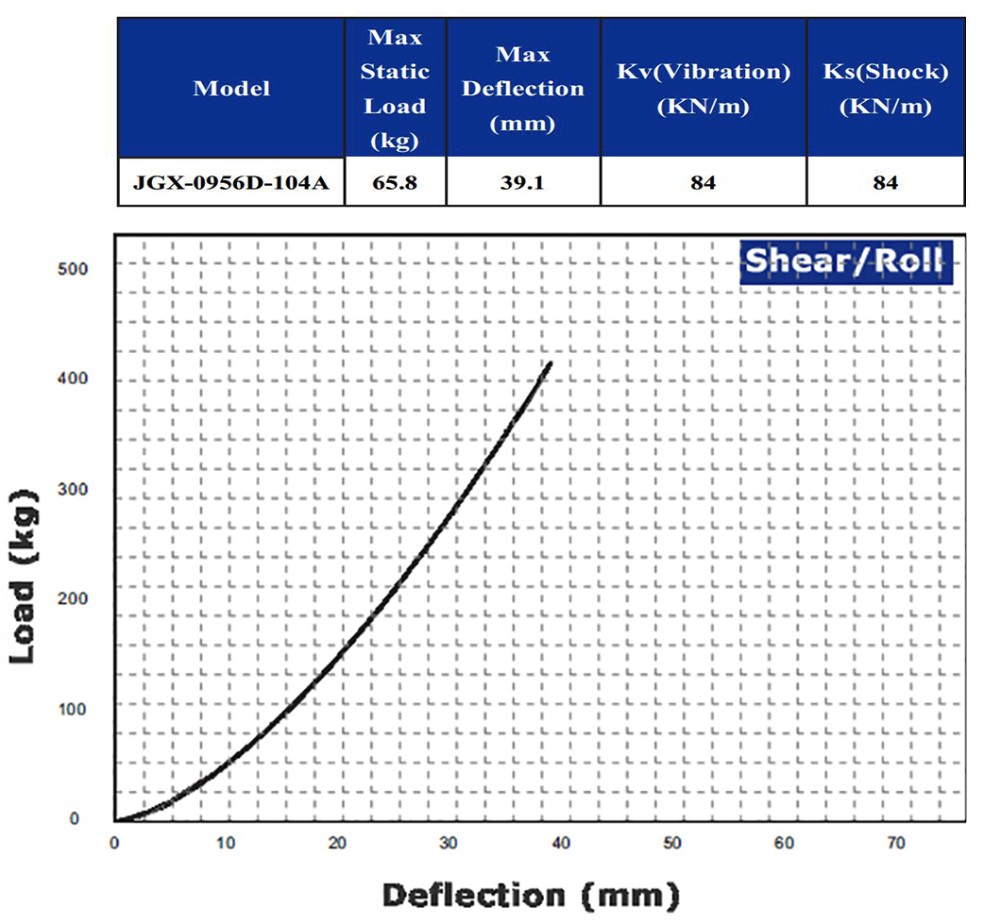

- cut/rollJGX-0956D-104A:
*Material of Mounting Rod*
Available in stainless steel or aluminum
* Choice of finish for aluminum mounting poles *
- White anodized:A surface treatment that makes an aluminum surface harder than it is. The white anodized aluminum mounting strips are in the same color as the aluminum itself. This is the normal finish for aluminum mounting bars;
- Hard anodizing:The finish makes the aluminum mounting bars harder than the white anodized way. Hard anodized aluminum mounting bars are available in a darker color than white anodized. Wire rope isolators are used for special purposes with complicated working conditions or special requirements.
* Unique features of Xi'an Huan'anvibrationIsolator *
- No creep or aging.
- High internal damping.
- very wide temperature range.
- Various possible accessories.
- Fast and economical prototyping.
- Extremely robust construction and long life.
- Excellent combined shock and vibration isolation.
- Unaffected by chemical agents, sea water, ozone, ultraviolet light,...
*Application of wire rope damper*
application | typical equipment | protect from | Business advantage |
on board | electronics, computer, | explosive impact, | Long life, maintenance-free, |
SUV | instrumentation, generators, | rough terrain, | Long life, maintenance-free, |
airplane | electronics, computer | High G maneuvers, | extreme temperature and altitude, lightweight |
shipping container | Optics, Instruments, Missiles, Electronics | shipping, handling drops, loading and unloading | Long life, maintenance-free, Exposure to moisture, repeated use |
industrial equipment |
Centrifuges, Dryers, Pumps | unbalanced dynamic load, Fluid hammer, natural vibration, weak foundation | Long life, maintenance-free, corrosive environment |
Ordnance equipment | missile launcher, tank artillery, computer control, electronics | Rough terrain, rail humps, border crossings | Maintenance free, extreme temperature, near explosion |
medical equipment | Equipment necessary for patient care | Vibration from moving parts, moving cart - transport shock | Maintenance-free, no outgassing, sterilizable |
chimney | chimney, scrubber, measuring device | wind resonates Frequency, flue gas causes turbulence near the scrubber, etc. | Maintenance-free, extreme temperatures, corrosive environments |

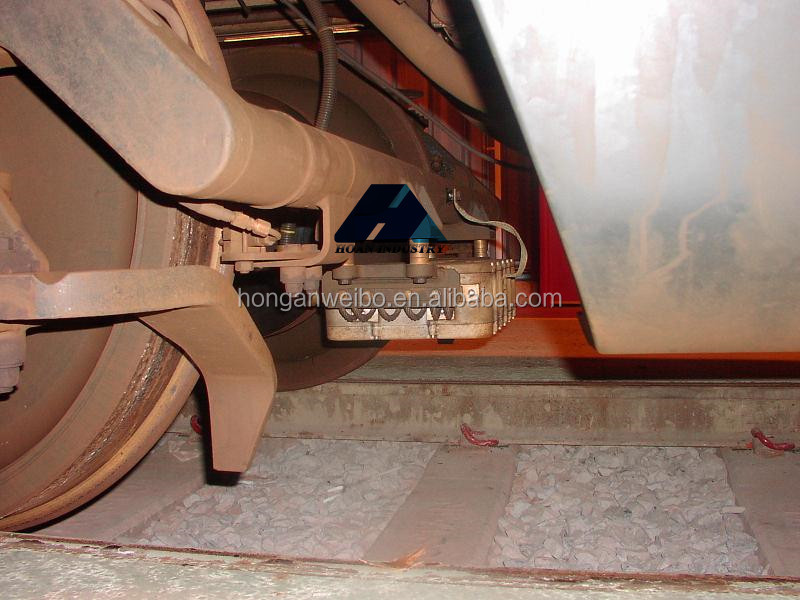

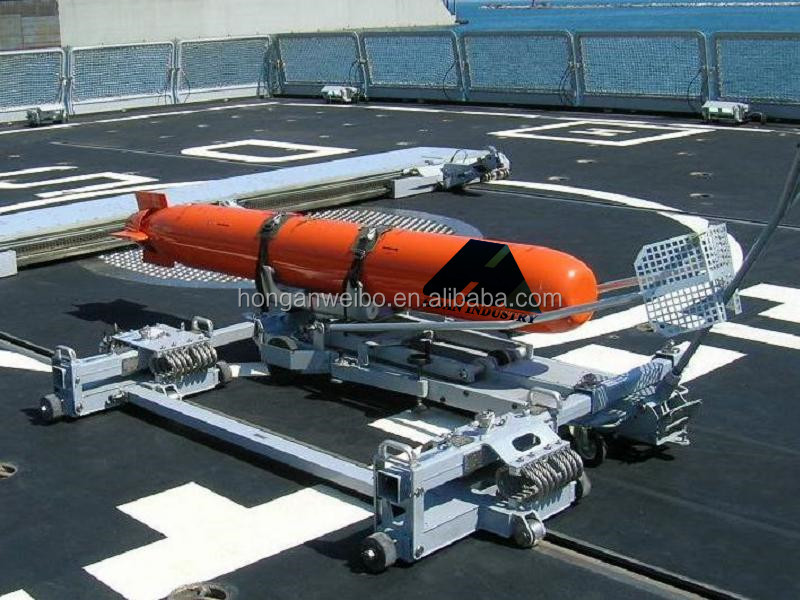

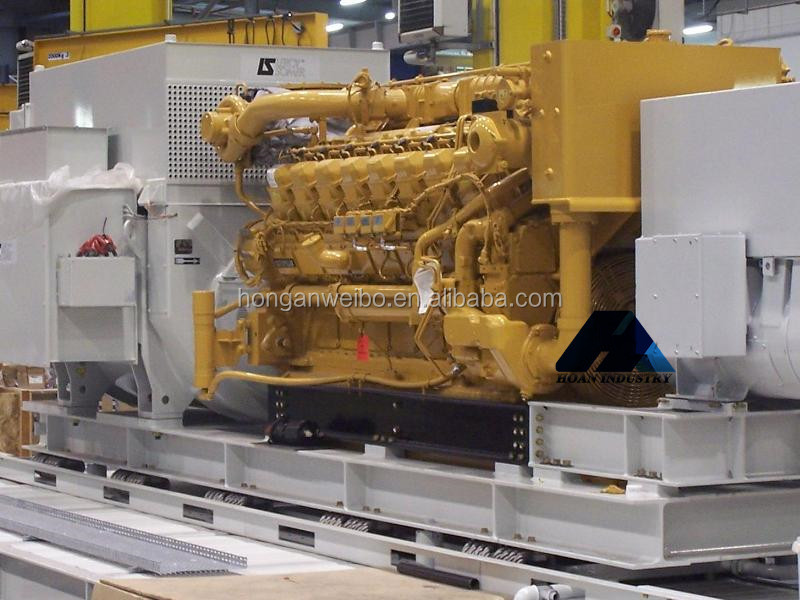

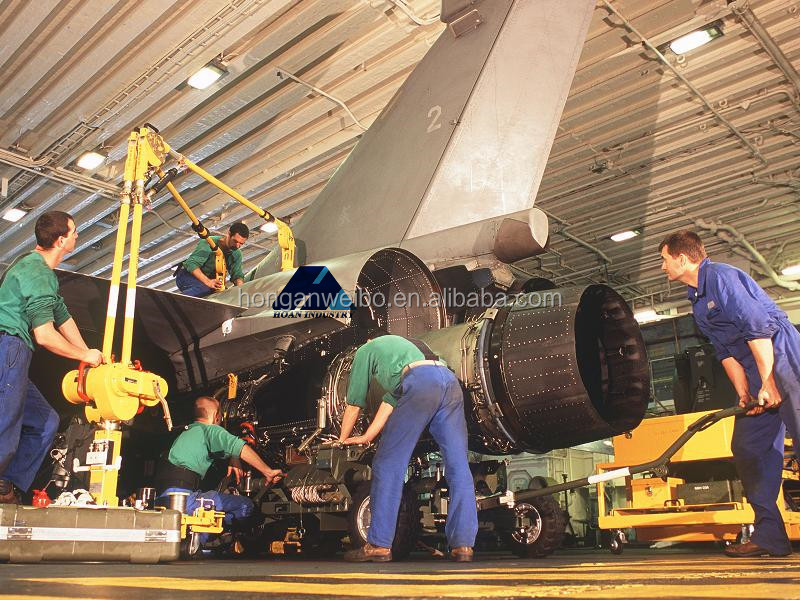

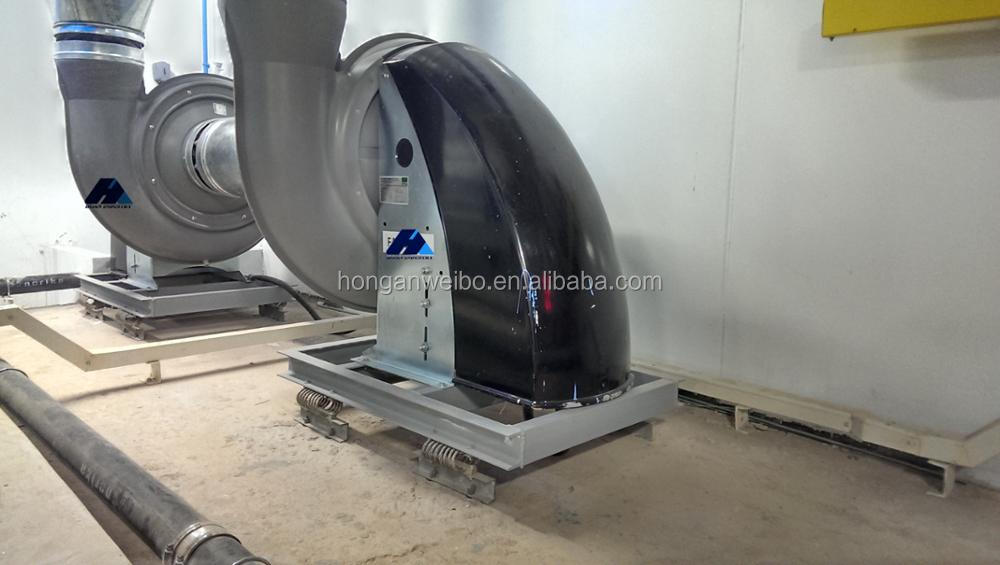

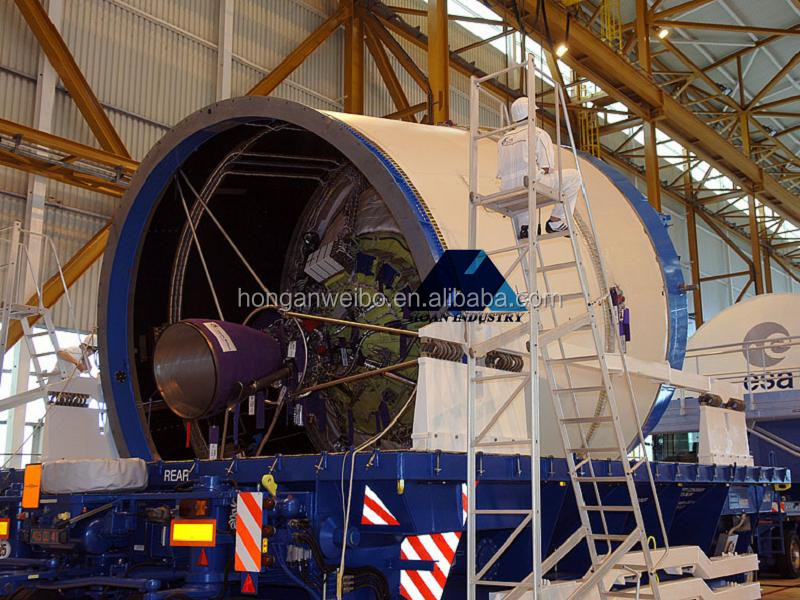

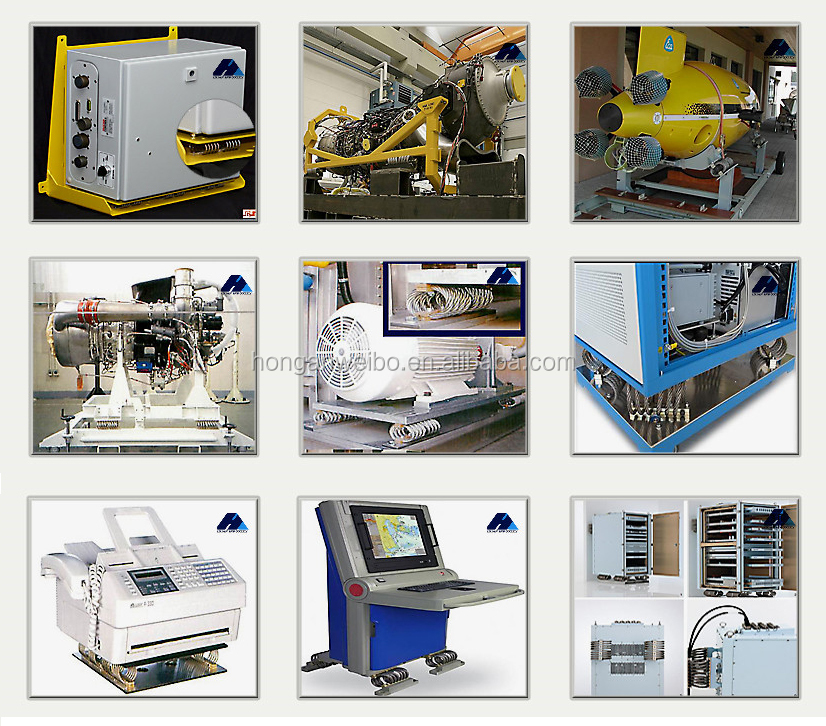

* Application display *
