Shoe Rubber Plastic Injection Molding Machine PVC Injection Molding Machine
- $54720.00 /set
- 1 set
- Foshan Dafeng Machinery Equipment Co., Ltd.
- Guangdong, China
- Ms Lucy Luo
PRODUCT DETAIL
| Marketing Type: | New Products 2020 | Applicable industries: | manufacturing plant |
| brand: | green | payment terms: | L/C, D/P, T/T |
| application: | Shoe injection molding machine | Dimensions (L*W*H): | 6610*3115*1790 |
| Showroom location: | not any | Warranty: | 1 year |
| Video shipment inspection: | if | place of origin; place of origin: | Guangdong, China |
| Name: | Shoe injection molding machine | product name: | Polyurethane Foam Casting Sole Injection Molding Machine |
| Core component warranty: | 1 year | Mechanical test report: | if |
| Voltage: | AC380V | Certification: | CE certification |
| After warranty service: | Video Technical Support | Package preview: | |
| Packaging Details: | Packed in wooden boxes or pallets, suitable for long-distance transportation and adaptation to climate change, moisture-proof and shock-proof. | weight: | 9400 |
| feature: | high yield | Production capacity: | 3000 |
| Core components: | PLC, motor, pressure vessel, water pump | Supply capacity: | 500 sets per year |
| Key words: | injection molding machine | Main selling points: | high productivity |
| port: | Guangzhou Port Shenzhen Port | State of health: | new |
| Applies to: | PVC TPU rubber | Function: | injection molding machine |
| strength: | 20.5KW |
Product Description

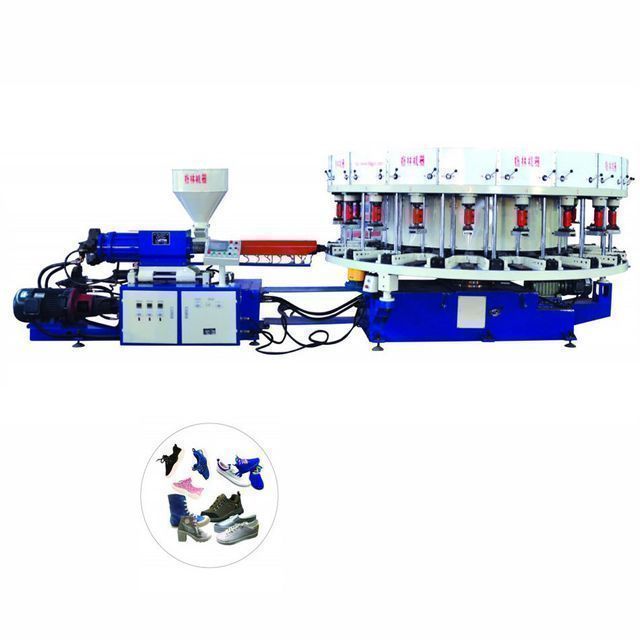

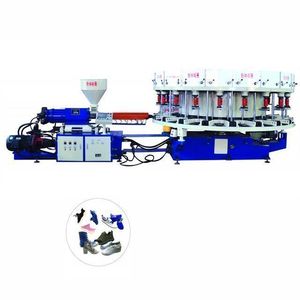

Shoe Plastic Injection Molding Machine
PLC control, hydraulic motor plasticizing, full hydraulic drive, automatic cycle.
● Strong plasticizing ability, plasticizing temperature can be pre-selected and automatically controlled. Using 16/20/24 points of measurement, each station can choose the injection volume according to the mold requirements.
● Provide empty mode selection function.
● The round table is indexed by frequency converter. The scissors-type mold clamping mechanism is adopted, which is linked with the single-cylinder toggle mechanism.
● The machine is equipped with a secondary injection system and a selection function for clamping sequence.
● The indexing of the disc is smooth and easy to move and adjust.
● Disc rotation, plasticization, injection and oil supply are independently controlled.
. There are many jobs. The shaping time is long enough to ensure the shaping quality of the sole.
● Strong plasticizing ability, plasticizing temperature can be pre-selected and automatically controlled. Using 16/20/24 points of measurement, each station can choose the injection volume according to the mold requirements.
● Provide empty mode selection function.
● The round table is indexed by frequency converter. The scissors-type mold clamping mechanism is adopted, which is linked with the single-cylinder toggle mechanism.
● The machine is equipped with a secondary injection system and a selection function for clamping sequence.
● The indexing of the disc is smooth and easy to move and adjust.
● Disc rotation, plasticization, injection and oil supply are independently controlled.
. There are many jobs. The shaping time is long enough to ensure the shaping quality of the sole.
Model | unit | GLJ-16 | GLJ-20 | GLJ-24 |
Number of stations | pieces | 16 | 20 | twenty four |
Screw diameter | mm | 75 | 75 | 75 |
Screw speed | rpm | 0-160 | 0-160 | 0-160 |
Screw aspect ratio | 18:1 | 18:1 | 18:1 | |
Maximum Injection Volume | cm3 | 580 | 580 | 580 |
Plasticizing ability | g/s | 40 | 40 | 40 |
injection pressure | kg/cm² | 100 | 100 | 100 |
disc system pressure | kg/cm² | 50 | 50 | 50 |
Clamp style | Scissors | Scissors | Scissors | |
last trip | mm | 60 | 60 | 60 |
last height | mm | 210-260 | 210-260 | 210-260 |
Mold size | mm (length*width*height) | 340*180*60 | 340*180*60 | 340*180*60 |
Total power of the whole machine | kilowatt | 20.5 | 20.5 | 20.5 |
Overall size | mm (length*width*height) | 6610*3115*1790 | 6610*3310*1790 | 7260*3960*1790 |
Total weight of the whole machine | Kilogram | 9400 | 9800 | 13200 |
Specification
thing | value |
Applicable industry | manufacturing plant |
After Warranty Service | Video technical support, online support, spare parts |
local service point | not any |
Showroom location | not any |
Video shipment inspection | if |
Mechanical inspection report | if |
marketing type | New Products 2020 |
Core component warranty | 1 year |
core components | PLC, motor, pressure vessel, pump |
State of health | new |
production capacity | 3000 |
place of origin; place of origin | China |
Guangdong | |
brand | green |
Voltage | AC380V |
strength | 20.5KW |
Dimensions (L*W*H) | 6610*3115*1790 |
weight | 9400KG |
certified | CE certification |
Warranty | 1 year |
Free spare parts, on-site maintenance and repair services, video technical support, online support | |
main selling point | high productivity |
application | Shoe injection molding machine |
Name | Shoe injection molding machine |
apply to | PVC TPU rubber |
feature | high yield |
Key words | injection molding machine |
