Thermal remote 100 km remote control station for spy drones

PRODUCT DETAIL
type:Diversity COFDM receiver, flight control receiver, military receiverport:Shenzhen
frequency:300MHz - 4400MHz, VHF, UHF 100MHz range for user usePackaging Preview:
Supply capacity:200 sets per monthVideo compression:H.264/MPEG-2, MPEG-4 (adaptive)
product name:Thermal remote 100 km remote control station for spy dronesspecial function:Long-distance wireless audio and video data communication
brand:SFGTAudio/video data output:SDI, BNC, RS485, RS232 & RS422
size:927*355*152mm, provide foldable support tablepayment terms:L/C,Western Union,T/T,MoneyGram, we accept various payment methods from different countries
modulation:Orthogonal Frequency Division MultiplexingResolution:HD 1080p, SD 720p
place of origin; place of origin:Guangdong, ChinaPackaging Details:Carton Spy Drone Thermal Remote 100km Remote Control Station (For International Freight)
memory:Insert DVR, 120G SSD memory

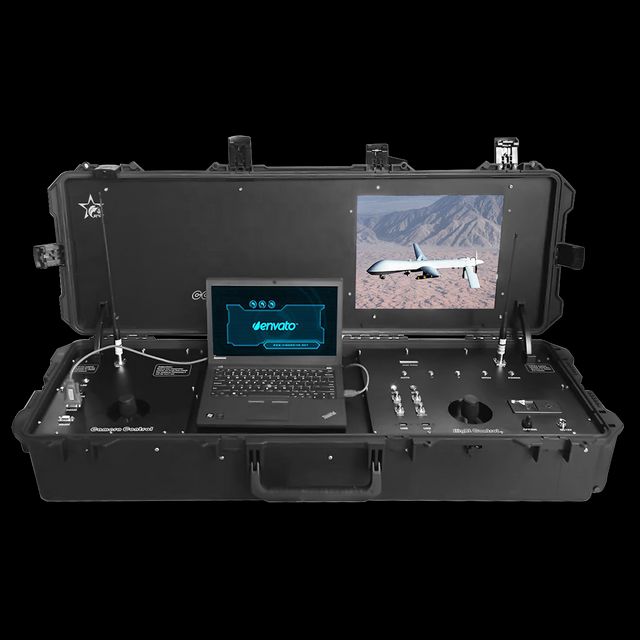

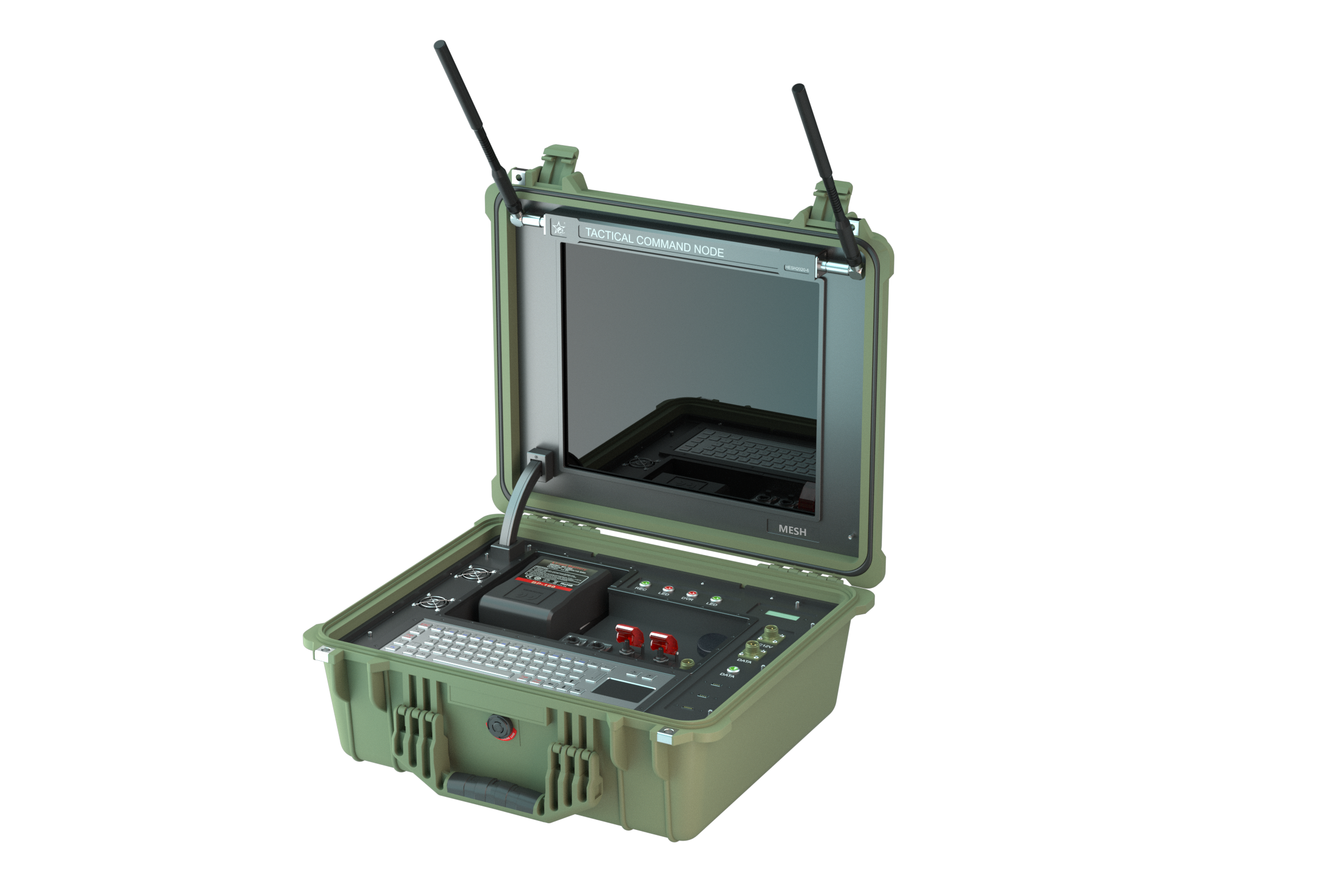

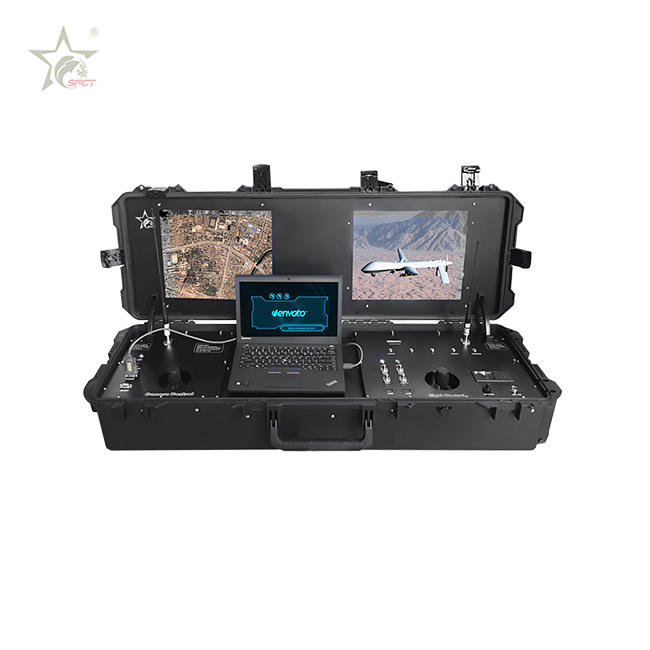

Thermal remote 100 km remote control station for spy drones

SFGT-SRT01

  1. COFDM modulation
  2. MPEG-4/H.264 video compression
  3. Full HD resolution for very clear images
  4. Modular design, highly integrated
  5. Support 1 channel AV signal to receive at the same time.
  6. Dual antennas designed for better signal reception
  7. Built-in DVR. Standard 17-inch Samsung LCD screen
  8. Remaining space in PC location for easy portability with RX
  9. Built-in 120G / 1TB SSD memory
  10. The operating system can be controlled using an external mouse.
  11. Works well under fast moving signal reception, supports non-line-of-sight transmission
  12. If you add Ethernet output, you can support remote control, dynamic IP, and IE browsing.
  13. Extra USB plugs in for easy duplication of videos.

Warranty:

  1. Equipment free warranty for twelve months
  2. Components for three months
  3. Replacement parts will be charged after one year



PELICAN suitcase features:

Waterproof, Pressureproof, Dustproof

Easy Open Double Throw Latch

Open cell core with solid wall design - strong and lightweight

O-ring seal

Automatic pressure balance valve

Comfortable rubber overmolded handle

Stainless Steel Hardware and Padlock Protector

2-Layer Pick N Pluck™ Foam with Swing Lid

Provide personalized nameplate service

Lifetime Excellence Guarantee

Product Specifications

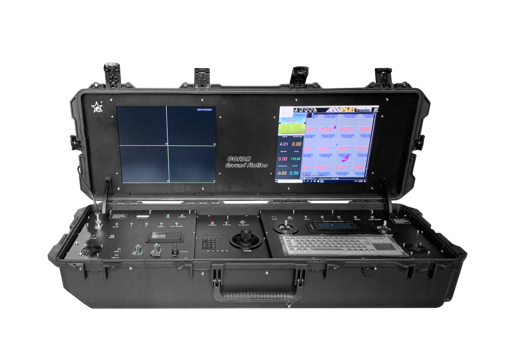

Thermal remote 100 km remote control station for spy drones

Power and Physical Parameters

Working voltage: DC12V/AC220V

Use AC220V to DC12V adapter

Built-in small battery to prevent computer use

closure

Working current: 16A@DC12V

With internal and external power options

Size & Weight: 1198*419*234mm & about 35KG

Working temperature: -30~70°C

Power button: turn on/off the system

Button PC: Turn the computer on/off

video data reception

Frequency 01: 300-4400MHz

Integrate with NVR

Frequency 01: 300-4400MHz

Bandwidth: 2/2.5/4/8MHz

RF power: 15W

Constellation: QPSK, 16QAM, 64QAM

Forward Error Correction: 1/2, 2/3, 3/4, 5/6, 7/8

Guard interval: 1/32, 1/16, 1/8, 1/4

Interface: RJ45, RS232, USB*2

Encryption: AES128bits user-defined password

Video resolution: 1920*1080P/i, 1280*720p

Storage: 128G SSD card

Modulation: COFDM

LCD screen: 17-inch monitor

Serial baud rate: max 115200bps

RF Antenna: N*1

Controller/Joystick

CAM: Control the camera

Y&T: for yaw and throttle

P&R: for PITCH & ROLL



integrated computer

LCD screen: 17-inch LCD screen

Memory: 128G SSD

Keyboard and mouse: waterproof

CPU: Intel i5 6287U/3.1GHz dual-core processor

Chip: SOC

Storage: 1*DDR3L SODMMI

Display: Intel HD Graphics 540, supports Direct*12,

OpenGL 4.4 with 4K support

Maximum resolution 4096*2304@24Hz

Internet: 1*Realtek RTL8111F Gigabit LAN, support WOL, PXE

Interface: RJ45, USB*2

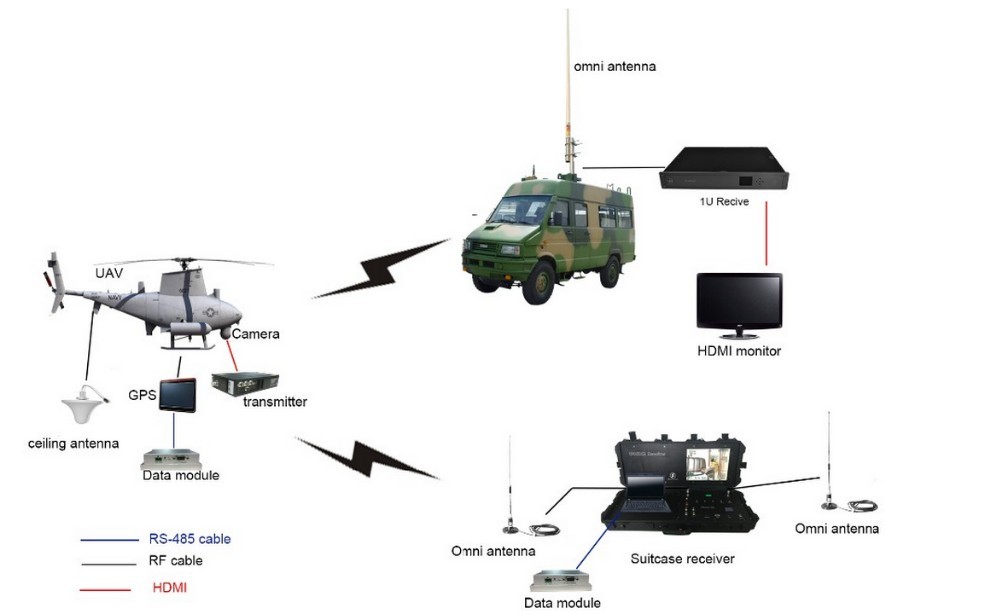

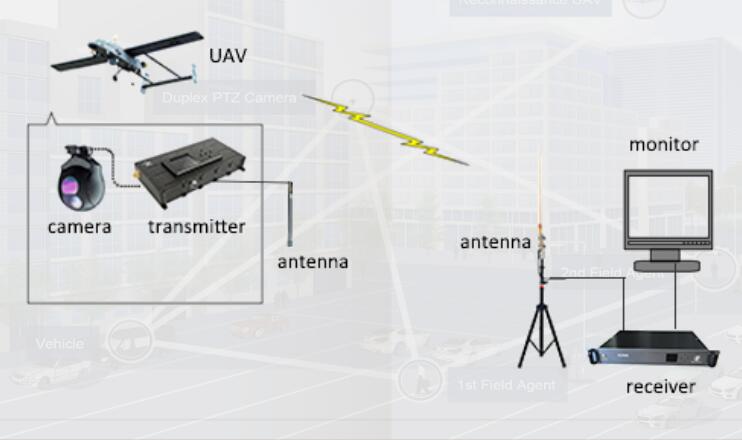

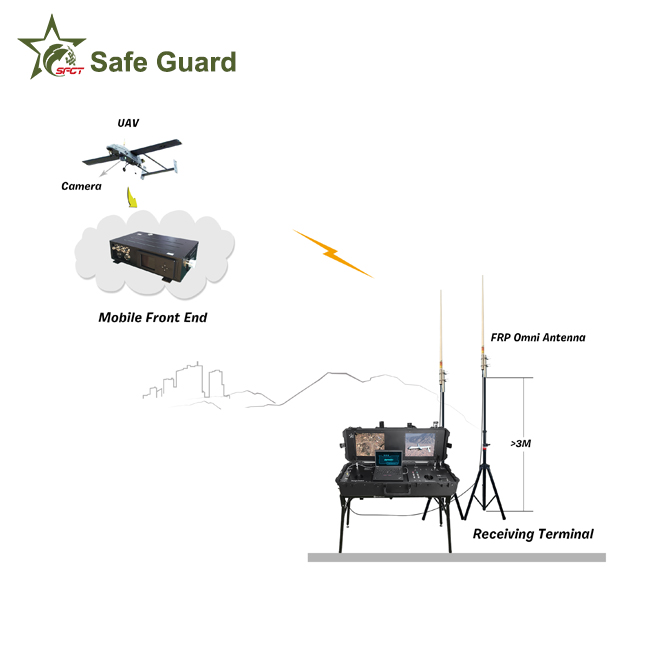

application







Latest Products

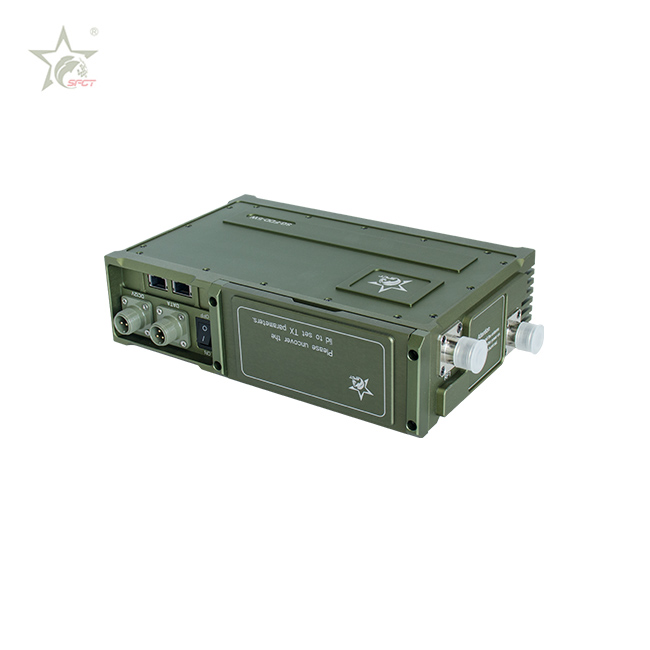

COFDM transmitter
