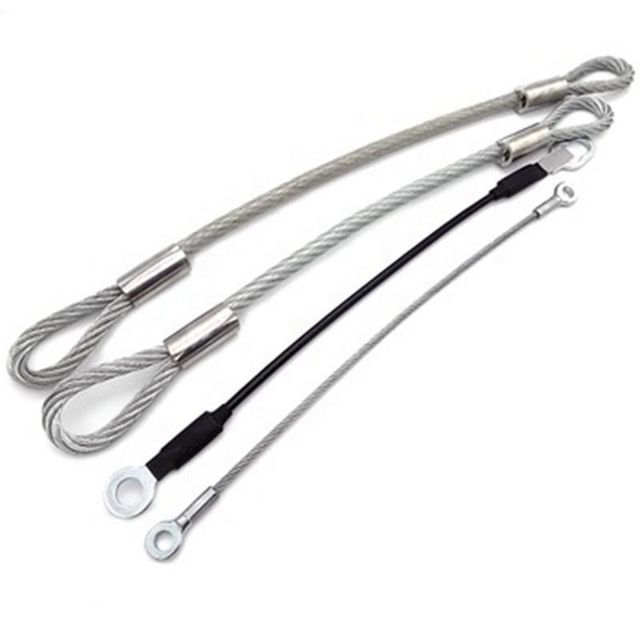

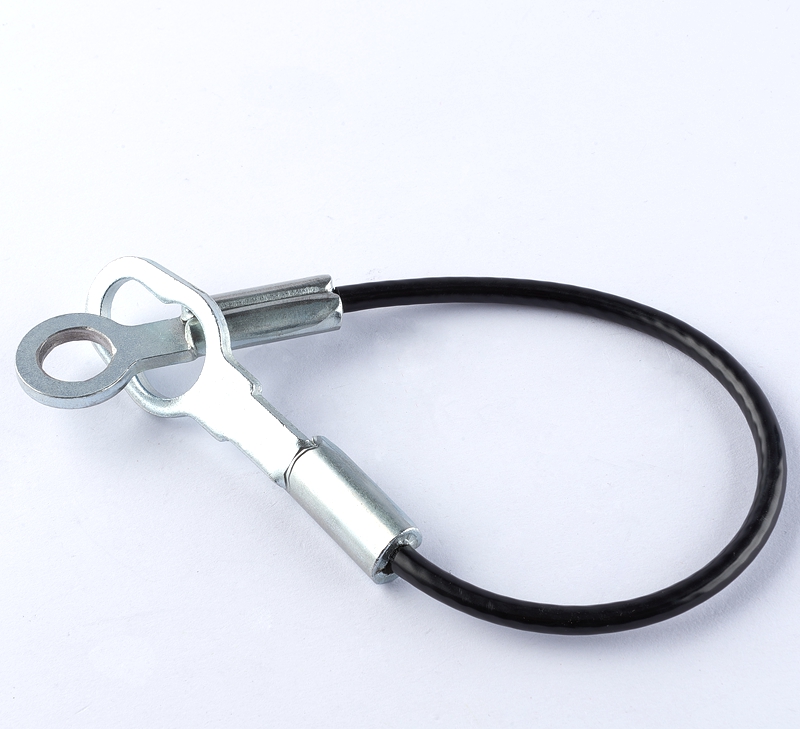

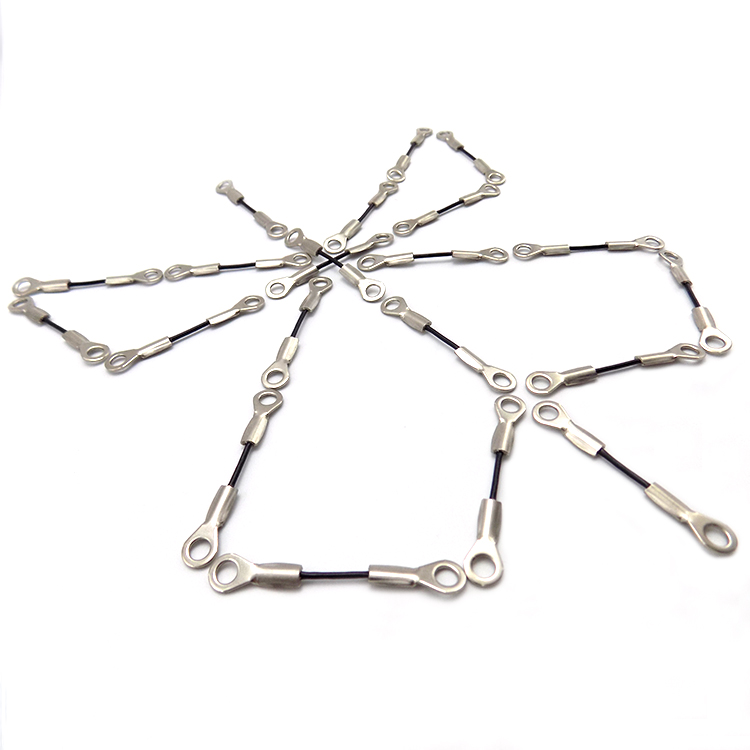

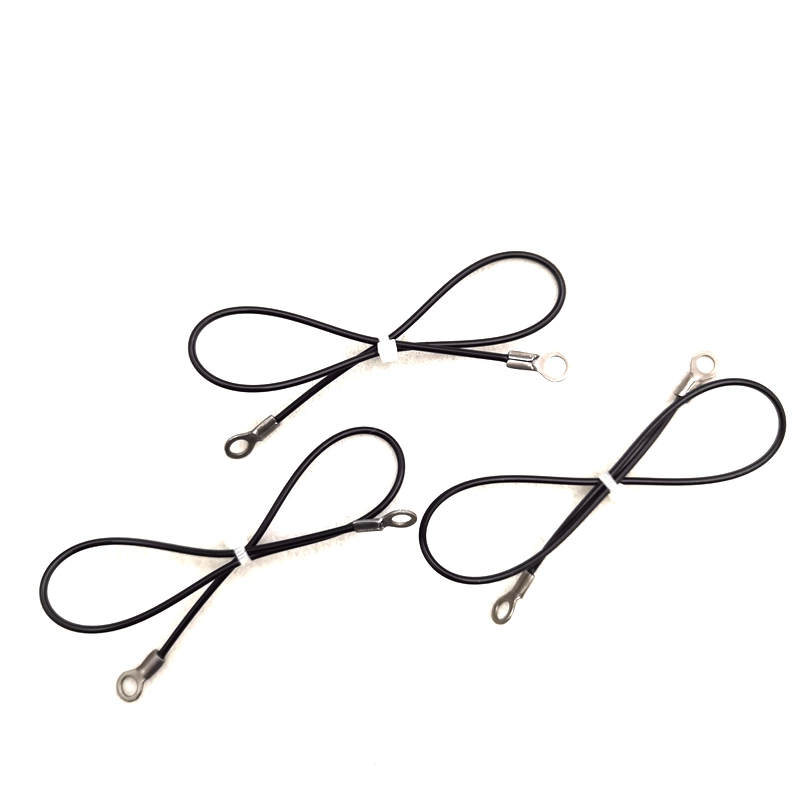

Vinyl Coated Stainless Steel Wire Rope Cable Assembly Wire Rope Sling Safety Cable with Eyelet Terminals
- $0.33 / 500 - 1999 pieces
$0.30 / 2000 - 9999 pieces
$0.28 / >=10000 pieces - 500 pieces
- Dongguan Guofeng Manufacture Co., Ltd.
- Guangdong, China
- Mr Zhiyu Lin
| diameter: | 1.0mm-10.0mm | Breaking load: | As required |
| application: | industrial | End parts: | Eyelet terminals |
| length: | As required | Supply capacity: | 10,000,000 pieces per month |
| Place of origin: | China | Silicon content (%): | 0.2% |
| model: | Wire rope components | payment terms: | wire transfer |
| Packaging details: | Vinyl coated stainless steel wire rope cable assembly with eyelet terminals wire rope sling safety cable standard export carton or as per request | length: | 2m-3m or as required |
| Steel grade: | 304,316 | Steel grade: | 304,314,316 |
| Processing services: | Bending, welding, uncoiling, punching, cutting | port: | Shenzhen |
| Steel material: | stainless steel, galvanized | Steel structure: | 7*7,7*19 |
| Place of origin: | Guangdong, China | standard: | Ace |
| application: | industrial or other | Certification: | International Organization for Standardization |
| grade: | 300 series | brand: | national style |
| Coating material: | PVC, PA, PU | Surface finish: | 2B |
| C content (%): | 0.3% | delivery time: | 15-21 days |
| tolerant: | ±1% |
Vinyl Coated Stainless Steel Wire Rope Cable Assembly Wire Rope Sling Safety Cable with Eyelet Terminals
|
1. Diameter |
1.2mm-10.0mm |
customizable |
|
2.Construction |
7X7,7*19, etc. |
|
|
3.Material |
Stainless steel or galvanized steel or other |
|
|
4.Minimum order quantity |
500 pieces |
|
| 5.Length | 1m-2m | |
| 6.Type | Steel cables for every application | |
| 7.Coating
|
PVC, PU, PE, nylon, etc. |
|
|

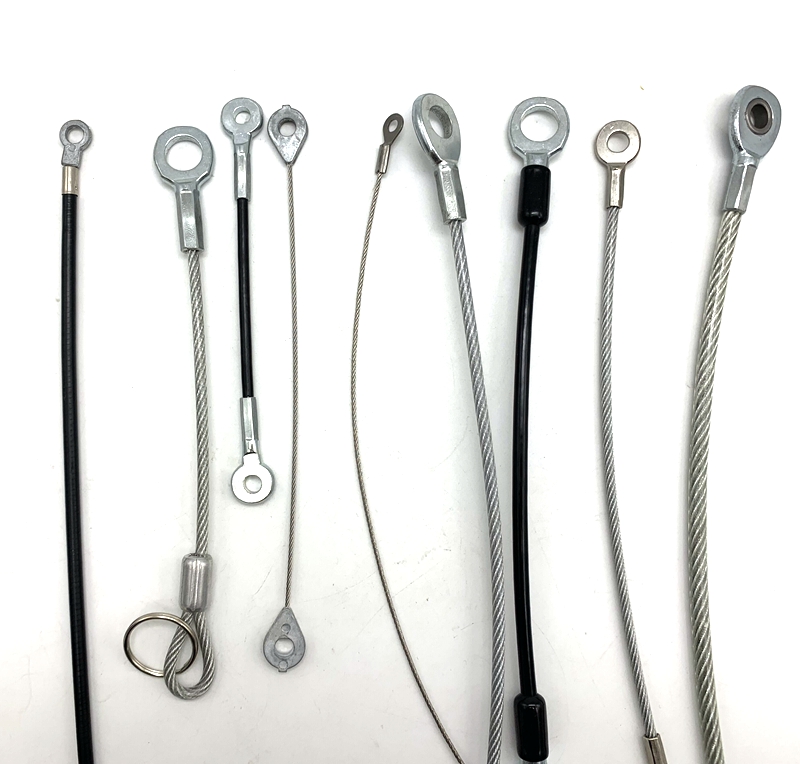

8. Pipe fitting end parts |
A wide selection of end accessories including eyebolts, connecting rods, springs, hooks, ejector pins, clamps, blocks, balls, ball shanks, sleeves, punched holes, handles and more |
|
|
9. Delivery time |
7 days if there are enough materials in stock |
|
|
10.Samples |
Free samples are provided if all sizes are the same as our existing ones, if not please contact me for a cost effective solution. |
|
|
application |
Lighting, Machinery, Medical, Security, Sporting Goods, Toys, Windows, Lawn & Garden etc. When designing cable assemblies, there are many factors to consider such as workload, wear, cycle life as well as flexibility, environment, cost, safety, etc. The larger the diameter, the greater the workload capacity, but the less flexibility. WARNING: Breaking strength should never take into account the working load of the rope, safety factor 5:1, coating must be removed from mounting area when attaching accessories |
|
|
Specification |
Refer to the picture below: All specifications can be customized. The tighter the tolerance, the higher the cost.
|
|
How to choose materials:1 dyeing1.1.1.
1. Stainless steel:
Offers good corrosion resistance and strength equivalent to galvanized carbon steel grades.
2. Galvanized steel:
Galvanized carbon steel has some corrosion resistance. It remains malleable over long periods of time. Typically has higher breaking strength than stainless steel.
|
diameter |
put up |
Weight(100m) |
Minimum breaking load (N) |
|
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
|
7*7 |
0.393 |
650 (65kg) |
|
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
|
7*7 |
0.566 |
950(95kg) |
|
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
|
7*7 |
0.884 |
1500(150kg) |
|
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
|
7*7 |
1.273 |
2100(210kg) |
|
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
|
7*7 |
1.527 |
2650(265kg) |
|
2.4 mm |
1*19 |
2.851 |
5650(565kg) |
|
|
7*7 |
2.264 |
3800(380)kg |
|
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
|
7*7 |
2.381 |
4100(410kg) |
|
3.2 mm |
7*7 |
4.024 |
6850(685kg) |
|
|
7*19 |
3.901 |
6800(680kg) |
|
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
|
7*7 |
5.502 |
9600(960kg) |
|
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
|
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
|
4.5 mm |
7*7 |
7.958 |
13500(1350kg) |
|
4.8 mm |
7*19 |
8.778 |
15300(1530kg) |
|
6.0 mm |
7*19 |
8.716 |
23900(2390kg) |
