cvr audio sound equipment indoor/outdoor 12" line array system
- $100.00 / >=2 pieces
- 2 pieces
- Guangzhou CVR Pro-Audio Co., Ltd.
- Guangdong, China
- Mr William Jiang
| Power: | (RMS)LF 600W HF 200W,800W(RMS)3200W(PEAK); | Model Number: | W-3; |
| Product name & model: | line array W-3; | Finish: | Textured high-density polyurethane coating; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Sensitivity: | LF 105dB HF 109dB; |
| Package Preview: | ; | Net Weight: | 28.5kg; |
| Packaging Detail: | Standard cartons / flight cases; | Type: | 2-way line array system; |
| Brand Name: | CVR PRO AUDIO; | Speaker Material: | neodymium; |
| Frequency Range (Hz): | 55Hz-18KHz±3dB; | Enclosure Material: | Birch Plywood; |
| Place of Origin: | Guangdong, China; | Connectors: | 2 * ML4MP Speakon; |
| Supply Ability: | 5000 Boxes per Month; | Size: | LF 1x12" HF 2x2.5"; |
| Port: | GUANGZHOU; | Dimension (L x W x H): | 600*347*451mm(W*H*D); |

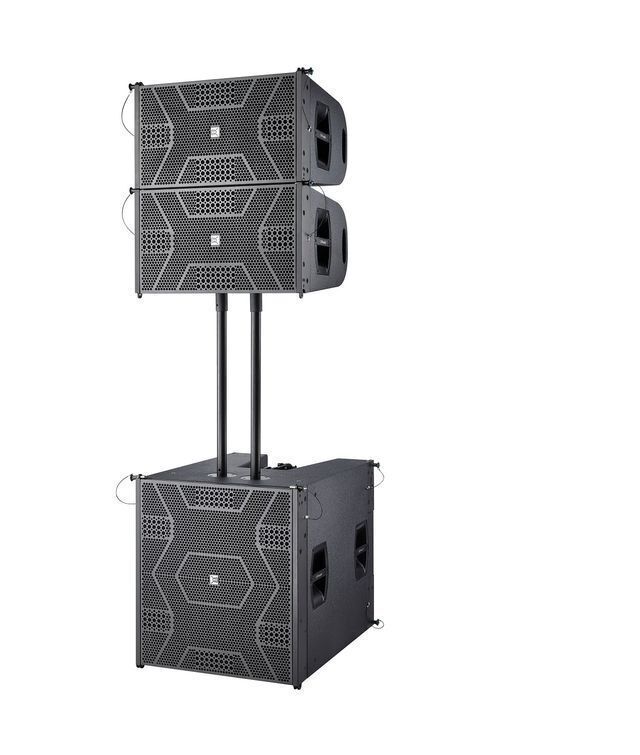

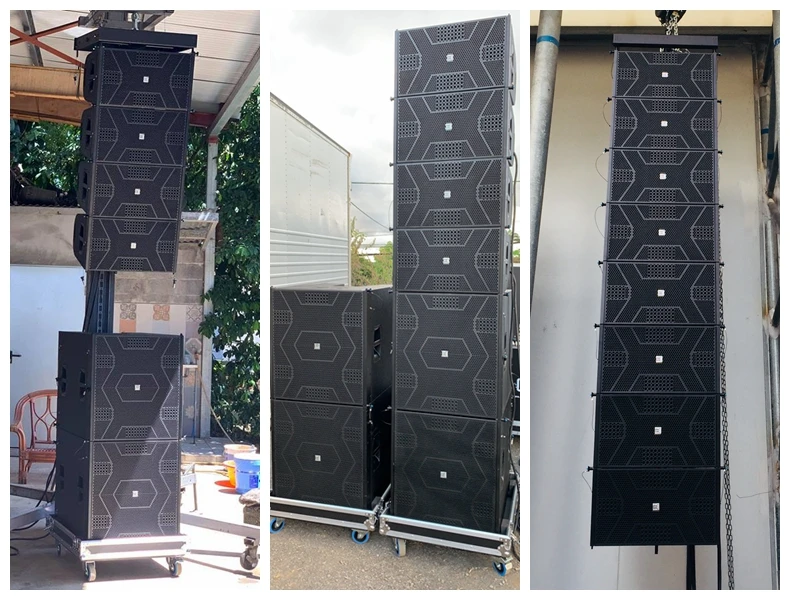

W-3P/W-3 is a line a new design cabinet, feature with a 12 inch woofer and two 2.5 inch tweeters carrying bright and clear sound; wherever low frequency extension is required, sub-woofer W-21P compensate and coordinate to make the sound field evenly balanced; All neodymium woofers and drivers applied in both W-3+W-21(W-3P+W-21P) ensure the system in high performance and low weight at the same time. W-3P/W-21P built-in Class D amplifiers use high-level electronic components, with reasonable circuit design and better heat dissipation. The maximum vertical coverage angle can reach 110°in W-3P system up to 16 pcs.
| Model |
W-3&W-3P(active) |
| Type | Two-way line array system |
| Frequency Response | 55Hz-18KHz±3dB |
| Power handling | LF 600W(RMS)2400W(PEAK) |
| HF 200W(RMS)800W(PEAK) | |
| Sensitivity | LF 105dB(1W-1M) |
| HF 109dB(1W-1M) | |
| Max-S.P.L | LF 131dB(PEAK/1M) |
| HF 135dB(PEAK/1M) | |
| Driver | LF 1×12" (310mm)neodymium woofer 75mm(3in)coil |
| HF 2×2.5" neodymium compression driver with 65mm titanium diaphragm | |
| Nominal impedance |
8 ohm |
| Dispersion pattern | 110°H×10°V |
| Finish | Textured high-density polyurethane coating |
| Speaker cables | LF 1(+)1(-)HF 2(+)2(-) |
| Input connectors | 2×ML4MP Speakon |
| Crossover | LF 60Hz-1KHz |
| HF 1kHz-20KHz | |
| Dimensions | 600×347×451mm(W×H×D) |
| Package dimensions | 675×447×520mm(W×H×D)/0.16cbm |
| Enclosure | Birch plywood |
| Net weight | 28.5kg/31.5kg(W-3P) |
| Gross weight | 33kg/36kg(W-3P) |
| Model |
W-21&W-21P(active) |
| Type | Sub-bass system |
| Frequency Response |
30Hz -400Hz ± 3dB |
| Power handling | 1500W(RMS)6000W(PEAK) |
| Sensitivity | 109dB(1W-1M) |
| Max-S.P.L |
138dB(PEAK/1M) |
| Components | 1×21"(545mm) neodymium woofer 115mm(4.5in)coil |
| Nominal impedance | 8 ohm |
| Finish | Textured high-density polyurethane coating |
| Input connectors | 2×NL4MP speakon |
| Dimensions | 600×650×750mm(W×H×D) |
| Package dimensions | 825×675×760mm(W×H×D)/0.42cbm |
| Enclosure | Birch plywood |
| Net weight | 70kg/73kg(W-21P) |
| Gross weight |
73kg/76kg(W-21P) |
