hot sale 5x5x16 Cascade Multiswitch CATV multi-switch 5in satellite multiswitch sat multiswitch

PRODUCT DETAIL
Cascade:Available;Brand Name:Hejia;
Place of Origin:Guangdong China;Packing:White Box OEM Gift Box;
Payment Terms:L/C,T/T;Supply Ability:10000 Piece/Pieces per Month;
Terrestrial TV input:1;Packaging Detail:White box/giftbox packing;
Material:Sheet metal;Satellite IF inputs selected by:13V,18V,22KHz;
Satellite IF input:4;Application:CATV SMATV System;
Available for:16 end-users;Warranty:12 Months;
Certification:ce;Powered by:External adapter;
Model Number:SH5516E;Port:HK;

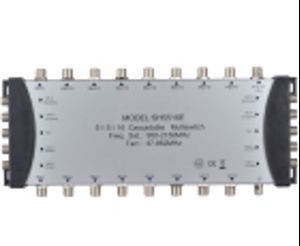

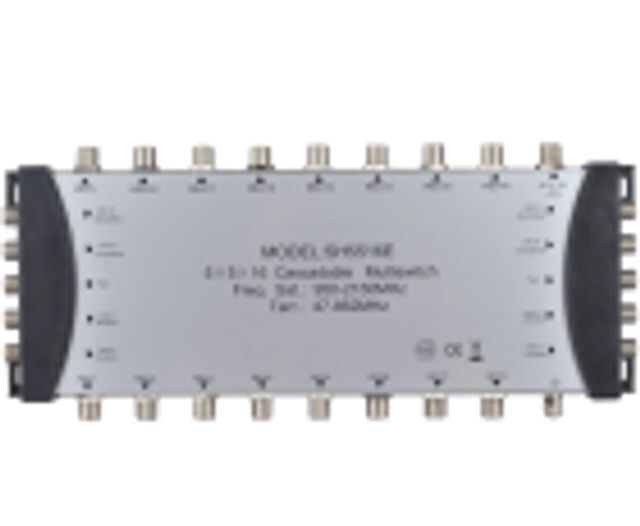

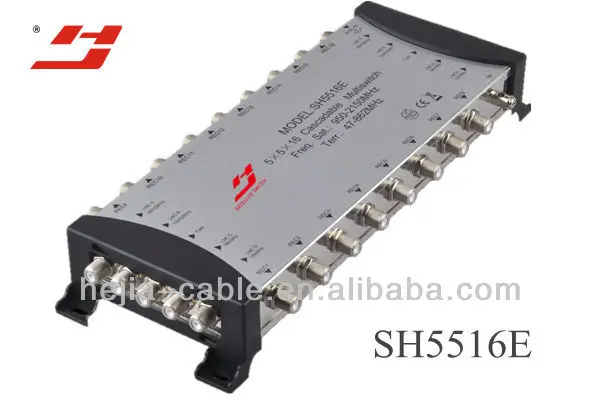

5x5x16 Cascadable Multiswitch for Quattro LNB



(SH5516E)





Featrues:



1) 4 satellite IF and 1 terrestrial TV inputs  for 16 satellite receiver

2) 16 satellite IF inputs selected by 13V,18V,22KHz

3) Low insertion loss, high isolation

4) SAT-IF-PATHs to the subscribers are active and supplied by the receiver

5) Sheet metal housing with plastic holder

6) Design good for indoor usage

7) External adapter available

8) Cascade type



Specifications:



    Typical QC Limit Remark
Frequency Range Terr:47-862MHz   SAT:950-2150MHz
Inputs 4 SAT+1 Terr. F connectors
Outputs 16 Receiver F connectors
Thru Loss   Terr.

4dB

5dB
SAT

4dB

5dB
Tap Loss Terr.

3dB

5dB
SAT

1dB

3dB

Return Loss

Terr. 12dB 10dB



SAT

12dB 10dB
Stop band attenuation  Terr. 28dB 25dB
SAT 28dB 25dB
Isolation H/V 30dB 25dB
REC-REC 30dB 25dB
Power Adapter IN:100-240V OUT:18V 1200mA
Dimensions(L,W,H) 280x125x43 mm

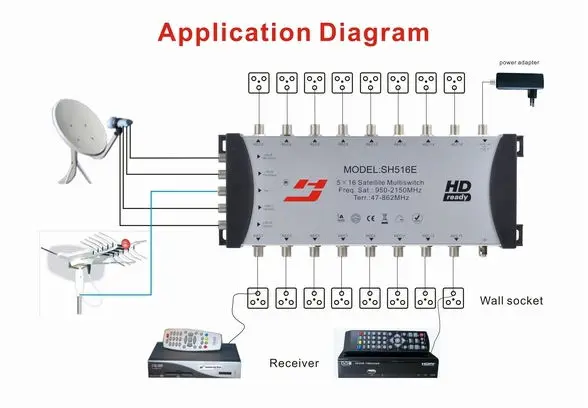

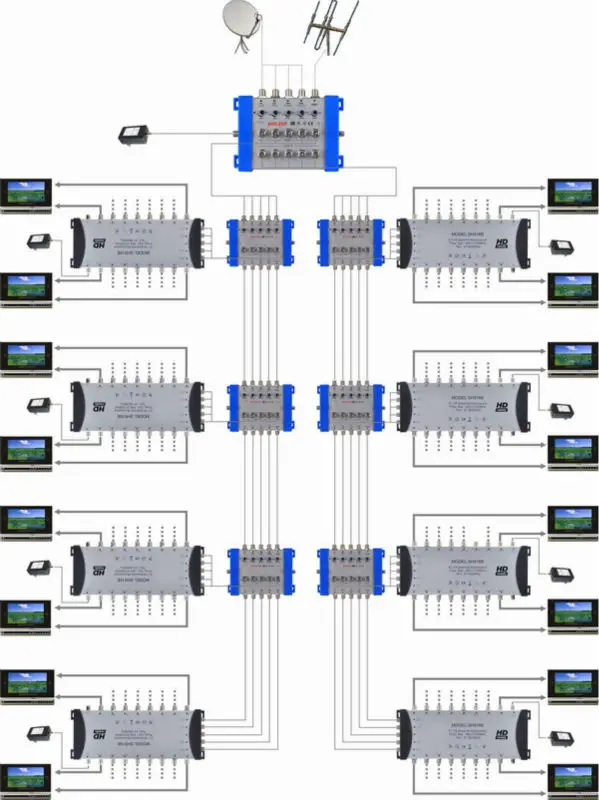

5 in Multiswitch Application Diagram











View more




Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile
ZHONGSHAN HEJIA ELECTRICAL INDUSTRIAL CO.,LTD , which professionally manufacture Cables and Satelite Multiswitch in China for over18 years design and development experience , with CE, UL, TUV,ROHS ,REACH approved.
+
+
+
+
