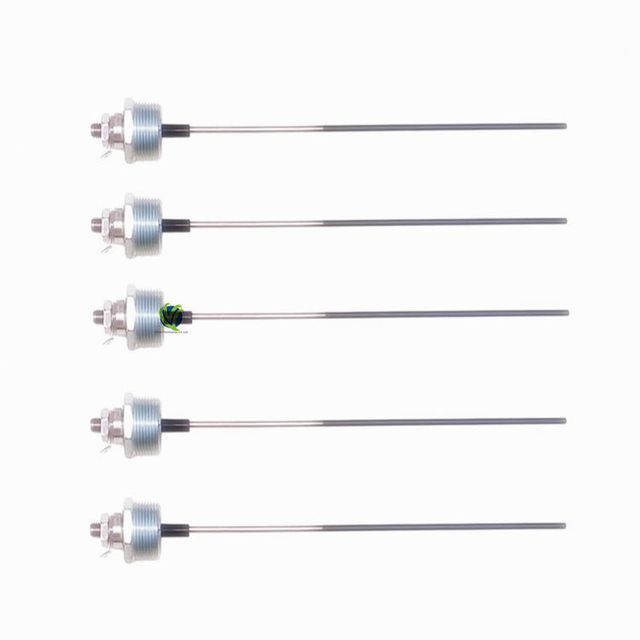

solar water heater parts electric anode rod titanium coated mmo electric anode rod
- $1.79 / >=10 pieces
- 10 pieces
- Utron Technology Co., Ltd.
- Shaanxi, China
- Ms Helen Zhang
| thread: | G 3/4", 3/4" or customized | type: | Solar Water Heater Parts |
| Energy source: | electrical | Packaging Details: | Inner plastic bag or paper bag, outer wooden box, or according to customer requirements. |
| Rod diameter: | 2mm, 3mm or customized | Coating Thickness: | 5-15um |
| Rod length: | 340mm or customized | Package preview: | |
| Coating area: | custom made | port: | any port in china |
| model: | UTron200819000000000020 | After-sales service provided: | free spare parts |
| brand: | Youchuang | Supply capacity: | 5545000 pieces per week |
| size: | 20-100 gallon tank | Service life: | 10-15 years old |
| coating: | Ruthenium iridium | application: | Automotive, RV, Outdoor, Hotel, Garage, Commercial, Home |
| Origin: | Shaanxi, China | Warranty: | 3-5 years, 1 year |
| shape: | rod, wire | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
advantage:
Extend water heater tank life by 20 years
Permanently eliminates rotten egg smell from water
Replaces existing hex head anode rods on water heater (20-100 gallon) tanks only
The powered anode tod protects the inside of the tank from top to bottom
Using a water softener does not affect life or protection
Product Description:
Thread: G 3/4", 3/4" or customized;
Rod diameter: 2mm, 3mm or customized;
Rod length: 340mm or customized;
Coating area: customized;
Sizes: 20-100 gallon cans.
working principle:
Powered anodes rely on current fed into the anode to apply current, rather than on natural electrolysis. The anodes can protect other metals (steel water heater tanks) for many years if the powered anodes are made of the correct material and kept energized. It is even more durable than standard anode rods. The powered anode doesn't react with water at all, but keeps out any stinky water. Additionally, standard magnesium anode rods can react with water under certain water conditions. This will give the water an unpleasant smell/taste of rotten eggs. A power bar will stop this reaction.
Installation Notes:
To accommodate this powered anode requires a 3/4" brass tee and a 3/4" plastic lined fitting long enough to extend beyond the thickness of the insulation.
Most gas heaters require 3" or 6" long fittings.
Longer splices and brass couplers may be required to remove insulation and complete installation.
Plumber's tape, metal antioxidants, and a screwdriver or utility knife are required to remove insulation.
packaging and delivery
Packaging Details:
1. Inside: kraft paper, plastic bag, polyethylene foam sheet;
2. Outer packing: wooden box;
3. Or according to customer requirements.
Example packaging image:
port:
Tianjin, Shanghai, Qingdao or any other main Chinese port.
delivery time:
2-15 days after payment confirmed.
Custom titanium electrodes:
Youchuang has a professional technical team with decades of experience in the field of titanium electrodes and coated titanium anodes; we can design coatings according to your specific working conditions. The service life is customized according to the specific needs of customers.
Development of new products:
UTron has excellent innovative technical engineers to help you develop new products.
Consulting and technical assistance:
UTron's sales engineers and technical engineers are professional; they have in-house knowledge in the areas of cathodic protection, wastewater treatment, electroplating and electrowinning. If you have any questions, please feel free to contact them. They work on improving your processes or solving tough challenges that may not have existed before in a particular situation.
Processing:
UTron can be produced according to customers' needs.
test:
Youchuang can provide accelerated life test, coating X-ray test, coating thickness test, helium leak test, contact resistance test, electrochemical performance test and other tests.
sample:
UTron can provide free or paid samples for testing.
