004 NEW ARRIVAL 4.2 Ton Exhaust Air Jack And Inflatable jack ( CE certificate )

PRODUCT DETAIL
Packaging Detail:Cartons;Model Number:NJW4.2T;
Warranty:2 Years;Type:Air Jack;
Material:Imported 2000D Denier 1.0mm PVC;Place of Origin:Zhejiang, China;
Supply Ability:50000 Sets per Month;Port:NINGBO , SHANGHAI;
Car Fitment:ABG (Allg Baumasch Gesellsch);Year:1981-1991,1983-1991,1976-1982;
Lifting Capacity:4200 kg;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Model:Alexander 126H;Inflated way:tailpipe exhaust and air compressor;
Diameter:64 cm;Weight:8.2 kg;
Use:Car Jack;Brand Name:HF;

Exhaust jack / Air jack / Inflatable jack



FEATURES:


4 Ton(CE Approved ):
Materials: 1000D, 1.0 mm Polyester core with PVC coating to both sides
Lifting Capacity: 4000Kg
Inflated Height: 75cm
Inflated Diameter: 64cm
Weight: 6.8Kg
Protection of Top & Bottom: 1 layer or 3 layers available
Colors available: Red, Orange, Blue, Yellow, Light Green, Bottom Green
Package: Carton

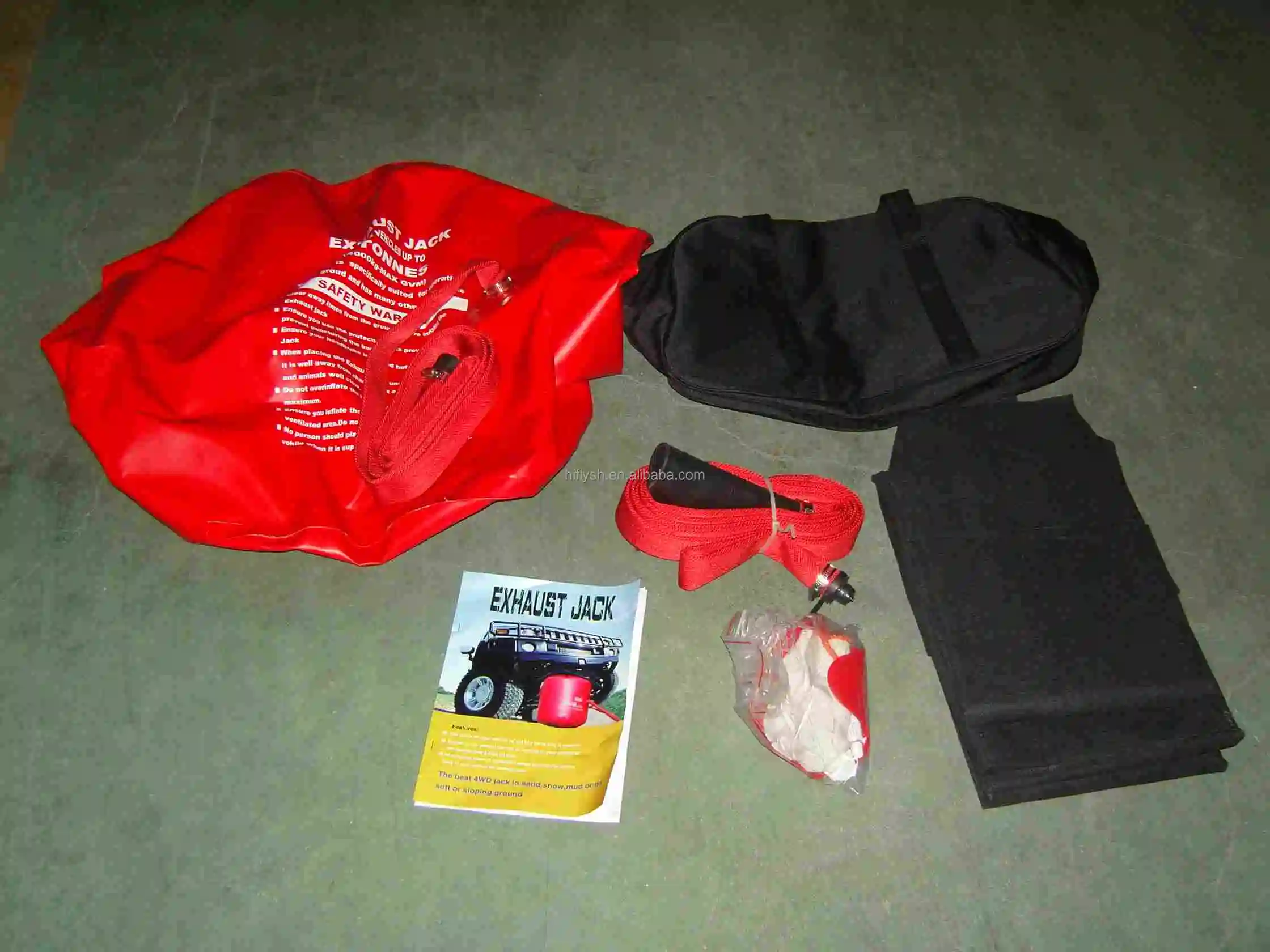

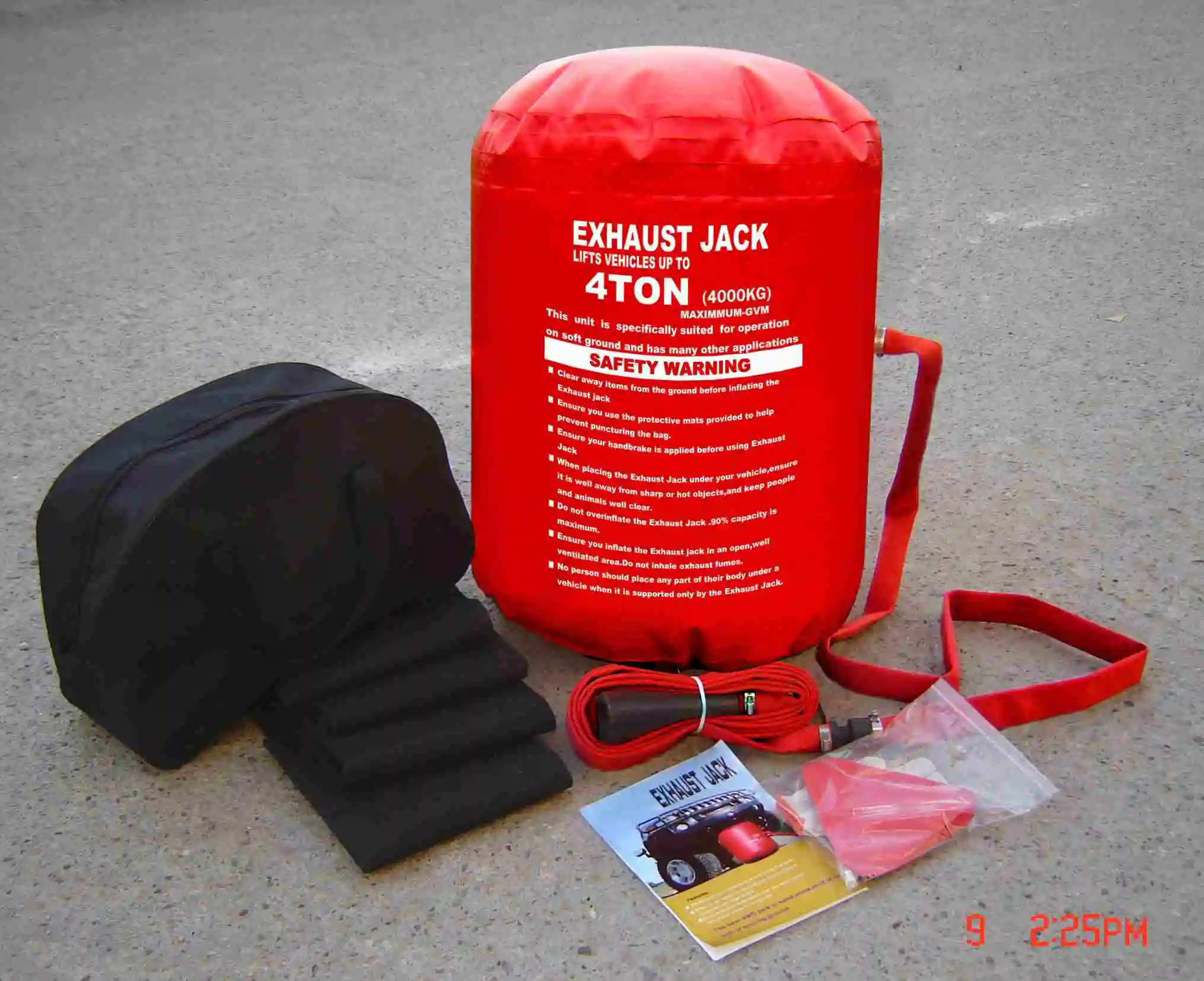

Kit includes

a. The Exhaust jack body

b. four protective mats

c. a pair of safety glove

d. one repair kit

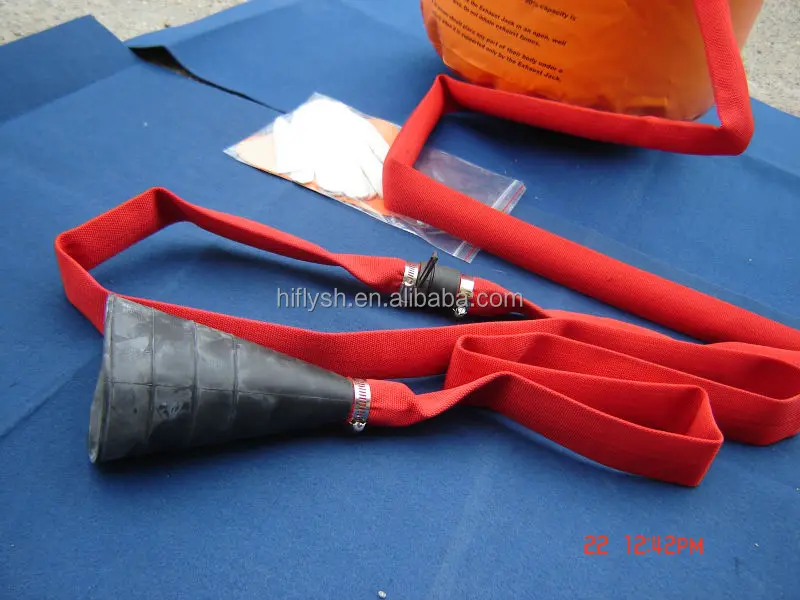

e. two connected hose (one is 2m,the other is 5m)

f. one air intake horn

g. four stainless steel hoop

 Standard S series, Designed in Australia, Power style supply stronger lift, Heavy duty 0.9mm PVC with 1000Dx1000D, Standard spike, 5M high temperature hose, Valuable packing include protection mat, carry bag, glove and repair kit.

Triple protection layers for both top and bottom.
Double protection design around the body of jack.
Will safely lift your vehicle up out of a rut or bog in a short time.
Simple to use and high efficient.

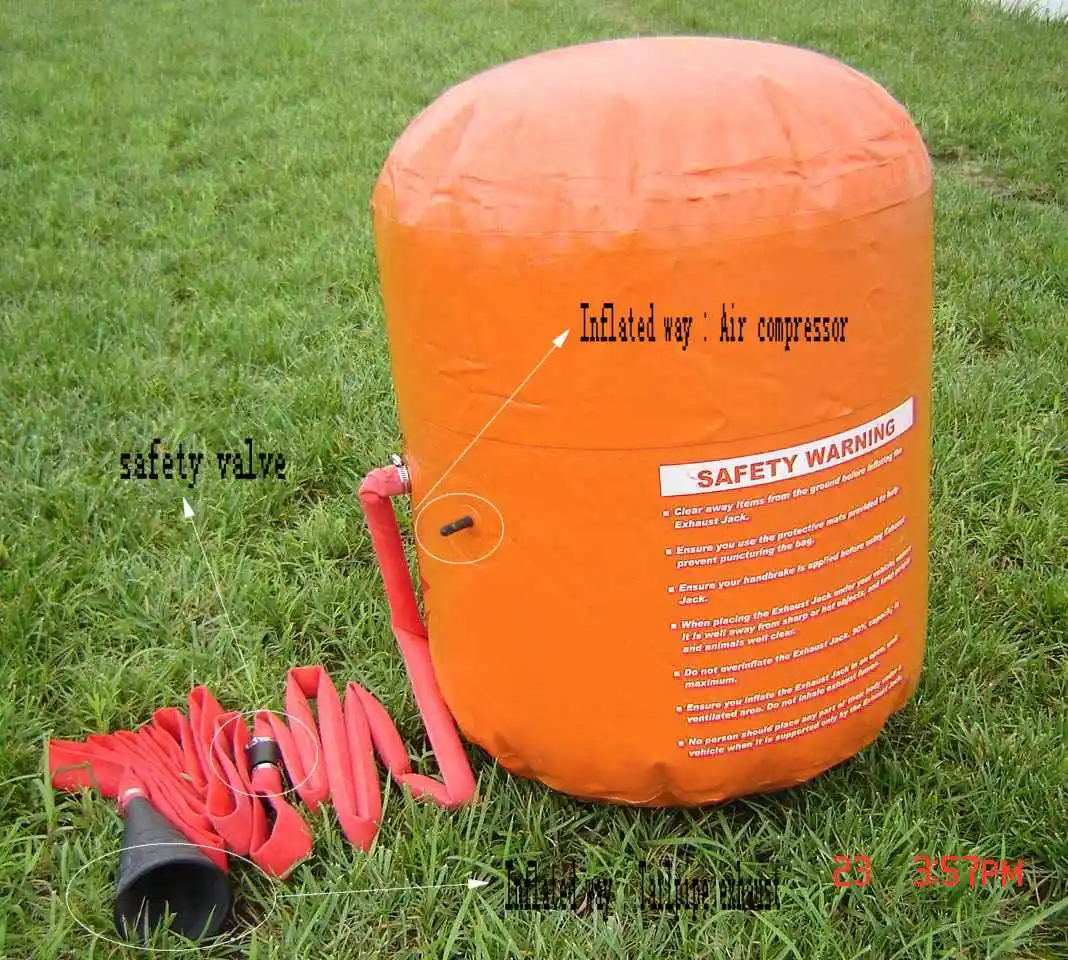

Non-return valve in the middle of the hose, easy for safety operating.
5 heavy duty anti-slip spikes.
Comes as a complete kit.

Simple to use without the risk of damage to your vehicle.

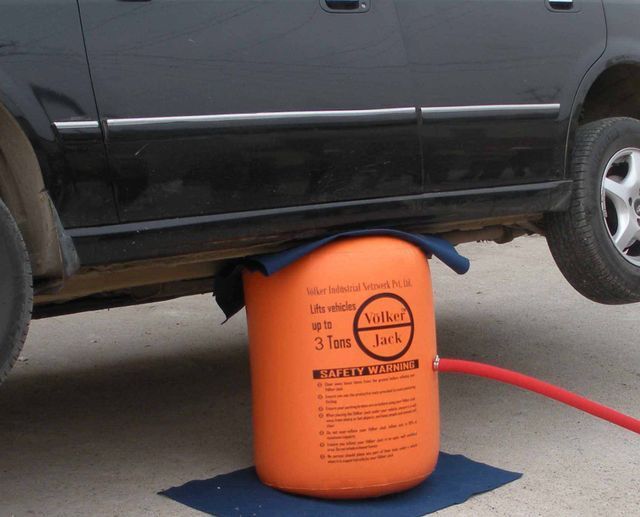

Air jack use the vehicle’s own exhaust to inflate the jack body,  is capable of lifting vehicle out of ruts or holes.
Air jack can be also inflated by the air compressor.



Safety precautions

a. Clear away items from the ground before inflating the Exhaust jack.

b. Ensure you use the protective mats provided to help prevent

c. Ensure your handbrake is applied before using Exhaust Jack

d. When placing the Exhaust jack under your vehicle, ensure it is  well away from sharp or hot objects,  and keep people and animals well clear

e. Do not overinflate the Exhaust jack,90% capacity is maximum.



Double inflatable systems by both exhaust and air compressor;



It is the best choice for vehicle recovery in sand, mud and forest, will safely lift your vehicle up out of a rut or bog in seconds
Simple to use without the damage to your vehicle as can happen with a high lift jack;
It is equally at home in the heat of an African desert, or the frozen landscape of Alaska, from the lowest -22°F to highest 158°F;
Total weight is 5KG/PC;
High quality PVC with 1000DX1000D, as thick as 0.9mm (over o.35 inches), which is grateful and excellent quality comparing to like products;
Will lift any car, truck, SUV, PUV under 4 Tons.
Materials:
Our exhaust jacks are made out of 1,000 * 1,000 DTEX PLASTOMER PVC fabric with a polyester support having excellent resistance to tearing, tension and breaking.
Special design with double inflatable systems

You could not only use the exhaust to inflate the air jack, but also use the air compressor.

(The air compressor do not include in our unit)

The working principle of a pneumatic jack


Inflatable jack works: the use of car exhaust filled balloon and maintain a certain pressure, the pressure through the chassis of the vehicle air bag into contact uniformly distributed lifting force, so as to achieve the purpose of lifting the car. Chassis of the vehicle inflatable jack contact area much larger than the regular chassis of the vehicle jack contact area, so just less than 1 atmosphere of pressure will be able to car jacking. Cylinder car engine work, the pressure within the normal atmospheric pressure of not less than 45, you can easily qualified for the work of inflatable pneumatic jacks, and will not result in any damage to the engine itself.
