1/2" Sae100r14 ptfe hose manufacturers
- $3.50 / 2 - 199 meters
$1.89 / 200 - 1999 meters
$1.72 / >=2000 meters - 2 meters
- Tianjin Hoyite Rubber Products Co., Ltd.
- Tianjin, China
- Ms zhiqin guo
| Revolt: | oil/heat/pulse/fatigue/aging | Packaging Details: | Well wrapped with poly strip or opp film. or as your request. sae100r14 polytetrafluoroethylene hose manufacturers |
| surface: | corrugated or flat | port: | Tianjin |
| Material: | PTFE = (polytetrafluoroethylene) | Minutes Bendius: | ±3mm |
| place of origin; place of origin: | Tianjing, China | Supply capacity: | 100,000 meters per month |
| color: | optional | in stock: | more than 10000 meters |
| Operating temperature: | -70°C~+260°C. | model: | sea100r14 |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Nominal Diameter (inches): | 3.2mm-25mm |
| product name: | sae100r14 polytetrafluoroethylene hose manufacturers | Quality Certification: | ISO9001:2000 |
| brand: | Haitiantong |

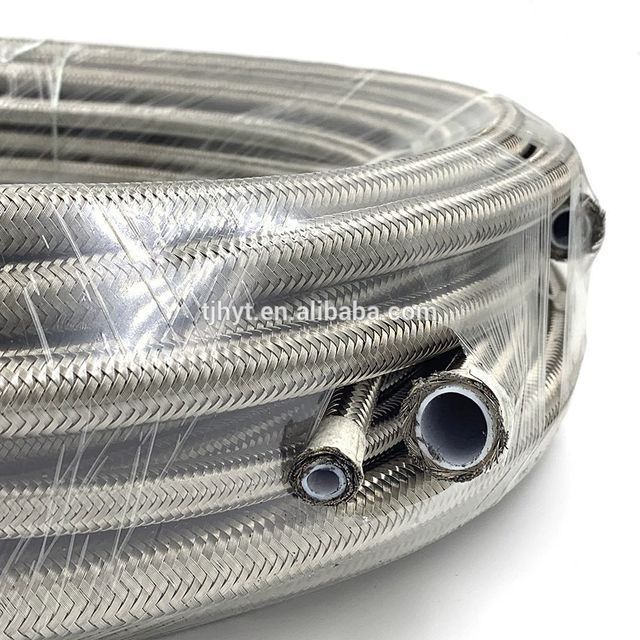

1/2" Sae100r14 PTFE hose manufacturer

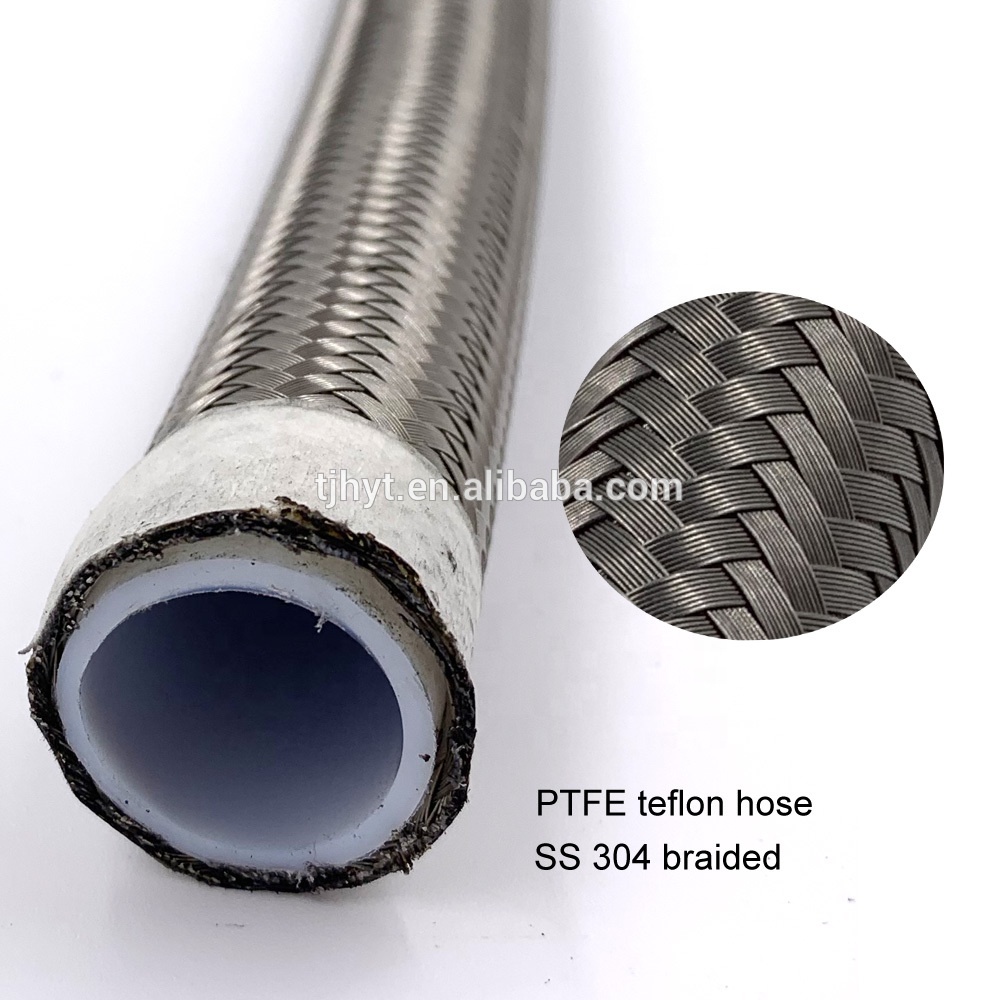

hose structure
Internal: Teflon hose, for hot and high temperature use, anti-corrosion, non-stick.
External: SUS304 stainless steel braid. Higher pressure resistance. Various couplings are available.
Temperature: constant use range -50°C~+210°C, instantaneous use range: -70°C~+260°C.
Uses of polytetrafluoroethylene (PTFE) hose
Application of sae 100 r14Stainless steel polytetrafluoroethylene (PTFE) hose
Hydraulic hoses, pneumatic hoses, steam hoses in industries such as rubber, plastics, clothing, automobiles, machine tools, shipbuilding, electrical machinery, diesel engines, and papermaking. Compared with other hoses, it has good performance when conveying alternating hot and cold liquids, gases and highly corrosive media, and has a longer service life.
Aerospace high performance hoses can be customized.

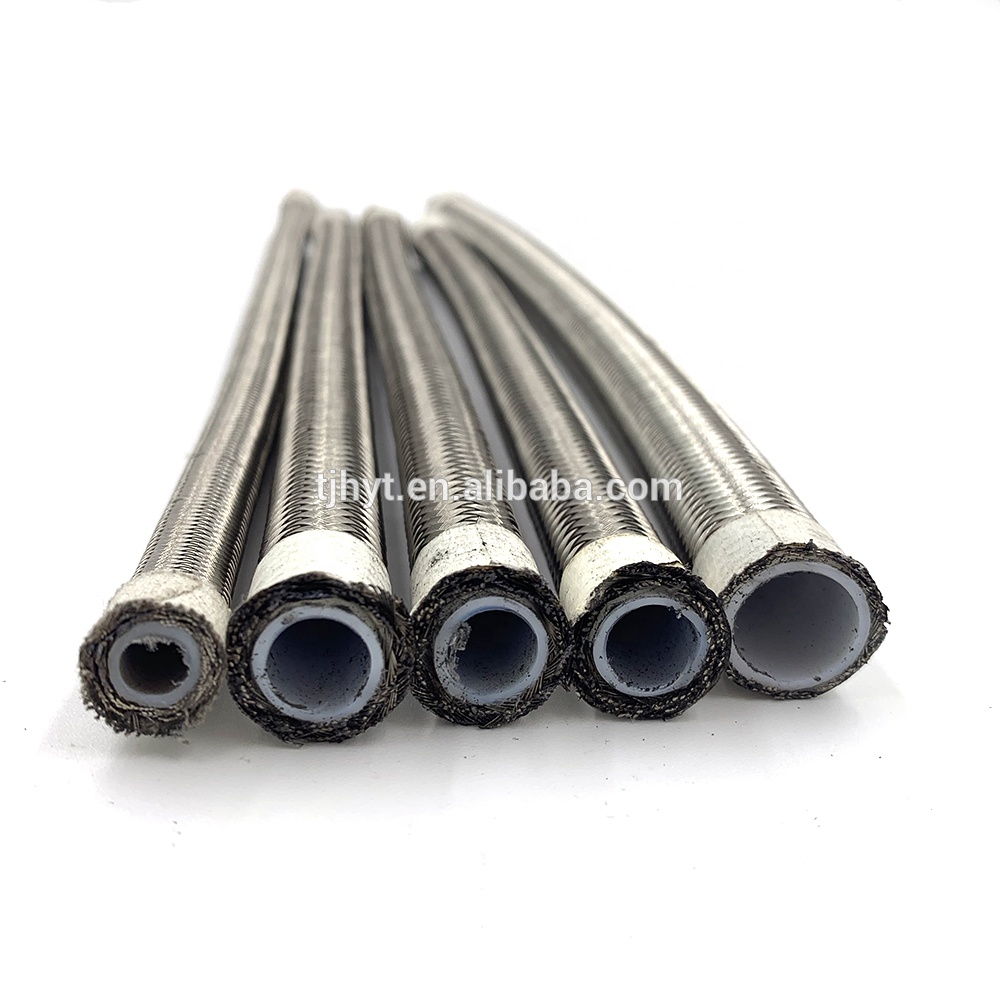

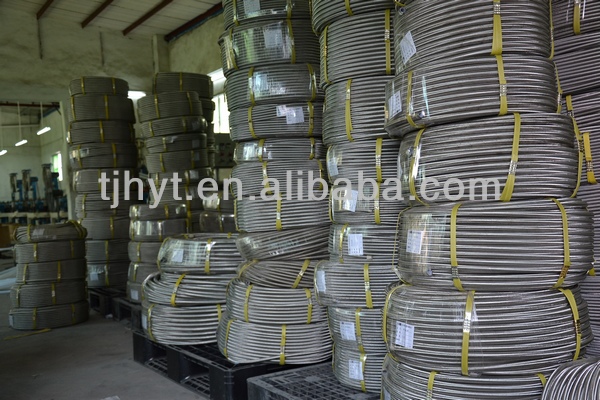

Teflon Hose Stock
Hydraulic hose parameters
| Specification | inner tube diameter | Inner tube diameter | Braid outer diameter | wettable powder | Min Bendius |
| (mm) | (mm) | (mm) | (Kilogram) | /mm±3mm | |
| 1/8. | 3.2 | 5.5 | 6.5 | 314 | 45 |
| 3/16. | 4.8 | 6.7 | 8 | 256 | 76 |
| 1/4. | 6.4 | 7.8 | 8.8 | 230 | 81 |
| 5/16. | 7.9 | 10 | 11.5 | 194 | 131 |
| 3/8. | 9.8 | 11.6 | 12.8 | 162 | 182 |
| 1/2. | 12.7 | 15 | 16.5 | Post-90s | 211 |
| 5/8. | 15.9 | 18 | 20 | 80 | 252 |
| 3/4. | 19 | 21.4 | twenty three | 70 | 312 |
| 7/8. | 22.25 | 24.65 | 26.4 | 60 | 421 |
| 1 | 25 | 28 | 30 | 50 | 489 |
Company profile
We have our own factory and all our products are produced by ourselves.
Tianjin Hongyite Rubber Products Trading Co., Ltd..is one of the leading manufacturers of high pressure rubber hoses, hose crimping machines and hose couplings in China. Our products are characterized by excellent quality, competitive price, good market and long life.
Welcome to contact us and visit our factory.
If you need hydraulic rubber posture, please contact me. We will provide high quality productsproductCooperate with you at a competitive price. i believe we can get better Partnersecondin the near future.
When you contact us, you can get:
1, Better prices and discounts.
2, more detailed and recommended.
3. OEM or design a new LOGO for you.
4. More professional service.
Please remember to click"Contact Supplier"or"Chat Now"For more details, we promise to provide you with better recommendations and professional services.
20180109 Kevin Revised - 20191120 Kevin
