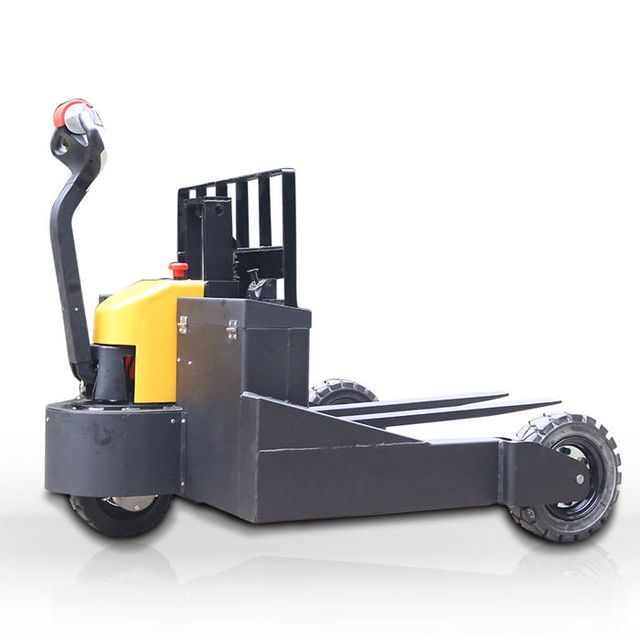

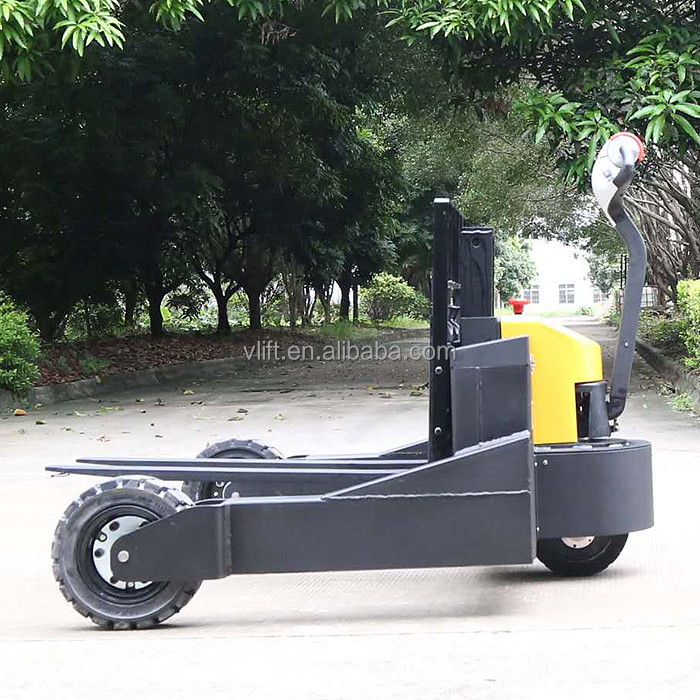

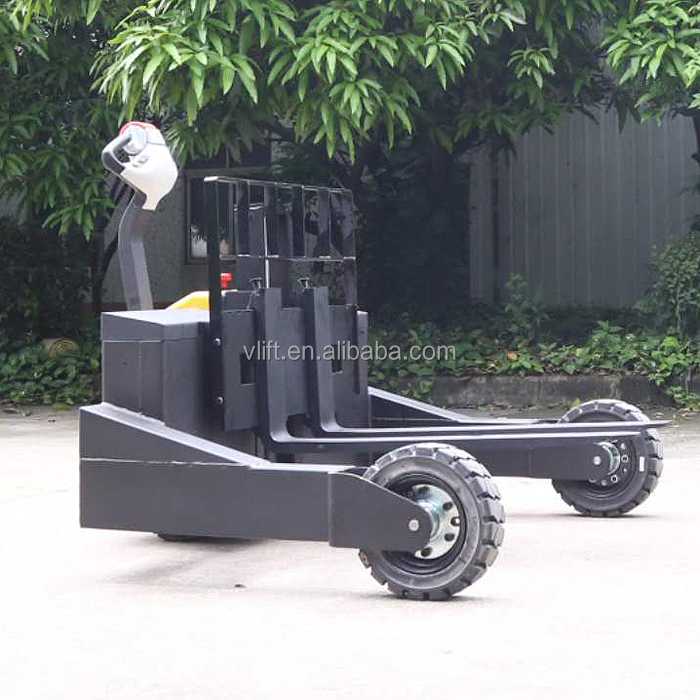

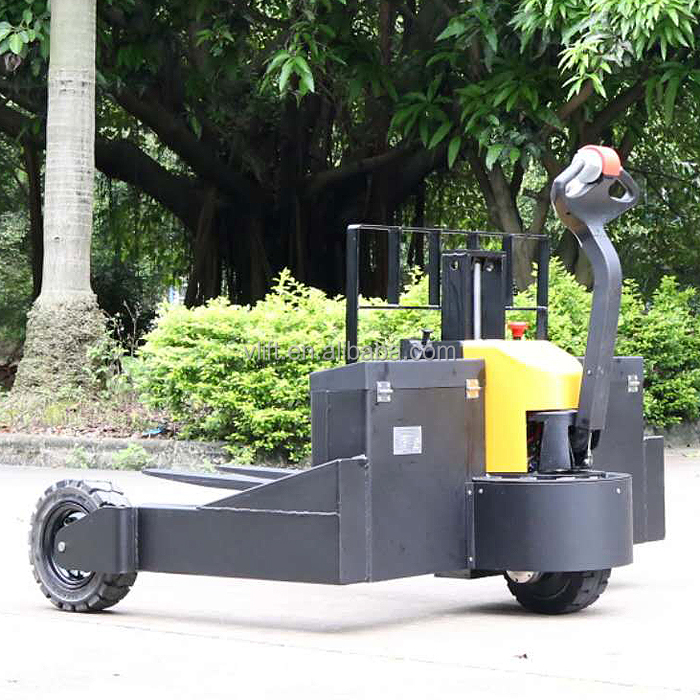

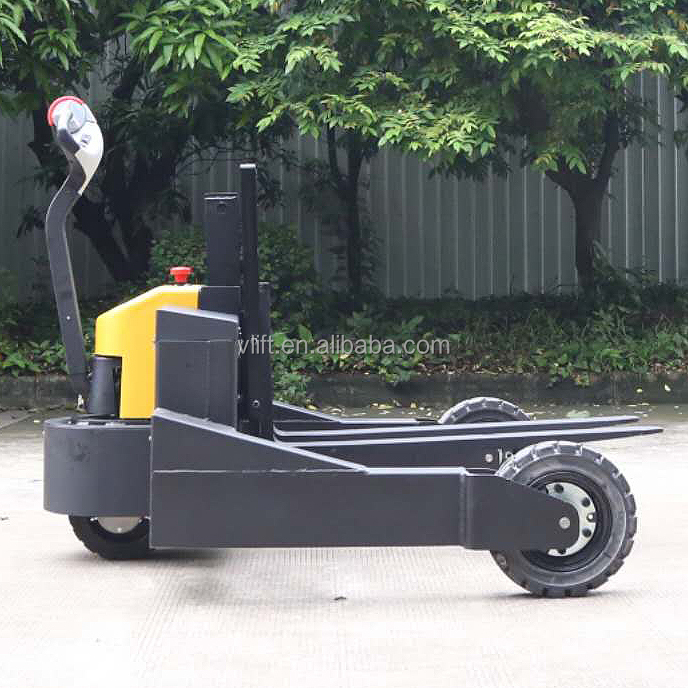

1.3 tons electric pallet jack off road pallet truck for sale
- $3400.00 /unit
- 1 unit
- Shanghai Unico Industry & Trade Co., Ltd.
- Shanghai, China
- Ms Anna Li
PRODUCT DETAIL
| power supply: | Battery powered | size: | 1700*1575*1235mm |
| Core components: | PLC, bearings, gearboxes, motors, pressure vessels, gears, pumps | brand: | lift |
| Mechanical test report: | if | Origin: | China |
| Warranty: | 1 year | net weight: | 500 kg |
| Video shipment inspection: | if | Health status: | new |
| Model: | VHRP130 | Marketing Type: | New Products 2020 |
| payment terms: | wire transfer | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company |
| Lifting height: | 330mm | Package preview: | |
| Supply capacity: | 50 units per month | Battery: | 24/100V/Ah |
| Showroom location: | not any | Packaging Details: | Export standard package; a full set of documents, including spare parts list, operation and maintenance manual, and engine operation manual; a set of inspection certificates issued by the manufacturer; a set of common tools; all the above mentioned are placed in the tool box. |
| Carrying capacity: | 1300 kg | Weight (kg): | 500 |
| Core component warranty: | 1 year | product name: | Electric pallet truck |
| Operation type: | pedestrian | port: | Shanghai, Ningbo |
| brand: | lift |
1.3 tons electric pallet jack off road pallet truck for sale
Product Description
specification
| feature | |||||||
| 1.1 | manufacturer | vertical lift | |||||
| 1.2 | Model Name | VHRP130 | |||||
| 1.3 | Drive unit | Battery | |||||
| 1.4 | operator type | pedestrian | |||||
| 1.5 | Carrying capacity | Q (kg) | 1300 | ||||
| 1.6 | load center | c (mm) | 500 | ||||
| weight | |||||||
| 2.1 | serving weight | Kilogram | 500 | ||||
| Wheels, Chassis | |||||||
| 3.1 | tire type | solid rubber | |||||
| 3.2 | tire size, front | 2-Ø406×110 | |||||
| 3.3 | tire size, rear | Ø300×125 | |||||
| aspect | |||||||
| 4.1 | total height | (mm) | 1235 | ||||
| 4.2 | lifting height | (mm) | 330 | ||||
| 4.3 | overall length | (mm) | 1700 | ||||
| 4.4 | overall width | (mm) | 1575 | ||||
| 4.5 | Fork size | s/ e/ l (mm) | 40×100×1070 | ||||
| 4.6 | Ground clearance, fully loaded, below mast | (mm) | 100 | ||||
|
|||||||
| 5.1 | Travel speed, full load/empty load | km/h | 3.5/ 4.5 | ||||
| 5.2 | Lifting speed, full load/no load | mm/s | 13/25 | ||||
| 5.3 | Gradeability (loaded) | 5/10 | |||||
| 5.4 | service brake | Electromagnetic brake | |||||
| drive | |||||||
| 6.1 | Drive motor rating S260 minutes | kilowatt | 1.2 | ||||
| 6.2 | Lift motor rating is S315% | kilowatt | 0.8 | ||||
| 6.3 | Battery voltage/rated capacity (5h) | V/ah | 24/100 | ||||
| others | |||||||
| 7.1 | Drive Control Type | direct current | |||||
| 7.2 | Sound level at the operator's ear | decibel(A) | 70 | ||||
| 7.3 | charger | Voltage and current | 24/10 | ||||
