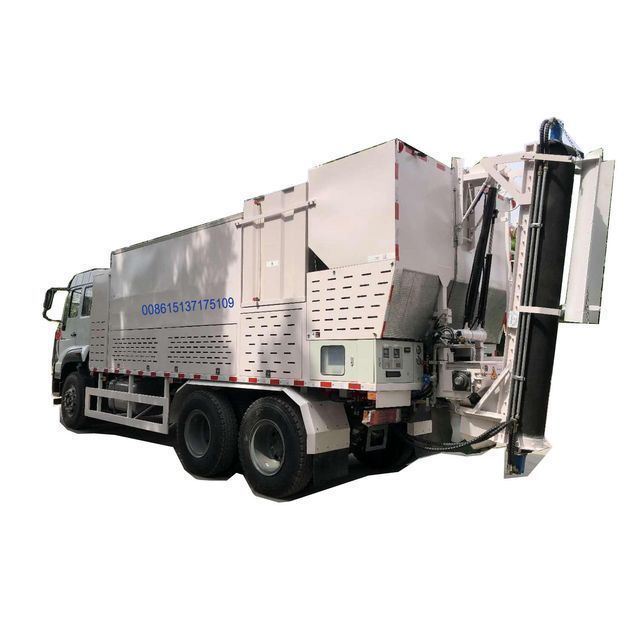

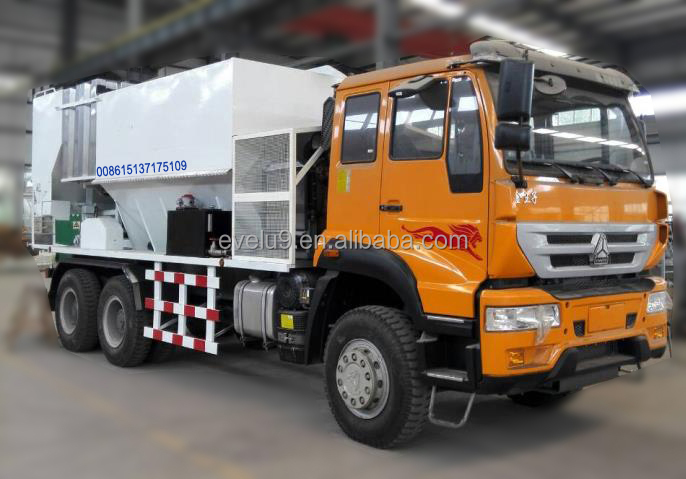

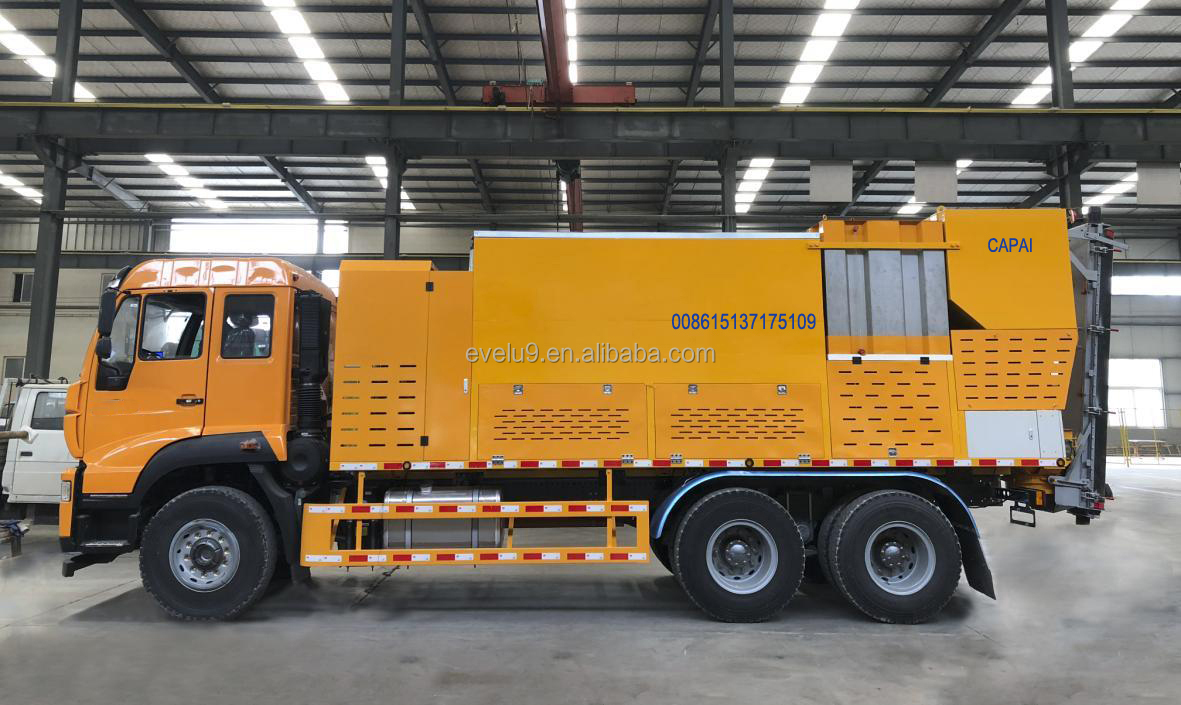

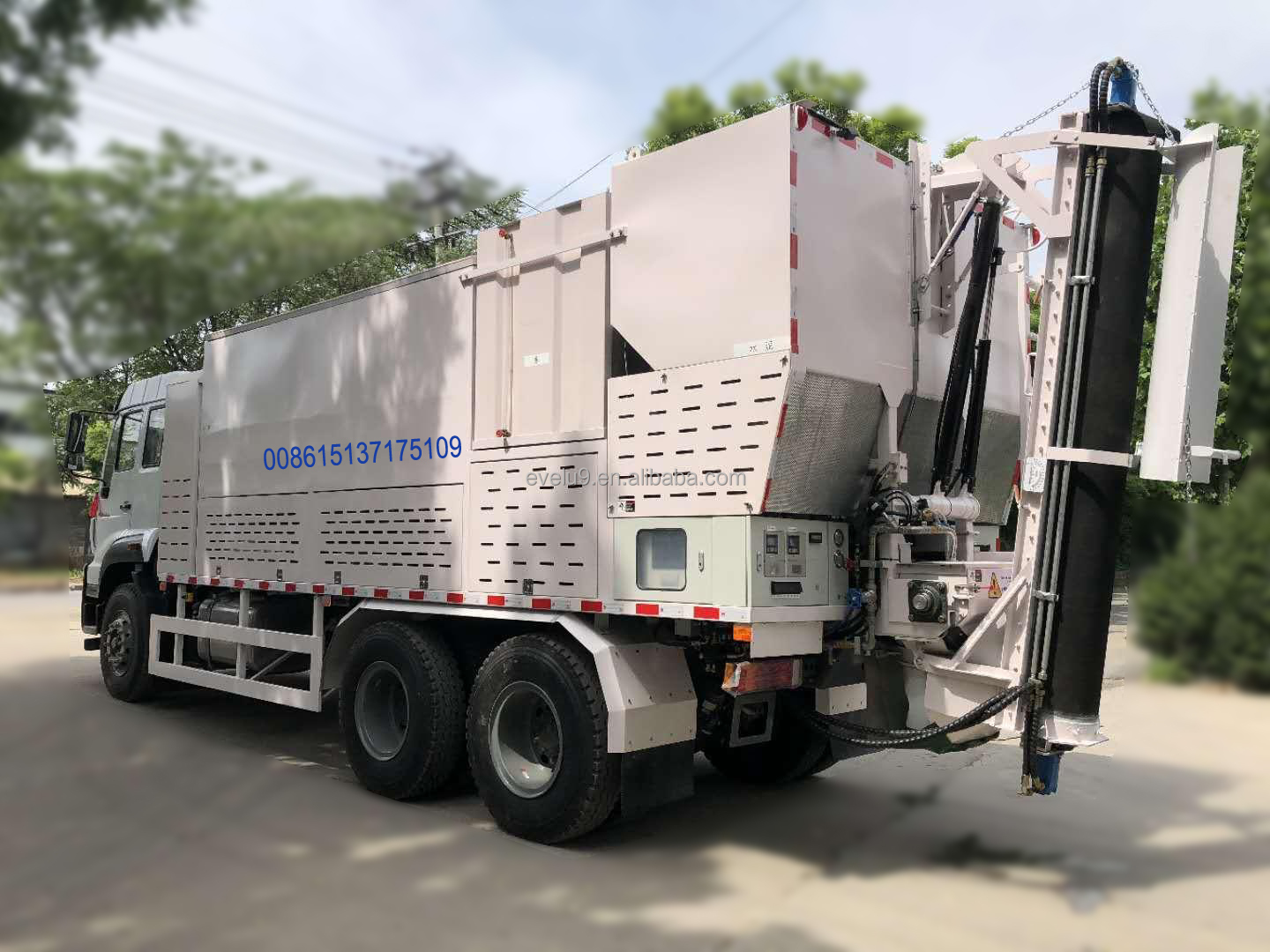

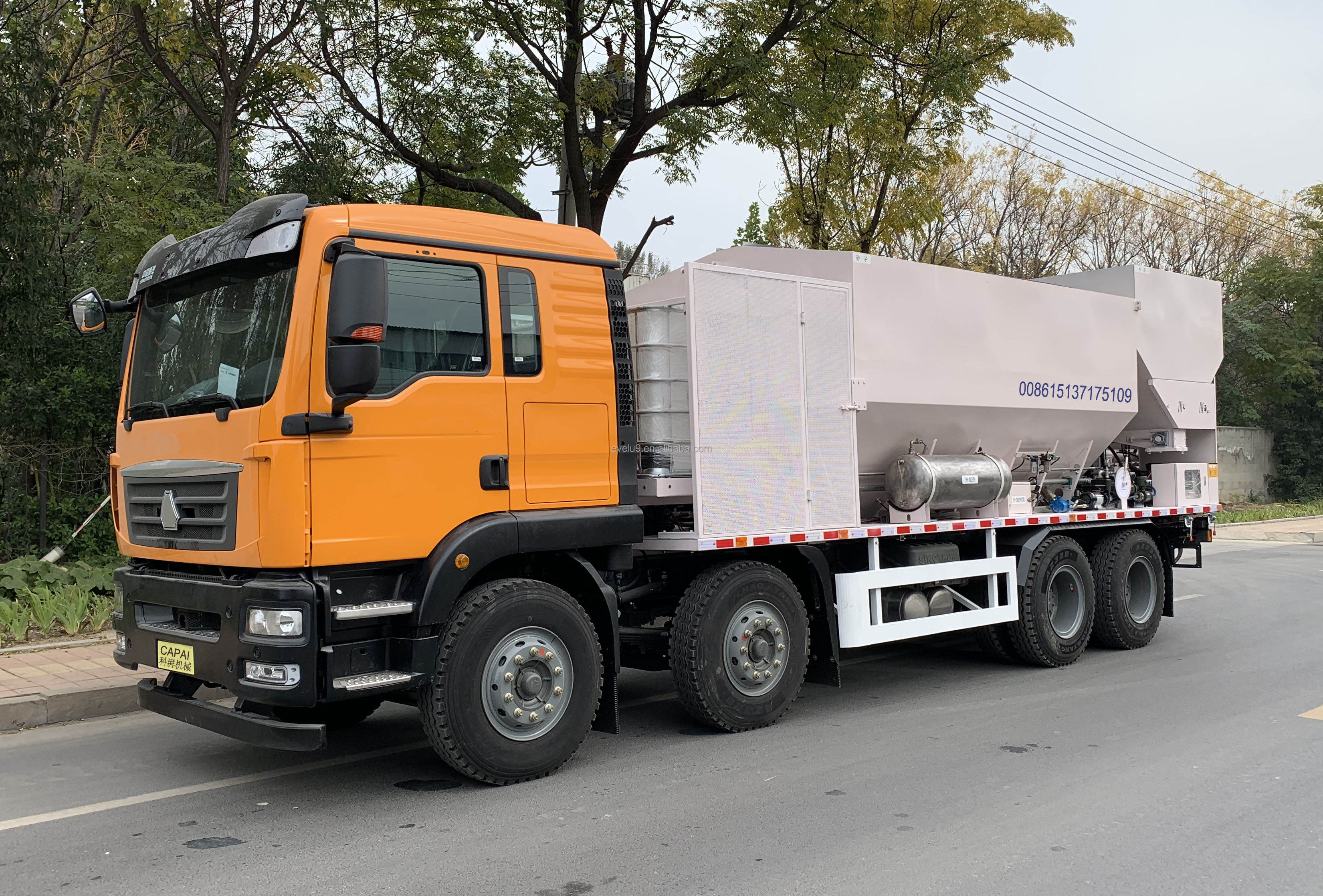

10 cbm mobile gravel, sand, cement, water volumetric concrete truck
- $10000.00 /set
- 1 set
- Zhengzhou Kepai Mechanical Equipment Co., Ltd.
- Henan, China
- Ms Eve Lu
| Marketing Type: | New Products 2022 | Core component warranty: | 1 year |
| weight: | 5000 kg | Core components: | PLC, engine, water pump |
| Mechanical test report: | if | Unique selling point: | High operating efficiency |
| payment terms: | L/C, Western Union, D/A, T/T | Warranty: | 1 year |
| port: | Shanghai/Qingdao | Showroom location: | not any |
| Applicable industries: | Building material stores, construction works, energy and mining, municipalities, road maintenance | Dimensions (L*W*H): | 7200*2550*2600 |
| Video shipment inspection: | if | Supply capacity: | 50 units per month |
| Health status: | new | brand: | Capai |
| Package preview: | strength: | 80KW | |
| place of origin; place of origin: | China |

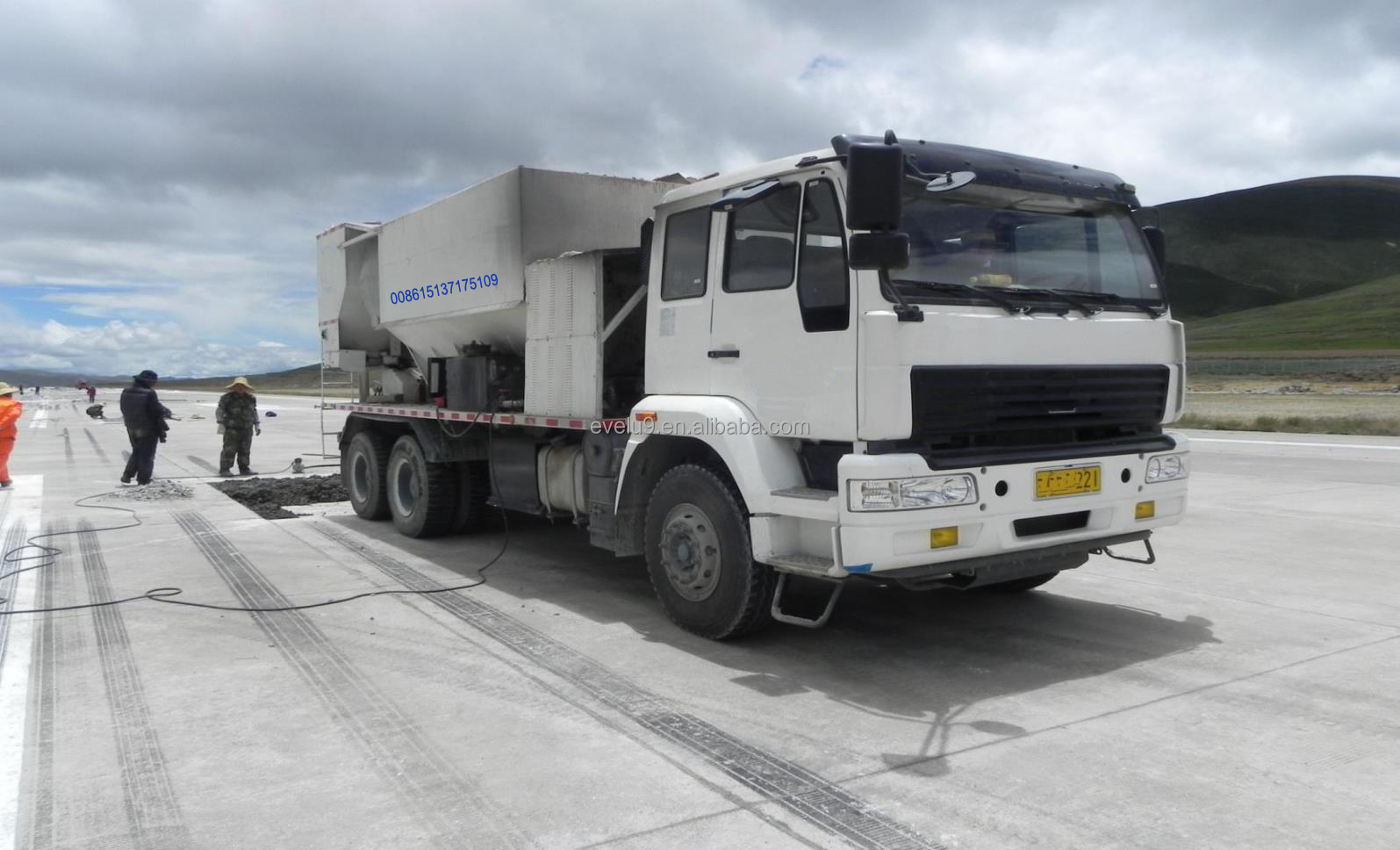

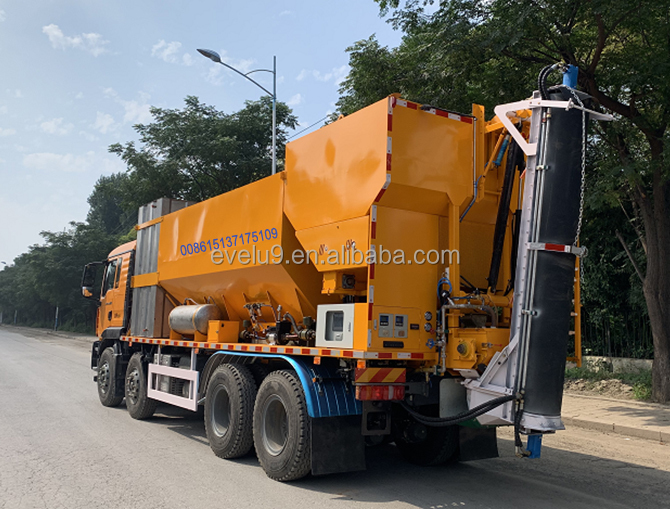

KPV610, KPV612 volumetric concrete mixer truck,Volumetric concrete mixers (also known as volumetric mobile mixers) are truck- or trailer-mounted concrete mixers that contain separate compartments for sand, stone, cement, and water. Once on the job site, the machine mixes the materials to produce the exact amount of concrete needed.

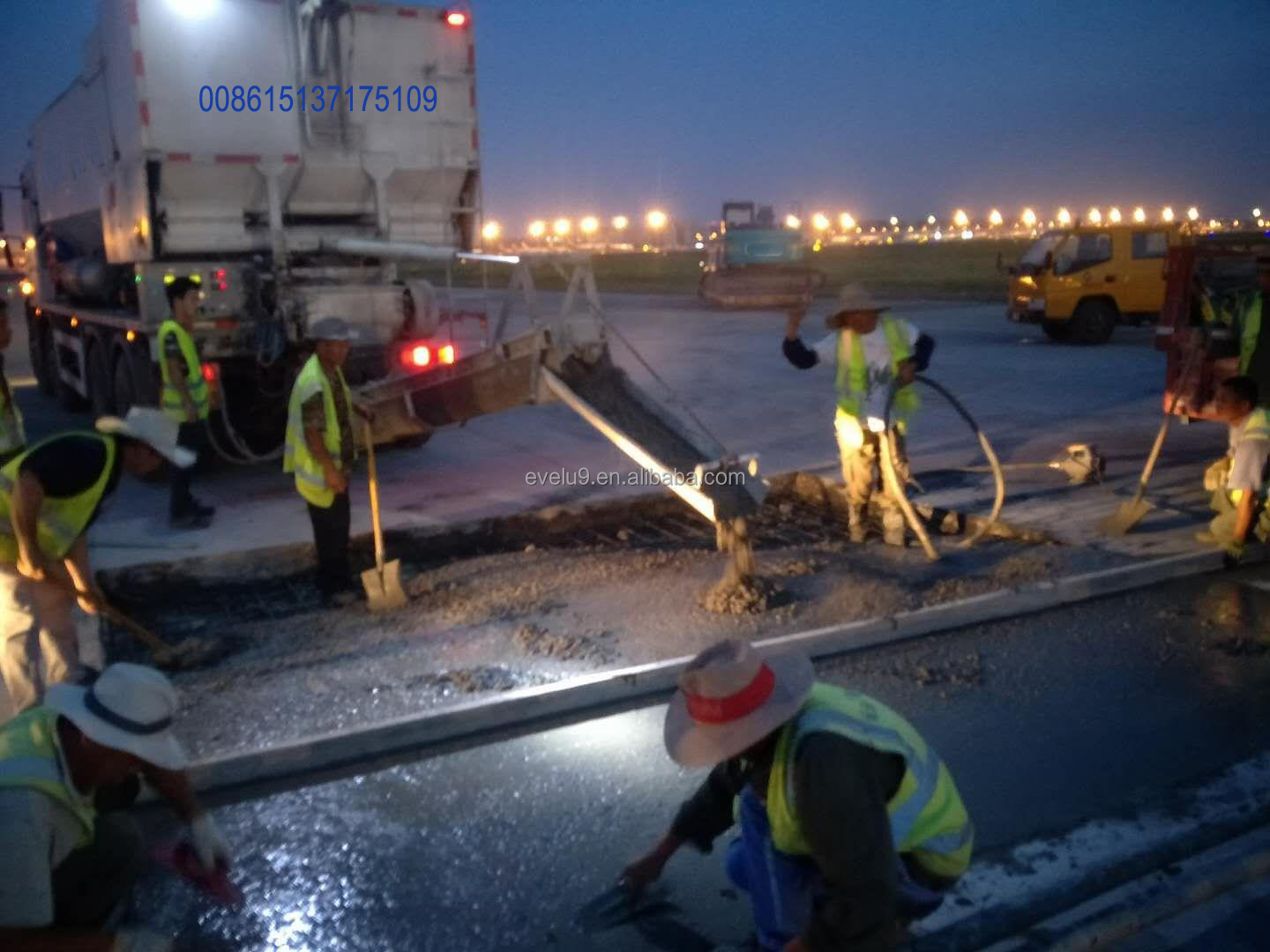

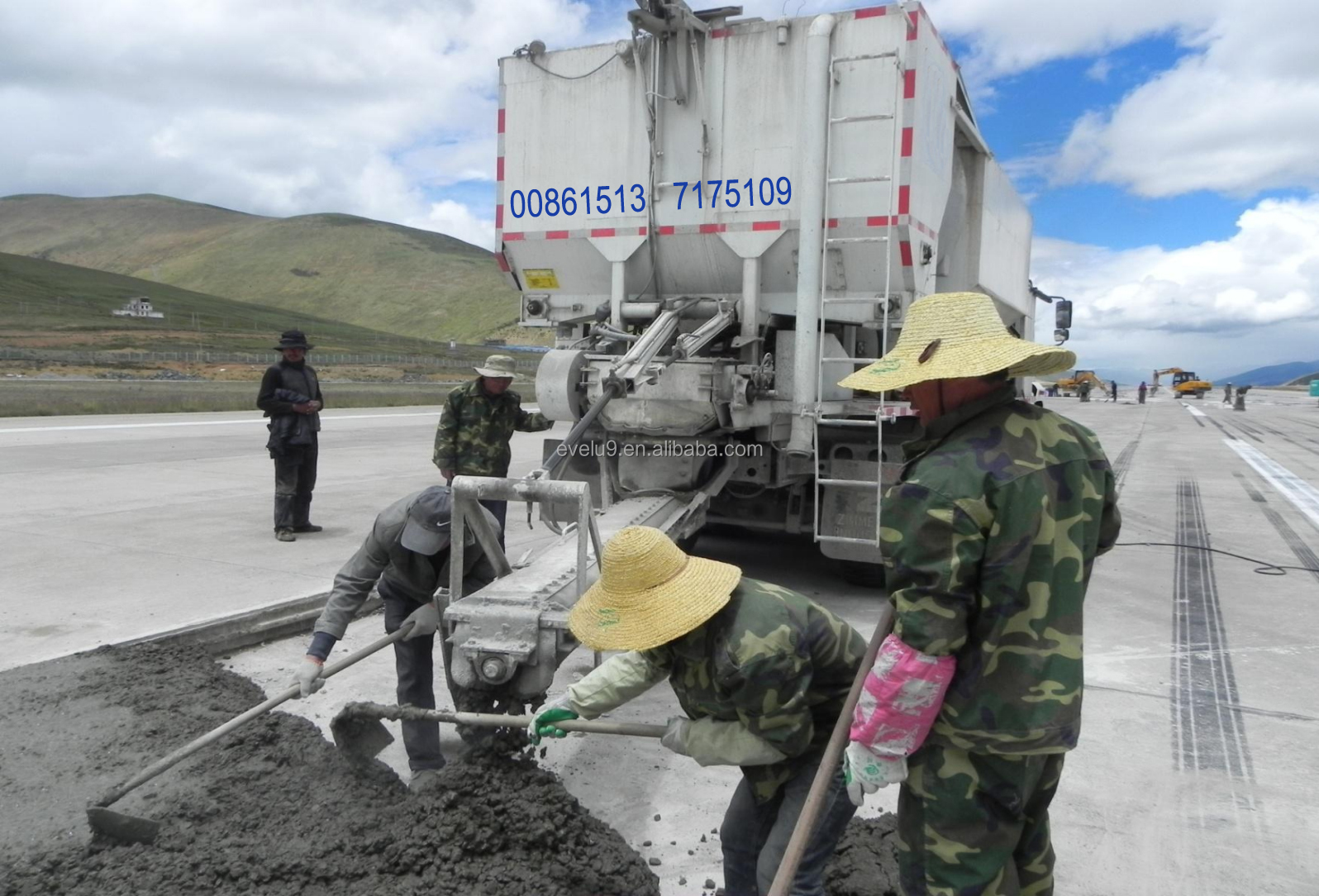

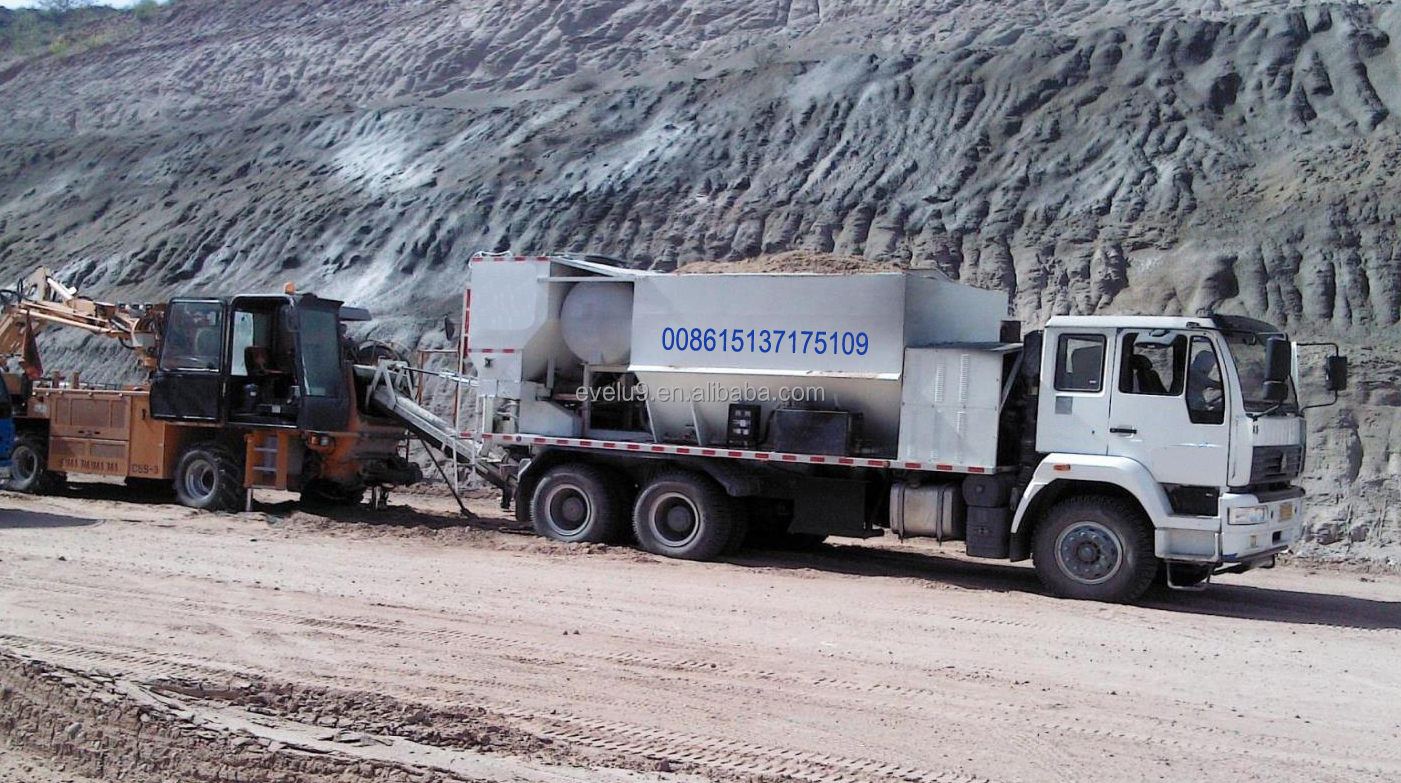

Suitable for road construction, building construction, municipal construction, bridge construction, airport runway maintenance, municipal maintenance, highway maintenance, remote areasput up, Quick-setting concrete construction and other working environments.
Advantages: 1. Reduce waste - pour the exact amount of concrete. 2. Less Water - Volumetric concrete mixers use an average of 8-10 gallons of water to clean up, while traditional bucket trucks require 200 gallons of water. 3. Low emissions - no need for trucks to idle while waiting for concrete to be poured.
And it can be installed on various brands of trucks, such as Mercedes-Benz, Volvo, etc.
|
Model |
KPV610 upper part |
KPV612 upper part |
|
Production capacity(m³) |
8-10 |
10-12 |
|
Productivity(m³/h) |
22-45 m3/h, adjustable |
22-45 m3/h, adjustable |
|
Aggregate bin(m³) |
6.5 |
8.5 |
|
Powder bin(m³) |
4.5 |
6.5 |
|
Water tank (L) |
1800 |
2000 |
|
Cement silo(Kg) |
3200 |
5200 |
|
Admixture tank (L) |
160 |
160+100 |
|
Counterweight system |
volumetric |
volumetric |
|
Control System |
computer and manual |
computer and manual |
|
upper engine |
Diesel engine, 80kw |
Diesel engine, 80kw |
|
Dimensions (mm) |
6800*2550*2600 |
7200*2550*2600 |
|
Total weight(Kg) |
4100 |
5000 |
