1015 Lead CNC Full Kit Lead CNC Router Machine Full Kit engraving and engraving machine 1000mmx1500mm
- $1389.00 /set
- 1 set
- YUYONG INDUSTRY(SHENZHEN) LIMITED
- Guangdong, China
- Mr Marvin Cao
PRODUCT DETAIL
| Warranty: | unavailable | color: | silver or black |
| Z-axis travel: | about 100 mm | Travel (Y-axis) (mm): | 1270 mm |
| Number of spindles: | single | Core components: | Bearings, motors, engines |
| Local service location: | not any | Spindle speed range (rpm): | 8000 - 24000 rpm |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other |
| motor: | Stepper Motor - High Torque 2.45Nm | Repeatability (X/Y/Z) (mm): | 0.05mm |
| Video external inspection: | Not available | After Warranty Service: | Online support |
| brand: | Yuyong Industry, Yuyong Industry | Showroom location: | not any |
| Marketing Type: | New Products 2020 | CNC or not: | CNC |
| Health status: | new | Certification: | Chief Executive |
| Positioning accuracy (mm): | 0.05mm | Dimensions (L*W*H): | 1000mm x 1500mm |
| strength: | 24V 350W output | Weight (kg): | 52 |
| Mechanical test report: | Not available | Main selling point: | high accuracy |
| Stroke (X-axis) (mm): | 800 mm | Drive System: | TR8x8(P2) ACME lead screw |
| Core Components Warranty: | Not available | place of origin; place of origin: | Guangdong, China |
| Spindle motor power (kW): | 1.5/2.2 | Voltage: | 110V/220V |
| Type of machine: | CNC router | Table size (mm): | 1000x1500 |
| Control system brand: | Mach 3 |
Product Description
1515Lead CNC Full Kit Lead CNC Router Machine Full kit engraving and engraving machine 1500mmx1500mm
The Lead CNC machine was originally designed by Mark Carew under a CC – Attribution – CC BY license. It is a super powerful, accurate and easy to assemble CNC machine.
The Cable Chain Bundle contains all the hardware to install the Cable Chain on WorkBee, Ox CNC or other CNC machines to assist with cable management.
Mach3 (NVUM) and GRBL USB Controller Bundle are perfect for engraving machines.
The Lead CNC machine was originally designed by Mark Carew under a CC – Attribution – CC BY license. It is a super powerful, accurate and easy to assemble CNC machine.
Based on C-beams, V-grooves, Xtreme solid V-wheels and TR8x8(P2) lead screws, it is strong, accurate and reliable.
It is designed to precisely cut foam, wood, plastic and aluminum to an accuracy of 0.05-0.10mm or better.
Functional engineered parts, toys, signs, or anything imaginable, can be manufactured on Lead CNC machines.
The kit has some slight differences from the design posted by Mark Carew. Most notable is the use of black corner connectors instead of cast brackets for added rigidity.
It is designed to precisely cut foam, wood, plastic and aluminum to an accuracy of 0.05-0.10mm or better.
Functional engineered parts, toys, signs, or anything imaginable, can be manufactured on Lead CNC machines.
The kit has some slight differences from the design posted by Mark Carew. Most notable is the use of black corner connectors instead of cast brackets for added rigidity.
The Cable Chain Bundle contains all the hardware to install the Cable Chain on WorkBee, Ox CNC or other CNC machines to assist with cable management.
Mach3 (NVUM) and GRBL USB Controller Bundle are perfect for engraving machines.
Materials suitable for cutting/milling/engraving:
Aluminum / Hardwood / Softwood / Oak / Plexiglass / Delrin / HDPE / Foam
Aluminum / Hardwood / Softwood / Oak / Plexiglass / Delrin / HDPE / Foam
This complete kit includes:
* Lead CNC Machine Kit
* 4 x Nema23 (1.26Nm) stepper motors for GRBL option
* 4 x Nema23 (2.45Nm) stepper motors for Mach3 option
* Cable drag chain bundle
* Wiring cable kit
* GRBL or Mach 3 Controller Bundle
* 1.5kW/2.2kW air-cooled or water-cooled spindle group
* All extrusions have M5 threads where necessary
* PDF assembly manual available via email
* Lead CNC Machine Kit
* 4 x Nema23 (1.26Nm) stepper motors for GRBL option
* 4 x Nema23 (2.45Nm) stepper motors for Mach3 option
* Cable drag chain bundle
* Wiring cable kit
* GRBL or Mach 3 Controller Bundle
* 1.5kW/2.2kW air-cooled or water-cooled spindle group
* All extrusions have M5 threads where necessary
* PDF assembly manual available via email
Specifications of the Nema 23 stepper motor:
* NEMA 23
*Shaft size: 1/4"
* Step angle: 1.8
* Holding torque: 1.26 Nm / 2.45Nm
* Rated voltage: 3.36 V
* Rated current: 2.8 A / 3A
Specifications of the 1.5 kW air-cooled/water-cooled spindle:
* 1.5kW air-cooled spindle net weight: 2.6kg
* 1.5kW air-cooled spindle size: φ65 x 205 mm
* 1.5kW water-cooled spindle net weight: 4.2kg
* 1.5kW water-cooled spindle size: φ80 x 205 mm
* Power: 1.5 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 8000-24000 rpm
* air/water cooling
* Runout: less than 0.005 mm
* Grease lubrication
* VFD inverter 1.5 kW 220 V or 110 V
* Collet: ER11 (15pcs, size from 1 mm to 7 mm)
Size: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm
2.2 kW water-cooled spindle specifications:
* Net weight: 5.3kg
* Spindle size: φ 80 x 215 mm
* Power: 2.2 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 0-24000 rpm
* water cooling
* Runout: less than 0.005 mm
* Grease lubrication
* VFD inverter 1.5 kW 220 V or 110 V
* Chuck: ER20 (28 pieces, size from 1mm to 13mm)
* NEMA 23
*Shaft size: 1/4"
* Step angle: 1.8
* Holding torque: 1.26 Nm / 2.45Nm
* Rated voltage: 3.36 V
* Rated current: 2.8 A / 3A
Specifications of the 1.5 kW air-cooled/water-cooled spindle:
* 1.5kW air-cooled spindle net weight: 2.6kg
* 1.5kW air-cooled spindle size: φ65 x 205 mm
* 1.5kW water-cooled spindle net weight: 4.2kg
* 1.5kW water-cooled spindle size: φ80 x 205 mm
* Power: 1.5 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 8000-24000 rpm
* air/water cooling
* Runout: less than 0.005 mm
* Grease lubrication
* VFD inverter 1.5 kW 220 V or 110 V
* Collet: ER11 (15pcs, size from 1 mm to 7 mm)
Size: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm
2.2 kW water-cooled spindle specifications:
* Net weight: 5.3kg
* Spindle size: φ 80 x 215 mm
* Power: 2.2 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 0-24000 rpm
* water cooling
* Runout: less than 0.005 mm
* Grease lubrication
* VFD inverter 1.5 kW 220 V or 110 V
* Chuck: ER20 (28 pieces, size from 1mm to 13mm)
Size: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/ 9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/12.5mm/12.7mm/13mm
caution:
*This kit does not include the MDF table and drill.
*This kit does not include the MDF table and drill.

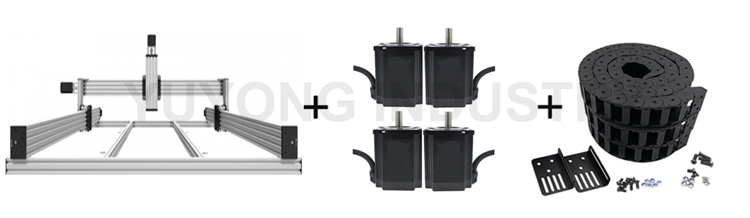

The package includes:
Mechanical Kit + 4 Nema23 (175 oz*in or 345 oz*in) Stepper Motors + Cable Chain Bundle
Mechanical Kit + 4 Nema23 (175 oz*in or 345 oz*in) Stepper Motors + Cable Chain Bundle

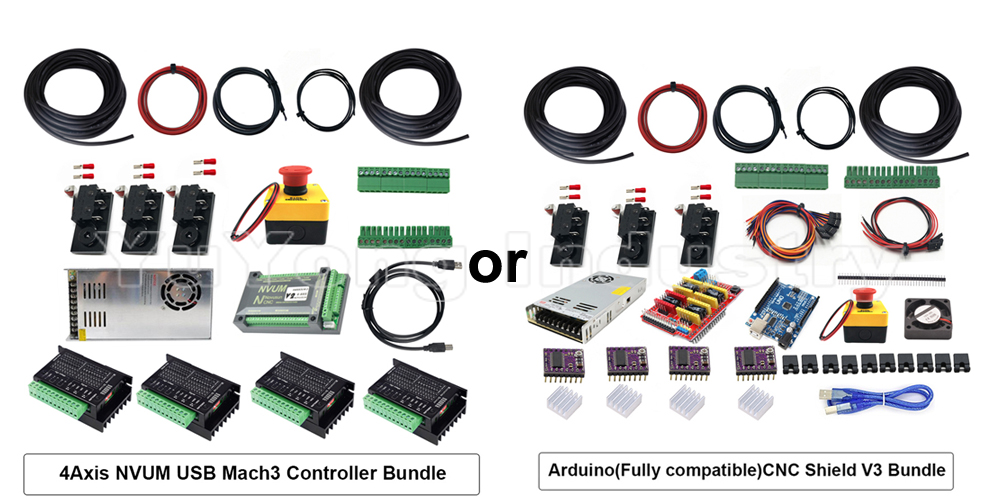

Controller options:

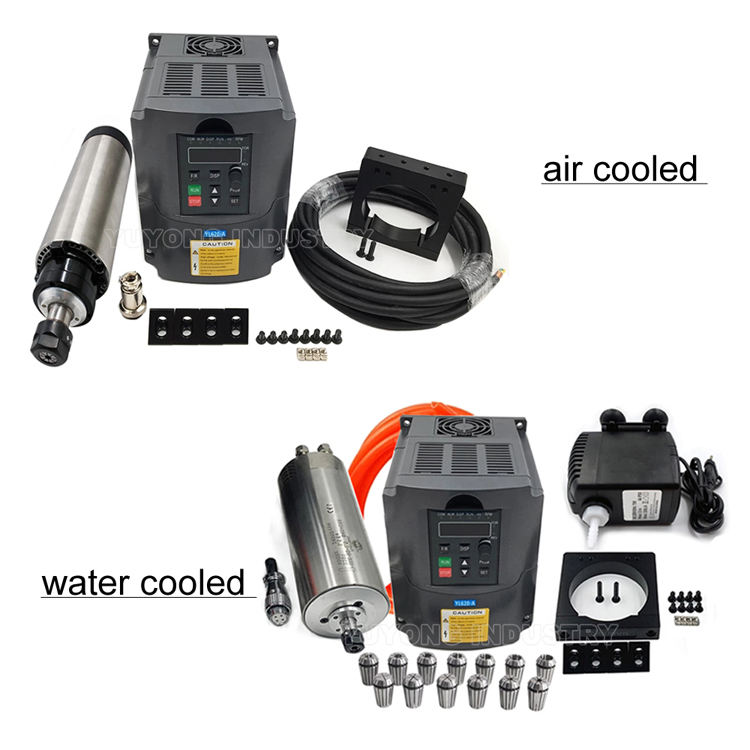

Spindle options: 1.5kW/2.2kW air-cooled or water-cooled spindle bundle

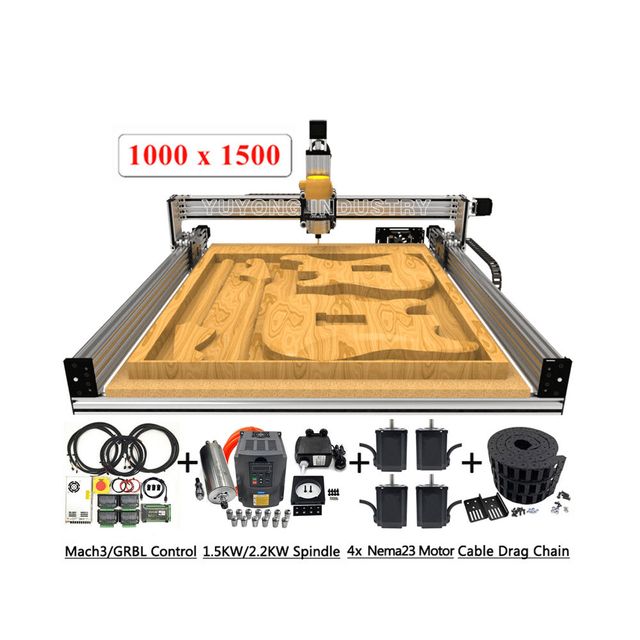

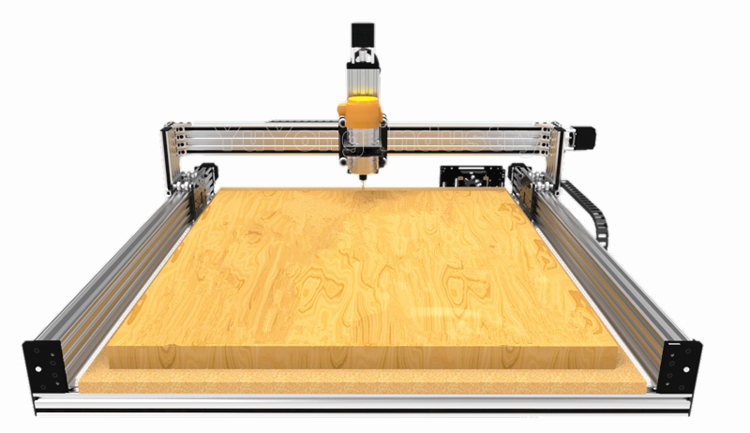

detailed picture

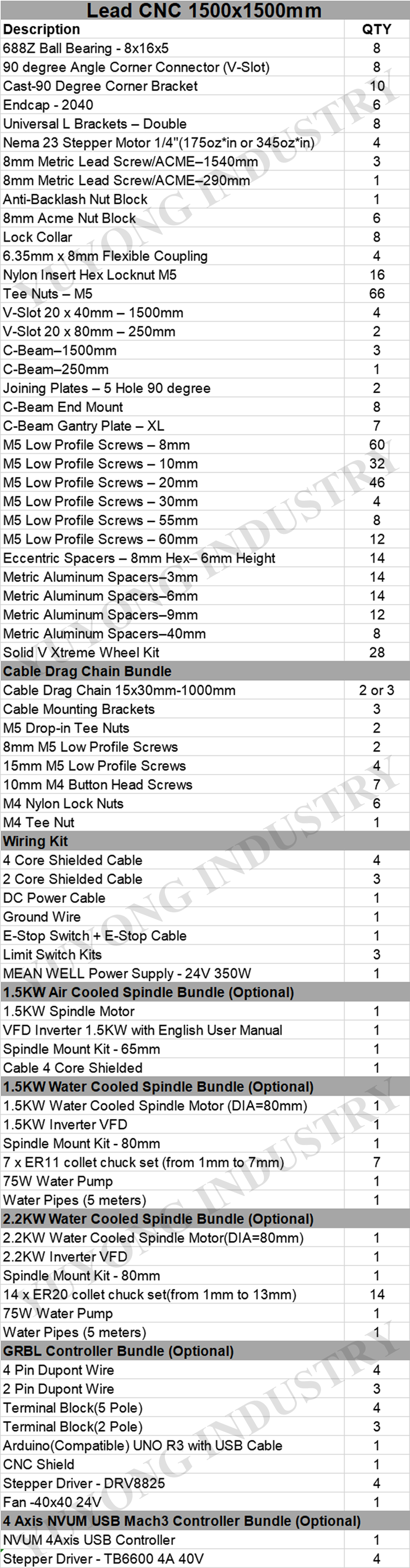

Product Parts List
Product packaging
VIEW MORE
