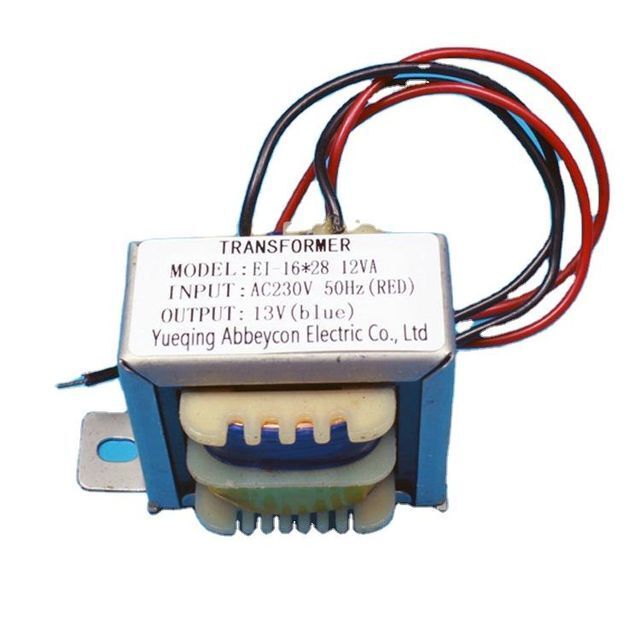

110V 220V to 6V 9V 12V 15V 18V 24V electric power mini transformer, transformator 100kw
- $0.01 /piece
- 1 piece
- Yueqing Aibeiken Electric Co., Ltd.
- Zhejiang, China
- Ms Nina Tao
| Supply Ability: | 99900000000 Pieces per Week electric power mini transformer; | Coil Structure: | TOROIDAL; |
| Product type: | electric power mini transformer; | Usage: | Power; |
| Secondary voltage: | 0~36V; | Temperature rise: | Less than 20℃; |
| Package Preview: | ; | Transformer type: | EI transformer; |
| Phase: | Single; | Coil Number: | AUTOTRANSFORMER; |
| EI type: | EI20 EI24 EI28 EI30 EI35 EI48 EI54 and others; | Standard: | IEC60076, GB/T15290-94, GB/19212-2006, GB2828-2829-87; |
| Advantage: | Best price & Best quality in China; | Place of Origin: | Zhejiang, China; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal, Credit card; | Brand Name: | ABILKEEN; |
| CERTIFICATION: | CE/ROHS/CESI/ CTQC; | Port: | Ningbo, Shanghai, Wenzhou; |
| Primary voltage: | 0~250V; | Packaging Detail: | electric power mini transformer 1)Exported carton 2)Special package required by clients.; |
| Frequency: | 50Hz or 60Hz; | Model Number: | electric power mini transformer; |
220v 230V 110v EI transformer pcb mount power transformer applied in the switching power supply,main power transformer. electric power mini transformer
| Model | Specification | A | B | C | D | E | I | J | Power |
| EI28 | EI-28X12 | 30 | 41 | 27 | 51 | 26 | 7 | 3 | 1.0W |
| EI-28X15 | 30 | 41 | 27 | 51 | 28.6 | 7 | 3 | 1.5W | |
| EI-28X18 | 30 | 41 | 27 | 51 | 31.5 | 7 | 3 | 2.0W | |
| EI35 | EI-35X10 | 37 | 49 | 31 | 59 | 27.4 | 6.4 | 4 | 1.0W |
| EI-35X15 | 37 | 49 | 31 | 59 | 31.4 | 7 | 4 | 2.0W | |
| EI41 | EI-41X20 | 43 | 55 | 35 | 65.3 | 37.8 | 6.3 | 4 | 6.0W |
| EI-41X26 | 50 | 55 | 35 | 67 | 45.7 | 6.3 | 4 | 10.0W | |
| EI48 | EI-48X20 | 50 | 63 | 43 | 75 | 38.3 | 8 | 4 | 10.0W |
| EI-48X30 | 59 | 63 | 43 | 75 | 50 | 8 | 4 | 18.0W | |
| EI57 | EI-57X25 | 59 | 74 | 50 | 84 | 48 | 7.3 | 4 | 20.0W |
| EI-57X30 | 59 | 76 | 51 | 91 | 50.8 | 10 | 6 | 28.0W | |
| EI-57X35 | 68 | 76 | 51 | 91 | 56.8 | 10 | 4 | 36.0W | |
| EI66 | EI-66X30 | 68 | 84 | 59 | 98 | 56.6 | 10 | 4 | 36.0W |
| EI-66X35 | 68 | 84 | 59 | 98 | 59.8 | 10 | 4 | 50.0W | |
| EI-66X44 | 68 | 84 | 59.3 | 108 | 68.7 | 12 | 5 | 70.0W | |
| EI76 | EI-76X32 | 78 | 95 | 67 | 108 | 64 | 8 | 4 | 52.0W |
| EI-76X38 | 78 | 95 | 67 | 108 | 65.6 | 9 | 5 | 70.0W | |
| EI-76X45 | 78 | 93 | 67 | 106 | 75.2 | 9 | 5 | 90.0W |
electric power mini transformer
Our transformer can transfer AC voltage of 100V, 110V, 120V, 200V, 220V, 230V, 240V to lower AC voltage. The input could be provided with single, double or triple voltage winding. Output can be provided from single to several winding. The size of our EI Transformer from EI-28 to EI-114, capacity up to 250W. We can supply with both screw mountings and pin dipping types.
electric power mini transformerApplication:
This single-phase transformer is widely applied to the little power of DVD, hi-fi stereo, TV, small adaptor, beauty equipment, instruments and Apparatuses equipment, stage light, lighting control circuit, air-conditioning equipment control circuit, medical equipment, monitoring equipment, automation equipment control circuit, machinery and equipment, energy-efficient equipment. electric power mini transformer
Basic Data:
Capacity: 0.5VA-250VA
Phase: Single phase
Input: AC Power with Voltages of Various Countries
Output: AC Current, Voltage, According to Customers Requirements
Frequency: 50-60Hz
Voltage Regulation: 12%-3%
Manufacture Standard: GB/T15290-94, GB/19212-2006, GB2828-2829-87
Insulation Class: B, 130 Celsius Degree; E, 120 Celsius Degree
Temperature-rise: ≤85 Celsius Degree electric power mini transformer
Features:
a) High efficiency, We use good silicon sheet and good copper wire
b) Low heat generation
c) 3 frames or full isolation bobbin
d) The cores are lapped by silicon steel sheet of high - quality and have been treated by insulation
e) Clean appearance and convenient installation
f) Competitive pricing.
Testing Items:
No-load Test(No-load Current, No-load Voltage, No-load Loss)
Load Test (Load Voltage, Temperature-rise)
Inductive Voltage Test, DC Resistance Test, Safety Test
Operating environment:
1) Temp.: The ambient temperature can not over +40°C.
2) Altitude: Mounting location can not exceed the altitude of 2000m
3) Relative humidity: Maximum 90%
4) The site not attack by rain and snow
5) The medium which no explosion danger, no corroding metal, no electrical breakdown
electric power mini transforme
Trade terms: transformer oil price
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Ningbo,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 10-30 days according to order quantities.
Feedback: transformer oil price
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help. electric power mini transformer transformer oil price
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch: Raw material check, Winding test, Assemble test, Painting check, Nameplate check and routine tests.
2. Competitive production capacity: Daily production more than 9999000000 pcs.
3. Manufacturer's price: Factory direct sale, most competitive price in China.electric power mini transformer
Our company:
Our transformers sell well all over the world, and are exported to Europe, Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa and so on. We have won a good reputation among customers at home and abroad. We will do our best to provide more high-quality products and services for you in the future! electric power mini transformer
Packing:
(Main products: EI 220v small transformer, BK isolation transformer, 100VA 200VA 150VA 250VA 3A 5A 12V transformer,single phase transformer,PCB transformer,dry transformer, power transformer,oil transformer, distribution transformer, machine transformer, 6v transformer)
