12/24V Centrifugal brushless DC blower for cleaner Floor scrubber and sprayer
- $41.00 / 2 - 99 pieces
$31.00 / 100 - 999 pieces
$28.00 / >=1000 pieces - 2 pieces
- Xian Huan-Tai Technology & Development Corp., Ltd.
- Shaanxi, China
- Ms Constance Zhang
| Rated Voltage( V): | 12v; | Bearing: | NSK double balls bearing; |
| Packaging Detail: | carton and no-wooden box; | Package Preview: | ; |
| Warranty: | 3months-1year; | Max air pressure: | 14KPa; |
| Max Current: | 13.5A; | Port: | Shanghai; |
| Max Speed: | 16500RPM; | Certification: | CE; |
| Model Number: | LB; | Brand Name: | HUANTAI; |
| Max Airflow: | 2000L/M; | Noise: | 55 DBA; |
| Weight: | 550g; | Size: | D:145mm H 160mm; |
| Max Power: | 300W; | Place of Origin: | Shaanxi, China; |
| Supply Ability: | 1000 Pieces per Month; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal; |

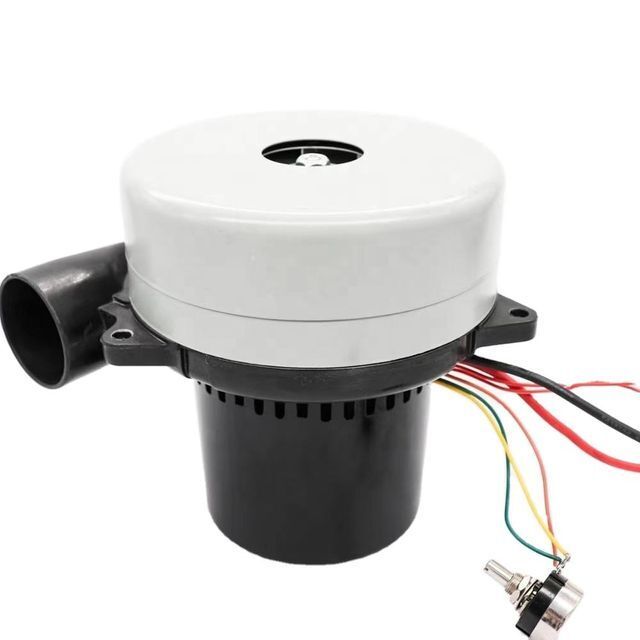

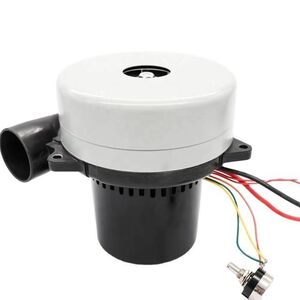

12/24V Centrifugal brushless DC blower for cleaner Floor scrubber and sprayer
|
Project |
Unit |
12V |
|
Voltage |
V |
12V |
|
Max Speed |
rpm |
16500+/-5% |
|
Max Current |
A |
13.5 |
|
Max airflow |
L/min |
2000 |
|
Max air pressure |
KPa |
14 |
|
Max Power |
W |
300 |
|
Size |
mm |
D:145mm,H:160mm |
|
Weight |
g |
550 |
|
Holzer angle |
degree |
/ |
|
Bearing |
|
NSK double balls bearing |
|
Noise |
db(A) |
55(1M-1KPa) |
|
Speed adjustment |
|
0-5V |
|
Temperature |
℃ |
-20℃~45℃ |
1pcs/carton,
We can customize motor as your requested.
Since 1996, Topping Motor has been a leading electric motor solution provider. We helped numerous customers design drive solution system and deliver high quality motors. Our sales are mainly based on Europe, North America, Australia, Southern Asia and South Africa etc.
· Quality Assurance
As an ISO9001:2015 certified company, we know quality is without doubt the most important thing to survive in the market for long term. All motors will be tested strictly in house. With well experienced employees and highly automated production lines, we are able to achieve a better product performance, lower defect rates and longer working life expectancy.
· Diversified Product Lines
We keep innovating on R&D on new products. In the past twenty years, we successfully expanded our product lines to DC brush motors, DC brushless motors, stepper motors, AC motors, control motors and other custom-designed motors.
· Design Capability
We are proud of our creative and professional engineer team. No matter you are looking for ongoing production stream, small trial order or only a prototype, our engineer team are willing to provide you the most effective motor solution.
· Excellent Customer Service
Our passionate sales team promise rapid response for your inquiry with 99% quote accuracy. All of the team members speak English very well. The value we bring is exactly saving your time and money.
Topping Motor, a better motor drive solution provider.
FAQ
How to select motor:
(1) Confirm the Voltage, Torque, Structure, Work rule;
(2) Structure: Right Angle Output, Straight Output, Go and Back, Rotation Work Line Work.
Work Rule: How long work in a period;
(3) Torque: Constantly Working Torque should not exceed 75% of the motor' s Rated Torque.
Instantly Working Torque should not exceed motor' s Rated Torque;
(4) Motor under loading, Measure Current should not exceed motor' s Rated Current.
If necessary,you can install 0vercurrent Protection Device.
Why don' t motor running?
Your motor if is low speed motor,extra low speed motor should observe carefully. Connect ion if is correct, and other electric parts if is fine.
All products from our store was test before shipping, and with best package. If also have
problem please contact us.
Install and Operate notes:
(1)Don' t store or operate in high temperature or damp environment,and avoid gas environment.
(2) The motor' s shaft axial direction and radial direction bearing stress should not exceed it ability.
(3) When install gears/ sprockets/pulleys on the output shaft, don' t unusual strike. When fix motor,screws, length should not be too long,or will break the parts inside motor.
About noise: DC high speed motor will produce a little noise,if very care about noise,please kindly contact us.
