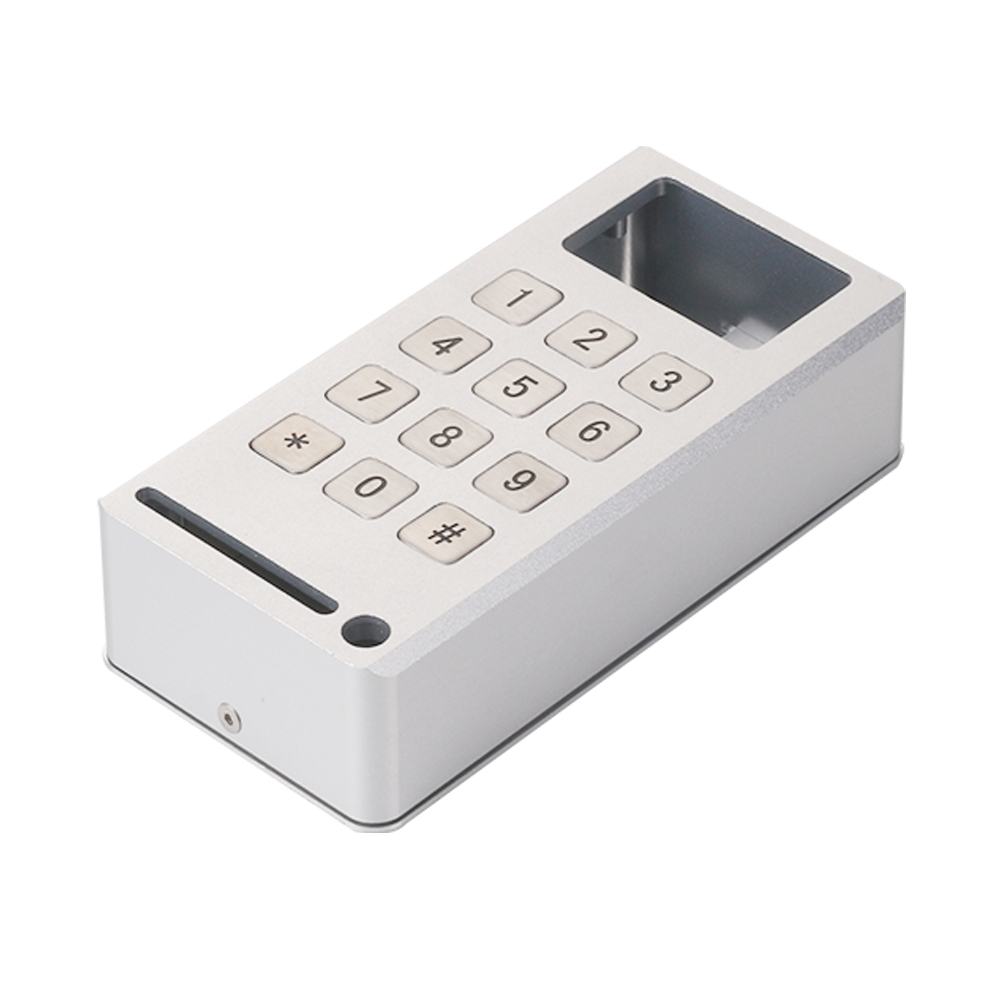

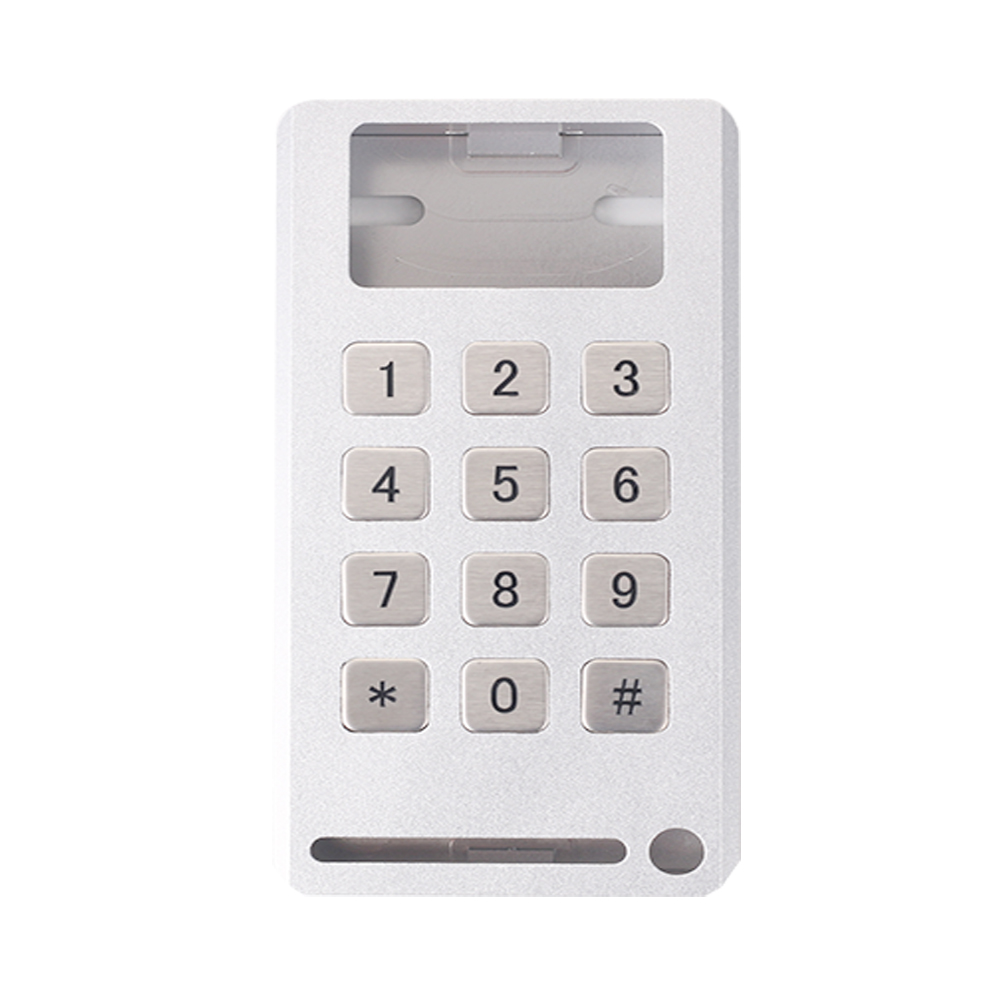

12-key custom aluminum keypad anti-vandal control panel keypad
- $10.00 /set
- 1 set
- Yuyao Jiexin Electronics Technologies Co., Ltd.
- Zhejiang, China
- Ms Lea Huang
| Material: | aluminum | Keyboard button material: | Metal |
| Packaging Details: | Product name: 12-key customized aluminum keyboard anti-vandal control panel keyboard inner box 1 set carton 30 sets carton size 46*27*18CM carton GW 14KG | feature: | Anti-vandal keyboard |
| brand: | home credit | place of origin; place of origin: | Zhejiang, China |
| payment terms: | wire transfer | port: | Ningbo |
| application: | outdoor | Name: | 12-key custom aluminum keypad anti-vandal control panel keypad |
| model: | JX_CNC_BOX | Supply capacity: | 5000 sets per month |
welcome to buy
12-key custom aluminum keypad anti-vandal control panel keypad
We are a professional keyboard manufacturer with high-end equipment and the best after-sales service, your goods will be 100% inspected and delivered quickly. When you choose us, you choose the best solution.
back to the homepage
mechanical data | |
model | JX_CNC_BOX |
key | 12 keys |
switch material | Carbon Gold Key Switch Technology PCB |
driving force | 2.0 N+/-0.1N (pressure point) |
Frame/Key Material | aluminum |
aspect | 74mm*151mm |
key size | 14.0mm *14.0mm |
key travel | 0.45mm |
Key life | More than 1 million operations |
gross weight | about 350 grams |
electrical data | |
voltage | 0-24V DC |
current rating | about 20mA |
Contact resistance | 5 ohms (maximum) |
Electrical life | > 5 years |
interface | matrixMale outgoing connector 7PIN 2.54mm or customPS2/USB/RS232 |
operating system | All Windows, Linux, Unix, Mac OSX |
Environmental adaptability | |
Operating temperature | -20℃to +75℃ |
Storage temperature | -35℃to +85℃ |
Operating Relative Humidity | 30-90%RH |
barometric pressure | 60-106Kpa |
reliability | |
degree of protection | IP65 (front panel) |
Anti-vandalism | IK09 |
