12 tons Chinese locomotive depot for sale
- $38000.00 /set
- 1 set
- Xiangtan Electric Locomotive Factory Co., Ltd.
- Hunan, China
- Mr Liu
| gauge: | 600, 762 or 900mm (on request) | Adhesive Weight: | 12 tons |
| Type of gasoline: | electrical | Hourly System Traction: | 16.48kN or 18.93kN |
| port: | any port in China | minute. Turning radius: | 10 or 15m |
| Speed (km/h): | 9.6 km/h | Motor Power: | 22kW*2, 30kW*2 |
| Supply capacity: | 1500 sets per year | maximum. Traction: | 29.43kN |
| place of origin; place of origin: | Hunan, China | Speed mode: | Resistor or IGBT or AC Converter |
| System speed per hour (km/h): | 8.7 or 9.6 | brand: | Shaoli |
| horsepower: | 22kW*2 | voltage: | 192V or 256V |
| Packaging Details: | Standard Ocean Packaging | Dimensions (L x W x H) (mm): | 4740*1050*1600mm |
| payment terms: | letter of credit, wire transfer | Power battery capacity: | 560Ah (5 hours capacity) |
| Packaging Preview: |

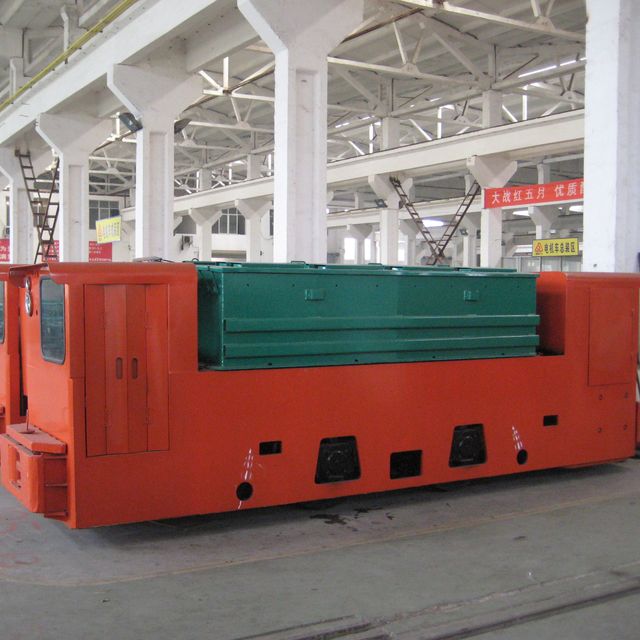

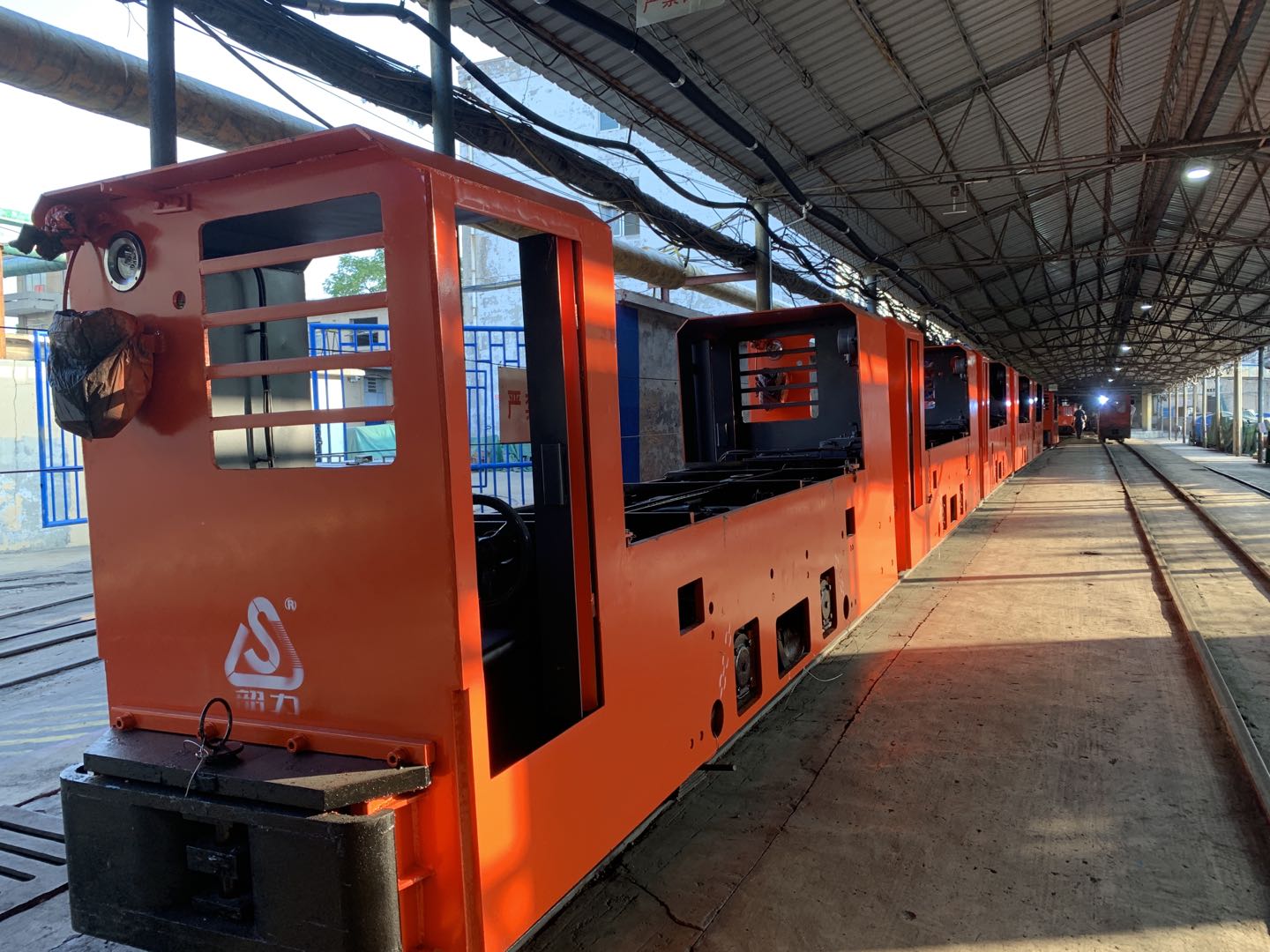

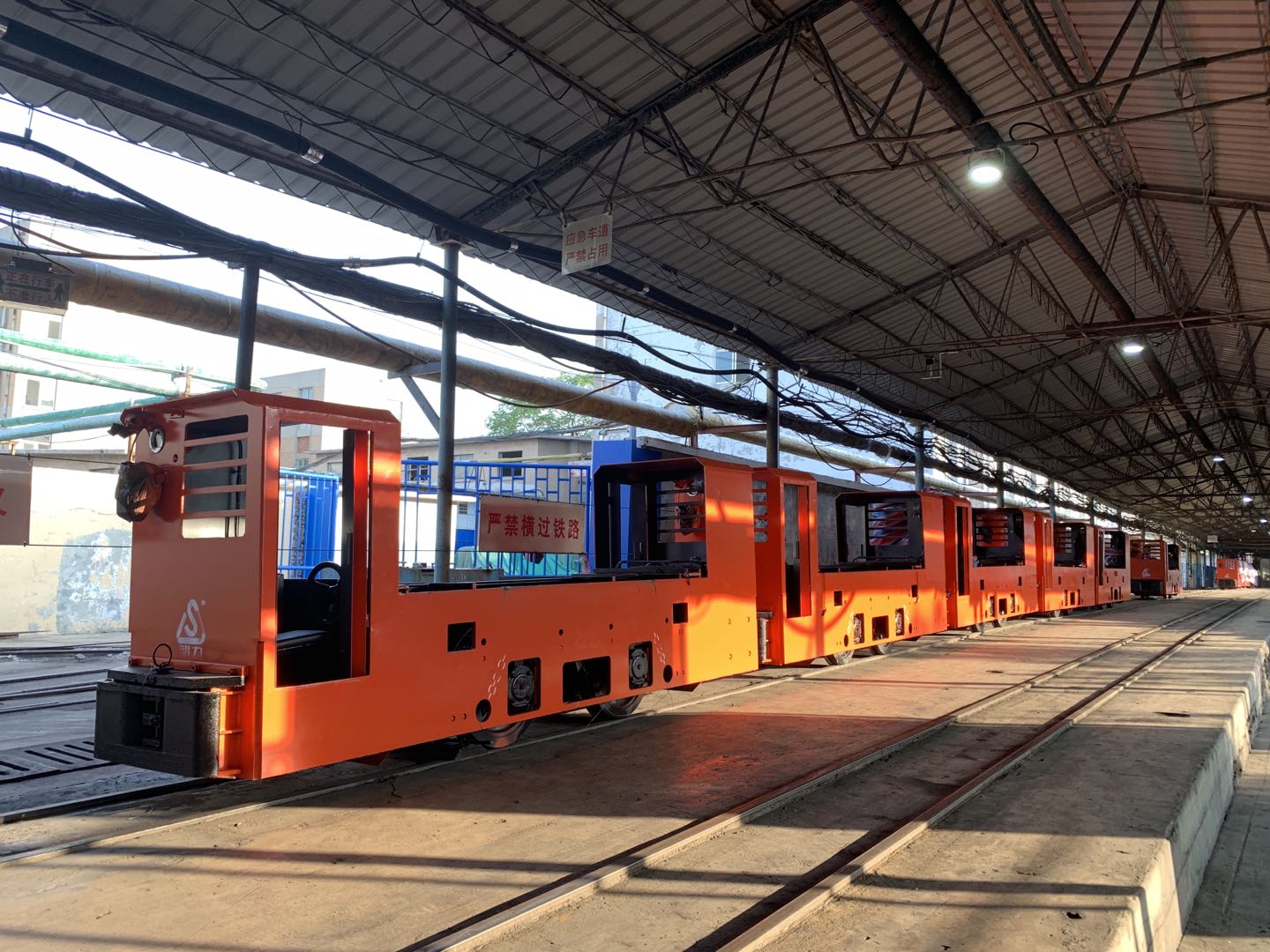

Factory sells 12 ton mining locomotives for mining and tunnel transport
Product Details
|
Model Name |
CTY(L)12/6, 7, 9G(B) |
CTY(L)12/6, 7, 9GP |
CTL12/6, 7, 9GP-G high-speed models |
|
adhesive weight |
12 tons |
||
|
track gauge |
600, 762 or 900 mm |
||
|
Hourly System Traction |
16.48kN or 18.93kN |
16.748kN or 22kN |
15.96kN |
|
maximum. traction |
29.43kN |
31.2kN |
32kN |
|
System speed per hour (km/h) |
8.7 or 9.6 |
8.7 or 9 |
14.03 |
|
maximum. speed |
/ |
/ |
28 km/h |
|
voltage |
192V or 256V |
192V |
216V |
|
Power battery capacity |
560Ah (5 hours capacity) |
||
|
Motor Power |
22kW*2, 30kW*2 |
22kW*2, 30kW*2 |
30kW*2 |
|
length |
4740,5100,5250mm |
5100mm |
|
|
width |
1050, 1212, 1350, 1450mm |
1090, 1212 or 1350mm |
|
|
high |
1600mm or 1900mm |
1900mm |
|
|
wheelbase |
1220mm or 1750mm |
1750mm |
|
|
Wheel diameter |
Φ680mm |
||
|
towing height |
320 or 430 mm |
||
|
minute. Turning radius |
10 or 15m |
10m |
|
|
Speed mode |
Resistor or IGBT |
AC converter |
|
|
brake mode |
Mechanical, pneumatic, electric brake |
||
frame
Made of welded steel and suspended by leaf springs or rubber studs on greased housings with tapered roller bearings.
speed control
In order to realize continuous stepless speed regulation, it is equipped with a highly reliable electronic speed governor.
The AC converter converts the DC power in the battery to AC power, and the controller adjusts the speed of the AC motor by the power frequency of the AC converter.
AC motor
Compared to DC motors, three-phase AC motors do not have carbon brushes and any other wearing parts. The double-cab 8-ton battery locomotive adopts double-cab, which provides better vision for the operator.
brake
Pneumatic braking of all four wheels via brake shoes. The brake is stopped by the manual mechanical brake.
Sanders
Pneumatic (or mechanical) grinding system to rails.
Battery
The battery case is made of steel with an acid-proof coating on the inside. Each device has 55 to 72 lead-acid batteries stored in series.
Shock Absorber and Motor Suspension
The locomotive has two shock absorbers with spring dampers for complete shock absorption of the crash. Again, the motor is suspended from the chassis via spring mounts.
