12V ultra-thin universal 52mm oil level gauge for car and motorcycle with 10 grid LED light display
- $5.00 / 2 - 49 pieces
$4.50 / 50 - 99 pieces
$4.00 / 100 - 499 pieces
$3.50 / >=500 pieces - 2 pieces
- Max Power Auto Racing Products Co., Ltd.
- Zhejiang, China
- Ms ariel zhang
PRODUCT DETAIL
| size: | standard | Supply capacity: | 10000 boxes per month |
| Transportation costs: | Contact the supplier for shipping costs to the US | engine: | 2 cylinders. 0.6L 598cc 37cid |
| car brand: | common | product name: | Water Temperature Meter Instrument Voltmeter Voltage Ga |
| Package preview: | Packaging Details: | Packaging can be made according to your requirements. | |
| power supply: | 12v | brand: | car top speed |
| delivery time: | 7 days after payment received | port: | Ningbo/Shanghai |
| type: | Oil level gauge | type: | Oil level gauge |
| Warranty: | 12 months | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| application: | common | Original serial number: | FLG-Y-CB-02 |
| Model: | 600 | model: | new |
| Year: | 1969-1972 | Origin: | Zhejiang, China (Mainland) |
| feature: | Oil level gauge | Car equipment: | Honda |
hot product
our products
brand | car top speed |
Name | fuel level gauge |
model. | Measurement |
color | nature |
delivery time | 7-10 days |
Certificate | ISO9001 |
size | standard |
MOQ | 1 |
Product Description
feature:
8 blue LEDs show fuel
1 yellow LED means low gas, 1 red LED means low gas
The fuel gauge has a delay function circuit, and the LED display will not flicker due to the shaking of the fuel tank
drive. Blue LED for clear display in strong sunlight
Install:
1. Orange +12V is connected to the positive pole of the power supply
2. Connect the negative pole of the power supply black
3. Connect the yellow line to the oil tank sensor (it must not be connected to the original test line, otherwise the oil gauge will not be accurate)
important:
This product must be used with an oil quantity sensor (that is, an oil float)
attention:
This product is only suitable for vehicles with low resistance when the oil is full or high resistance when the oil is exhausted.
If your oil float is in the opposite situation, please place an order with caution
Specification:
Material: ABS
Number of LEDs: 10 (8 blue, 1 yellow, 1 red)
LED Color: Blue/Green
Voltage: DC 12
Ohm range: 0-566 ohms
Apply for Motors and Motors

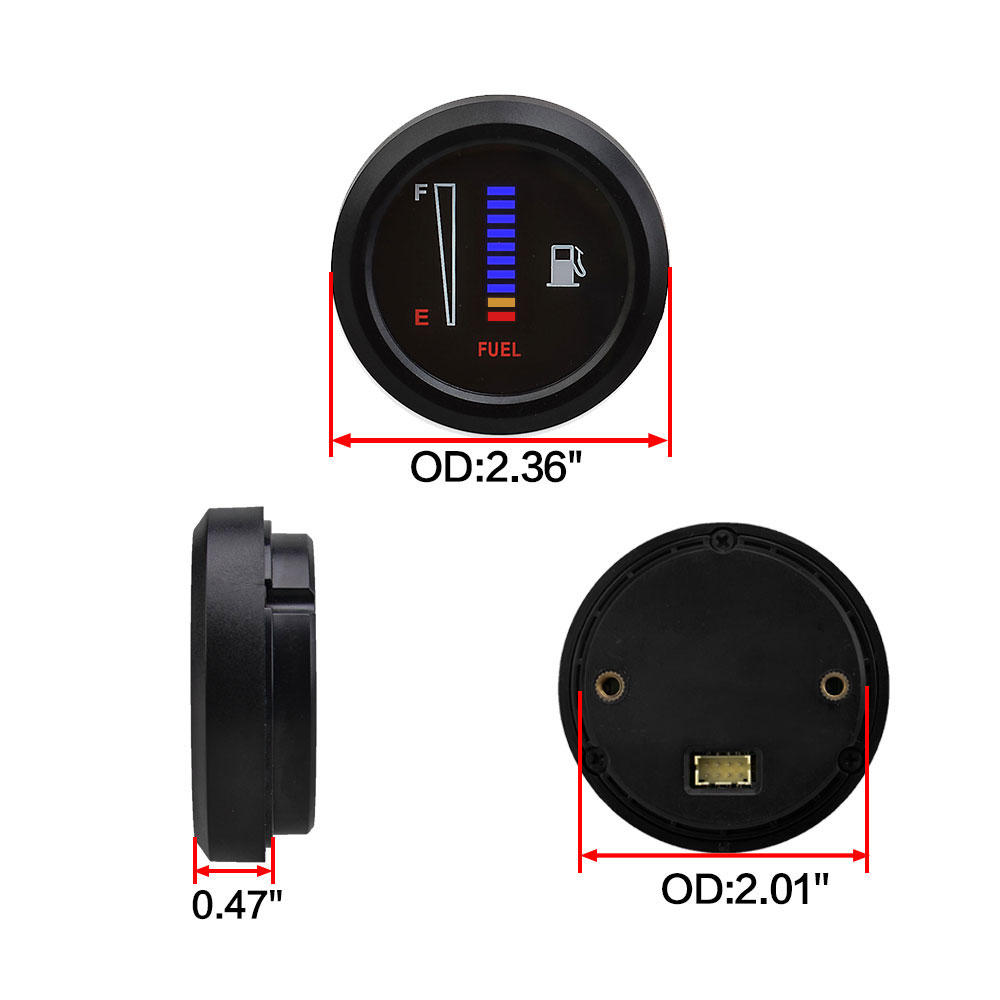

Measuring diameter: 52 mm/2.06 inches
Height: 18mm/0.7in
Cord length: 37cm/14.57in
Quantity: 1 piece
notes:
Please allow 1-3mm error due to manual measurement. Please make sure you don't mind before bidding
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

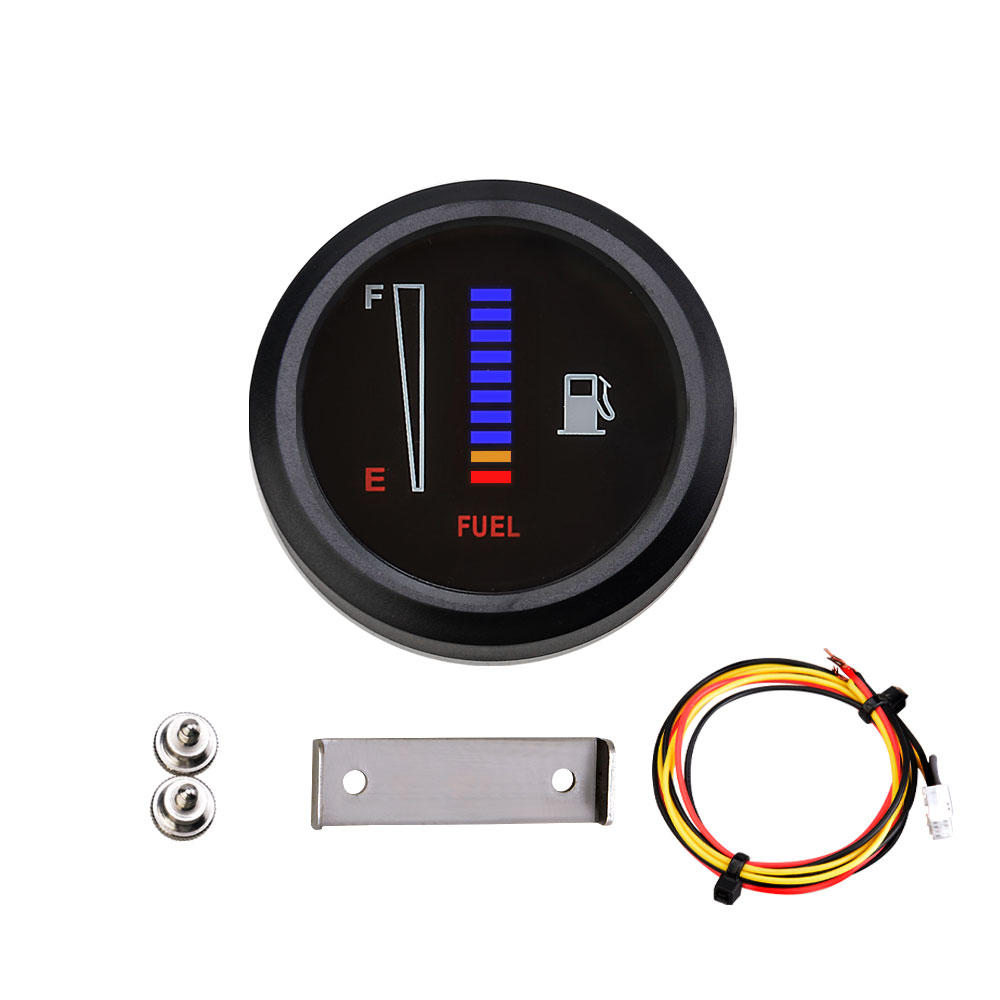

Package Contents:
1 x fuel level gauge
